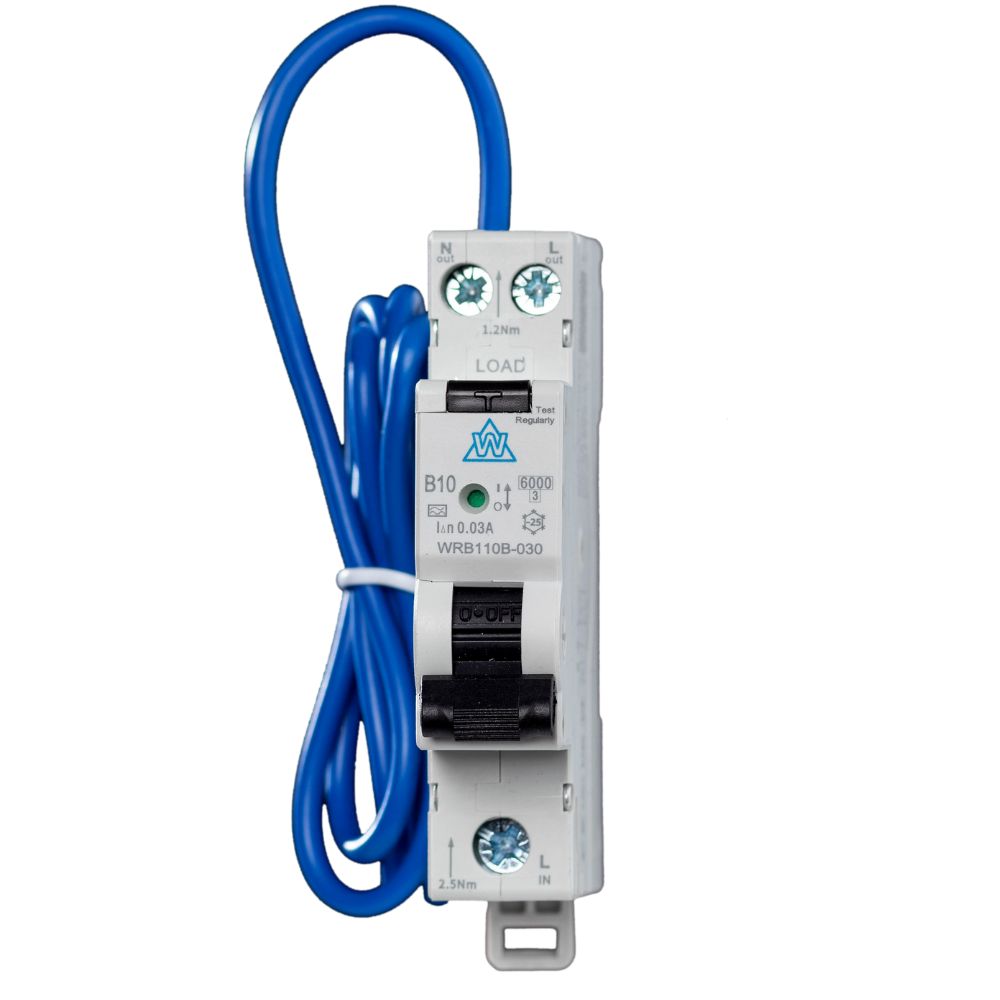

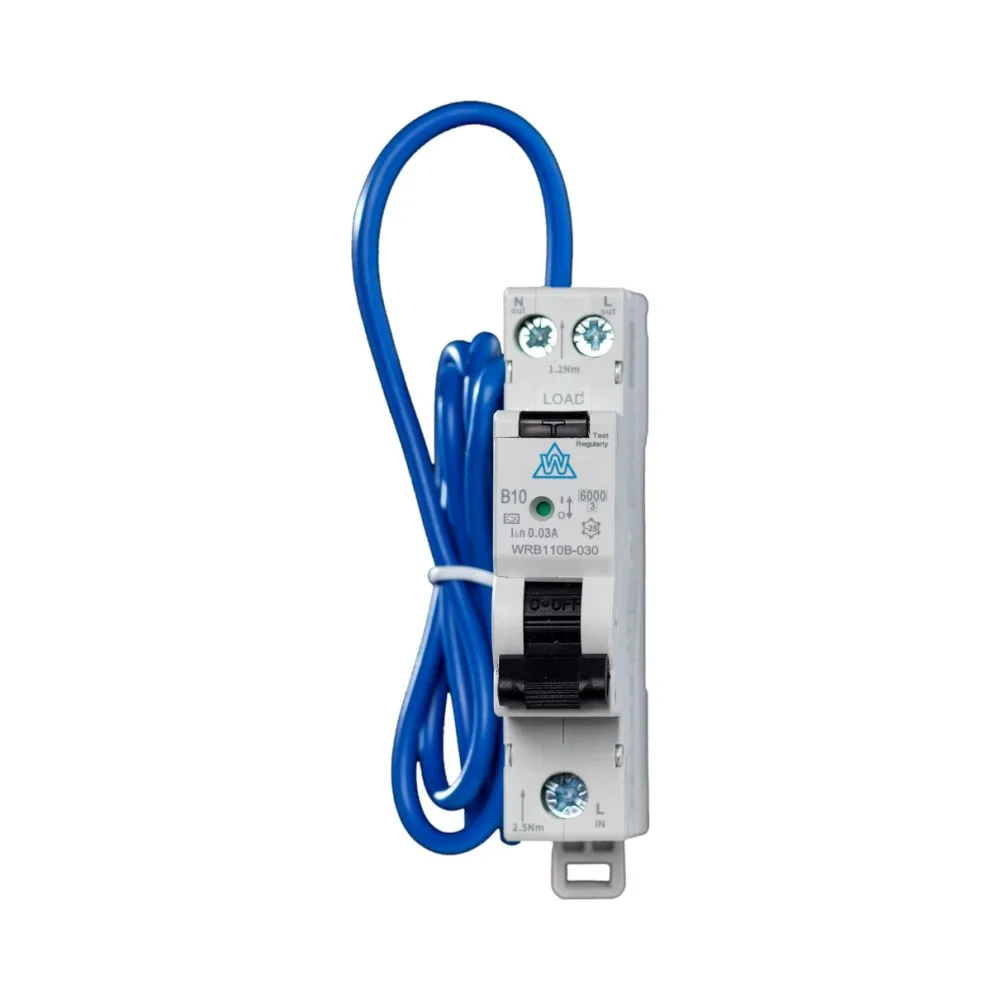

WCED Type A Bi-Directional Curve B 10A 30mA RCBO – WRB110B-030

SKU: WRB110B-030
16 In stock
More available within 1-3 working days*
Confirm Availability

Detects & respond as for type AC, PLUS pulsating DC components

Switched Live and Neutral

Live and neutral conductors do not have to be disconnected for insulation resistance testing

Compact Size

Designed for bi-directional use in PV and EV systems

The WCED Type A Bi-Directional Curve B 10A 30mA RCBO is ideal for EV and PV systems, providing protection against earth leakage and overcurrent faults in both directions. It features switched live and neutral isolation, flexible connections, and high reliability, enhancing safety in residential, commercial, and specialized applications.

£9.99 + VAT

(incl. VAT £11.99)


5-£9.49£0.50£9.99
10-£8.99£1.00£9.99

— OR —

Description

Bi-Directional Curve B 10A 30mA RCBO – WRB110B-030

Type A Bi-Directional RCBO – ideal for EV (Electric Vehicle) and PV (Photovoltaic) systems

The WRB Range of mini, compact size RCBO from Whitecliffe Circuit Protection Company (WCED) is designed for bi-directional protection, making it ideal for EV (Electric Vehicle) and PV (Photovoltaic) systems. These devices combine Type A RCD and overload protection in one unit, ensuring comprehensive safety and reliability in electrical installations.

Key Features:

  • Comprehensive Protection: Detects AC and pulsating DC components.
  • Switched Live and Neutral: Fully isolates faulty circuits.
  • Bi-Connect Terminal: Flexible connection options.
  • Ease of Testing: No need to disconnect conductors.
  • High Reliability: Maintains service for healthy circuits.

Applications:

  • Domestic: Protects household circuits and appliances.
  • Commercial: Suitable for offices and retail spaces.
  • Specialised Systems: Perfect for PV and EV systems.

Specifications:

  • Rated Current: 10A
  • Rated Voltage: 230V
  • Sensitivity: 30mA
  • Breaking Capacity: 6kA
  • Thermo-Magnetic Release: Curve B
  • Protection Degree: IP20
  • Operating Temperature: -5 to +40°C
  • Terminal Size: Top: 10mm², Bottom: 16mm²
  • Mounting: DIN rail EN 60715 (35mm0

Additional Resources:

Downloads

View Product Data Sheet

Additional information

Current Rating (A)

10

Product

RCBO

Features

Bi – Directional, Compact Size

No of Poles

1P + Switched Neutral

RCBO / RCD Type

Type A

RCD Trip Current Rating (mA)

30mA

Curve

B

Fault Current

6kA

Brand

WCED
