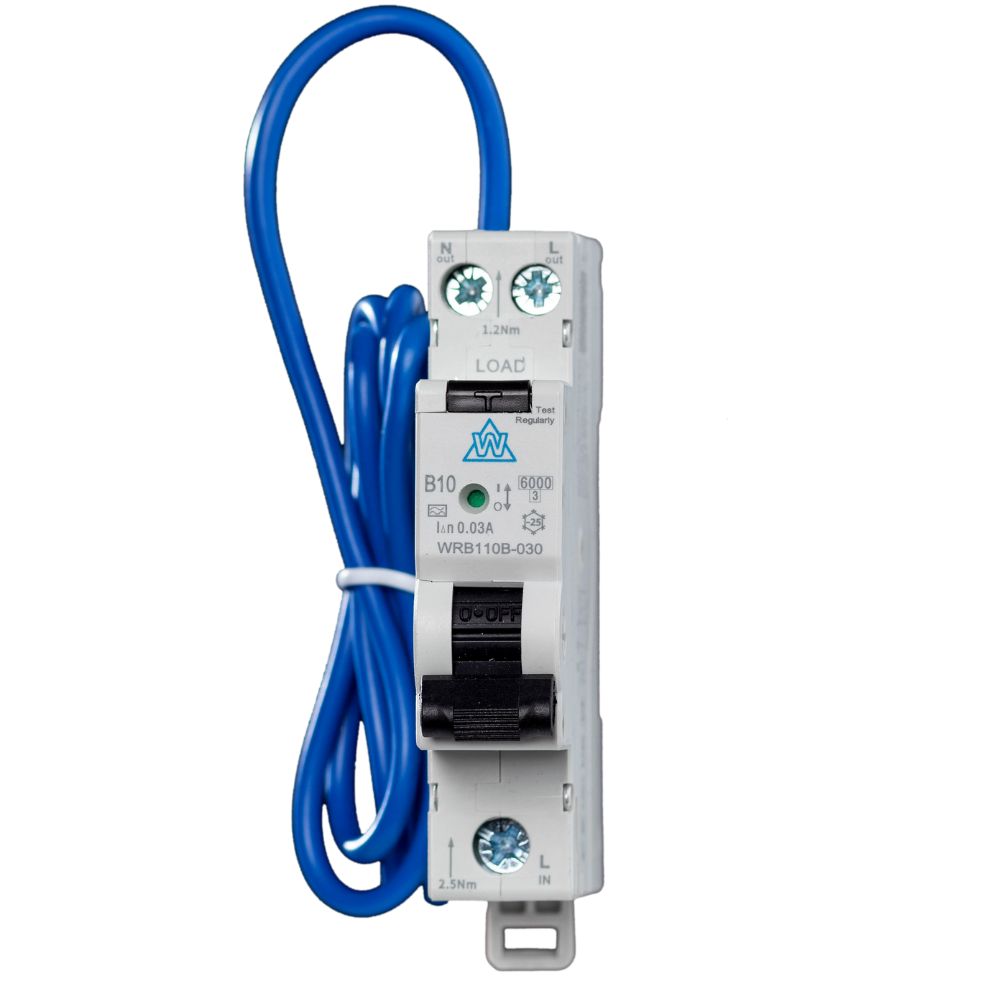

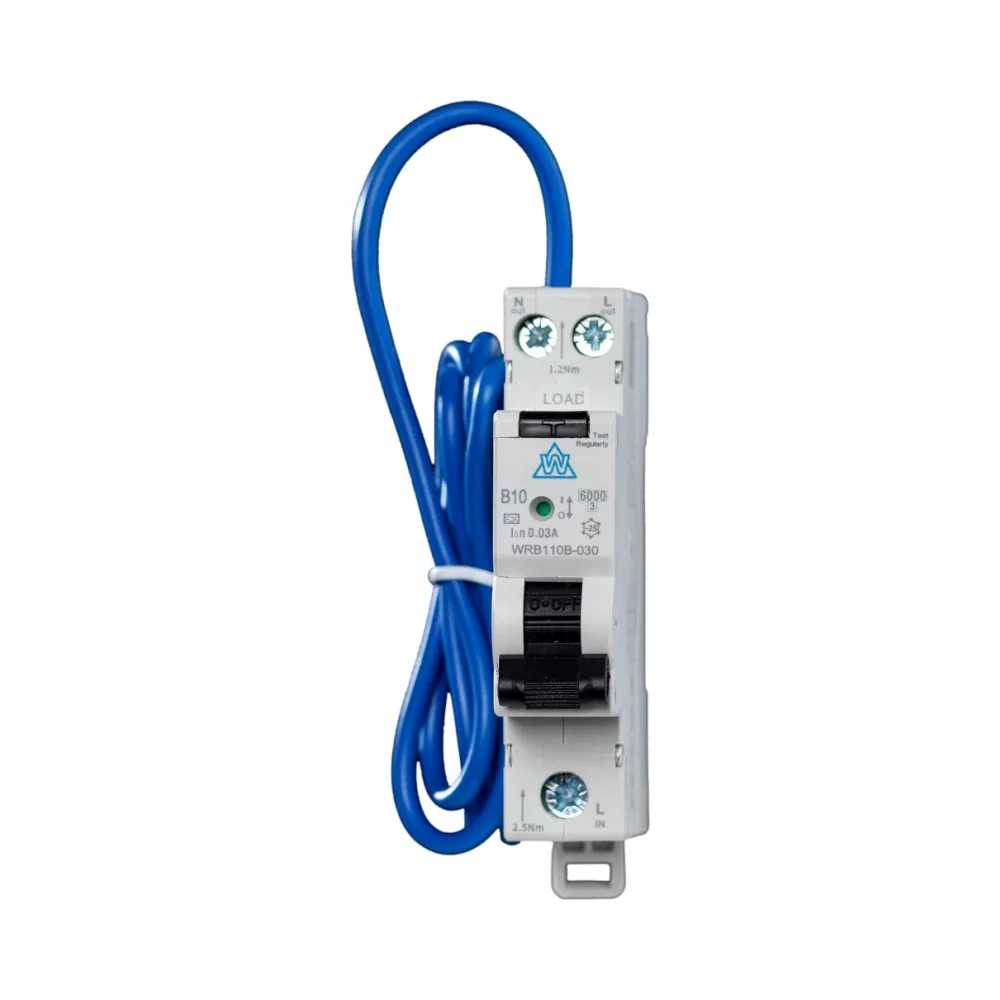

WCED WRB132B-030 Bi-Directional RCBO
The WCED WRB132B-030 Bi-Directional RCBO is a 32A B Curve protective device from the Whitecliffe Electrical WRB1 range. Combining overload, short-circuit and residual current protection within a single-module housing, it features 30mA Type A high-immunity detection and a 6kA rated breaking capacity.
Designed for suitably rated domestic and commercial circuits, the WRB132B-030 also provides bi-directional capability for compatible solar photovoltaic installations. Its switched live and neutral configuration allows both conductors to be disconnected when the device operates, offering practical benefits during inspection, testing and circuit isolation.
Key Features
- 32A rated current with B Curve tripping characteristic
- Type A high-immunity residual current protection
- 30mA residual operating sensitivity
- 6kA short-circuit breaking capacity
- Bi-directional design for compatible solar PV circuits
- 1P+N configuration with switched live and neutral
- Compact single-module construction, approximately 18mm wide
- Electronic residual current detection with thermal-magnetic overcurrent release
- Bi-connect terminals supporting compatible cable and busbar connections
- Contact position indicator
- 35mm DIN rail mounting
- IEC 61009-1 and EN 61009-1 standards
32A B Curve Protection for Domestic and Commercial Circuits
The WRB132B-030 combines a 32A current rating with a B Curve tripping characteristic, making it an option for appropriately designed circuits with relatively low inrush currents.
Its integrated residual current and overcurrent protection helps protect individual circuits independently. This can reduce disruption to other circuits when a fault occurs, compared with arrangements where multiple circuits share one residual current protective device.
Bi-Directional Design for Solar PV Applications
The WCED WRB132B-030 Bi-Directional RCBO forms part of the WRB1 range designed for bi-directional operation. This enables the device to be considered for correctly designed photovoltaic systems where electrical power may flow in different directions.
For solar installations, device suitability must be established with reference to the inverter characteristics, circuit rating and relevant protective requirements.
The manufacturer’s terminal markings and installation instructions must be followed. The WCED datasheet specifies connection from the bottom.
Type A High-Immunity Residual Current Protection
Type A protection detects sinusoidal AC and pulsating DC residual fault currents, offering a wider range of residual current detection than traditional Type AC devices.
The WRB132B-030 provides 30mA sensitivity for additional protection against electric shock when correctly installed. Its high-immunity classification is part of the manufacturer’s WRB1 specification.
Switched Live and Neutral for Circuit Isolation
The RCBO incorporates a 1P+N arrangement with switched live and neutral as standard. Both conductors are disconnected during operation, supporting the isolation of individual circuits for inspection and maintenance.
This configuration may also simplify certain insulation resistance testing procedures, subject to the testing method and connected equipment.

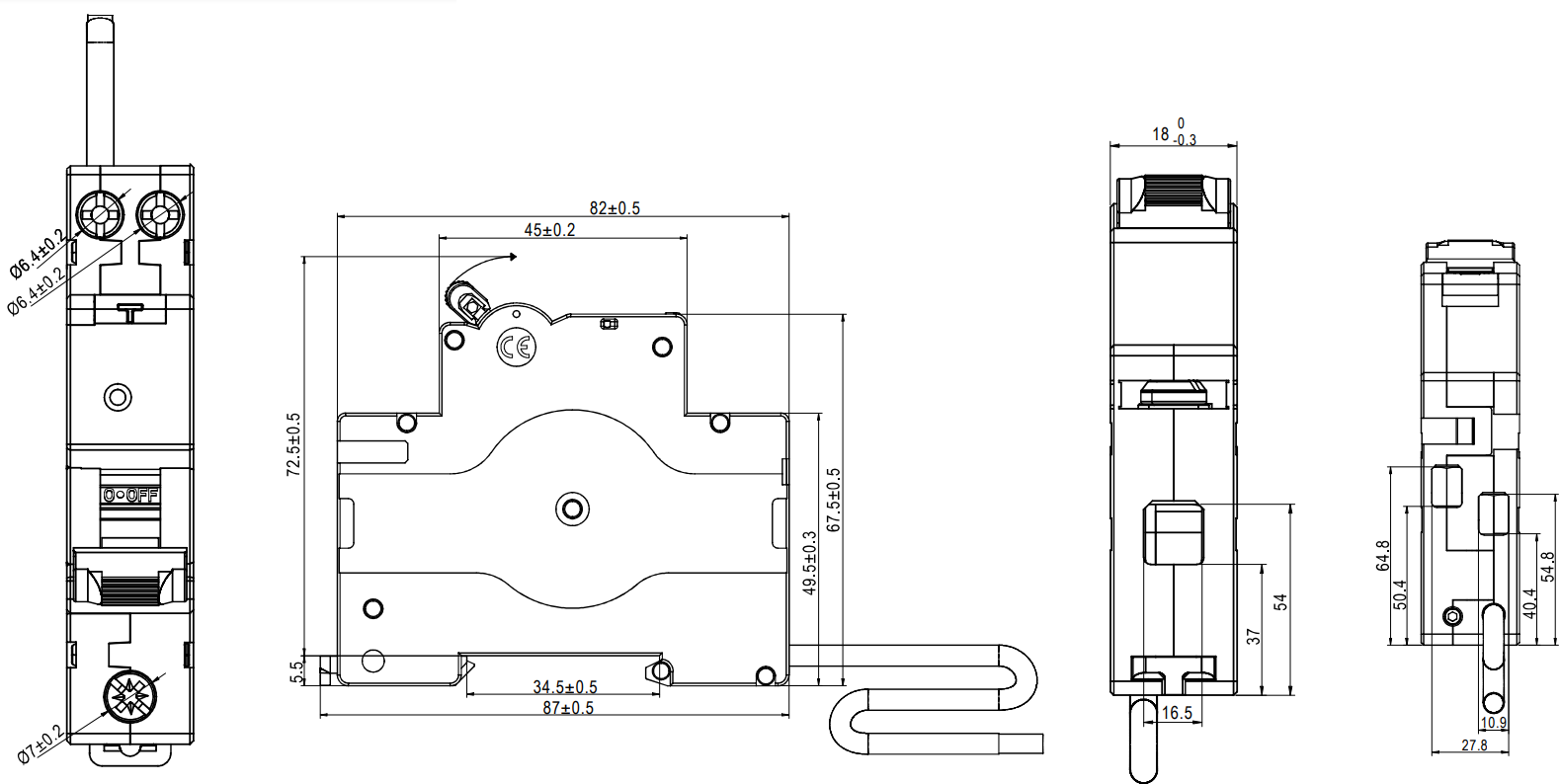

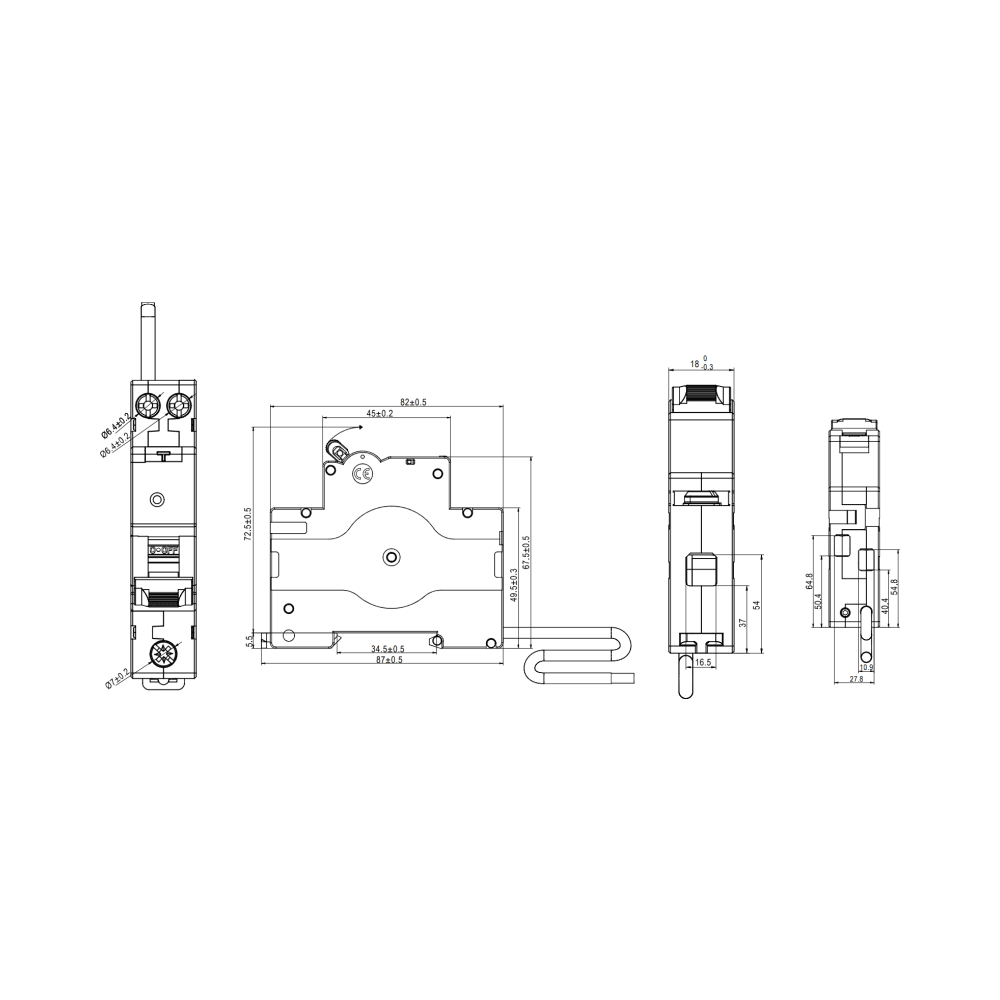

Single-Module Construction and Bi-Connect Terminals
With an approximately 18mm module width, the WRB132B-030 helps conserve space in compatible consumer units and distribution boards.
Its bi-connect terminals accept compatible cable, pin-type and fork/U-type busbar connections. The manufacturer specifies a 2.5Nm terminal tightening torque and mounting onto a standard EN 60715 35mm DIN rail.
Technical Specifications
- Brand: WCED Whitecliffe Electrical
- Manufacturer Part Number: WRB132B-030
- Product Range: WRB1
- Product Type: Electronic Bi-Directional RCBO
- Rated Current: 32A
- Tripping Characteristic: B Curve
- Residual Current Classification: Type A High Immunity
- Rated Residual Operating Current: 30mA
- Rated Breaking Capacity: 6kA
- Number of Poles: 1P+N (Switched Live and Neutral)
- Rated Operational Voltage: 230V AC
- Rated Frequency: 50/60Hz
- Rated Insulation Voltage: 500V
- Rated Residual Making and Breaking Capacity: 3000A
- Rated Impulse Withstand Voltage: 4kV
- Residual Current Break Time at IΔn: ≤0.1 seconds
- Dielectric Test Voltage: 2kV for 1 minute
- Pollution Degree: 2
- Electrical Endurance: 2,000 operations
- Mechanical Endurance: 10,000 operations
- Contact Position Indicator: Yes
- Degree of Protection: IP20
- Reference Temperature: 30°C
- Operating Temperature: -5°C to +40°C
- Storage Temperature: -25°C to +70°C
- Top Cable Terminal Capacity: 10mm²
- Bottom Cable Terminal Capacity: 16mm²
- Busbar Terminal Capacity: 10mm²
- Terminal Tightening Torque: 2.5Nm
- Mounting: DIN Rail EN 60715 (35mm)
- Manufacturer-Specified Connection: From Bottom
- Applicable Standards: IEC 61009-1 / EN 61009-1
