WAGO 207-4310/201-000 WAGOBOX Mini Kit
Introducing the new WAGO 207-4310/201-000 WAGOBOX Mini Kit, a compact electrical junction box supplied with a pre-built WAGO 274 Series inline lever connector assembly. Designed for professional electricians, this convenient kit combines a screw-free enclosure with a ready-selected three-pole connector arrangement for suitable lighting and electrical installations.

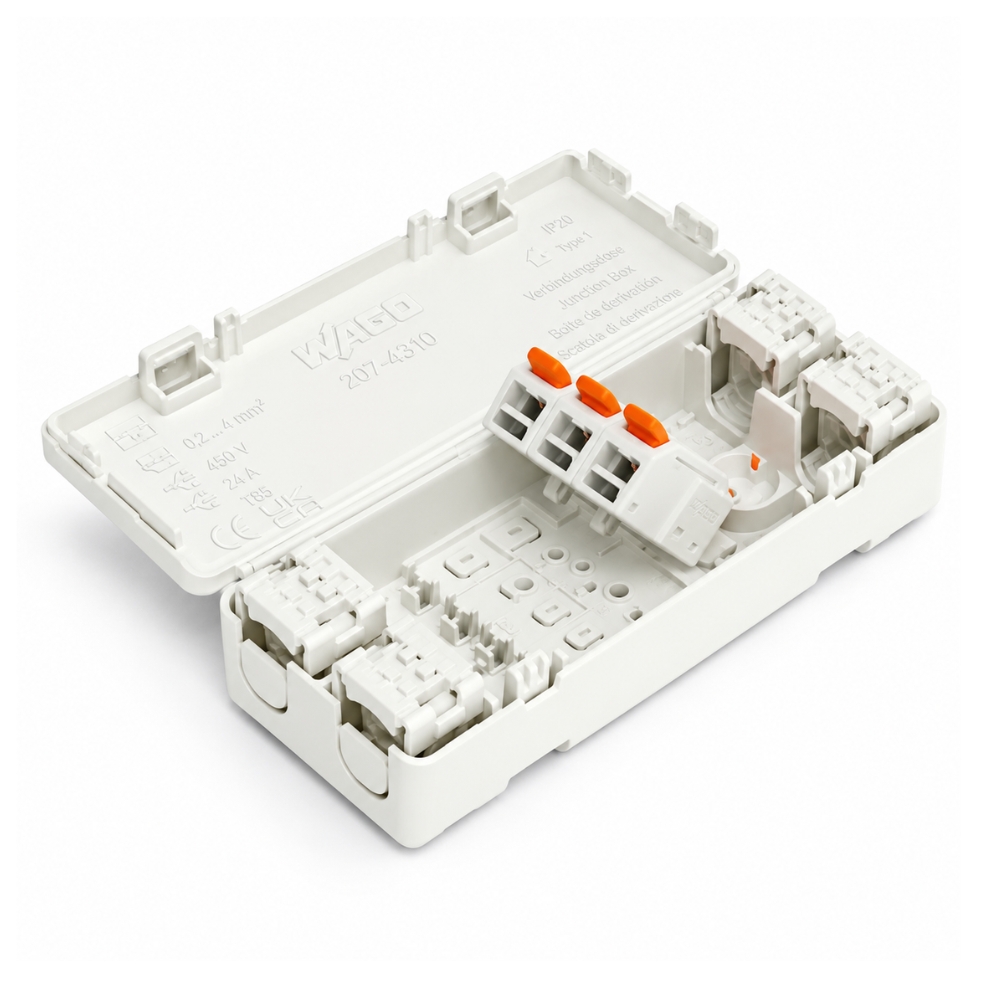

Each retail kit contains one WAGOBOX Mini enclosure and one WAGO 274-4203 three-pole assembly using 4-conductor inline lever connectors. Unlike the empty WAGOBOX Mini 207-4310, this version includes the connector assembly.
The WAGO 207-4310/201-000 WAGOBOX Mini Kit is supplied as a manufacturer’s shelf-ready pack containing eight complete retail kits. Each kit is individually retail packaged, making the complete pack suitable for electrical contractors undertaking multiple installations.
What’s Included in the Pack?
Each individual WAGOBOX Mini retail kit contains:
- 1 x WAGOBOX Mini junction box enclosure
- 1 x WAGO 274-4203 pre-built three-pole connector assembly
- Connector assembly uses 4-conductor inline lever connector modules
The complete manufacturer’s shelf-ready pack contains eight retail kits, providing eight junction box enclosures and eight pre-built connector assemblies.
Connectors ARE included with this version. For empty junction boxes without connectors, see the WAGO 207-4310 WAGOBOX Mini Junction Box – Empty Pack of 10.
Key Features – WAGO 207-4310/201-000 WAGOBOX Mini Kit
The WAGO 207-4310/201-000 WAGOBOX Mini Kit offers a compact enclosure and a pre-built modular connector arrangement, reducing the need to select individual connectors for the supplied configuration.
- Part of the new WAGOBOX Mini enclosure range
- Complete junction box kit with connectors included
- Includes one WAGO 274-4203 pre-built three-pole connector assembly per retail kit
- 4-conductor inline lever connector modules
- Push-in CAGE CLAMP connection technology
- Tool-free conductor termination
- Compact enclosure dimensions: 110 x 47 x 25mm
- Fits through a 50mm downlighter opening
- Screw-free enclosure with secure snap-closure lid
- Integrated cable strain relief
- Accepts specified 1mm², 1.5mm² and 2.5mm² flat cables
- Accepts round flexible cables up to 10mm outside diameter
- Enclosure rated voltage: 450V
- Enclosure rated current: 20A
- Ingress protection rating: IP30
- Impact protection rating: IK07
- Maintenance-free to BS 5733 with approved connector combinations and correct installation
- Manufacturer’s shelf-ready pack of eight complete retail kits
New WAGOBOX Mini with 274 Series Connectors
The WAGOBOX Mini has been developed as a compact enclosure solution for modern electrical connections. Its internal layout accommodates specified WAGO 221 Inline and new WAGO 274 Series connectors, while the integrated cable restraint helps secure incoming cables.
The WAGO 207-4310/201-000 WAGOBOX Mini Kit includes a pre-built 274-4203 three-pole assembly, providing electricians with a defined connector arrangement without needing to assemble individual modules separately.
The new 274 Series uses lever-operated Push-in CAGE CLAMP technology for connecting suitably prepared conductors. Its modular construction allows compatible connector modules to be arranged together in organised multipole configurations.
The supplied connector assembly uses three 4-conductor modules, suitable for specified copper conductors up to 2.5mm². The completed installation must remain within the enclosure’s 20A rating and the manufacturer’s approved wiring configuration.
Compact Junction Box for Lighting Installations
Measuring only 110mm long, 47mm wide and 25mm high, the WAGOBOX Mini can pass through a 50mm downlighter opening. This makes it particularly practical for installations where access is restricted and a larger junction box would be inconvenient.
The WAGO 207-4310/201-000 WAGOBOX Mini Kit provides a suitable enclosure and connector combination for applications where its dimensions, cable capacity and electrical ratings meet the installation requirements.
The enclosure features removable cable entries, a secure snap-closure lid and integrated strain relief. The lid does not require an additional cable tie to remain closed.
Installation and Compatibility
Installing the WAGO 207-4310/201-000 WAGOBOX Mini Kit begins with preparing the conductors according to the manufacturer’s specified stripping lengths.
Open the relevant connector levers, insert the prepared conductors and close the levers to secure the connections. The supplied pre-built connector assembly should be positioned inside the enclosure in accordance with WAGO’s installation instructions.
Remove the appropriate snap-out cable entries to suit the cables being installed. For larger round cables, the corresponding removable section in the enclosure lid may also need to be removed.
Secure incoming cables using the enclosure’s strain relief arrangement and close the lid completely. A flat-bladed screwdriver can be used to reopen the enclosure when necessary.
Maintenance-free classification to BS 5733 applies only when the specified connector combinations, cable arrangements and installation methods are followed.
Technical Specifications
- Brand: WAGO
- Manufacturer part number: 207-4310/201-000
- Product range: WAGOBOX Mini
- Product type: Junction box kit with inline lever connectors
- Connectors included: Yes
- Included connector assembly: WAGO 274-4203
- Connector configuration: Three-pole assembly using 4-conductor inline modules
- Enclosures per retail kit: 1
- Enclosure rated voltage: 450V
- Enclosure rated current: 20A
- Specified conductor cross-section: 0.5–2.5mm²
- Dimensions: 110 x 47 x 25mm
- Ingress protection: IP30
- Impact protection: IK07
- Operating temperature: -25°C to +60°C
- Enclosure material: Polypropylene (PP)
- Strain relief clips: Polyamide (PA)
- Flammability class: V0
- Applicable standard: IEC 60670-1/-22
- Maintenance-free classification: BS 5733 with approved configurations
- Manufacturer’s shelf-ready packaging: 8 complete retail kits
Prefer Empty WAGOBOX Mini Enclosures?
If you already have compatible connectors or need a different connection arrangement, Electrical4Less also supplies the WAGO 207-4310 Empty WAGOBOX Mini Junction Box – Pack of 10.
The empty enclosure version allows electricians to select compatible connectors separately, including the WAGO 274-2401 2 Conductor 4mm² Inline Lever Connector and WAGO 274-4201 4 Conductor 2.5mm² Inline Lever Connector.
Both connector products are supplied separately in original manufacturer’s boxes of 40.
Need a Larger WAGO Junction Box?
For installations requiring additional enclosure space, consider the WAGO Box PRO 207-3323 for 221 Series Connectors.
Measuring 161 x 115 x 36mm, the larger Box PRO provides additional internal space for specified WAGO 221 Series connector arrangements. It is not a direct replacement for every WAGOBOX Mini installation, and compatibility with the new WAGO 274 Series should not be assumed without manufacturer confirmation.
WAGO and Electrical4Less – Fellow IBA Members
Electrical4Less is an independent electrical wholesaler based in Fulham, London, supplying electrical installation products to electricians, contractors and businesses across the UK.
Both Electrical4Less and WAGO are members of the Independent Buyers Association (IBA), connecting independent electrical wholesalers with established manufacturers and suppliers.
We’re pleased to introduce the WAGO 207-4310/201-000 WAGOBOX Mini Kit alongside the new WAGO 274 Series as part of our expanding selection of professional wiring accessories.
Order online or visit our Fulham trade counter for helpful product advice and straightforward service. Less hassle, less fuss, less stress.
