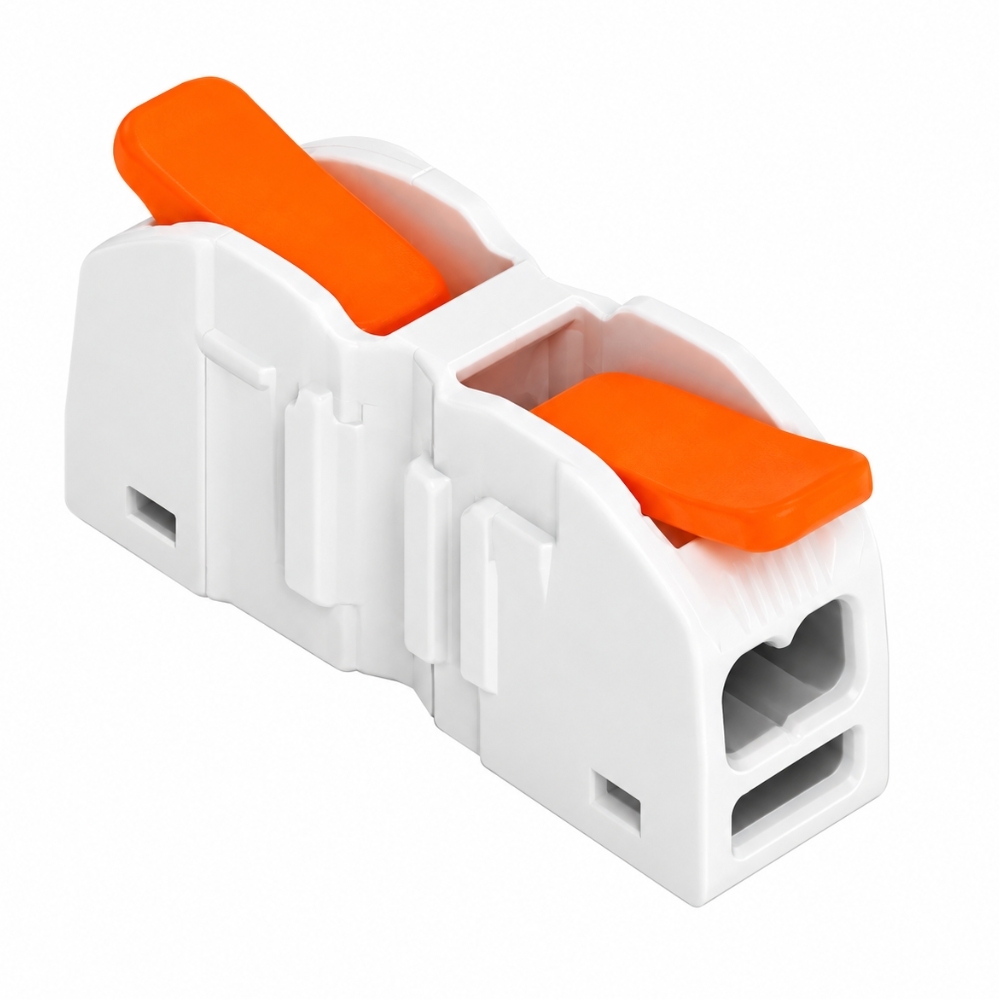

WAGO 274-4201 4 Conductor Inline Lever Connector
The new WAGO 274 Series brings a modular approach to electrical connections, allowing installers to create compact and organised wiring arrangements. The WAGO 274-4201 4 Conductor Inline Lever Connector provides four conductor connection positions with lever-operated Push-in CAGE CLAMP technology, making it suitable for professional electrical installation and maintenance work.
Designed for solid and flexible copper conductors from 0.2mm² to 2.5mm², this connector is rated at 450V and 24A under IEC specifications. The side-stackable construction allows compatible modules to be arranged together, providing additional flexibility when building multipole connection assemblies.
Each WAGO 274-4201 4 Conductor Inline Lever Connector is supplied as part of the original manufacturer’s box of 40 connectors, making this packaging particularly suitable for electricians, installation contractors and maintenance teams.
Key Features – WAGO 274-4201 4 Conductor Inline Lever Connector
The WAGO 274-4201 4 Conductor Inline Lever Connector combines multiple conductor positions with compact modular construction and straightforward, tool-free installation.
- Part of the new WAGO 274 Series of modular inline lever connectors
- Four conductor connection positions
- Suitable for solid and flexible copper conductors from 0.2mm² to 2.5mm²
- IEC electrical rating: 450V, 24A
- Lever-operated Push-in CAGE CLAMP connection technology
- Tool-free conductor termination
- Side-stackable modular design
- Maintenance-free connection technology when installed as specified
- Compatible with suitable WAGO 274 Series accessories and enclosures
- Supplied in the original manufacturer’s box of 40 connectors
New WAGO 274 Series – Modular Wiring Flexibility
The WAGO 274 Series has been developed for installers requiring flexible inline connector arrangements. Its modular design allows individual units to be positioned alongside compatible modules, rather than relying entirely on fixed multipole connector blocks.
The range includes 2 conductor 4mm² and 4 conductor 2.5mm² versions, as well as pre-built multipole assemblies. Compatible mounting accessories and separate jumper slots for commoning provide additional installation options within the modular system.
The WAGO 274-4201 4 Conductor Inline Lever Connector is particularly useful when several conductor connections need to be accommodated within an organised, space-efficient wiring arrangement.
Installation and Compatibility
The WAGO 274-4201 4 Conductor Inline Lever Connector uses lever-operated terminals for connecting appropriately prepared conductors. Open the relevant lever, insert the conductor to the manufacturer’s specified stripping length and close the lever to secure the connection.
Compatible 274 Series modules can be stacked together to create multipole assemblies. Depending on the installation arrangement, suitable mounting accessories can also provide additional fixing options.
For junction box installations, the WAGO 274-4201 4 Conductor Inline Lever Connector is compatible with the WAGOBOX Mini enclosure, subject to the manufacturer’s approved connector combinations and installation requirements.
Always check conductor compatibility, circuit loading, enclosure requirements and applicable electrical installation regulations before use.
Compatible WAGOBOX Mini Junction Boxes
The WAGOBOX Mini is a compact, screw-free junction box developed for compatible WAGO 274 Series and 221 Inline connectors. Its slim 110 × 47 × 25mm construction allows it to pass through a 50mm downlighter opening, providing convenient access for lighting installations and confined spaces.
The enclosure accepts specified flat cables and round flex, incorporates cable strain relief and provides maintenance-free performance to BS 5733 when used with approved connector combinations and installed in accordance with the manufacturer’s instructions.
Technical Specifications
- Manufacturer: WAGO
- Manufacturer part number: 274-4201
- Series: WAGO 274
- Connector type: Modular inline lever connector
- Conductor positions: 4
- Conductor capacity: 0.2–2.5mm²
- Conductor types: Solid and flexible copper
- Rated voltage: 450V IEC
- Rated current: 24A IEC
- Connection technology: Push-in CAGE CLAMP
- Configuration: Side-stackable modular design
- Supply quantity: 40 connectors per manufacturer’s box
WAGO and Electrical4Less – Fellow IBA Members
Electrical4Less is an independent electrical wholesaler operating from Fulham, London, supplying electrical installation products to electricians and contractors across the UK.
Electrical4Less and WAGO are fellow members of the Independent Buyers Association (IBA), which connects independent electrical wholesalers with established manufacturers and suppliers.
We’re pleased to introduce the WAGO 274-4201 4 Conductor Inline Lever Connector to our expanding connector range, giving customers access to the latest WAGO wiring solutions alongside our established selection of electrical installation materials.
Order online or contact our Fulham trade counter for assistance with selecting suitable connectors and enclosures. Less hassle, less fuss, less stress.
