Description

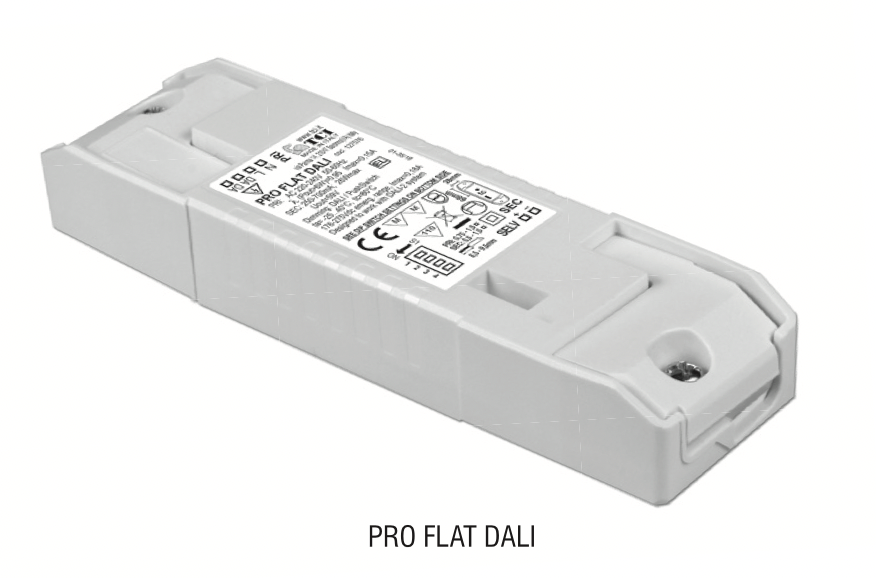

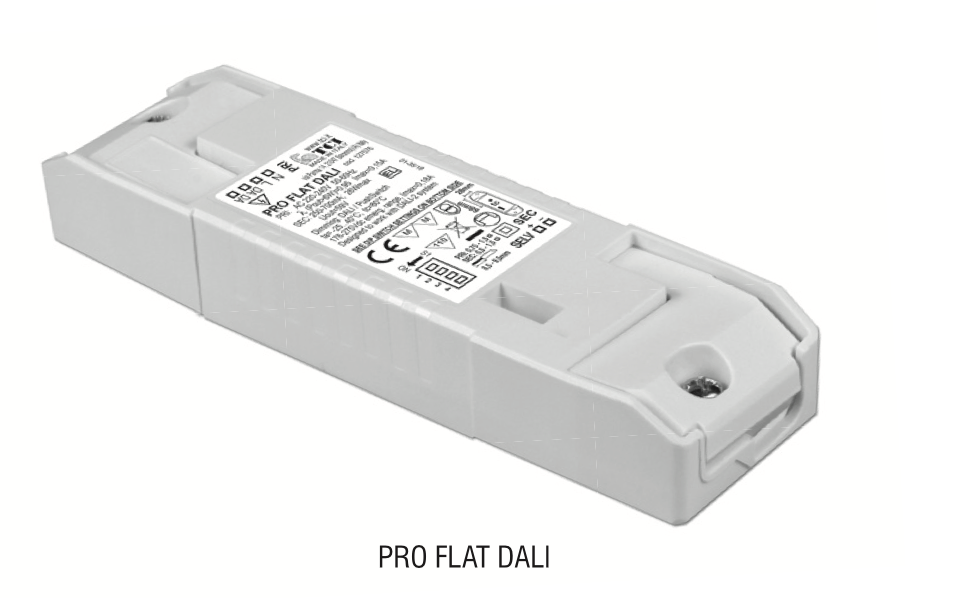

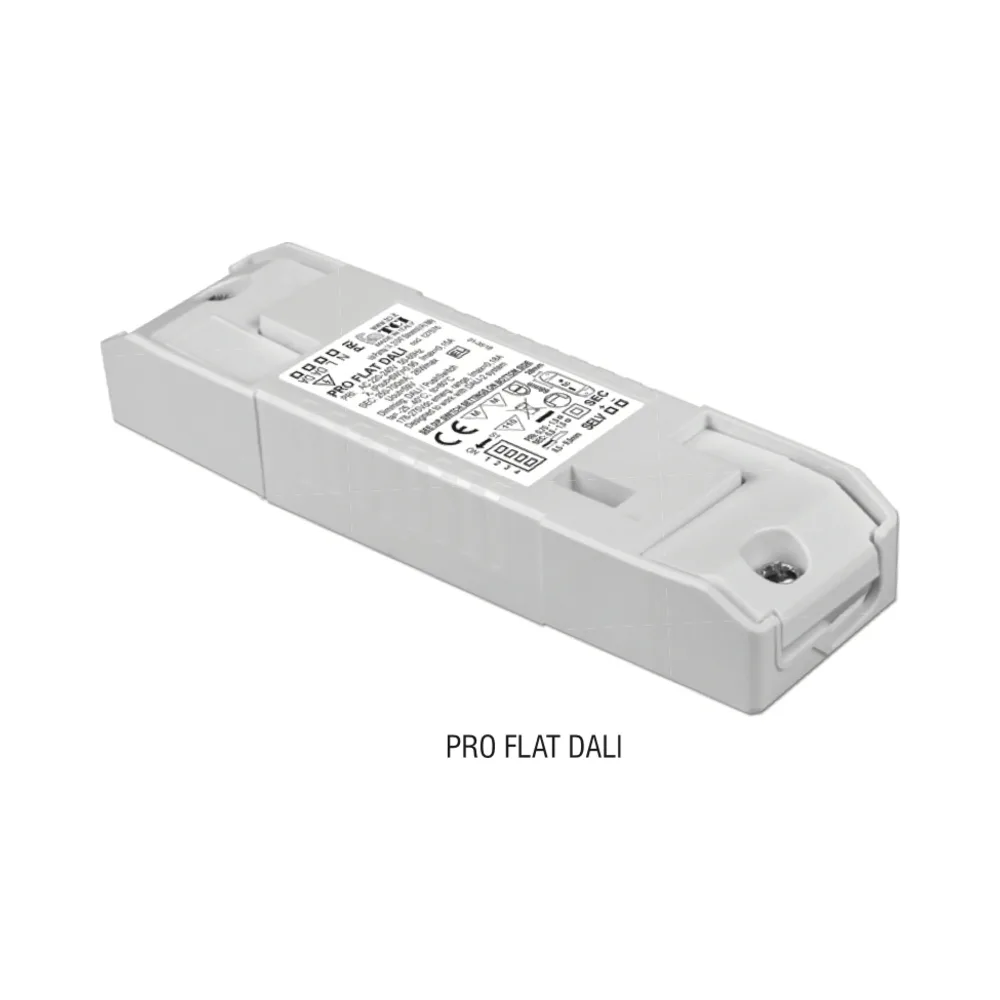

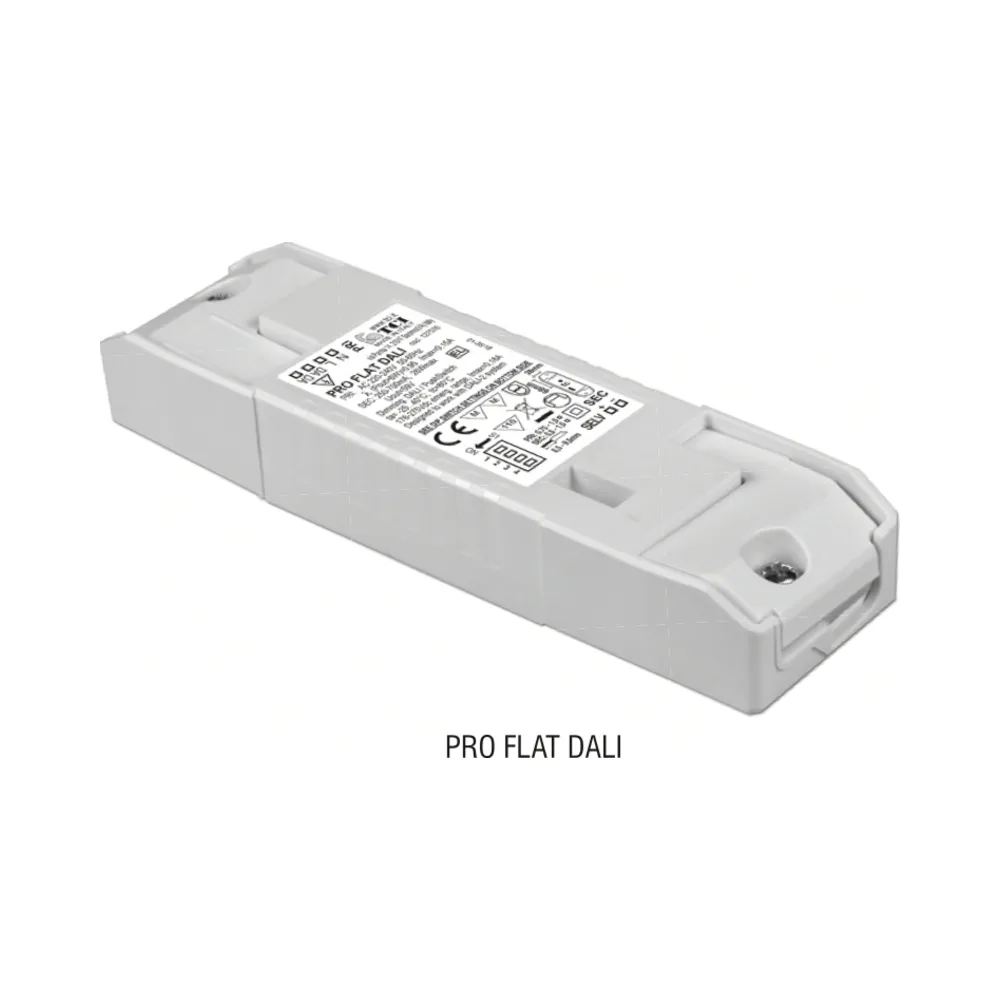

Pro Flat DALI 1 & 2 Constant Current Multi-Power LED Driver
TCI 127576 – Precision and Versatility
The TCI 127576 Pro Flat DALI 1 & 2 Multi-Power LED Driver delivers unparalleled performance for professional LED installations. With advanced dimming capabilities (DALI 1 & 2, PUSH, and AM dimming), this driver ensures precision and adaptability across diverse lighting setups. Its slim design and robust safety features make it ideal for both residential and commercial applications.
Key Features of TCI 127576 Pro Flat DALI 1 & 2 LED Multi Power Driver
- Multi-Power Functionality: Equipped with a dip-switch for precise output current and voltage adjustments.
- Comprehensive Dimming Options: Supports DALI 1 & 2, PUSH dimming, and AM dimming (1-100%) for versatile control.
- Ripple-Free Output: Ensures consistent and flicker-free illumination for enhanced visual comfort.
- Robust Safety Protections: Includes safeguards against overheating, short circuits, overloads, and voltage spikes.
- Energy Efficiency: Features Active Power Factor Correction with a power factor >0.95.
Technical Specifications
- Input Voltage:
- AC: 220-240V (-10% to +10%) at 50/60Hz
- DC: 176-275V for emergency lighting (EN 50171/EN 50172)
- Output Power Range: 11.5W to 26W
- Output Current Range: 250mA to 700mA (adjustable via dip-switch)
- Output Voltage Range: 10V to 49V DC
- Efficiency: 88% at maximum load
- Ripple-Free Output: <3% for steady lighting
- Dimming Range: 1-100%
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature:
- Ambient (ta): -25°C to +40°C
- Max case temperature (tc): 80°C

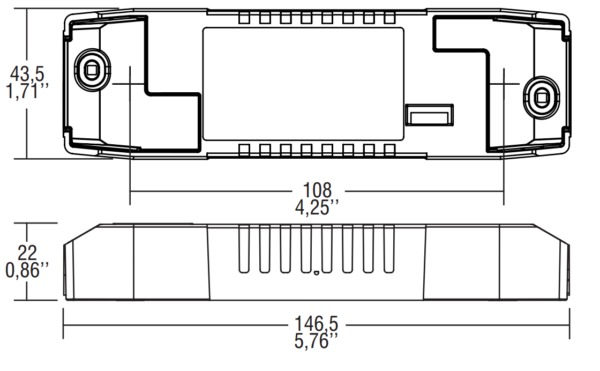

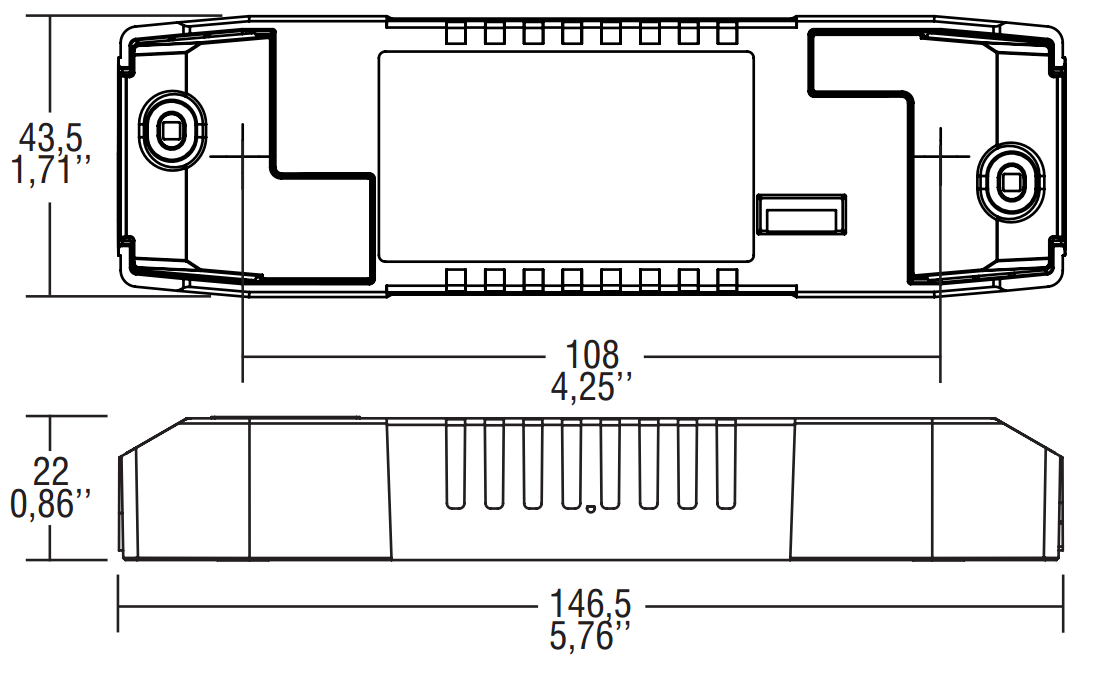

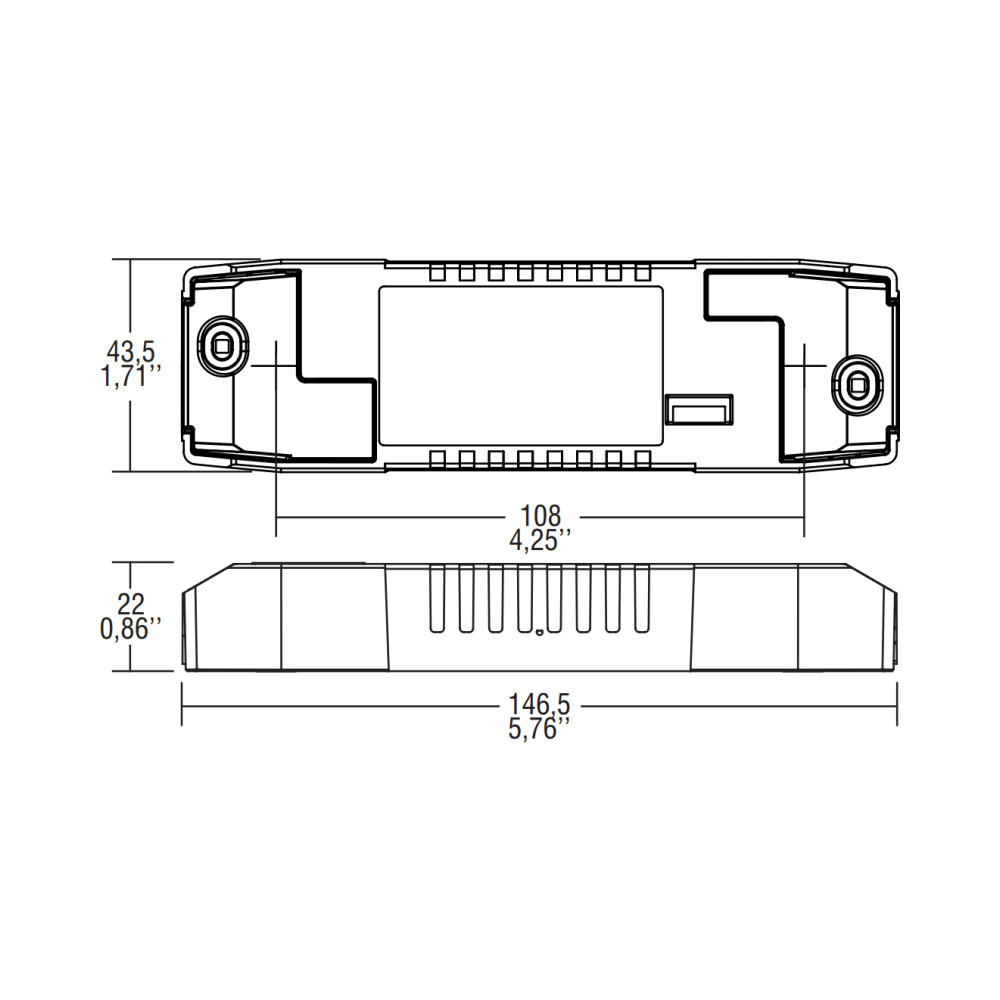

- Dimensions: 150 mm x 43 mm x 22 mm
- Weight: 150 g
Certifications and Approvals
- Standards Compliance:
- EN 61347-1
- EN 61347-2-13
- EN 62386-101/102/207 (DALI 2)
- EN 61547
- EN 55015
- EN 61000-3-2
- EN 62384
- Certifications: KEMAKEUR, ENEC, CCC, CE, RCM, UKCA
Additional Features
- Push-Switch Dimming:
- Short press to turn on/off.
- Long press to increase/decrease light intensity.
- Dimming level memory upon power restore.
- Flexible Installation:
- Input and output terminals on opposite sides for easy wiring.
- Clamping screws support cable diameters of 2 mm to 9 mm.
- Thermal Protection: Includes C.5.a safeguard for reliability under high operating temperatures.
- SELV Isolation: Ensures safe operation for Class I and II lighting equipment.
Applications
The Pro Flat DALI Driver is suitable for:
- Residential Spaces: Perfect for ambient and task lighting setups.
- Commercial Environments: Ideal for retail, office, and hospitality lighting.
- Professional Projects: Robust enough for specialized and industrial applications.
Benefits
- Advanced Dimming Options: Adaptable to modern lighting control systems with DALI 1 & 2.
- Customizable Performance: Easily adjustable output current to meet diverse requirements.
- Flicker-Free Illumination: Ripple-free output enhances lighting quality.
- Energy Savings: Efficient power factor correction reduces energy consumption.
- Enhanced Safety: Comprehensive protections for long-term reliability.
FAQs
Q: Can this driver be used outdoors?
A: No, the IP20 rating is suitable for indoor use only.
Q: What happens if the DALI signal is missing?
A: The driver will operate at maximum power in the absence of a DALI signal.
Q: Is this driver suitable for emergency lighting?
A: Yes, it supports DC input for emergency lighting setups compliant with EN 50171/EN 50172.
Upgrade Your Lighting with the TCI Pro Flat DALI Driver
The TCI Pro Flat DALI Driver combines cutting-edge dimming technology, energy efficiency, and robust safety features to deliver unmatched performance. Whether for residential, commercial, or industrial use, this driver ensures consistent, high-quality lighting. Upgrade your installations today with the Pro Flat DALI Driver!
