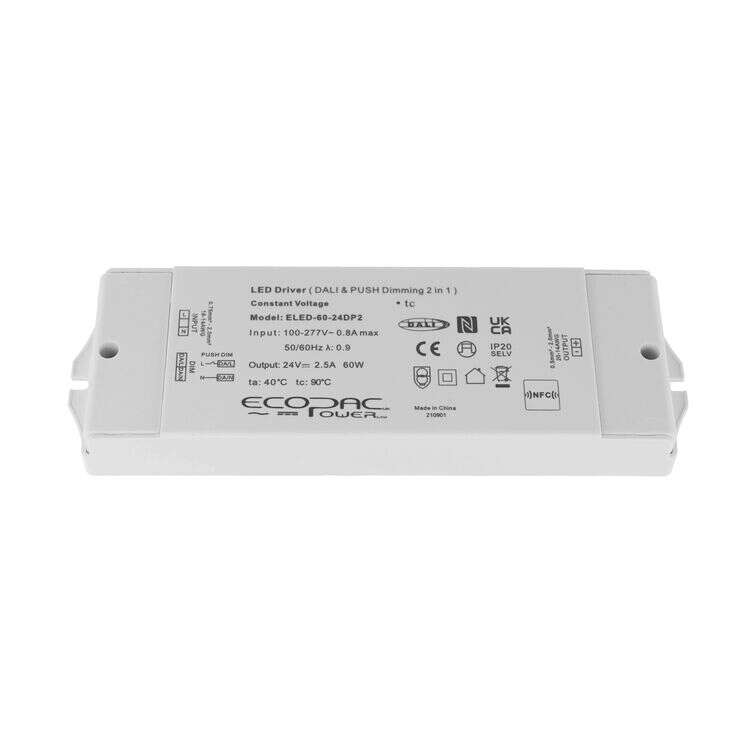

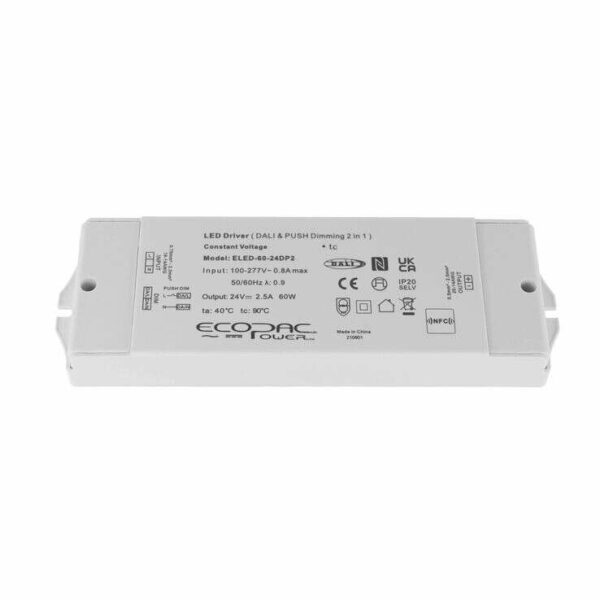

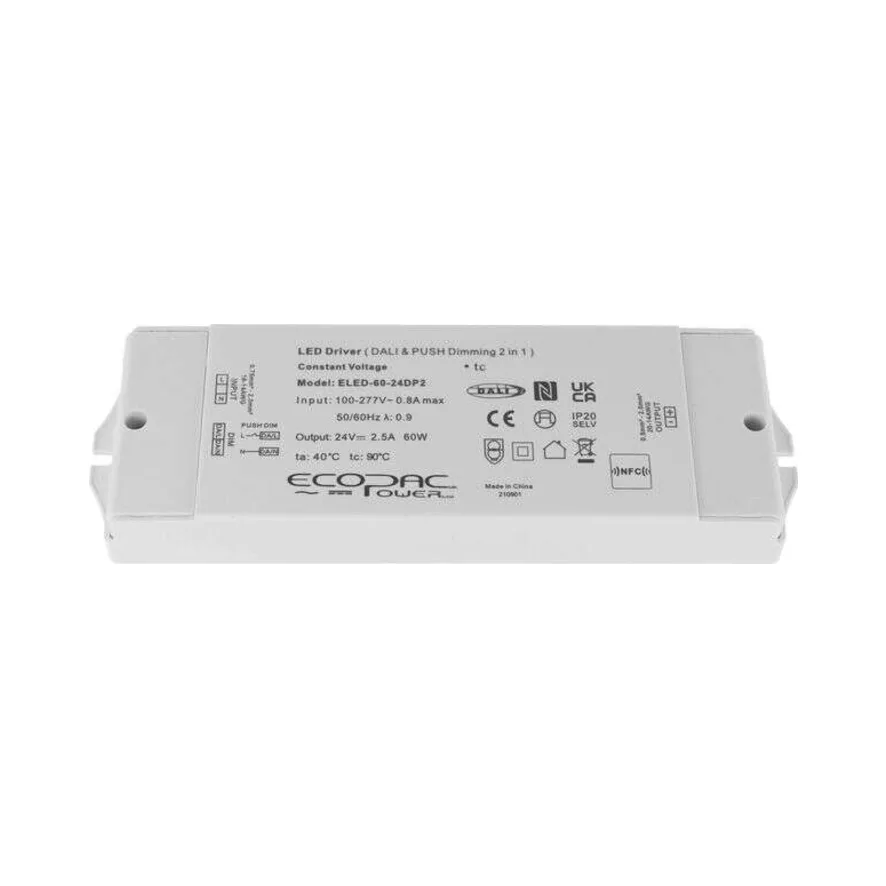

DALI-2 Constant Voltage LED Driver 60W
The DALI-2 Constant Voltage LED Driver 60W from EcoPac is a 24V constant voltage power supply designed for intelligent indoor LED lighting systems. The ELED-60-24DP2 delivers a 24V DC output at up to 2.5A, providing a rated output power of 60W.
Supporting both DALI and Push dimming from 0-100%, the driver offers flexible lighting control for compatible commercial, architectural and smart lighting installations. Constant voltage / PWM output, NFC voltage regulation and built-in active power factor correction provide additional flexibility for professional LED projects.
Key Features
- 24V DC constant voltage LED driver
- 60W rated output power
- 2.5A output current
- DALI dimming compatible
- Push dimming function
- 0-100% dimming range
- Constant voltage / PWM output
- NFC output regulation
- 24-26V adjustable output using NFC
- 100-277V AC wide input range
- 47-63Hz input frequency
- Built-in active PFC function
- Efficiency up to 88%
- IP20 rated for indoor installation
- SELV output
- Class I protection
- Cooling by free air convection
DALI and Push Dimming Control
The DALI-2 Constant Voltage LED Driver 60W supports DALI and Push dimming across a 0-100% control range, making the ELED-60-24DP2 suitable for compatible intelligent LED lighting installations.
The manufacturer’s wiring diagrams show connection options using a DALI power supply, DALI system or DALI master, together with separate Push dimming arrangements.
24V Constant Voltage PWM Output
The ELED-60-24DP2 provides a nominal 24V DC constant voltage / PWM output with a maximum current of 2.5A.
NFC regulation allows the output voltage to be adjusted between 24V and 26V, providing additional flexibility when setting up compatible 24V LED lighting systems.
Active PFC and Efficient Performance
Built-in active power factor correction supports efficient operation across the driver’s 100-277V AC input range. The manufacturer specifies efficiency of up to 88% and a power factor of at least 0.96 at 230V AC under full-load conditions.
Integrated Electrical Protection
The driver incorporates protection against short circuits, overloading and excessive temperature.
Short-circuit protection operates in constant current mode and automatically recovers once the fault condition has been removed. Overload protection uses constant current limiting at up to 120% and also automatically recovers after the fault has cleared.
Compact IP20 Design
The ELED-60-24DP2 is IP20 rated and designed for indoor installation. Measuring 192.5 x 62 x 24mm, its slim enclosure is suited to installations where space is limited while still providing a full 60W output.
Typical Applications
- DALI and DALI2 lighting systems
- 24V LED strip lighting
- Commercial LED lighting
- Architectural lighting
- Intelligent lighting control systems
- Push-dim lighting installations
- Indoor constant voltage LED lighting
Technical Specifications
- Brand: EcoPac
- Manufacturer: Ecopac (UK) Power Ltd
- Model: ELED-60-24DP2
- Series: ELED-60-DP2
- Product type: DALI-2 constant voltage LED driver
- Output type: Constant voltage / PWM
- Rated power: 60W
- Output voltage: 24V DC
- NFC adjustable output: 24-26V DC
- Output current: 2.5A
- Voltage tolerance: ±0.2%
- Load regulation: ±1%
- Dimming control: DALI and Push
- Dimming range: 0-100%
- Input voltage: 100-277V AC
- Input frequency: 47-63Hz
- Maximum AC current: 0.8A
- Leakage current: Less than 0.50mA
- Inrush current: 59A
- Power factor: ≥0.96 at 230V AC full load
- Efficiency: Up to 88%
- Protection class: Class I
- Output classification: SELV
- IP rating: IP20
- Installation: Indoor
- Working temperature: -40°C to +60°C
- Working humidity: 20-95% RH, non-condensing
- Dimensions: 192.5 x 62 x 24mm
- Weight: 0.35kg
Professional 60W DALI LED Driver
Combining DALI control, Push dimming, NFC-adjustable output and a compact 60W design, the ELED-60-24DP2 provides a flexible solution for professional 24V constant voltage LED lighting installations requiring intelligent indoor lighting control.
