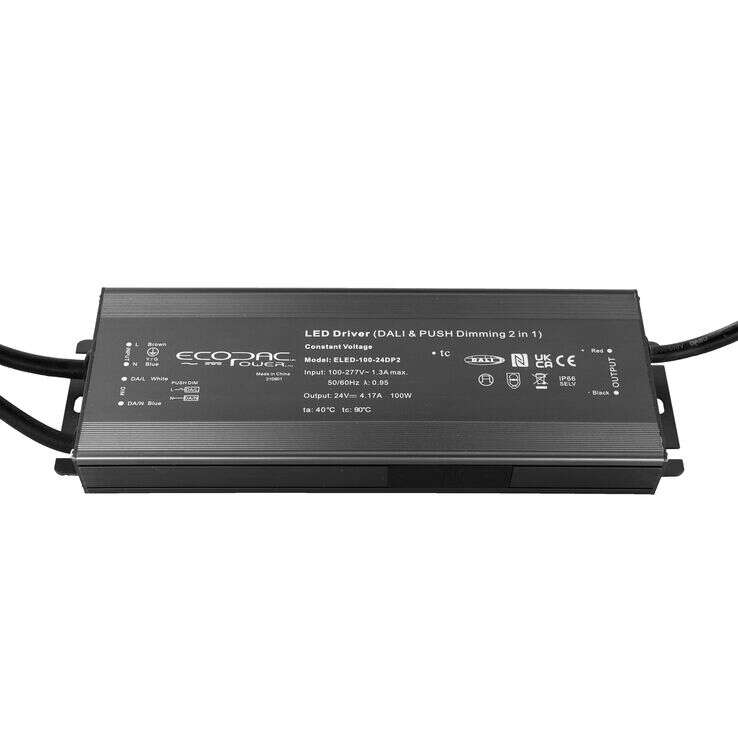

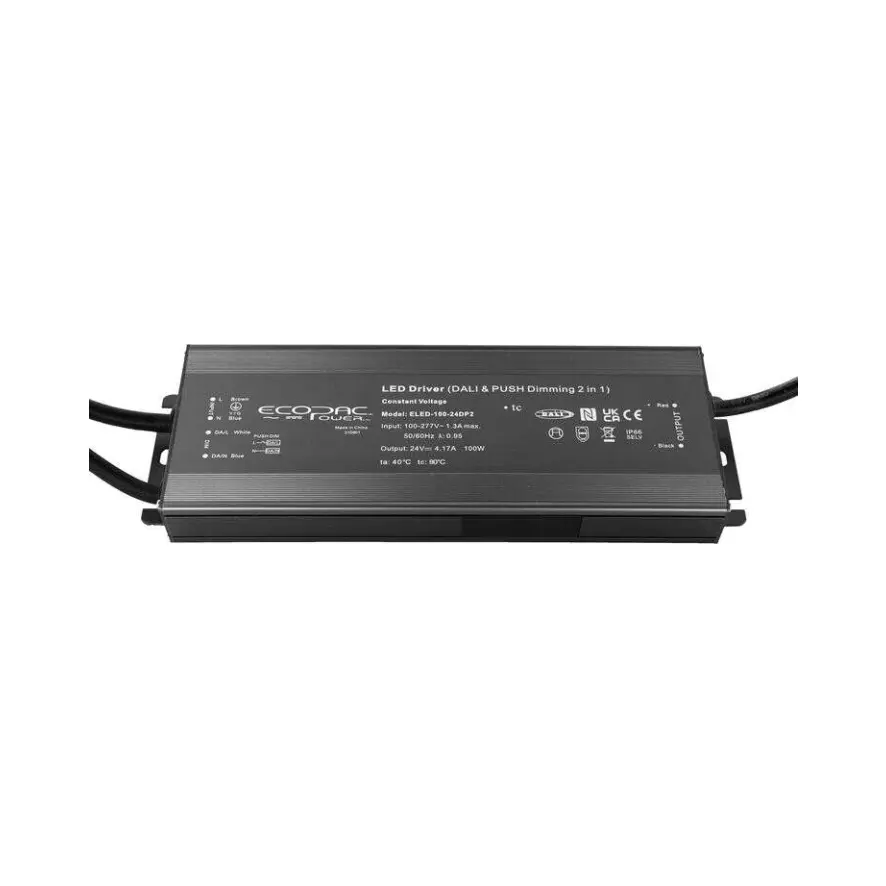

DALI-2 Constant Voltage LED Driver 100W
The DALI-2 Constant Voltage LED Driver 100W from EcoPac is a professional 24V constant voltage power supply designed for intelligent LED lighting systems. The ELED-100-24DP2 delivers a 24V DC output at up to 4.17A with a maximum rated power of 100W.
Supporting both DALI and Push dimming, this driver provides flexible lighting control for compatible commercial, architectural and intelligent LED installations. It also features constant voltage / PWM output, NFC voltage regulation, built-in active power factor correction and an IP66 enclosure suitable for indoor and outdoor installation.
Key Features
- 24V DC constant voltage LED driver
- 100W rated output power
- 4.17A output current
- DALI dimming compatible
- Push dimming function
- Constant voltage / PWM output
- NFC output voltage regulation
- 24-26V adjustable output using NFC
- 100-277V AC input
- 47-63Hz input frequency
- Built-in active PFC function
- Efficiency up to 89%
- IP66 rated
- Suitable for indoor and outdoor installation
- SELV output
- Class I protection
- Cooling by free air convection
DALI and Push Dimming Control
The DALI-2 Constant Voltage LED Driver 100W provides flexible dimming control for compatible intelligent lighting systems. The ELED-100-24DP2 supports both DALI and Push dimming, allowing it to be integrated into a variety of professional LED lighting installations.
The manufacturer provides wiring arrangements for connection to a DALI power supply, DALI system or DALI master, as well as separate Push dimming configurations.
24V Constant Voltage PWM Output
The ELED-100-24DP2 provides a nominal 24V DC constant voltage / PWM output with a maximum output current of 4.17A and rated power of 100W.
Using NFC regulation, the output can be adjusted from 24V to 26V, providing additional flexibility when commissioning compatible 24V LED lighting systems.
IP66 Indoor and Outdoor Protection
The EcoPac driver features an IP66-rated enclosure designed for both indoor and outdoor installation. This provides increased protection against dust and water ingress compared with standard indoor LED drivers.
Its low-profile housing is particularly useful for professional installations requiring a powerful 100W driver with DALI control and enhanced environmental protection.
Active PFC and Efficient Performance
Built-in active power factor correction supports efficient operation across its wide input voltage range. The driver offers efficiency up to 89%, with the manufacturer specifying a power factor of at least 0.96 at 230V AC under full load.
Integrated Electrical Protection
The ELED-100-24DP2 incorporates protection against short circuits, overloading and excessive temperature.
Short-circuit protection operates in constant current mode and automatically recovers after the fault condition has been removed. Overload protection uses constant current limiting at up to 120% and also automatically recovers once the fault has cleared.
Typical Applications
- DALI and DALI2 lighting systems
- 24V LED strip lighting
- Commercial LED lighting installations
- Architectural lighting
- Intelligent lighting control systems
- Push-dim lighting systems
- Indoor LED lighting
- Outdoor LED lighting
Technical Specifications
- Brand: EcoPac
- Manufacturer: Ecopac (UK) Power Ltd
- Model: ELED-100-24DP2
- Series: ELED-100-DP2
- Product type: DALI-2 constant voltage LED driver
- Output type: Constant voltage / PWM
- Rated power: 100W
- Output voltage: 24V DC
- NFC adjustable output: 24-26V DC
- Output current: 4.17A
- Voltage tolerance: ±0.5%
- Load regulation: ±2%
- Dimming control: DALI and Push dimming
- Input voltage: 100-277V AC
- Input frequency: 47-63Hz
- Maximum AC current: 0.8A
- Leakage current: Less than 0.50mA
- Inrush current: 59A
- Power factor: ≥0.96 at 230V AC full load
- Efficiency: Up to 89%
- Protection class: Class I
- Output classification: SELV
- IP rating: IP66
- Working temperature: -40°C to +60°C
- Working humidity: 20-95% RH, non-condensing
- Dimensions: 231 x 78 x 25.1mm
- Weight: 0.83kg
Professional 100W DALI LED Driver
Combining a 100W output with DALI control, Push dimming, NFC voltage adjustment and IP66 protection, the ELED-100-24DP2 is a versatile solution for professional 24V constant voltage LED installations requiring intelligent lighting control.
