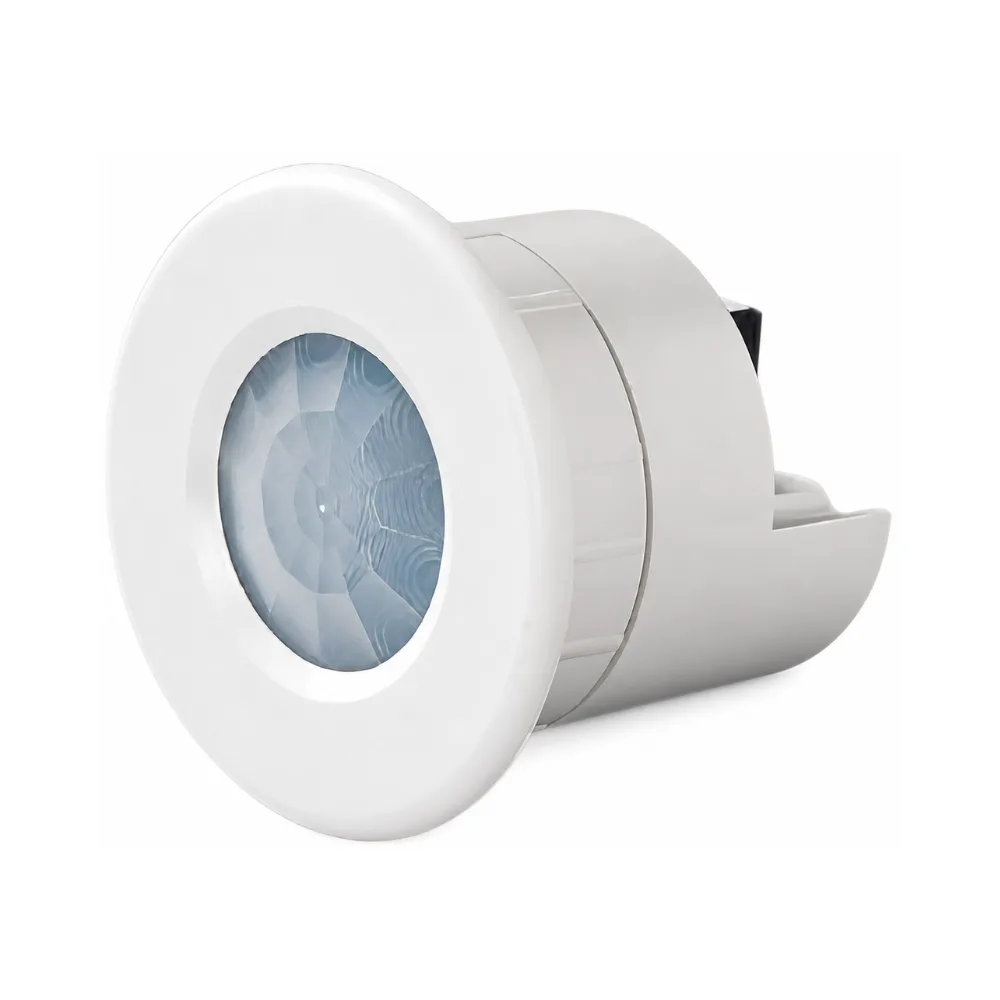

Rako WAPIR PIR Sensor
the WAPIR motion detector module allows scenes to be selected automatically via movement.
In factory default setting, the unit will select scene 1 and off, with a timeout of 5 minutes and is ideally suited to office and residential applications where automatic scene selection is required.
When configured with the RASOFT Pro programming software, it is possible to select which scene is activated and modify the timeout period.
The WAPIR also listens to WCM/RCM wall plates, to enable and disable the PIR motion function when not required. Mounting is via a 64mm diameter ceiling cutout, where a plastic collar is fitted.
