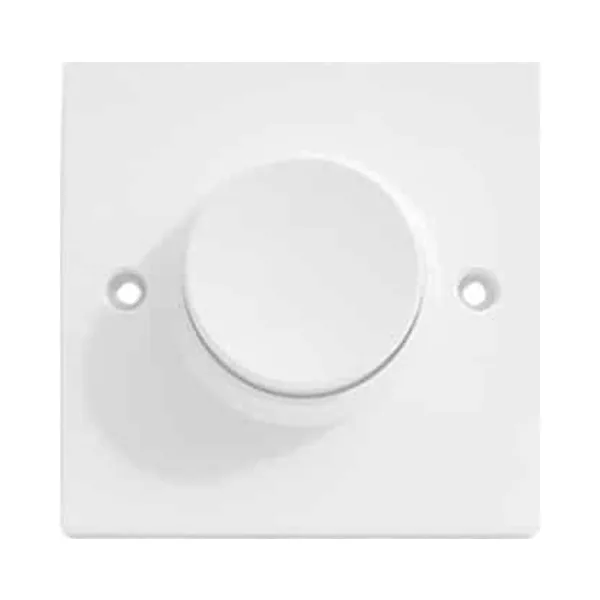

Pneumatic Time Delay Switch
Precision Timing Control with Adjustable Delay
The Pneumatic Time Delay Switch provides reliable control for a variety of applications where timing precision is crucial. Adjustable between 10 seconds and 10 minutes, this switch ensures you can tailor the delay to your specific needs. The timing is easily set by turning the brass timing screw located in the center of the back plate; turning the screw clockwise will increase the delay.
Key Features
- Adjustable Time Delay: Customize the delay from 10 seconds to 10 minutes by adjusting the brass screw on the back.
- Operational Mechanism: Press the plunger button to activate the switch. The plunger will gradually return to its original position during the delay, eventually resetting the contacts.
- Visual Indicator: The semi-translucent face-plate may occasionally flash when the contacts make or break, providing a visual cue of operation.
- High-Quality Construction: Made from durable polycarbonate and finished in white, this switch is built to withstand everyday use.
- Electrical Ratings: Suitable for GLS load up to 6A (1440 watts) and fluorescent load up to 3A (720 watts).
Specifications
- Voltage: 230V ~
- Time Delay Range: 10 Seconds to 10 Minutes
- Dimensions: H85 x W85 x D42 mm
- Weight: 82.5 g
- Conforms to: BS EN 60730-2-7
- Finish: White
- Packaging: Boxed
- Warranty: 1 Year
- Barcode: 5012739625428
- Fixings Included: 2 x 25mm, 3.5mm
