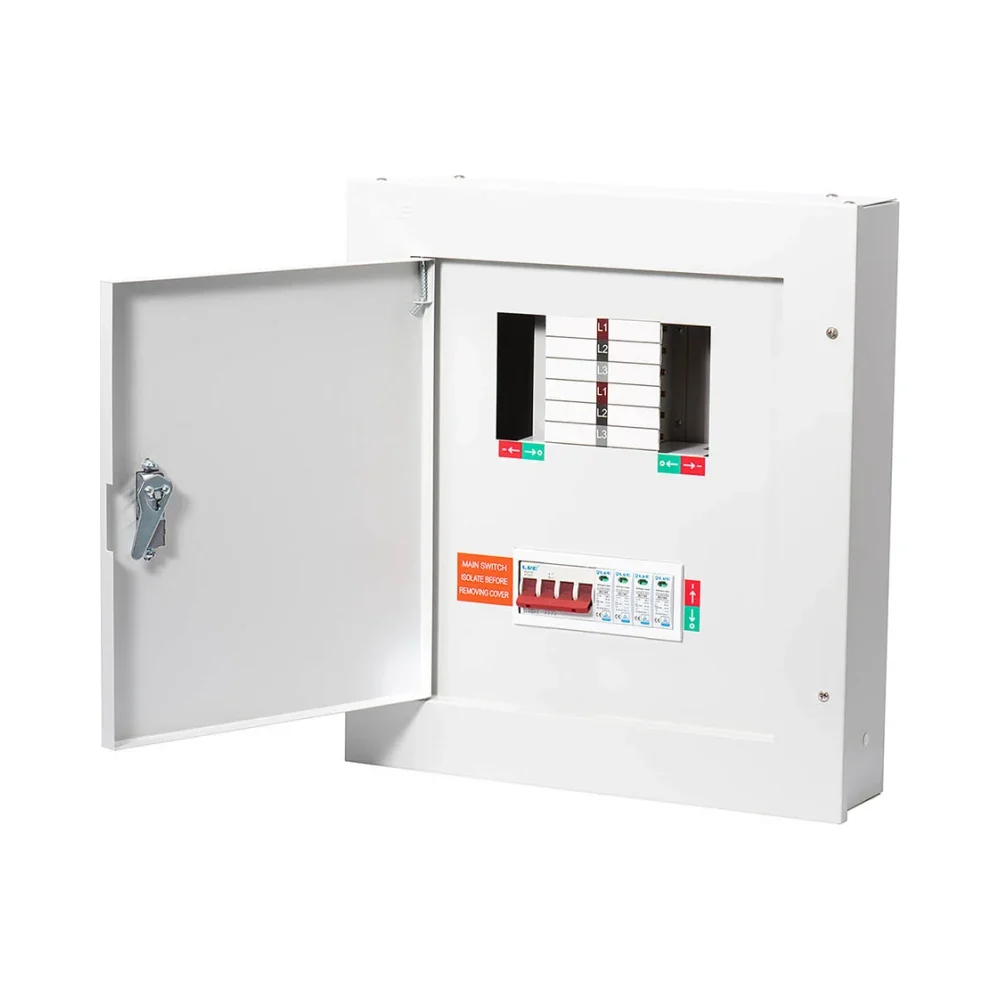

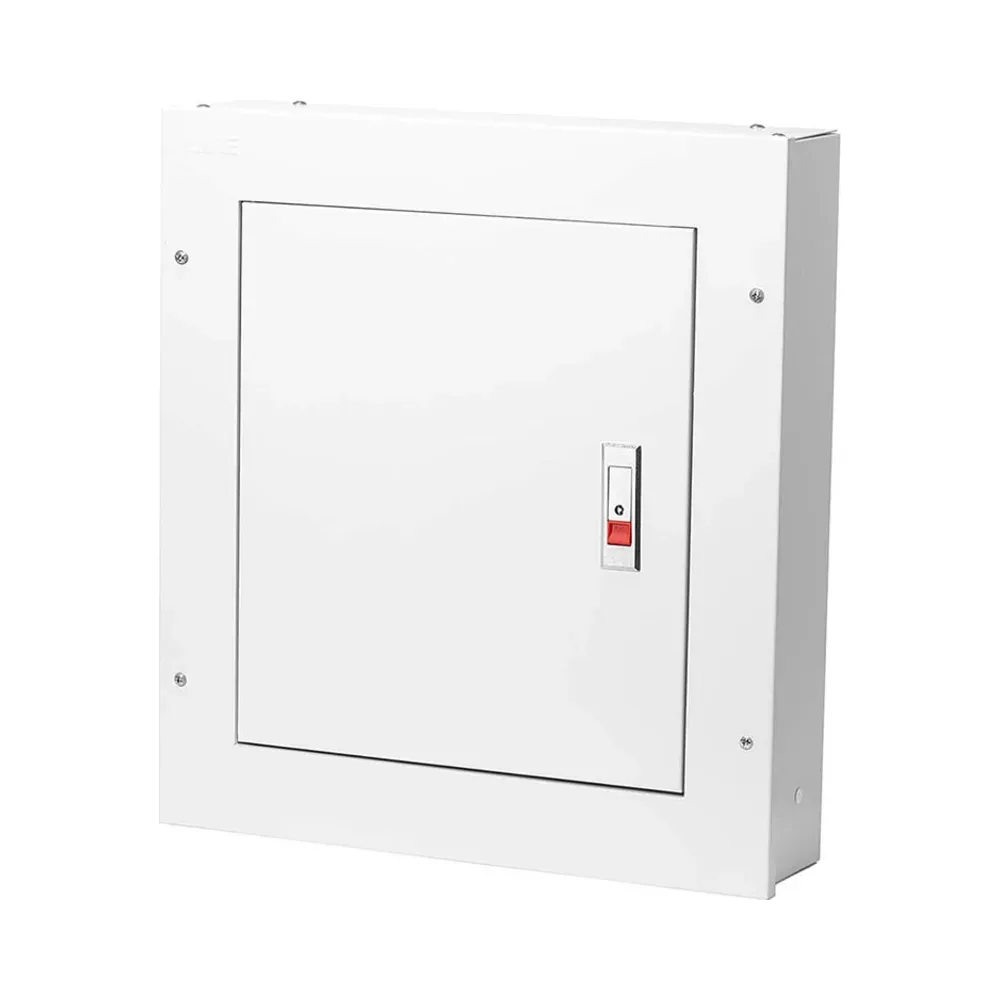

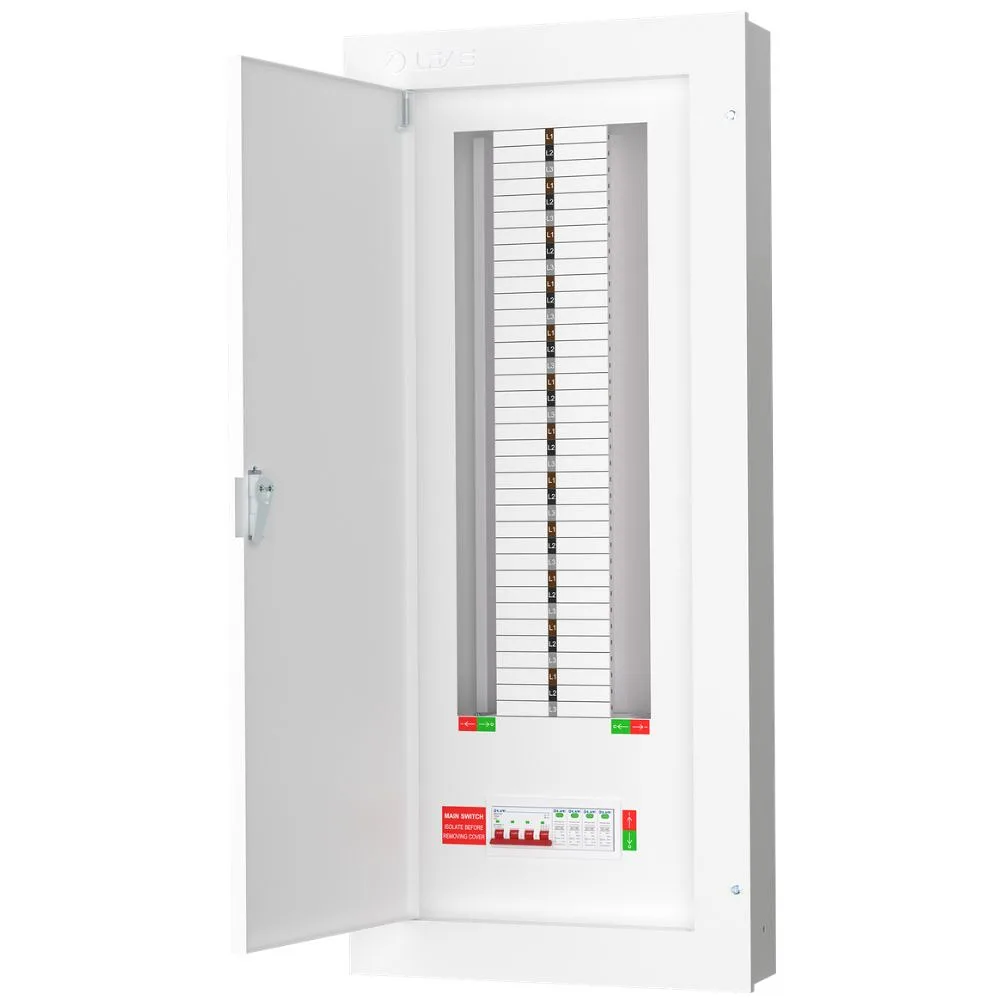

Live Electrical 24 Way TPN Distribution Board with SPD
The Live Electrical 24 Way TPN Distribution Board with SPD is a high-capacity 125A three-phase board supplied with a 125A 4 pole main switch and integrated Type 2 surge protection device. It accommodates 24 three pole circuits or up to 72 single pole circuits using compatible MCBs and RCBOs.
Designed for substantial commercial and industrial installations, the Live Electrical TPN24-125S offers extensive circuit capacity within a durable metal enclosure. Neutral and earth terminals are fitted on both sides and positioned close to the outgoing protective devices, helping installers complete larger wiring arrangements efficiently.
Key Features – Live Electrical 24 Way TPN Distribution Board with SPD
- 125A TP&N distribution board
- Supplied with a 125A 4 pole main switch
- Integrated Type 2 surge protection device
- 24 three pole ways or up to 72 single pole ways
- Neutral and earth terminals fitted on both sides
- Terminals positioned adjacent to compatible MCBs and RCBOs
- Fully enclosed busbar system
- Complete shrouding for the main incomer and link
- Removable gland plate for convenient cable entry
- Keyhole fixing points for easier wall mounting
- Robust metal enclosure with a RAL7035 finish

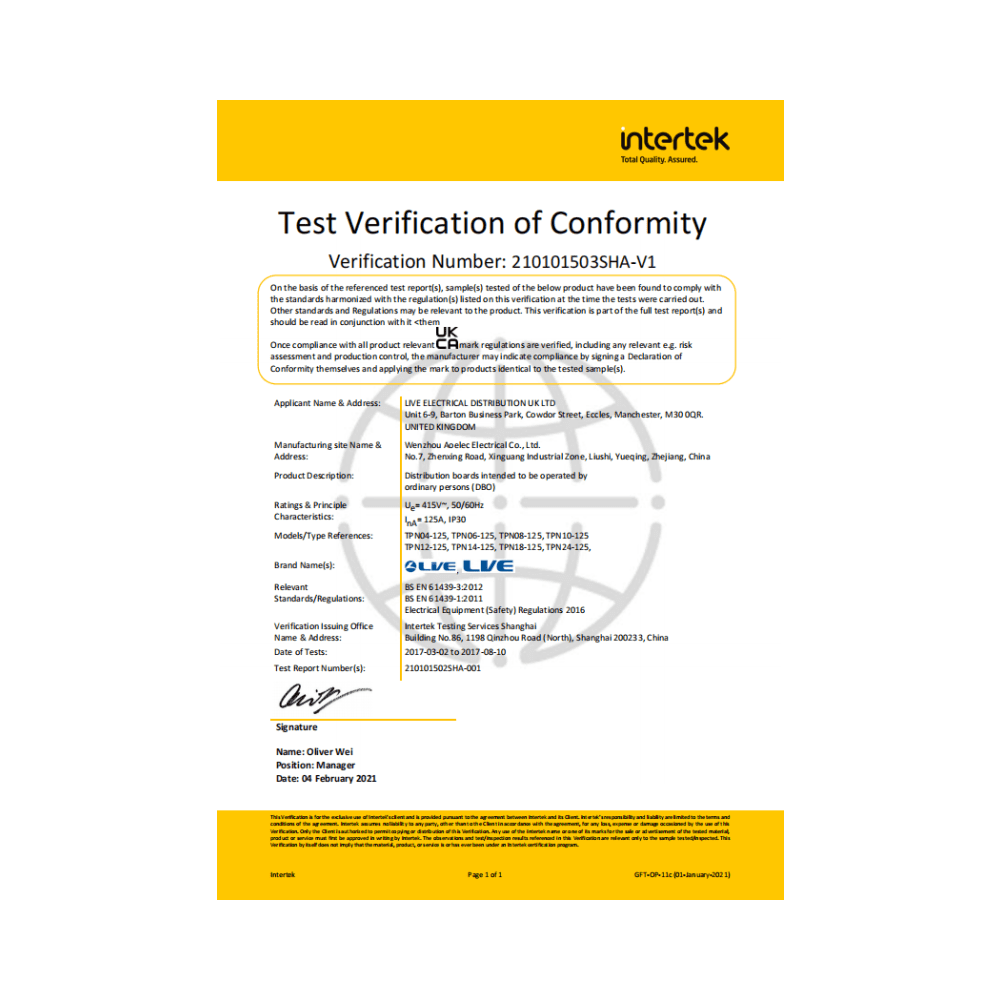

- Compliant with BS EN 61439-3
Live Electrical TPN24-125S Specifications
- Product code: TPN24-125S
- Rated current: 125A
- Rated voltage: 380V/415V AC, 50/60Hz
- Main switch: 125A 4 pole
- Surge protection: Type 2 SPD
- Three pole capacity: 24 ways
- Maximum single pole capacity: 72 ways

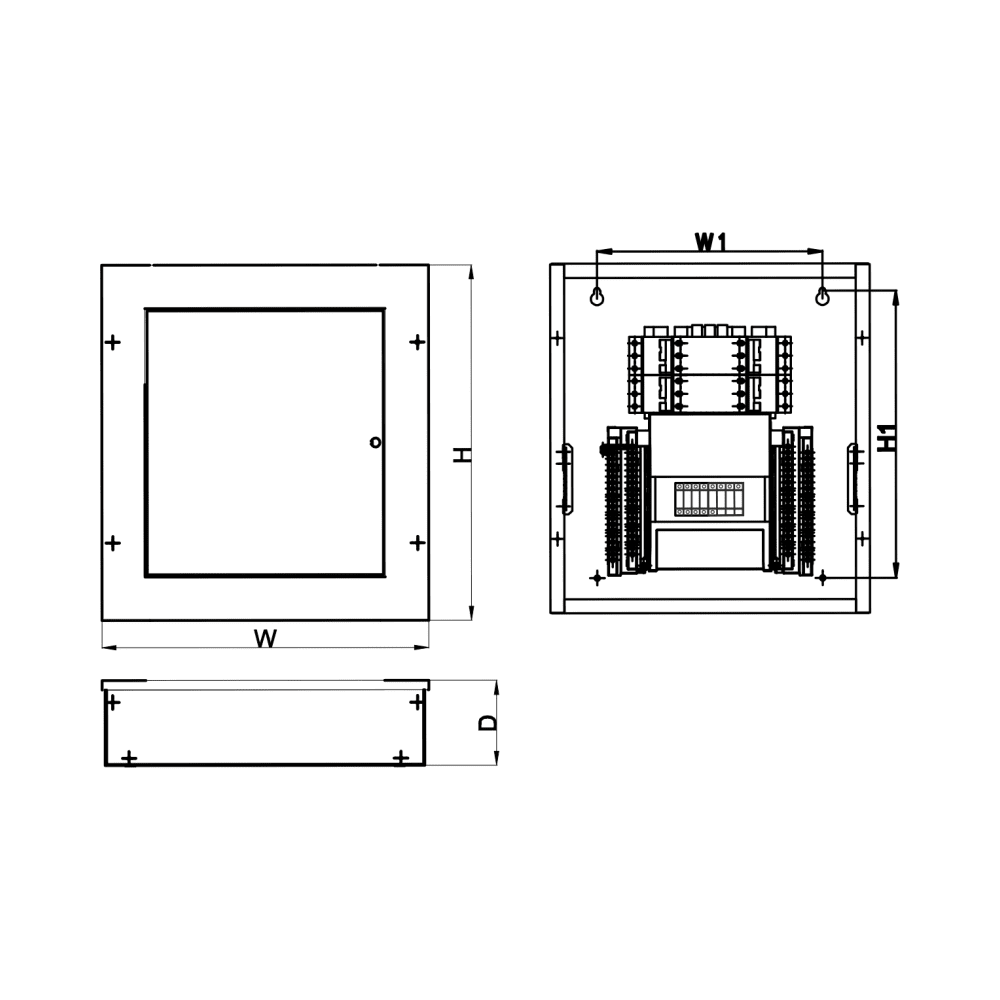

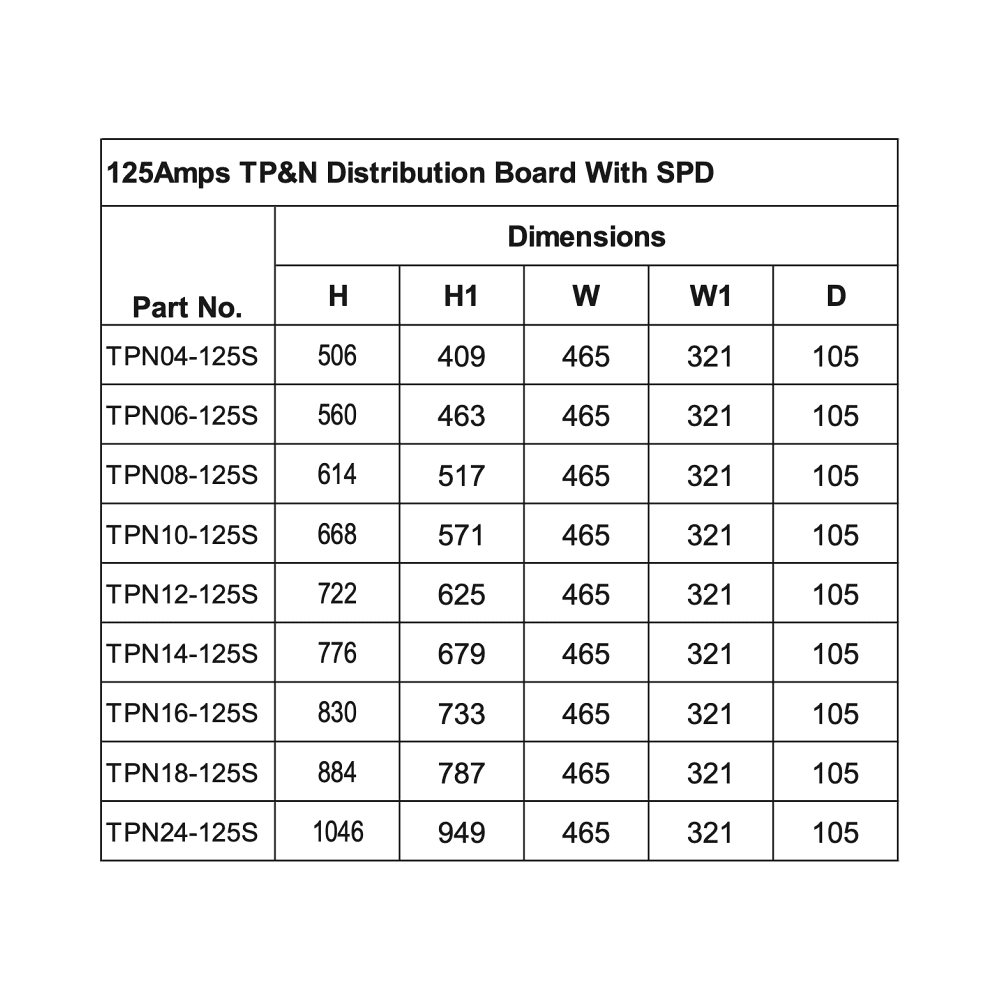

- Overall dimensions: 1046mm high x 465mm wide x 105mm deep
- Internal dimensions: 949mm high x 321mm wide
- Finish: RAL7035 epoxy powder coating
- Standard: BS EN 61439-3
High-Capacity Distribution for Larger Installations
With space for up to 24 three pole outgoing circuits, this board is suitable for factories, warehouses, large workshops, commercial buildings and other installations requiring extensive three-phase power distribution. The integrated SPD helps protect connected equipment against transient overvoltages.
