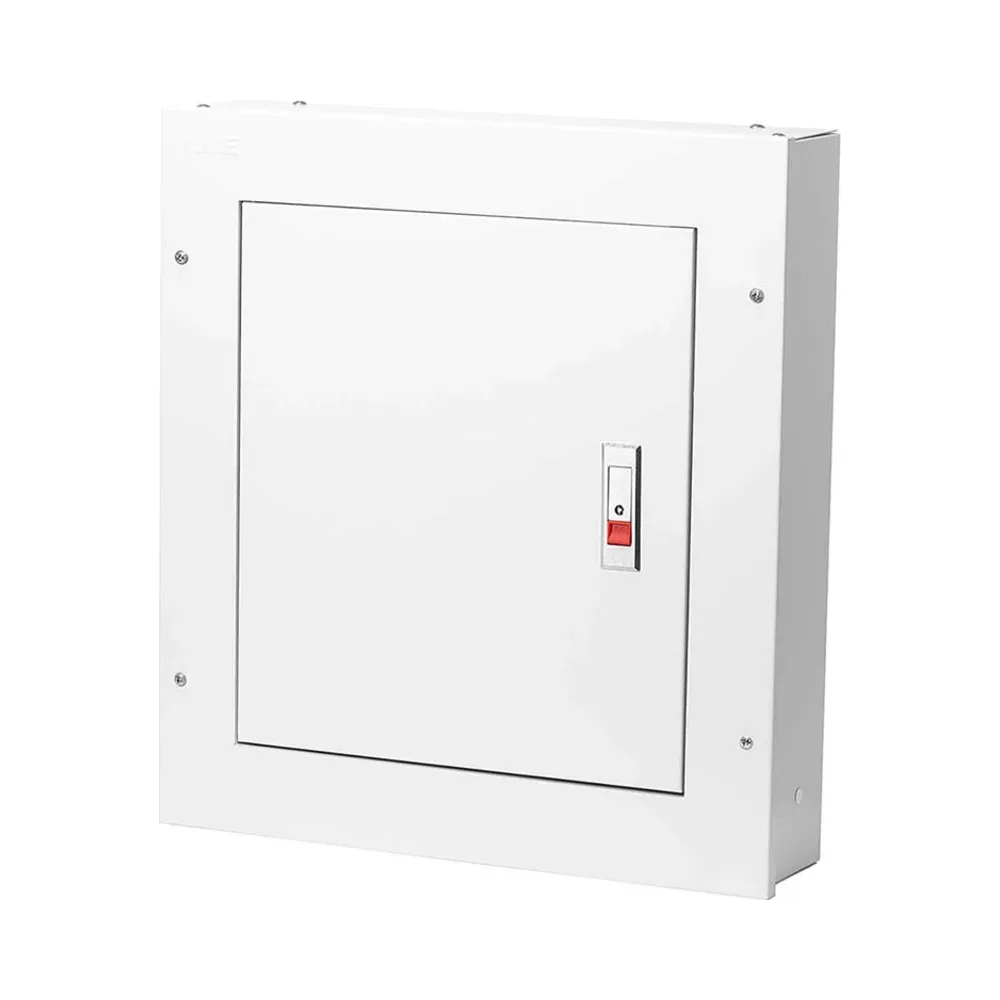

Live Electrical 16 Way TPN Distribution Board with SPD

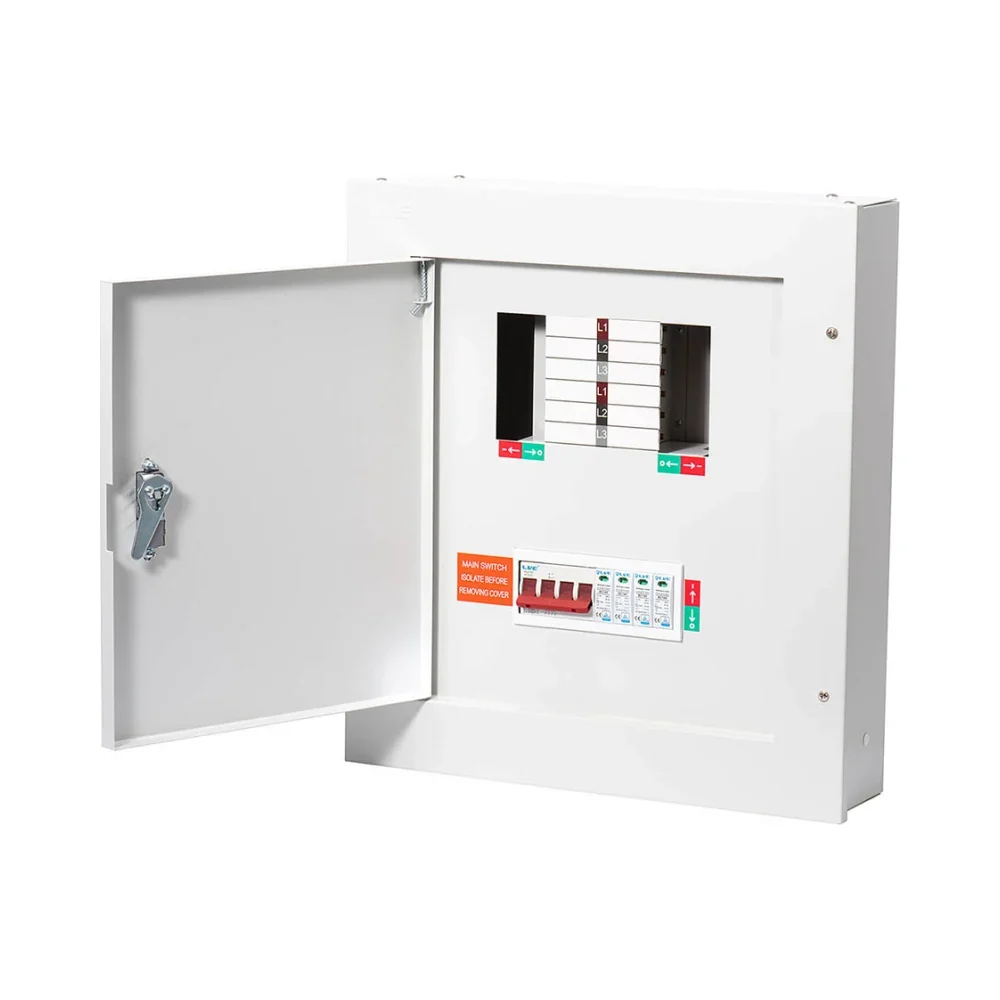

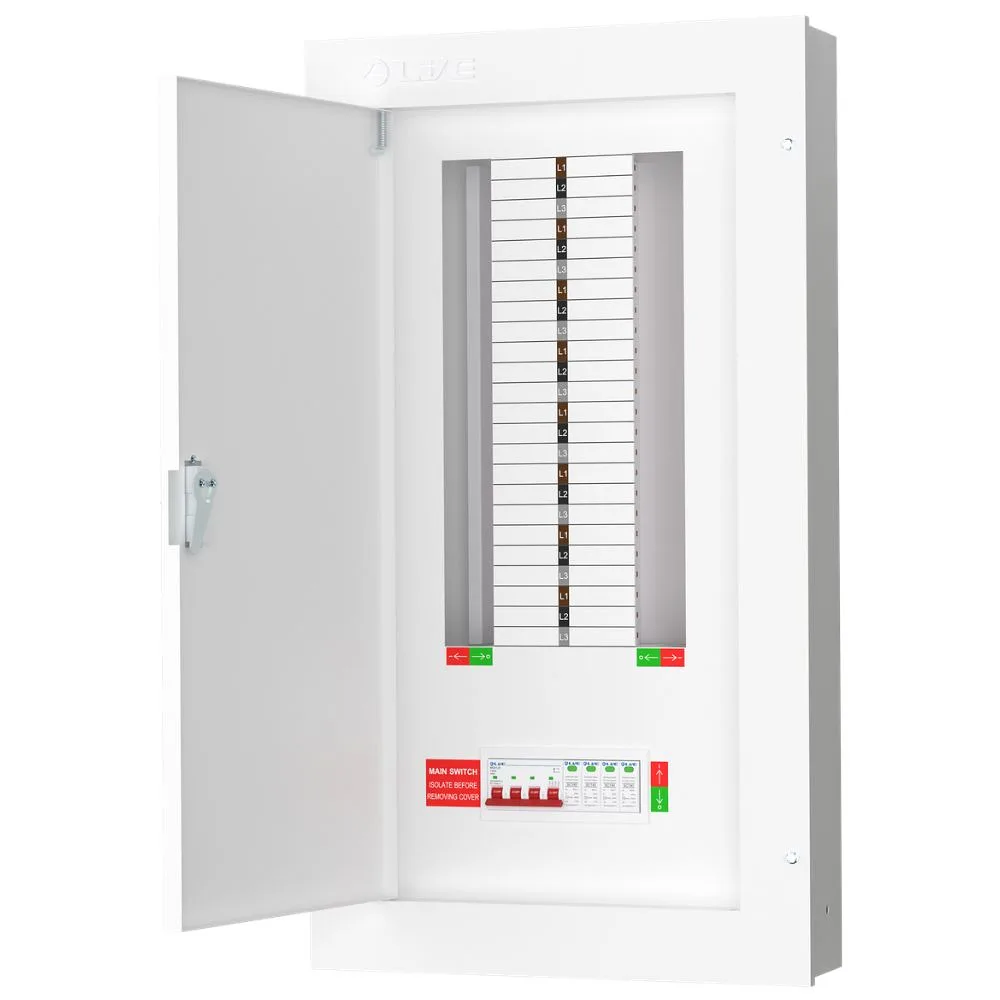

The Live Electrical 16 Way TPN Distribution Board with SPD is a 125A three-phase distribution board supplied with a 125A 4 pole main switch and integrated Type 2 surge protection device. It provides 16 three pole ways or up to 48 single pole ways for compatible MCBs and RCBOs.
Designed for commercial, industrial and larger residential installations, the Live Electrical TPN16-125S combines generous circuit capacity with practical installation features. Neutral and earth terminals are fitted on both sides of the enclosure and positioned close to the outgoing protective devices, helping simplify wiring and improve cable organisation.
Installation Features – Live Electrical 16 Way TPN Distribution Board with SPD
- 125A TP&N distribution board
- Supplied with a 125A 4 pole main switch
- Integrated Type 2 surge protection device
- 16 three pole ways or up to 48 single pole ways
- Neutral and earth terminals fitted on both sides
- Terminals positioned adjacent to compatible MCBs and RCBOs
- Fully enclosed busbar system
- Complete shrouding for the main incomer and link
- Removable gland plate for convenient cable entry
- Keyhole fixing points for straightforward wall mounting
- Durable RAL7035 epoxy powder-coated finish

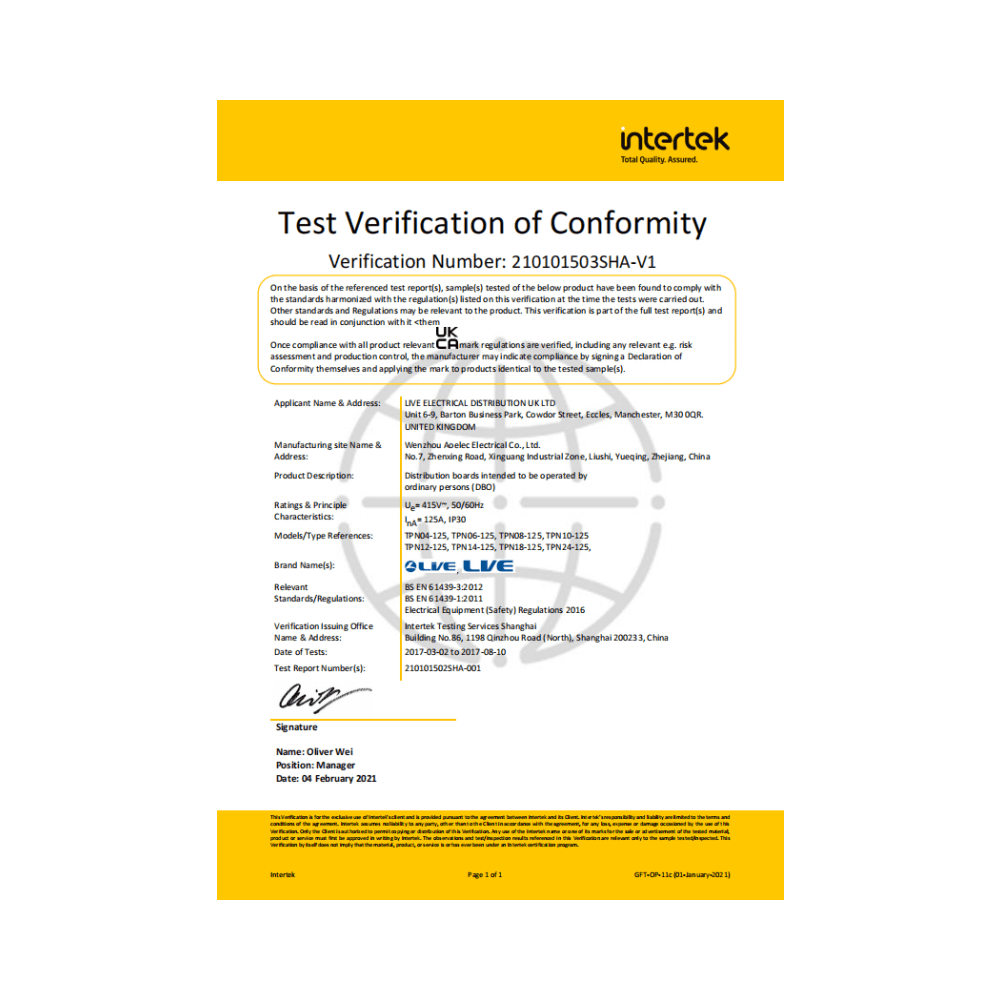

- Compliant with BS EN 61439-3
Live Electrical TPN16-125S Technical Specifications
- Product code: TPN16-125S
- Rated current: 125A
- Rated voltage: 380V/415V AC, 50/60Hz
- Main switch: 125A 4 pole
- Surge protection: Type 2 SPD
- Three pole capacity: 16 ways
- Maximum single pole capacity: 48 ways

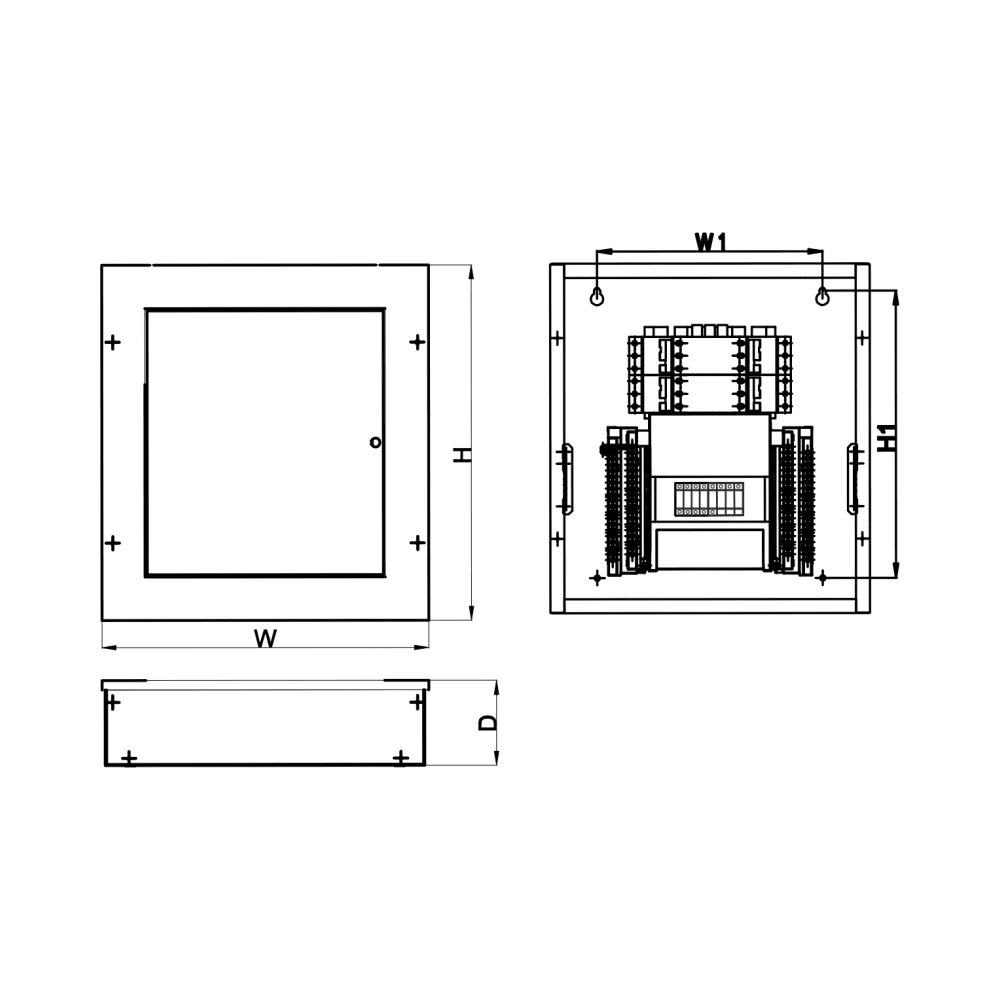

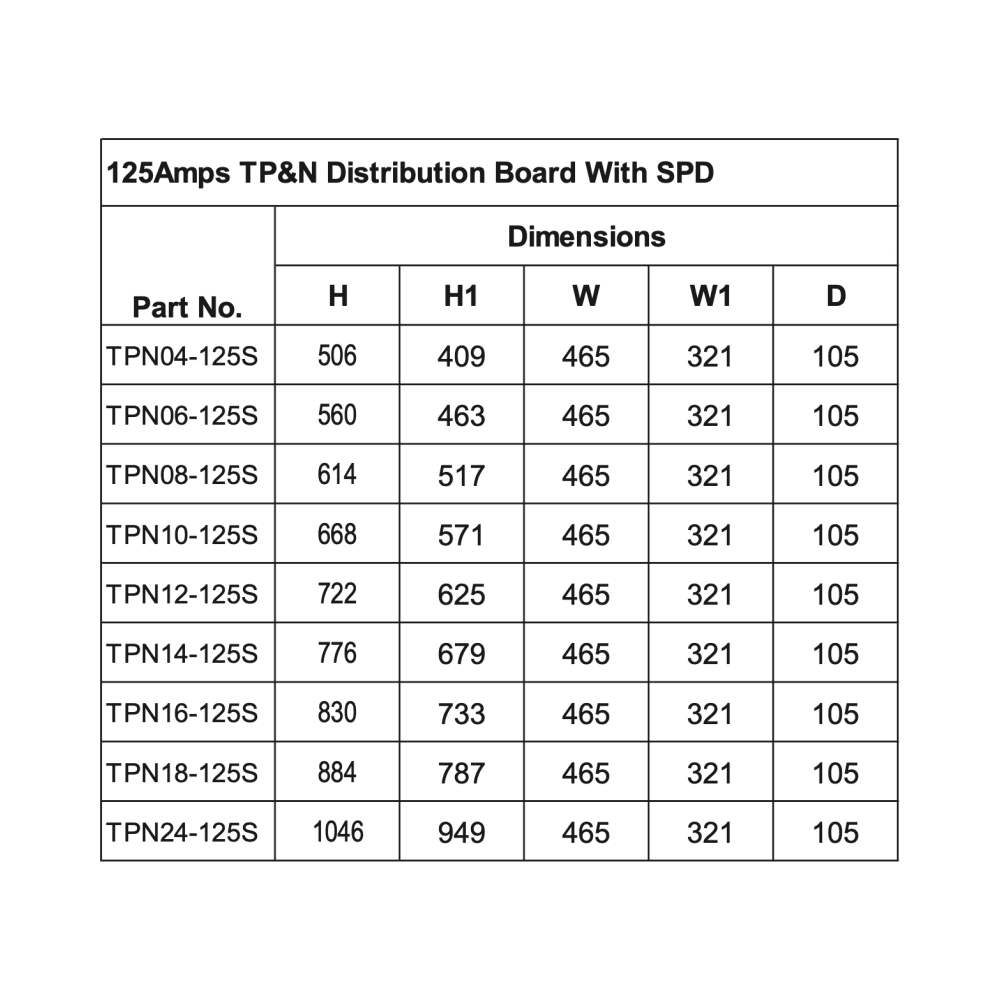

- Overall dimensions: 830mm high x 465mm wide x 105mm deep
- Internal dimensions: 733mm high x 321mm wide
- Finish: RAL7035 epoxy powder coating
- Standard: BS EN 61439-3
Suitable for High-Capacity Installations
With capacity for up to 16 three pole circuits, this distribution board is suitable for offices, retail premises, workshops, warehouses and other installations requiring extensive three-phase circuit distribution. The built-in Type 2 SPD helps protect connected equipment against transient overvoltages.
