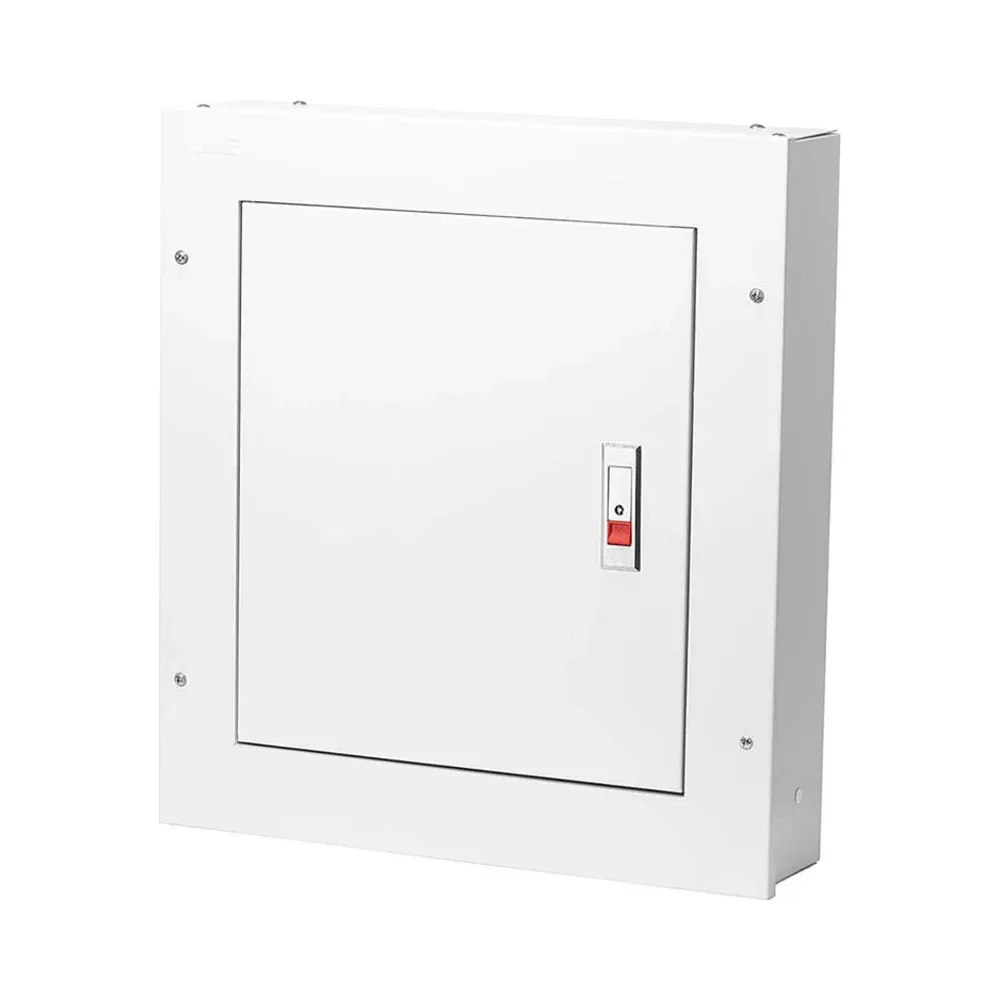

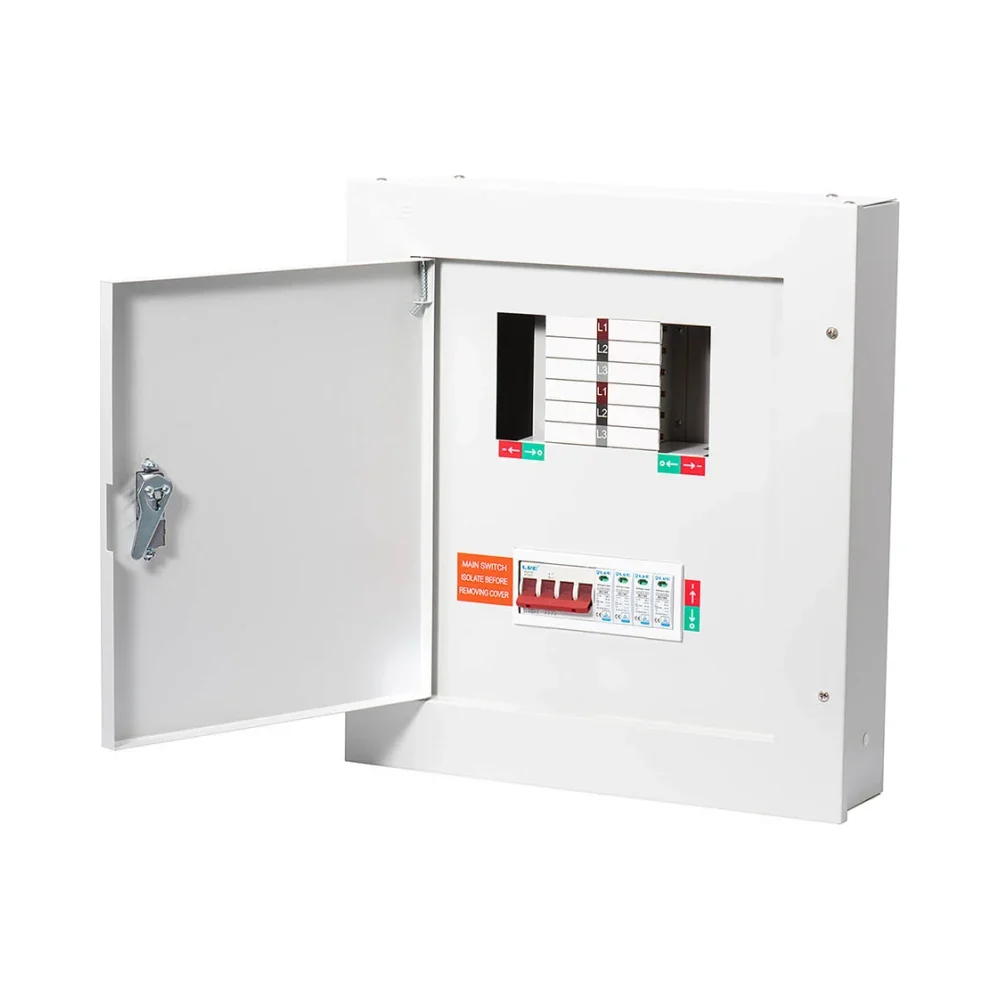

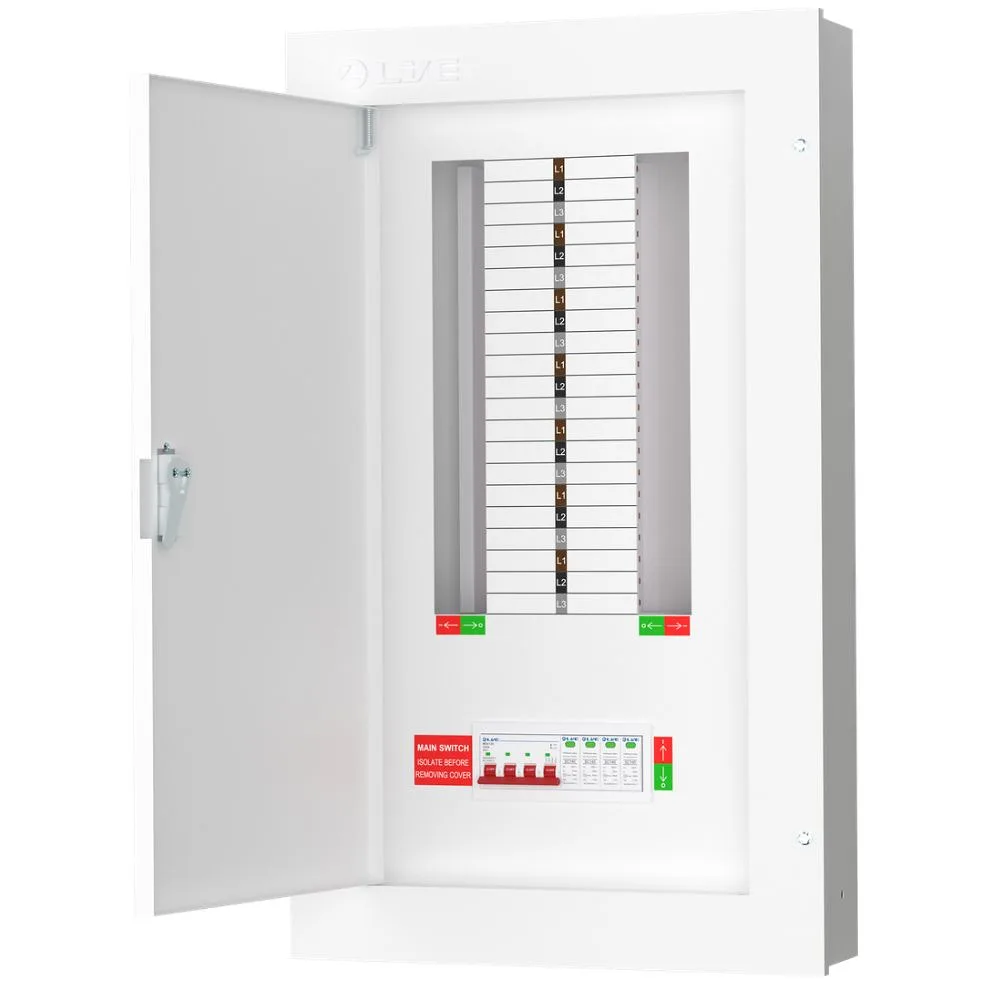

Live Electrical 14 Way SPD TPN Distribution Board
The Live Electrical 14 Way SPD TPN Distribution Board is a 125A three-phase distribution board supplied with a 125A 4 pole main switch and integrated Type 2 surge protection device. It accommodates 14 three pole circuits or up to 42 single pole circuits using compatible MCBs and RCBOs.
Designed for commercial, industrial and larger residential installations, the Live Electrical TPN14-125S combines substantial circuit capacity with practical installation features. Neutral and earth terminals are fitted on both sides and positioned close to the outgoing protective devices, helping reduce wiring time and maintain an organised installation.
Key Benefits – Live Electrical 14 Way SPD TPN Distribution Board
- 125A TP&N distribution board
- Supplied with a 125A 4 pole main switch
- Built-in Type 2 surge protection device
- 14 three pole ways or up to 42 single pole ways
- Neutral and earth terminals provided on both sides
- Terminals positioned adjacent to the MCBs and RCBOs
- Fully enclosed busbar system
- Complete shrouding for the main incomer and link
- Removable gland plate for convenient cable entry
- Keyhole fixing points for straightforward wall mounting
- Durable epoxy powder-coated RAL7035 finish

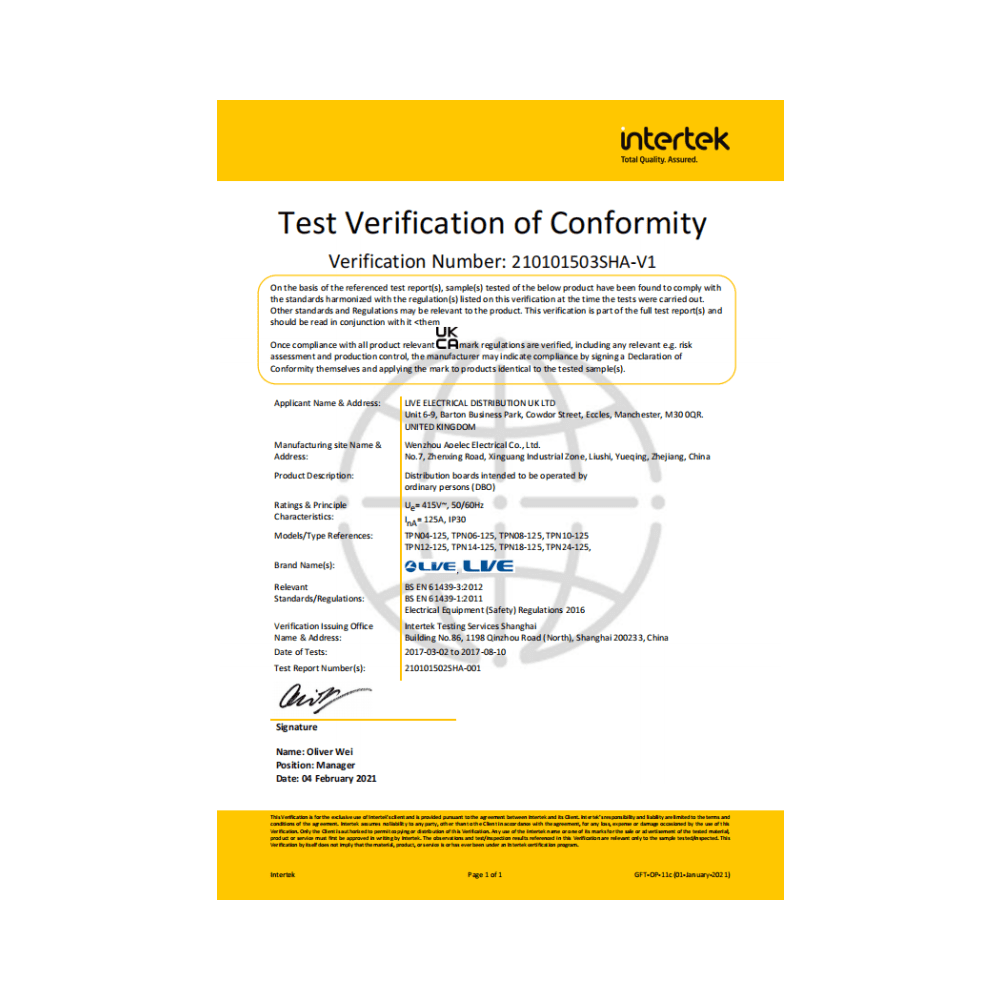

- Manufactured to BS EN 61439-3
TPN14-125S Technical Information
- Product code: TPN14-125S
- Rated current: 125A
- Rated voltage: 380V/415V AC, 50/60Hz
- Main switch: 125A 4 pole
- Surge protection: Type 2 SPD
- Three pole capacity: 14 ways
- Maximum single pole capacity: 42 ways

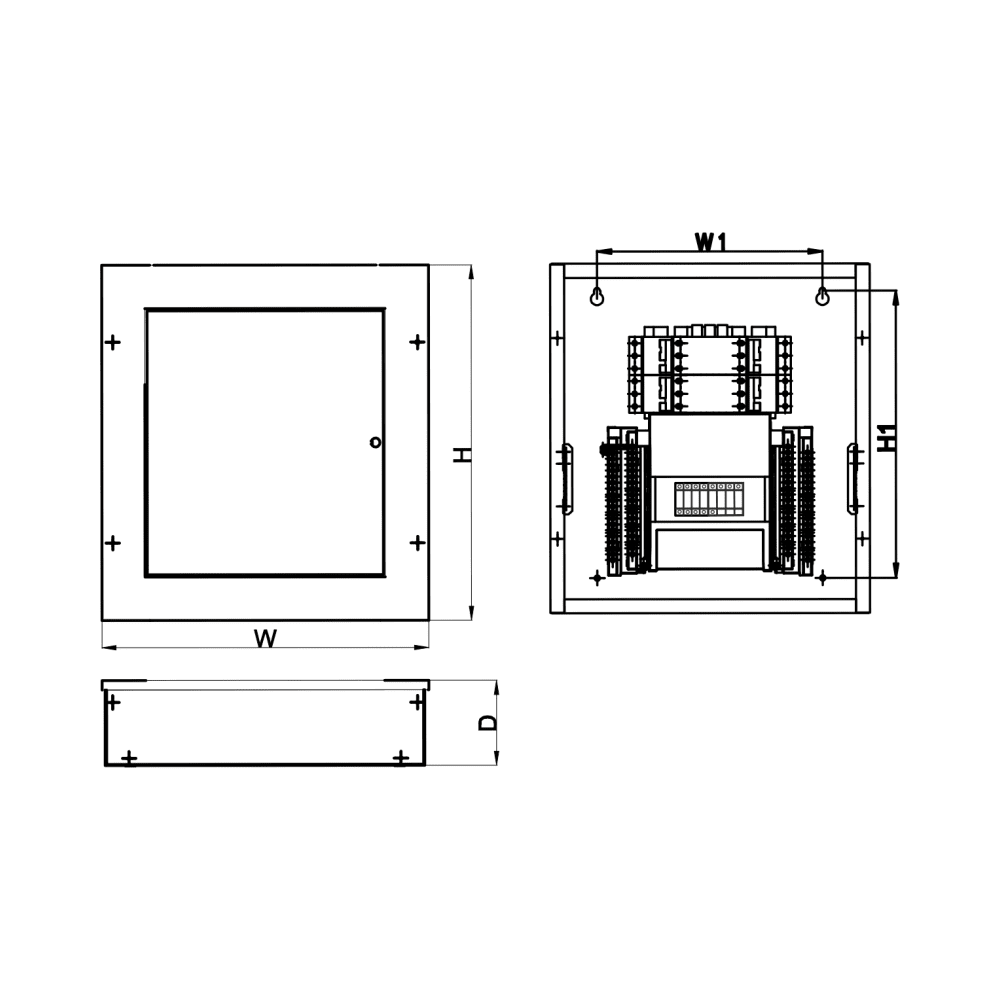

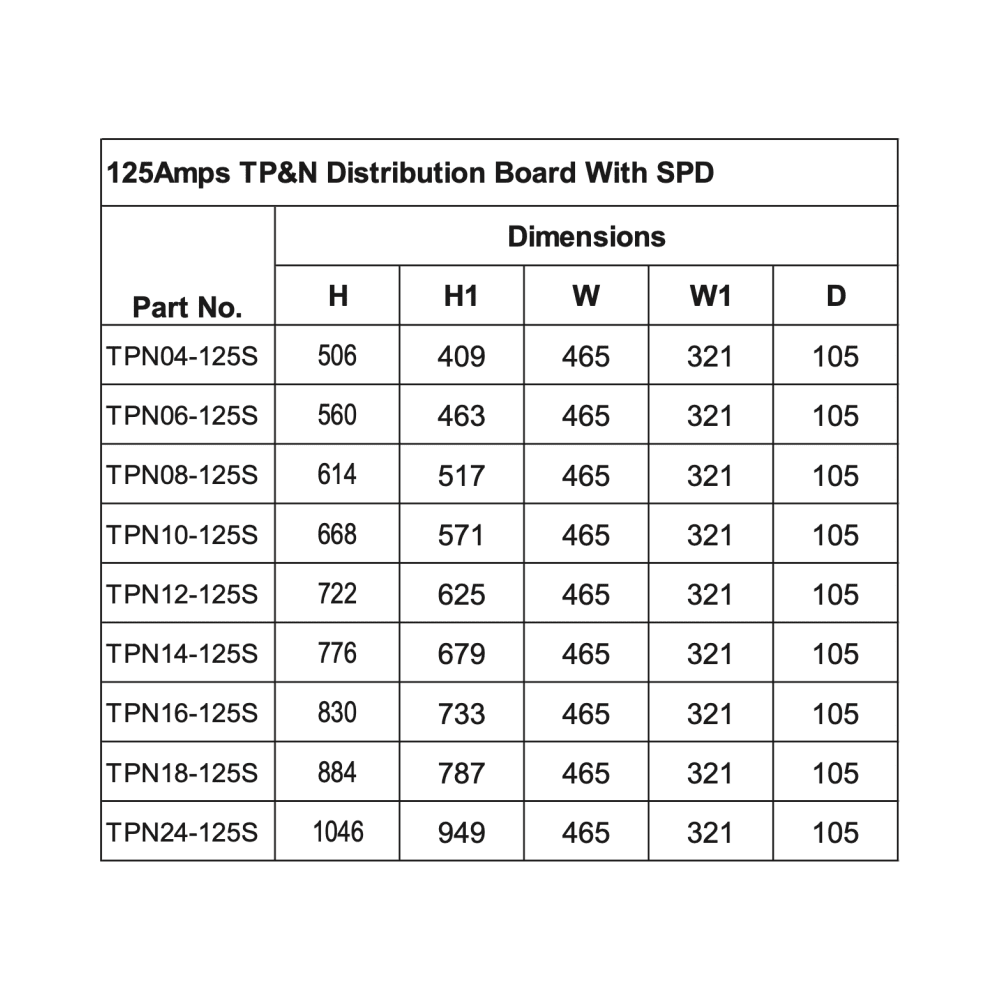

- Overall dimensions: 776mm high x 465mm wide x 105mm deep
- Internal dimensions: 679mm high x 321mm wide
- Enclosure finish: RAL7035 epoxy powder coating
- Standard: BS EN 61439-3
High-Capacity Three-Phase Circuit Distribution
With space for up to 14 three pole outgoing circuits, this TPN distribution board is suitable for offices, workshops, retail premises, warehouses and other installations requiring reliable power distribution across numerous circuits. The integrated SPD helps protect connected equipment against transient overvoltages.
Scroll to the bottom of the page to select compatible protective devices and consumer unit accessories for your installation.
