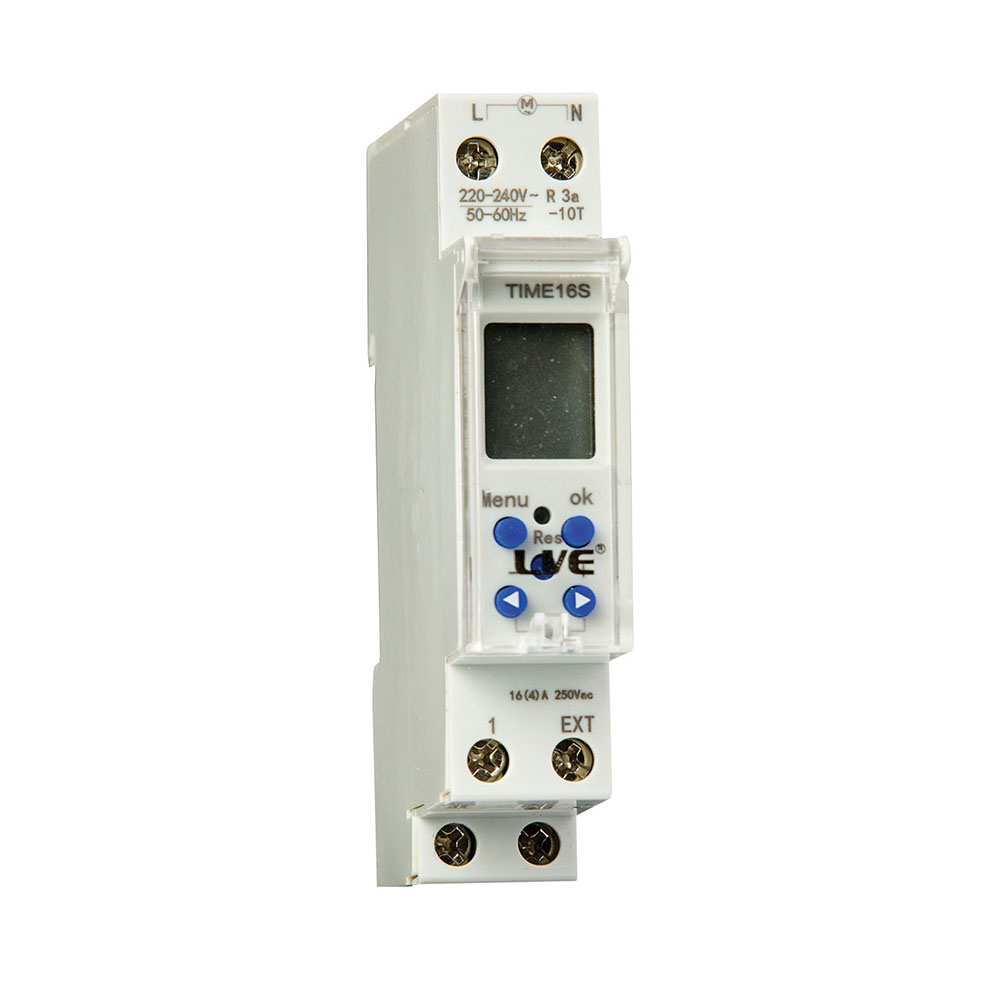

Live Electrical TIME16S Single Module Digital Timer Switch
The Live Electrical TIME16S single module digital timer switch is a compact and versatile solution for precise time-based control of electrical circuits. Designed for DIN rail mounting, this timer is ideal for installations where space is limited while still requiring advanced programming functionality.
With a slim single module width, the TIME16S fits easily into distribution boards and control panels. It supports multiple operating modes including standard programming, pulse control and countdown functions, offering flexibility for a wide range of applications.
TIME16S Digital Timer Overview
The timer features up to 16 programmable ON/OFF schedules, allowing users to automate systems across the week. A built-in calendar enables accurate date and time setting, while holiday mode allows temporary suspension of programmed operations.
Key Features
- Single module digital timer switch
- 16A switching capacity
- DIN rail mounted (35mm)
- Up to 16 programmable ON/OFF schedules
- Pulse control function (up to 32 pulses)
- Countdown timer up to 99 minutes 59 seconds
- Holiday mode with up to 10 programmable dates
- Manual and automatic operation modes
- External control (EXT input) capability
- Built-in lithium battery backup
- Compact design ideal where space is limited
Applications
- Lighting control systems
- Heating and hot water systems
- Industrial control circuits
- Signage and display lighting
- Automation and timed switching applications
Technical Specifications
- Rated voltage: 220–240V AC
- Frequency: 50Hz
- Maximum load: 16A (resistive)
- Inductive load: 10A
- Minimum switching time: 1 minute
- Programs: 16 ON/OFF settings
- Pulse programs: up to 32
- Countdown timer: up to 99 min 59 sec
- Holiday programs: up to 10
- Mounting: 35mm DIN rail
- Operating temperature: -10°C to +50°C
- Width: 17.5mm (single module)
The Live Electrical TIME16S single module digital timer switch offers reliable and efficient control in a compact format, making it an excellent choice for installers requiring advanced functionality within limited panel space.
