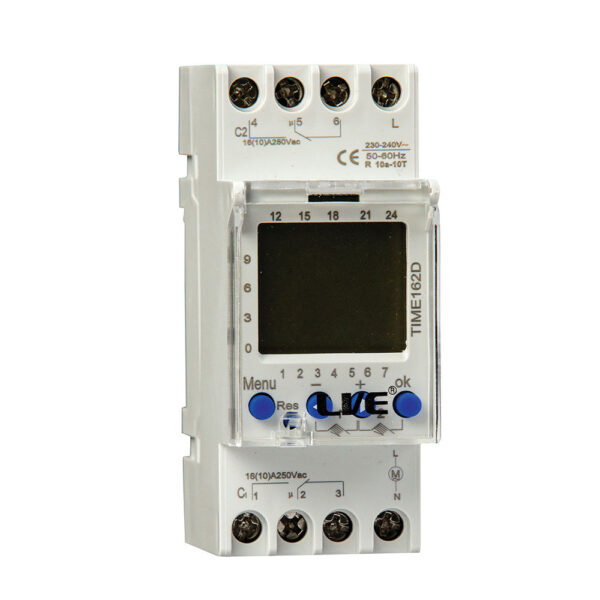

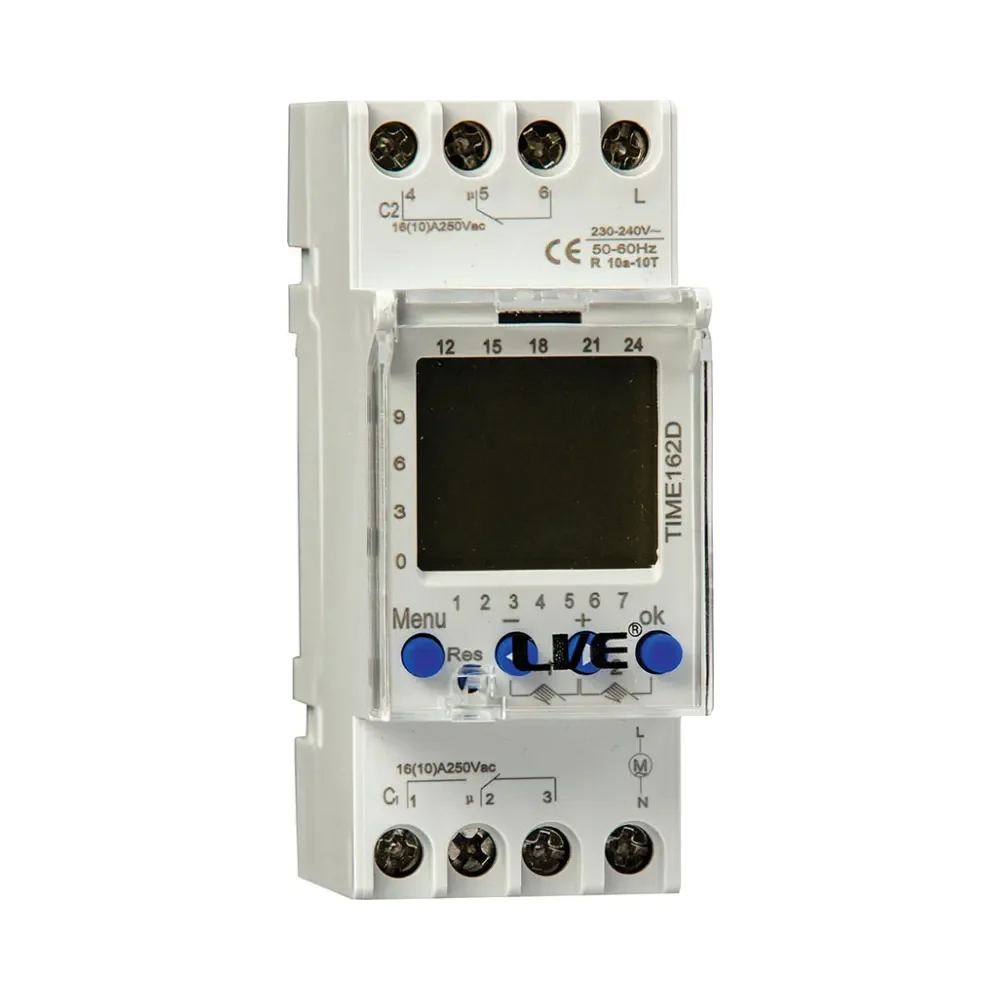

Live Electrical TIME162D 2 Channel 7 Day Digital Timer Switch
The Live Electrical TIME162D 2 channel 7 day digital timer switch provides precise and flexible control of electrical circuits in residential, commercial and industrial installations. Designed for DIN rail mounting, this timer enables accurate scheduling of lighting, heating, ventilation and automation systems.
With two independent channels rated at 16A, the TIME162D allows separate control of multiple circuits. The intuitive LCD display and simple 4-button interface make programming straightforward, while advanced features such as cycle, pulse, holiday and random modes offer enhanced functionality for specialist applications.
TIME162D Digital Timer Overview
This 7 day programmable timer supports up to 44 switching programs, allowing detailed scheduling across individual days or grouped weekdays. Automatic summer/winter time adjustment ensures consistent operation throughout the year, reducing the need for manual updates.
Key Features – Live Electrical TIME162D 2 Channel 7 Day Digital Timer Switch
- 2 channel 7 day digital timer switch
- 16A switching capacity per channel
- DIN rail mounted for easy installation
- Up to 44 programmable switching operations
- Cycle function for repeating ON/OFF sequences
- Pulse function (1–59 seconds) for control signals
- Holiday mode to suspend operation during set dates
- Random mode for security and presence simulation
- Automatic summer/winter time adjustment
- Manual and permanent override options
- Clear LCD display with simple navigation
- Battery backup with approx. 4 year power reserve
Applications
- Lighting control systems
- Heating and hot water scheduling
- Ventilation and extraction systems
- Signage and advertising lighting
- Commercial and industrial automation
Technical Specifications
- Rated voltage: 230V AC
- Frequency: 50–60Hz
- Maximum load: 16A (per channel)
- Minimum switching time: 1 minute
- Display: LCD with text line
- Memory locations: 44 programs
- Operating temperature: -10°C to +50°C
- Mounting: 35mm DIN rail
- Protection rating: IP20
The Live Electrical TIME162D 2 channel 7 day digital timer switch is a reliable and versatile solution for automated control, helping improve energy efficiency, convenience and system performance across a wide range of installations.
