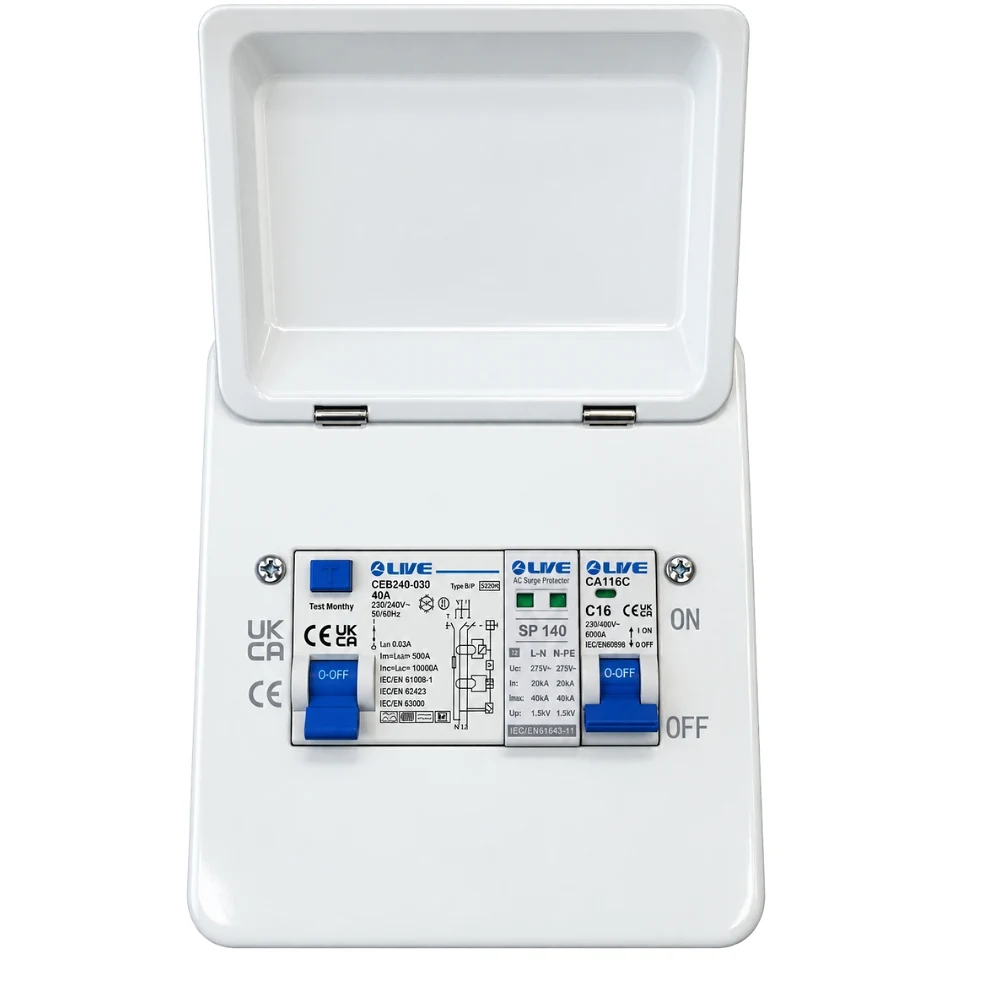

Live Electrical 5 Way 40A B-HP Heat Pump Consumer Unit
The Live Electrical LHP0540-MS is a compact 5 way heat pump consumer unit designed to provide dedicated electrical protection for heat pump installations. It combines a 40A B-HP RCD, C16 MCB and surge protection device within a smaller 5 way enclosure.
The Live Electrical 5 Way 40A B-HP Heat Pump Consumer Unit provides installers with a convenient pre-configured solution where B-HP residual current protection is specified for the heat pump equipment.
Compact 5 Way Heat Pump Consumer Unit
The smaller 5 way enclosure makes the LHP0540-MS particularly useful where installation space is limited while still providing the required protective devices for a dedicated heat pump circuit.
With the B-HP RCD, C16 MCB and SPD housed together, the unit offers a neat and practical alternative to assembling the individual protective components separately.
40A B-HP RCD Protection
The LHP0540-MS is fitted with a 40A B-HP RCD designed for heat pump applications requiring B-HP residual current protection.
Heat pump equipment and manufacturer requirements can vary, so the specified RCD type and protective device ratings should always be checked against the heat pump manufacturer’s installation instructions before installation.
Key Features
- Compact 5 way heat pump consumer unit
- 40A B-HP RCD
- C16 MCB
- Surge protection device
- Dedicated protection for heat pump circuits
- Pre-configured heat pump protection solution
- Smaller enclosure for installations where space is limited
- Live Electrical circuit protection components
Product Specification
- Brand: Live Electrical
- Product Code: LHP0540-MS
- Product Type: Heat Pump Consumer Unit
- Number of Ways: 5 Way
- RCD Type: B-HP
- RCD Rating: 40A
- MCB Rating: C16
- MCB Curve: C Curve
- Surge Protection: SPD
- Application: Dedicated heat pump circuit protection
B-HP Heat Pump Consumer Unit with SPD
The B-HP Heat Pump Consumer Unit with SPD combines residual current, overcurrent and surge protection in one compact assembly. The C16 MCB provides circuit protection while the SPD adds protection against transient overvoltages.
The Live Electrical 5 Way 40A B-HP Heat Pump Consumer Unit is therefore a practical option for installers looking for a compact dedicated board for compatible heat pump installations.
Installation Information
Always confirm the electrical requirements of the specific heat pump before selecting the protective devices. The 40A B-HP RCD and C16 MCB configuration must be suitable for the equipment being connected and comply with the heat pump manufacturer’s instructions.
Installation, inspection and testing should be carried out by a suitably qualified electrician in accordance with the current edition of BS 7671 and the equipment manufacturer’s requirements.
