Type A RCBO with Curve C Tripping for Live Electrical TPN Distribution Boards

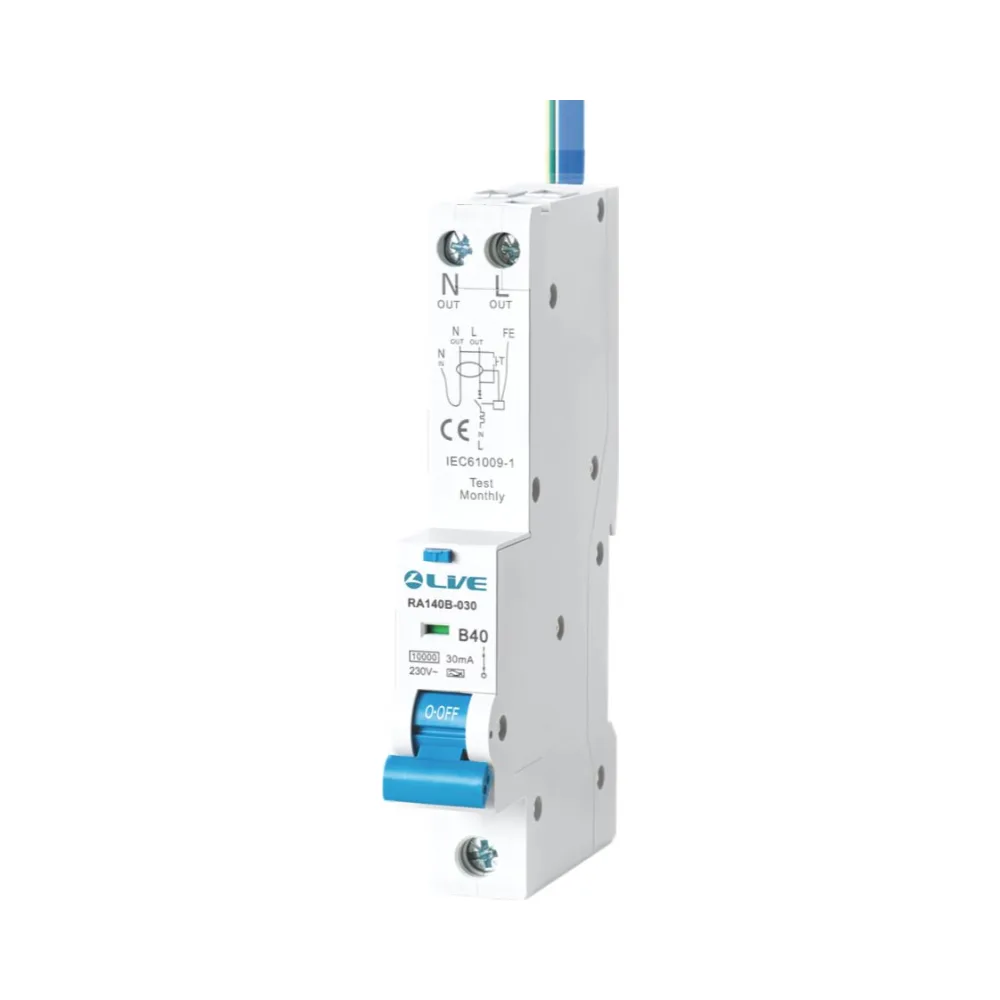

The Live Electrical 10kA RCBO 6A Curve C Type A 30mA 1P+N combines residual current and overcurrent protection in a single, compact device. Built for use in Live Electrical TPN three-phase distribution boards, it protects final circuits against overloads, short circuits, and earth leakage, including AC and pulsating DC residual faults.
This unit complies with BS EN 61009-1 and is suitable for circuits with moderate inrush currents, such as those feeding small motors, transformers, or LED drivers.
Curve C Tripping Characteristics and Application
The Curve C tripping profile allows the RCBO to tolerate inrush currents up to 5–10 times the rated current. This makes the 6A Curve C RCBO ideal for installations with equipment that may cause momentary surges during startup.
The 30mA Type A sensitivity ensures effective personal protection by detecting AC and pulsed DC leakage currents, making it suitable for mixed-load and sensitive environments.
Configuration and Mounting
This RCBO features a 1P+N configuration, providing simultaneous isolation of the phase and neutral conductors. It mounts directly onto a DIN rail and fits standard module spacing within Live Electrical TPN distribution boards.
Terminals accept up to 16mm² cable, supporting typical final circuit configurations.
Key Features
- Suitable for Live Electrical TPN three-phase distribution boards
- Rated current: 6A
- Curve C tripping – for moderate inrush loads
- 30mA residual current sensitivity (Type A – AC and pulsed DC)
- Breaking capacity: 10kA
- Configuration: 1P+N
- DIN rail mountable, 1 module
- Terminal capacity up to 16mm²
- Fully compliant with BS EN 61009-1
- Designed for residential, commercial, and light industrial use
Technical Specifications – RAC106C-030
- SKU: RAC106C-030
- Rated Current: 6A
- Voltage: 230V AC
- Tripping Curve: C
- Residual Sensitivity: 30mA, Type A
- Breaking Capacity: 10kA
- Poles: 1P+N
- Mounting: DIN rail, 1 module
- Terminal Capacity: Up to 16mm²
- Electrical Endurance: 4,000 cycles
- Mechanical Endurance: 10,000 operations
- Operating Temp: -5°C to +40°C
- Ingress Protection: IP20 (when enclosed)
- Standard Compliance: BS EN 61009-1
Enhanced Protection for Surge-Prone Circuits
The Live Electrical 10kA RCBO 6A Curve C Type A 30mA 1P+N is the ideal choice for circuits with equipment that generates startup surges. Designed to integrate easily into Live Electrical TPN distribution boards, it offers advanced circuit protection without sacrificing installation efficiency.
