Type A RCBO for Live Electrical TPN Distribution Boards

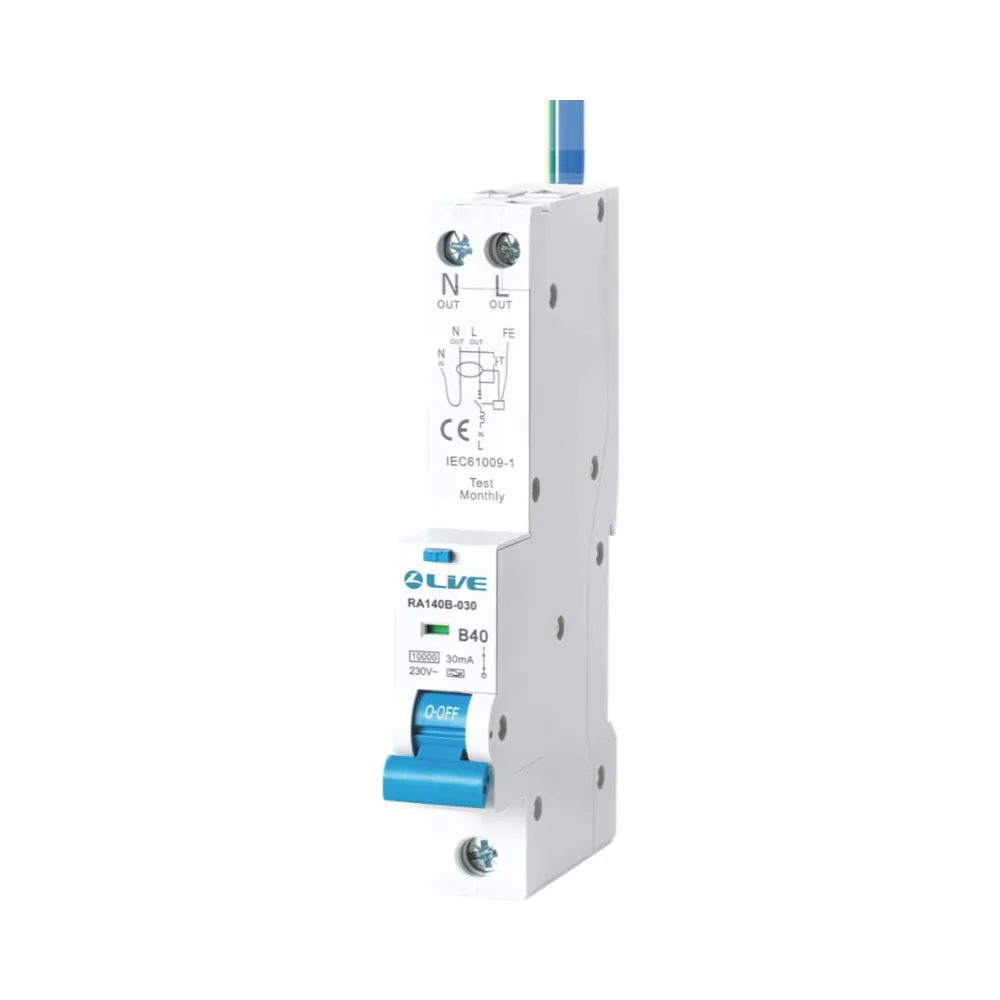

The Live Electrical 10kA RCBO 6A Curve B Type A 30mA 1P+N is a residual current circuit breaker with overcurrent protection, designed for seamless integration into Live Electrical TPN three-phase distribution boards. It offers dual protection from overcurrent and earth leakage, including AC and pulsating DC fault currents up to 6 mA.
Fully compliant with BS EN 61009-1 and the 18th Edition Wiring Regulations, this RCBO is ideal for modern low-inductance circuits and mixed-load installations.
Performance Characteristics of the 6A Curve B RCBO
The unit is rated for 6 amps and uses a Curve B tripping profile, making it well-suited for domestic socket and lighting circuits. The 30mA residual current sensitivity (Type A) ensures rapid disconnection in the presence of leakage faults.
Its 10kA short-circuit breaking capacity provides enhanced protection in systems where higher fault currents may occur.
Installation in Live Electrical Boards
This RCBO features a 1P+N pole configuration, allowing simultaneous switching of phase and neutral conductors. Designed as a standard single-module device, it mounts directly onto DIN rails within Live Electrical TPN distribution boards, making installation efficient and secure.
The device accepts conductors up to 16mm² and is built for high durability under electrical and mechanical stress.
Key Benefits of Live Electrical 10kA RCBO 6A Curve B Type A 30mA 1P+N
- Compatible with Live Electrical TPN distribution boards
- Rated Current: 6A
- 10kA breaking capacity
- Curve B tripping for rapid response in low-impedance circuits
- 30mA sensitivity for personal protection (Type A for AC + pulsed DC)
- 1P+N pole configuration
- DIN rail mountable, single module width
- High resistance to nuisance tripping
- Conforms to BS EN 61009-1
Technical Specifications – RA106B-030
- SKU: RA106B-030
- Rated Current: 6A
- Voltage: 230V AC
- Tripping Curve: B
- Sensitivity: 30mA (Type A)
- Breaking Capacity: 10kA
- Poles: 1P+N
- Terminal Capacity: Up to 16mm²
- Electrical Endurance: 4,000 cycles
- Mechanical Endurance: 10,000 operations
- Temperature Range: -5°C to +40°C
- Ingress Protection: IP20 (when enclosed)
- Mounting: Standard DIN rail
- Standard: BS EN 61009-1
Applications and Use Cases for Type A RCBOs
The Live Electrical 10kA RCBO 6A Curve B Type A 30mA 1P+N is intended for circuits with lighting controls, electronic equipment, or socket outlets where personal protection and overcurrent protection are both required. Its Type A sensitivity makes it suitable for environments with residual DC current risk.
