RCBO for Use in Live Electrical TPN Distribution Boards

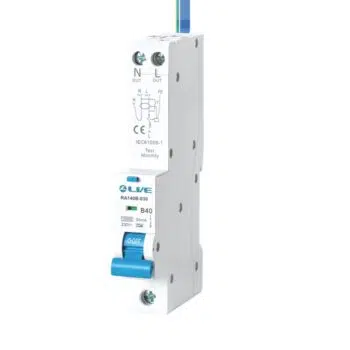

The Live Electrical 10kA RCBO 32A Curve B Type A 30mA 1P+N is a residual current operated circuit breaker with integrated overcurrent protection. Designed specifically for Live Electrical TPN three-phase distribution boards, this 32A RCBO protects final circuits from overload, short circuit, and earth leakage faults—including pulsating DC residual currents.
It complies fully with BS EN 61009-1 and meets the requirements of the 18th Edition Wiring Regulations.
Functional Performance
This device features a 32A rated current and Curve B tripping, making it suitable for general-purpose circuits with resistive or low-inductive loads. The 30mA Type A sensitivity provides personal protection by detecting both AC and pulsed DC leakage currents.
With a 10kA short-circuit breaking capacity, it delivers dependable disconnection under fault conditions, ensuring safe operation in demanding electrical environments.
Mounting and Configuration
The RCBO is built in a 1P+N configuration, allowing simultaneous disconnection of phase and neutral conductors. It is DIN rail mountable and occupies a single module within Live Electrical TPN distribution boards.
Its terminals support conductors up to 16mm², making it compatible with standard final circuit wiring.
Key Features
- Built for Live Electrical TPN three-phase distribution boards
- Fully compliant with BS EN 61009-1
- Rated current: 32A
- 30mA residual current sensitivity (Type A – AC & pulsed DC)
- Tripping characteristic: Curve B
- Short-circuit capacity: 10kA
- Pole configuration: 1P+N
- DIN rail mountable (1 module)
- Terminal capacity: up to 16mm²
- High mechanical and electrical endurance
- Suitable for general load circuits
Technical Specifications – RA132B-030
- SKU: RA132B-030
- Rated Current: 32A
- Voltage: 230V AC
- Tripping Curve: B
- Residual Sensitivity: 30mA, Type A
- Breaking Capacity: 10kA
- Poles: 1P+N
- Mounting: DIN rail, 1 module
- Terminal Capacity: Up to 16mm²
- Electrical Endurance: 4,000 operations
- Mechanical Endurance: 10,000 operations
- Operating Temp: -5°C to +40°C
- Ingress Protection: IP20 (when enclosed)
- Standard Compliance: BS EN 61009-1
Final Circuit Protection for Live Electrical Installations
The Live Electrical 10kA RCBO 32A Curve B Type A 30mA 1P+N is designed for modern electrical systems that demand safety, compliance, and long-term reliability. It integrates directly into Live Electrical TPN distribution boards, offering comprehensive protection in residential and commercial environments.
