Description
RCBO with Type A and Curve C Protection for Live Electrical TPN Boards

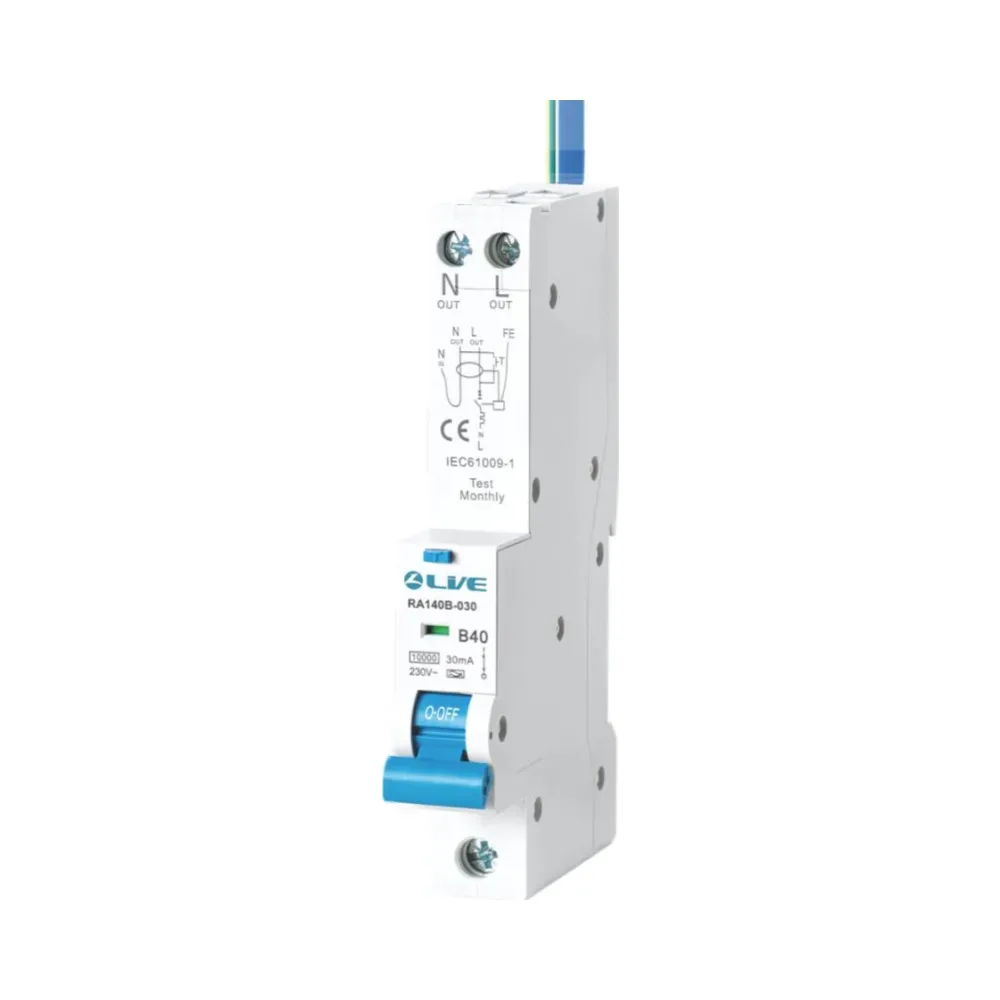

The Live Electrical 10kA RCBO 20A Curve C Type A 30mA 1P+N provides overcurrent and residual current protection in a compact, single-module format. Built for compatibility with Live Electrical TPN three-phase distribution boards, it safeguards final circuits from overload, short circuits, and leakage currents including pulsating DC faults.
The device is fully compliant with BS EN 61009-1 and supports installations requiring higher inrush tolerance.
Curve C Characteristics for Startup Loads
The Curve C tripping profile makes this RCBO suitable for circuits where brief inrush currents are present—such as power tools, commercial lighting, pumps, and small motors. The device allows for momentary current surges up to 5–10 times its rated current.
With 30mA residual current sensitivity (Type A), it protects against AC and pulsed DC leakage faults and supports safe operation under modern load conditions.
Compact, Efficient Installation
Configured as 1P+N, this RCBO disconnects both phase and neutral conductors. It mounts directly to a DIN rail and occupies a single module within Live Electrical TPN boards. Terminal connections support cable sizes up to 16mm², ensuring easy wiring for final circuits.
Key Features
- Designed for use in Live Electrical TPN distribution boards
- Rated current: 20A
- Curve C tripping – suitable for inductive/startup loads
- 30mA residual current sensitivity (Type A – AC and pulsed DC)
- Breaking capacity: 10kA
- Configuration: 1P+N
- DIN rail mountable, 1 module
- Terminal capacity: up to 16mm²
- Certified to BS EN 61009-1
- Built for long-term reliability
Technical Specifications – RA120C-030
- SKU: RA120C-030
- Rated Current: 20A
- Voltage: 230V AC
- Tripping Curve: C
- Residual Sensitivity: 30mA, Type A
- Breaking Capacity: 10kA
- Poles: 1P+N
- Mounting: DIN rail, 1 module
- Terminal Capacity: Up to 16mm²
- Electrical Endurance: 4,000 cycles
- Mechanical Endurance: 10,000 operations
- Operating Temperature: -5°C to +40°C
- Ingress Protection: IP20 (when enclosed)
- Standard Compliance: BS EN 61009-1
Reliable Protection for Circuits with Inrush Demands
The Live Electrical 10kA RCBO 20A Curve C Type A 30mA 1P+N is ideal for final circuits exposed to higher inrush currents. It integrates easily into Live Electrical TPN boards, offering robust, regulation-compliant protection for demanding electrical environments.
