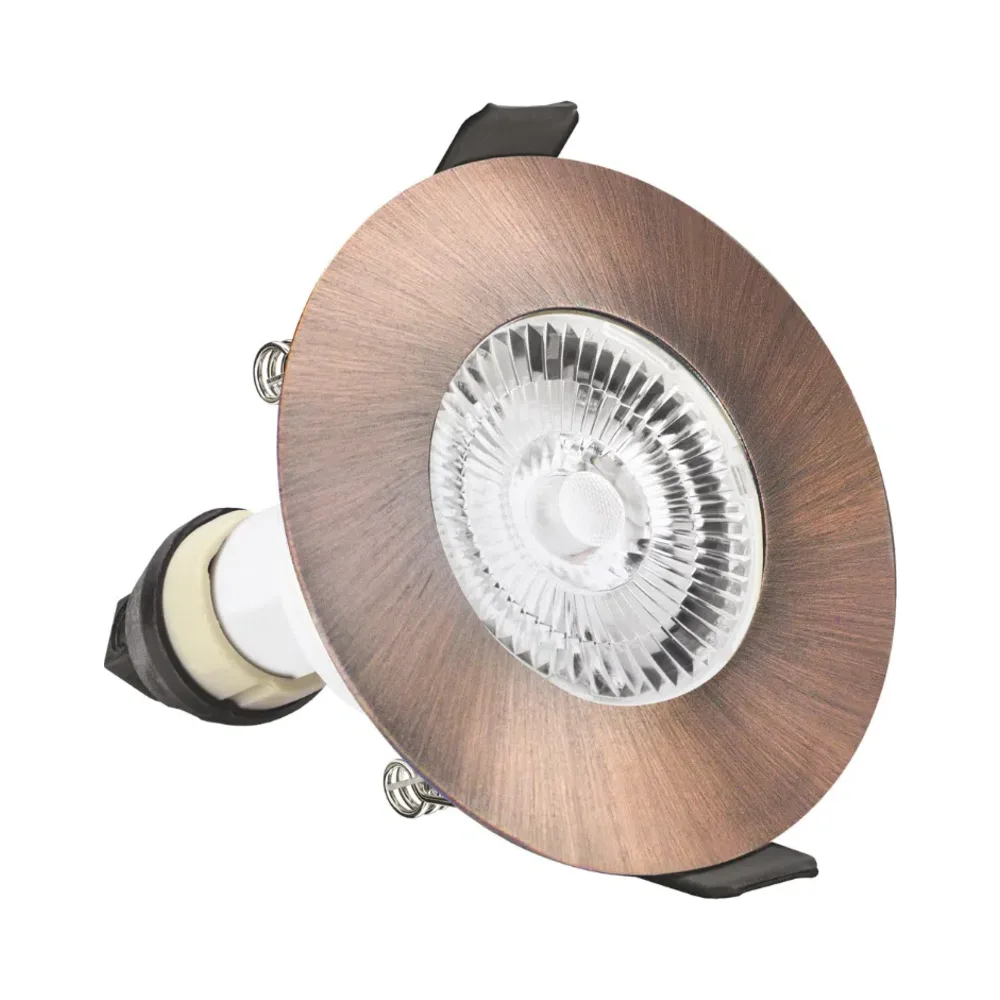

Integral ILDLFR70D047 Evofire 85 Copper IP65 Fire Rated GU10 Downlight
The Integral ILDLFR70D047 is a copper-finish fire-rated GU10 downlight from the Evofire 85 range, combining decorative styling with a shallow 39mm construction. Designed for a 70mm ceiling cut-out, this fixed recessed fitting features an 85mm overall diameter, ultra-slim 1mm bezel and IP65 protection.
Its copper powder-coated finish provides an attractive alternative to conventional white and chrome downlights. The Integral ILDLFR70D047 is particularly suitable for kitchens, bathrooms, living rooms and hospitality interiors where warm metallic finishes are preferred.
Decorative Copper Finish with Slimline Bezel
The copper finish gives this Evofire downlight a distinctive appearance that can complement copper taps, cabinet handles, decorative lighting and other warm-toned interior accessories.
Unlike bulkier traditional downlights, the fitting uses an ultra-thin 1mm blend-in bezel designed to sit almost flush against the ceiling.
Its compact 85mm outer diameter makes it suitable for lighting schemes requiring a discreet recessed fitting without sacrificing decorative character.
Shallow 39mm Design for Restricted Ceiling Spaces
One of the main installation advantages of the Evofire 85 is its shallow 39mm fitting depth.
This compact construction can make installation easier where available ceiling space is restricted by joists, cables, pipework or other building services.
- Shallow 39mm fitting depth
- 70mm ceiling cut-out
- 85mm overall bezel diameter
- Ultra-thin 1mm blend-in trim
- Fixed recessed mounting
Always allow the clearances specified by Integral LED for the selected lamp, wiring connections and ventilation.
Canless Fire-Rated Evofire Technology
The Integral ILDLFR70D047 uses innovative Evofire intumescent fire protection instead of relying on a bulky traditional metal canister.
The fitting provides 30, 60 and 90-minute fire resistance in specified ceiling constructions, tested in accordance with BS 476 Part 21:1987.
Its canless design helps maintain the required fire protection while providing improved ventilation around the replaceable GU10 lamp.
Fire resistance depends on the tested ceiling construction and correct installation according to the manufacturer’s instructions.
Improved Cooling for GU10 LED Lamps
Conventional enclosed fire-rated downlights can restrict airflow around LED lamps, allowing heat to accumulate inside the fitting.
The Evofire open-back construction allows heat to dissipate more effectively. Integral LED states that compatible lamps can operate up to 10°C cooler than those installed in conventional can-style fire-rated downlights.
Improved thermal conditions can help reduce stress on electronic lamp components and support longer LED lamp life.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR70D047 features an IP65-rated front, offering protection against dust ingress and water jets when correctly installed.
This makes it suitable for appropriately specified bathroom locations, kitchens and utility rooms where moisture resistance is important.
The copper finish is particularly attractive in bathrooms and kitchens featuring matching decorative metal accessories.
Always follow applicable bathroom-zone requirements and electrical installation regulations.
Compatible GU10 LED Lamps
The Integral ILDLFR70D047 is supplied with a GU10 lamp holder, allowing you to choose a suitable LED lamp separately according to the required brightness, colour temperature and dimming characteristics.
Explore these Integral GU10 LED lamp options from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates a warm, comfortable lighting atmosphere for bedrooms, lounges and dining areas.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile option for kitchens, hallways and general residential lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – suitable for task lighting, workspaces and contemporary interiors.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – provides a warmer light appearance as brightness is reduced.
The maximum permitted GU10 LED lamp wattage is 10W. Check the selected lamp’s dimensions and compatibility with the fitting before installation. Use a compatible LED dimmer where dimming is required.
Key Features
- Integral LED Evofire 85 range
- Decorative copper powder-coated finish
- Fixed recessed GU10 downlight
- Ultra-slim 1mm blend-in bezel
- 70mm ceiling cut-out
- 85mm overall diameter
- Shallow 39mm fitting depth
- IP65 front protection
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Open-back construction for improved lamp cooling
- Durable pressed steel and glass construction
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D047
- EAN: 5055788268147
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Copper
- Coating: Powder-Coated
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 39mm
- Bezel Thickness: 1mm
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Lamp Holder: GU10 Included
- Maximum LED Lamp Wattage: 10W
- Rated Voltage: 220-240V AC
- Insulation Guard: Not Included
- Mounting: Recessed Ceiling
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
Ceiling Insulation Requirements
The Integral ILDLFR70D047 does not include an integrated insulation guard. Ceiling insulation must not be placed directly over the fitting unless a compatible manufacturer-approved protection arrangement is installed.
Where an integrated insulation guard is required, the Integral ILDLFR70D048 provides an alternative copper Evofire 85 downlight with an 83mm overall depth.
Optional Copper Adapter Ring
For suitable installations with larger ceiling openings, the Integral ILDLFR70D050 Copper Downlight Adapter Ring is designed to accommodate compatible round Evofire fittings in cut-outs between 70mm and 100mm.
This optional accessory offers a matching copper finish and can be useful when replacing older recessed downlights with larger existing ceiling openings. Check compatibility before ordering.
Ideal Applications
- Bathrooms and shower rooms, subject to installation requirements
- Kitchens featuring copper accessories
- Living rooms and dining rooms
- Hallways and bedrooms
- Restaurants, hotels and hospitality interiors
- Traditional and contemporary properties
- New-build residential installations
- Commercial lighting refurbishments
- Ceilings with restricted installation depth
Why Choose the Integral Evofire Copper Downlight?
The Integral ILDLFR70D047 combines a distinctive copper finish with the practical advantages of a shallow 39mm canless construction.
Its IP65 front protection, tested fire resistance and replaceable GU10 lamp arrangement make it a practical option for professional lighting installations, while the slim 1mm bezel provides a refined decorative finish.
Order Integral Evofire Downlights from Electrical4Less
Choose the Integral ILDLFR70D047 Evofire 85 copper GU10 downlight for fire-rated recessed lighting with a slimline appearance and shallow installation depth.
Order online from Electrical4Less and select a compatible Integral GU10 LED lamp separately to complete your lighting installation.
