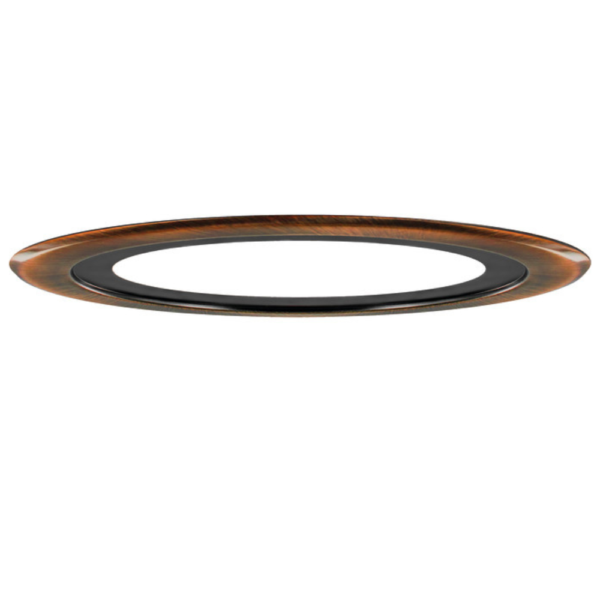

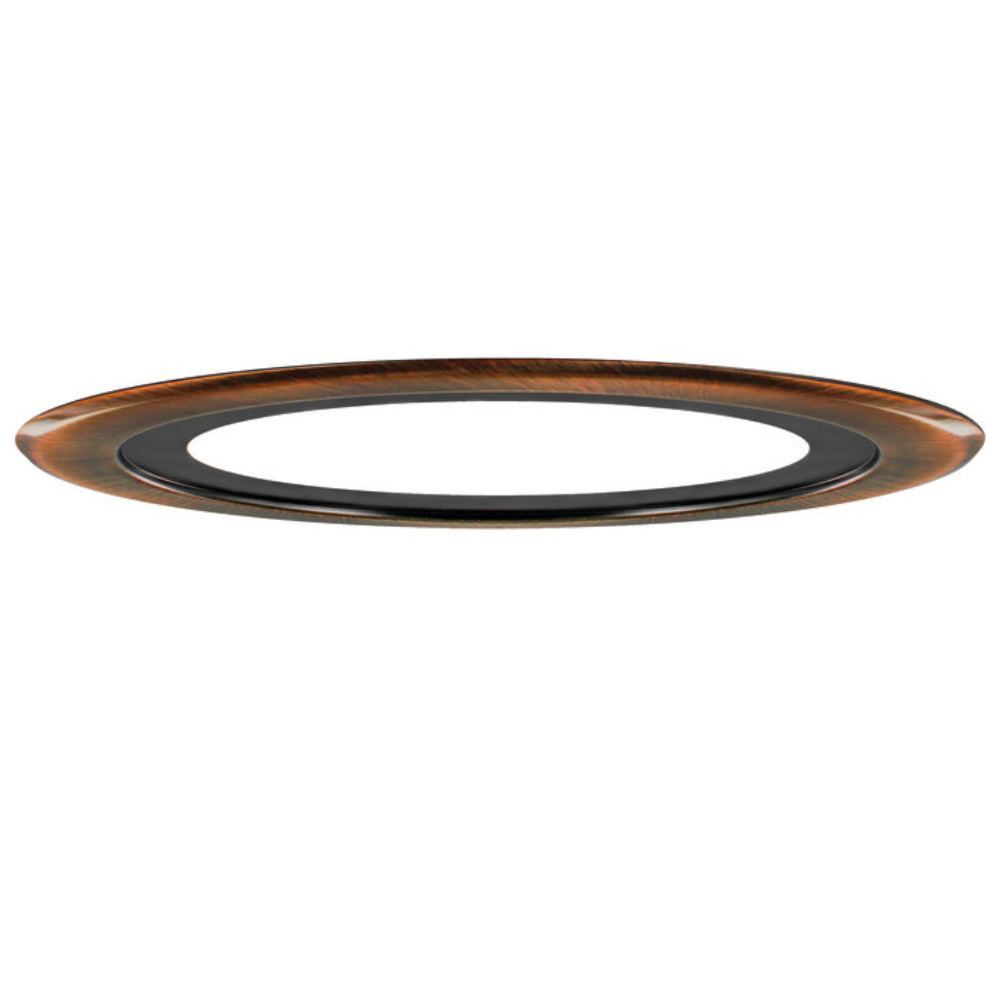

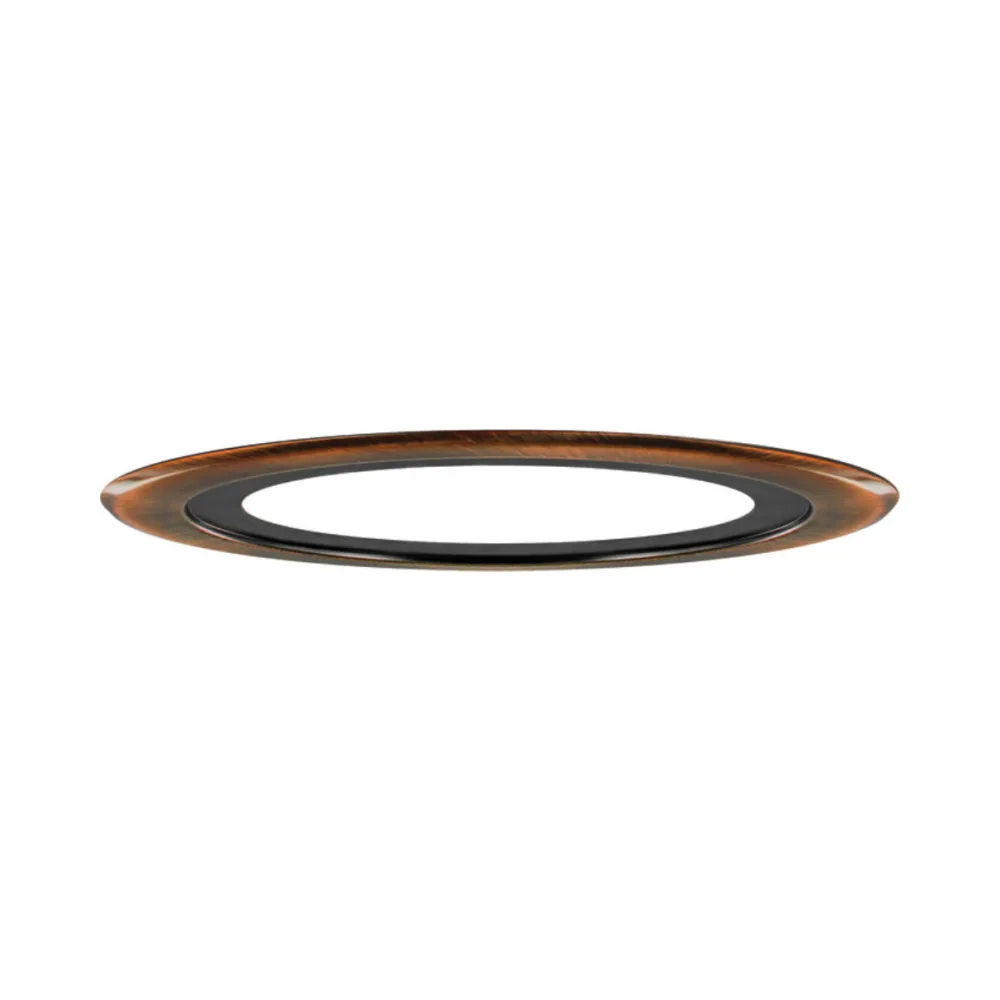

Integral ILDLFR70D050 Evofire Copper Downlight Adapter Ring 70-100mm
The Integral ILDLFR70D050 is a copper-finish Evofire downlight adapter ring designed to accommodate larger ceiling openings when installing compatible round Integral Evofire fire-rated downlights. With an overall diameter of 110mm, this adapter allows a downlight normally intended for a 70mm cut-out to be fitted into ceiling openings up to 100mm.
Manufactured from durable pressed steel with a powder-coated copper finish, the Integral ILDLFR70D050 provides a practical and decorative solution for lighting refurbishment projects. Its slim 3mm profile helps achieve a neat ceiling finish without the need to replace the entire surrounding ceiling section.
Convert 70mm Downlight Installations to 70-100mm Cut-Outs
Replacing older recessed lighting can be difficult when the original ceiling opening is too large for a modern 70mm downlight. Rather than carrying out extensive plasterboard repairs, the Evofire adapter ring offers a convenient way to accommodate larger openings.
The adapter is designed to work with compatible round Evofire downlights, extending the supported ceiling cut-out range to 70-100mm.
- Designed for compatible round Evofire 70mm downlights
- Supports ceiling cut-outs from 70mm to 100mm
- 110mm overall diameter
- Helps conceal suitably sized oversized ceiling openings
- Useful for replacing older recessed lighting fittings
The surrounding ceiling must remain sound and capable of supporting the completed downlight installation.
Decorative Copper Finish
The Integral Evofire copper adapter provides a warm metallic appearance, making it an attractive alternative to conventional white, chrome or satin nickel trims.
Its powder-coated finish offers a distinctive decorative accent for kitchens, living rooms, hospitality interiors and other spaces featuring copper or warm-toned metal accessories.
The adapter is manufactured from toughened pressed steel for durability and long-term use.
Ultra-Slim 3mm Adapter Profile
Despite providing a wider 110mm outer diameter, the ILDLFR70D050 has a depth of only 3mm.
This slim construction allows the adapter to sit neatly against the ceiling when installed with a compatible Evofire downlight, creating a clean finish around the existing opening.
Maintains Evofire Fire and IP Protection
Integral LED confirms that compatible Evofire fire-rated downlights retain their IP65 protection and 30, 60 and 90-minute fire resistance when installed with the appropriate adapter.
The adapter itself is not a complete fire-rated downlight. Its fire and ingress protection performance depends on the compatible Evofire fitting, tested ceiling construction and correct installation.
Always follow Integral LED’s installation instructions and confirm compatibility before fitting.
Compatible Integral Evofire Downlights
The Integral ILDLFR70D050 is intended for use with compatible round Evofire fire-rated downlights normally designed for 70mm ceiling cut-outs.
The adapter increases the overall coverage of the fitting, making it particularly useful when replacing smaller recessed downlights in larger existing openings.
Before ordering, check that your chosen Evofire downlight is compatible with this adapter and that the ceiling opening falls within the specified 70-100mm range.
Please note that the downlight, GU10 lamp holder and LED lamp are not included with this adapter ring.
Key Features – Integral ILDLFR70D050
- Integral LED Evofire downlight accessory
- Copper powder-coated finish
- 110mm overall diameter
- 70-100mm compatible ceiling cut-out range
- Slim 3mm adapter profile
- Durable pressed steel construction
- Designed for compatible round Evofire downlights
- Ideal for lighting replacement and refurbishment projects
- Allows compatible Evofire fittings to retain their tested fire rating
- Supports IP65-rated Evofire installations when correctly fitted
- 7-year manufacturer warranty
- Downlight and GU10 lamp sold separately
Technical Specifications
- Brand: Integral LED
- Product Range: Evofire
- Manufacturer Part Number: ILDLFR70D050
- Quick Order Code: 121151
- EAN: 5055788270829
- Product Type: Downlight Adapter Ring
- Finish: Copper
- Coating: Powder-Coated
- Material: Toughened Pressed Steel
- Shape: Round
- Overall Diameter: 110mm
- Compatible Ceiling Cut-Out: 70-100mm
- Product Depth: 3mm
- Product Weight: Approximately 45g
- Application: Indoor General Lighting
- Compatible Range: Selected Round Integral Evofire Downlights
- Fire Rating: Maintains Compatible Fitting’s 30/60/90-Minute Rating
- IP Rating: Maintains IP65 with Compatible Evofire Fittings
- Mounting: Recessed Downlight Accessory
- Manufacturer Warranty: 7 Years
- Downlight Included: No
- GU10 Lamp Included: No
Ideal Applications
The Integral ILDLFR70D050 is particularly useful for electricians carrying out lighting replacements where the existing ceiling cut-out is larger than the required opening for a standard Evofire downlight.
- Replacing older recessed downlights
- Covering suitable 70-100mm ceiling openings
- Lighting upgrades in period properties
- Residential refurbishment projects
- Kitchens with copper decorative fittings
- Living rooms and hallways
- Hotels and hospitality interiors
- Commercial lighting refurbishment
Important Installation Information
This product is an adapter ring only and does not contain electrical components, a GU10 lamp holder or an LED lamp.
For a complete installation, a compatible Integral Evofire downlight and suitable lamp must be purchased separately.
The adapter is not intended to provide independent fire or moisture protection without the correct downlight fitted.
Why Choose the Integral Evofire Copper Adapter?
The Integral ILDLFR70D050 provides an economical and practical solution for dealing with larger existing ceiling openings while introducing a distinctive copper finish.
Rather than replacing surrounding plasterboard solely to accommodate a smaller downlight, this adapter can help achieve a professional finish when the ceiling opening and chosen Evofire fitting are compatible.
Order Integral Evofire Accessories from Electrical4Less
Choose the Integral ILDLFR70D050 Copper Downlight Adapter Ring for compatible Evofire lighting installations requiring a wider 70-100mm cut-out range.
Order online from Electrical4Less and select the appropriate Evofire downlight and GU10 LED lamp separately.
