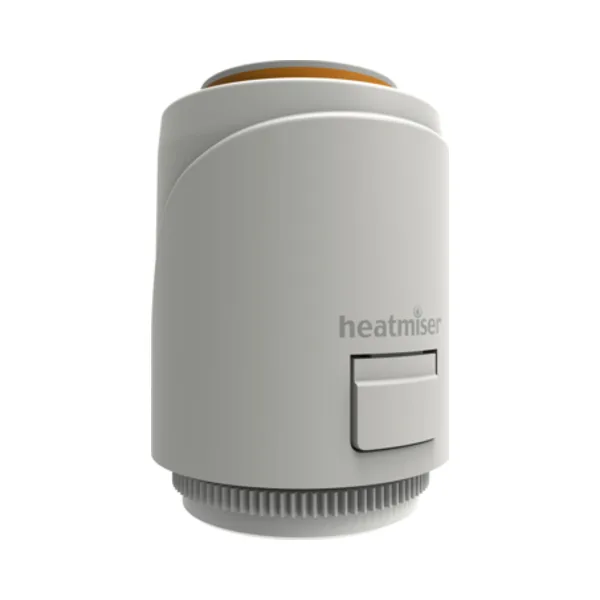

Heatmiser Actuator TA230
The Heatmiser TA230 Thermal Actuator is a 230V actuator designed to control compatible valves within underfloor heating and zoned heating systems. It can be connected to a suitable wiring centre or thermostat to open and close the valve according to the heating demand.
Featuring an M30 x 1.5 threaded ring nut, the actuator is suitable for compatible manifold valves. Its compact construction, low 2W power consumption and IP54 protection make it a practical option for heating-control installations.
Key Features – Heatmiser Actuator TA230
- 230V AC thermal actuator
- Suitable for compatible underfloor heating manifold valves
- M30 x 1.5 threaded ring nut connection
- Low 2W power consumption
- IP54 protection rating
- 3.5mm stroke with a tolerance of +/- 0.5mm
- Opening begins after approximately 120 seconds
- Opening completes after approximately 180 seconds
- Ring nut release button for easier removal
- Suitable for control through a compatible wiring centre or thermostat
Valve and Heating Control
The actuator converts an electrical heating signal into movement at the valve. When connected to a compatible heating control, it allows individual underfloor heating zones to be opened or closed according to the thermostat demand.
Technical Data
- Model: TA230
- Power supply: 230V AC
- Power consumption: 2W
- IP rating: IP54
- Stroke: 3.5mm +/- 0.5mm
- Valve connection: M30 x 1.5 threaded ring nut
- Opening time: Starts at approximately 120 seconds
- Full opening time: Approximately 180 seconds
- Closed height: 58mm
- Open height: 62mm
- Approximate width: 49mm
- Approximate depth: 49.5mm
- Weight: 127g
Installation
The Heatmiser TA230 should be connected to a compatible valve and heating-control system. Electrical installation and compatibility checks should be completed by a suitably qualified installer.
