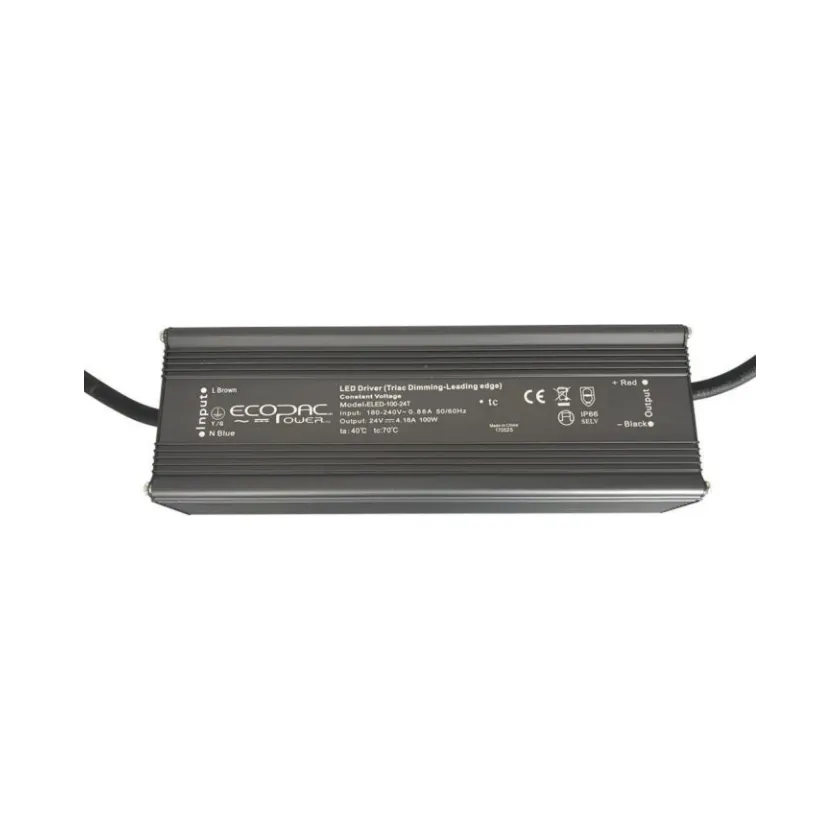

EcoPac 24V 100W Triac Dimmable LED Driver | ELED-100P-24T
The EcoPac 24V 100W Triac Dimmable LED Driver is a premium constant voltage power supply designed for professional dimmable LED lighting installations. The ELED-100P-24T delivers a regulated 24V DC output at up to 4.16A, providing a rated output power of 100W.
Designed for compatible mains dimming systems, this driver supports both leading and trailing edge Triac dimming. It combines constant voltage / PWM output with built-in active power factor correction, comprehensive electrical protection and a robust IP66 aluminium housing.
Key Features – EcoPac 24V 100W Triac Dimmable LED Driver | ELED-100P-24T
- 24V DC constant voltage output
- 100W rated output power
- 4.16A output current
- Leading edge dimmable
- Trailing edge dimmable
- Triac mains dimming compatible
- Constant voltage / PWM output
- 200-240V AC input
- 47-63Hz input frequency
- Built-in active PFC function
- Power factor greater than 0.97 at full load
- Typical full-load efficiency of 85%
- IP66 rated
- SELV output
- Full protection aluminium housing
- Cooling by free air convection
Leading and Trailing Edge Triac Dimming
The EcoPac 24V 100W Triac Dimmable LED Driver supports both leading and trailing edge dimming, providing flexibility when selecting a compatible wall dimmer or lighting control system.
The ELED-100P-24T is designed for mains-side dimming while providing a constant 24V DC output to compatible LED lighting loads. EcoPac’s connection diagrams also show arrangements using Triac dimmers and compatible Lutron and Clipsal C-Bus systems.
24V Constant Voltage Output
The ELED-100P-24T provides a 24V DC constant voltage / PWM output with a maximum output current of 4.16A and rated power of 100W.
This makes it suitable for compatible 24V LED installations where reliable constant voltage operation and mains dimming are required.
IP66 Aluminium Housing
The driver features a full protection aluminium enclosure with an IP66 rating, providing enhanced protection against dust and water ingress when correctly installed.
The durable housing makes this 100W LED driver suitable for demanding professional lighting installations where a more robust power supply is required.
Active PFC and Efficient Performance
Built-in active power factor correction provides a power factor greater than 0.97 under full-load conditions. The 24V model offers typical full-load efficiency of 85%, helping provide efficient power conversion for compatible LED lighting systems.
Cooling is achieved naturally by free air convection, so no internal cooling fan is required.
Integrated Electrical Protection
The ELED-100P-24T incorporates multiple protection functions designed to support reliable operation and protect the driver under abnormal electrical conditions.
- Short-circuit protection
- Overload protection
- Over-current protection
- Over-temperature protection
Under specified fault conditions, the driver shuts down its output and can be re-powered after the fault has been removed.
Typical Applications
- 24V LED strip lighting
- Architectural LED lighting
- Commercial lighting installations
- Feature lighting
- Display lighting
- Moving signs
- Compatible Triac dimmable lighting systems
- Professional mains-dimmable 24V LED installations
Technical Specifications
- Brand: EcoPac
- Manufacturer: Ecopac (UK) Power Ltd
- Model: ELED-100P-24T
- Series: ELED-100P-T
- Product type: Triac dimmable constant voltage LED driver
- Output type: Constant voltage / PWM
- Rated power: 100W
- Output voltage: 24V DC
- Output current: 4.16A
- Voltage tolerance: ±0.5V
- Dimming: Leading and trailing edge
- Input voltage: 200-240V AC
- Input frequency: 47-63Hz
- Maximum AC current: 0.8A
- Power factor: PF >0.97 at full load
- Typical full-load efficiency: 85%
- Leakage current: Less than 0.50mA
- Inrush current: 49.5A
- IP rating: IP66
- Output classification: SELV
- Working temperature: -40°C to +60°C
- Working humidity: 20-95% RH, non-condensing
- Housing: Aluminium
- Cooling: Free air convection
- Dimensions: 230 x 70 x 43mm
- Weight: 1.1kg
Professional 100W Mains Dimmable LED Driver
Combining a 24V 100W constant voltage output with leading and trailing edge Triac dimming, active PFC and IP66 protection, the ELED-100P-24T provides a robust solution for professional LED lighting installations requiring dependable mains-side dimming.
