Microwave Corridor Module for PH7P-18T LED Bulkhead

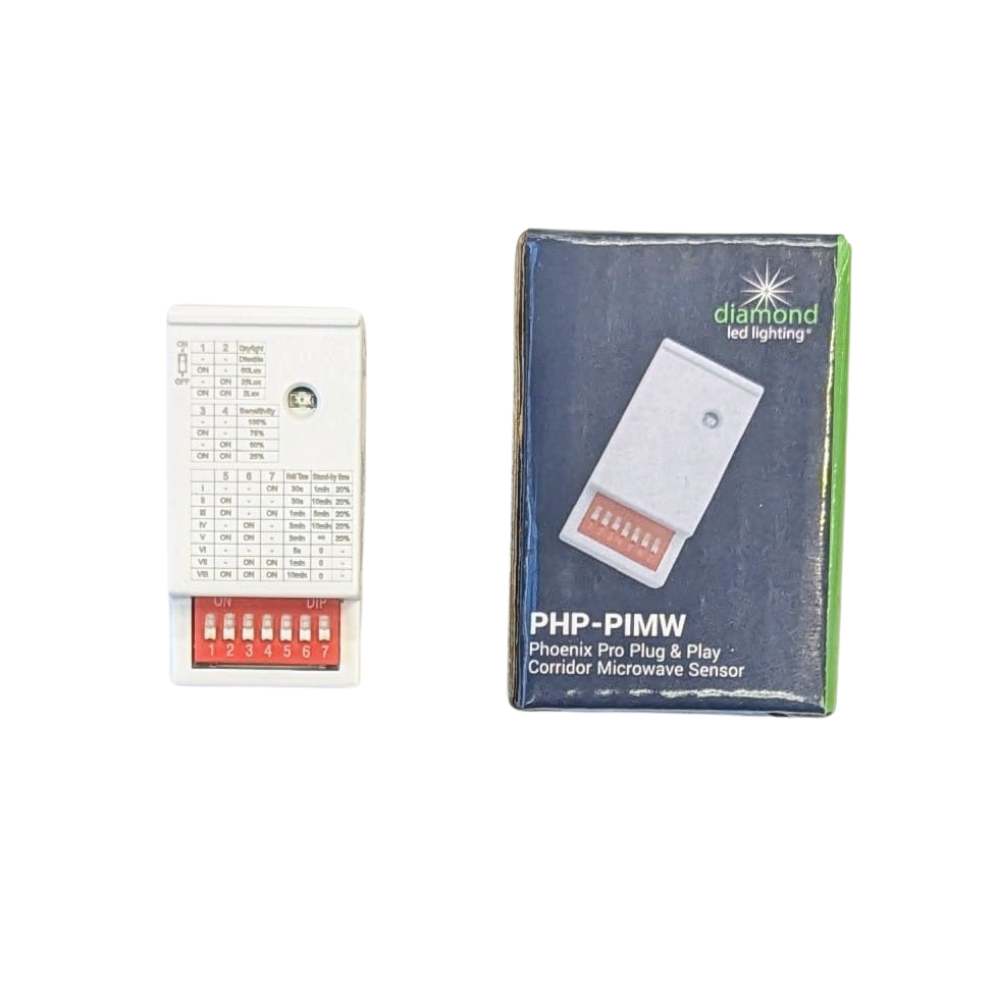

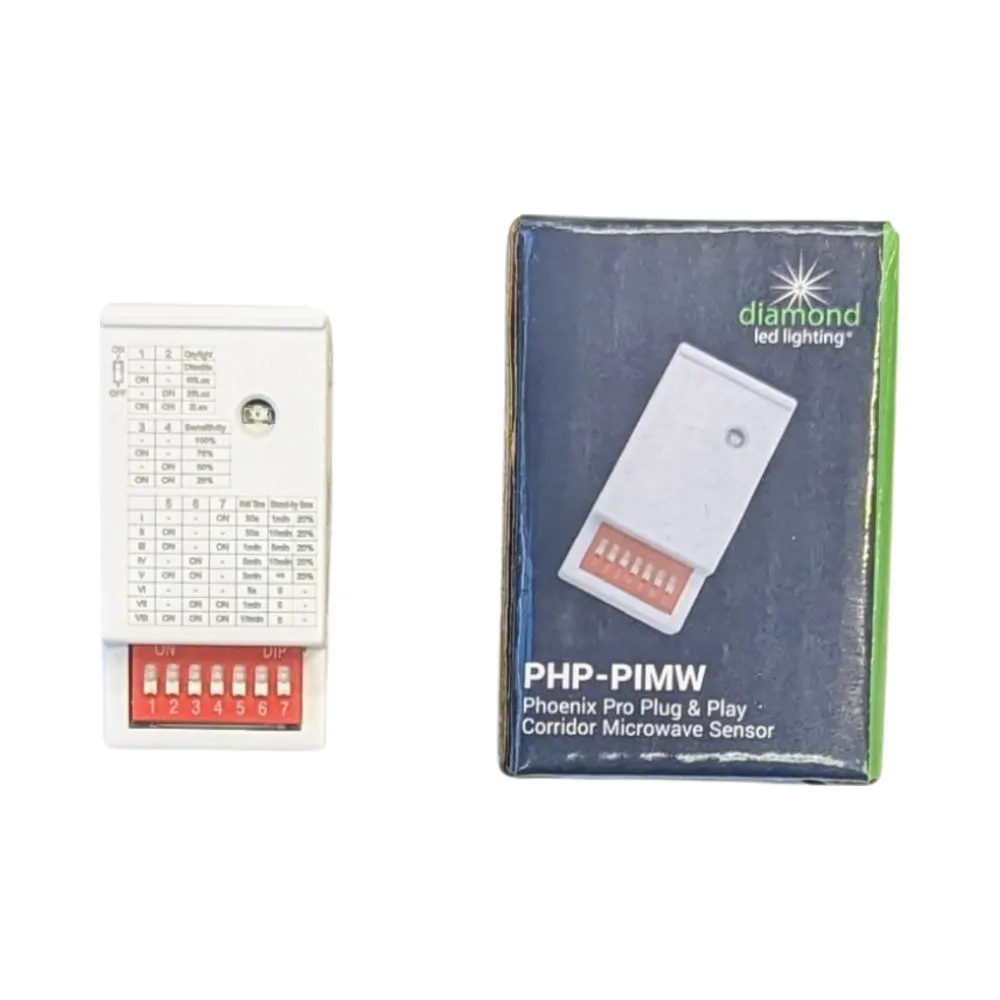

The Microwave Corridor Module for PH7P-18T LED Bulkhead is a plug-and-play microwave movement sensor accessory manufactured by Diamond LED Lighting. Identified by product code PHP-PIMW, this module adds automatic movement detection and selectable corridor lighting functionality to the compatible Phoenix VII Pro Five Colour Tri-Power LED Bulkhead.
Designed for professional lighting installations, the PHP-PIMW features adjustable detection range, hold time and daylight threshold settings. Its modular connection system allows installers to add microwave-controlled lighting without replacing the complete LED fitting.
Key Features and Benefits
- Microwave movement detection: Automatically controls the compatible LED bulkhead when movement is detected.
- Selectable corridor function: Provides an additional lighting mode for reduced-output operation in suitable areas.
- Adjustable detection range: Allows movement detection coverage to be configured for the installation.
- Programmable hold time: Controls how long the lighting remains activated after movement stops.
- Adjustable daylight threshold: Helps determine when automatic lighting operation is required according to ambient light levels.
- Plug-and-play installation: Designed for straightforward connection to the compatible PH7P-18T LED bulkhead.
- Modular lighting control: Adds sensor functionality without purchasing a different complete luminaire.
- Dedicated compatibility: Specifically designed for the Diamond LED Phoenix VII Pro PH7P-18T fitting.
How Does the PHP-PIMW Microwave Sensor Work?
The PHP-PIMW uses microwave sensing technology to detect movement within its configured detection area. When movement is detected and the selected daylight conditions are met, the module automatically activates the connected Phoenix VII Pro LED bulkhead.
After movement stops, the fitting follows the programmed hold-time setting. This allows lighting operation to respond to occupancy rather than remaining at full output unnecessarily.
Detection performance can vary depending on mounting position, movement direction, surrounding materials and sensor configuration.
Microwave On/Off and Corridor Lighting Modes
Microwave Movement Detection
In standard microwave mode, the sensor provides automatic movement-controlled switching. This is useful in corridors, stairwells, entrances and shared access areas where lighting is required when people move through the space.
Selectable Corridor Function
The PHP-PIMW includes a corridor lighting function that can be activated using the module’s integrated switch.
Corridor mode allows the compatible luminaire to operate with reduced light output during selected periods rather than relying entirely on standard on/off switching. This can help manage energy consumption while providing background illumination where required.
The exact corridor dimming behaviour and available configuration settings should be checked against the manufacturer’s installation instructions.

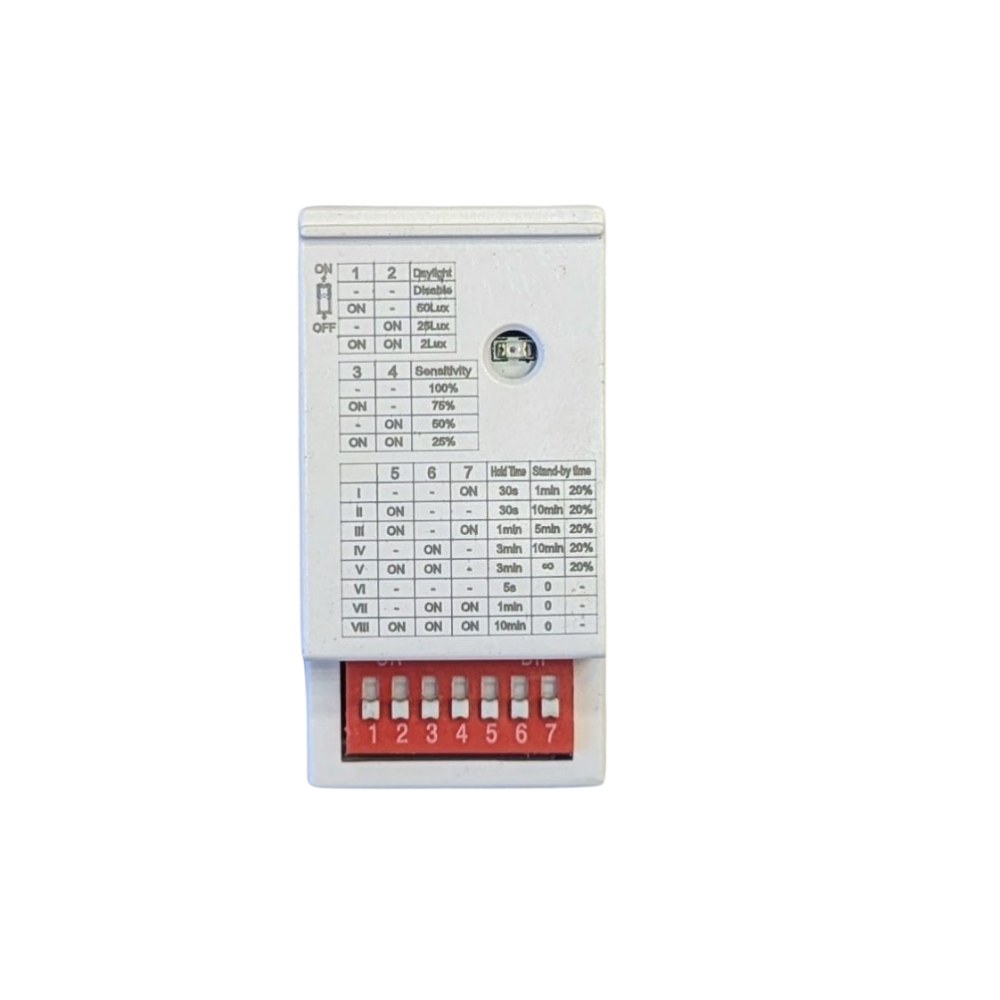

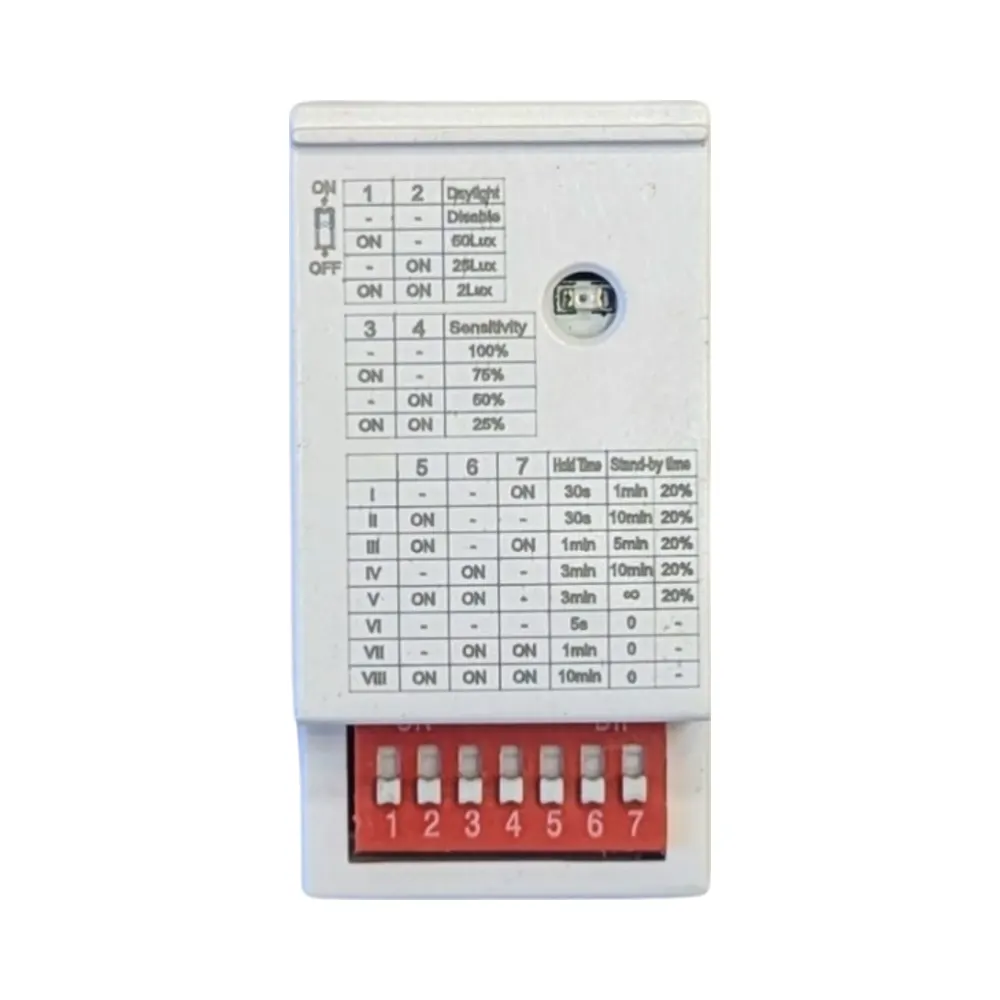

Adjustable Sensor Settings
The Diamond LED PHP-PIMW offers several configurable operating parameters:
- Detection range: Adjustable movement detection coverage.
- Hold time: Adjustable duration of lighting operation after movement detection.
- Daylight threshold: Adjustable ambient light sensitivity.
- Corridor function: Selectable using the integrated switch.
Refer to Diamond LED’s technical instructions for the specific settings and correct programming procedure.
Compatible Diamond LED Phoenix VII Pro Products
The PHP-PIMW microwave corridor module is designed for the Phoenix VII Pro Five Colour Tri-Power LED Bulkhead. The following related products are available separately from Electrical4Less:
- Diamond LED PH7P-18T – Phoenix VII Pro Five Colour Tri-Power LED Bulkhead: The compatible LED fitting featuring selectable wattage and five colour temperature options. The PHP-PIMW module adds automatic microwave movement detection and corridor lighting control.
- Diamond LED PHP-PIEM – 3h Emergency Module for PH7P-18T LED Bulkhead: A separate plug-and-play accessory designed to provide three hours of emergency illumination when installed with a compatible Phoenix VII Pro fitting.
Important: The microwave corridor module, LED bulkhead and emergency module are separate products. Check Diamond LED’s installation instructions to confirm compatibility and supported configurations before combining accessories.
Typical Applications
When installed with the compatible PH7P-18T bulkhead, this microwave corridor module can provide automatic lighting control in:
- Communal corridors and stairwells
- Apartment blocks and shared entrances
- Office corridors and circulation areas
- Commercial building access routes
- Utility rooms and suitable storage spaces
- Other locations requiring movement-controlled lighting
The selected settings should be appropriate for the lighting requirements of the area, particularly where continuous or emergency illumination is necessary.

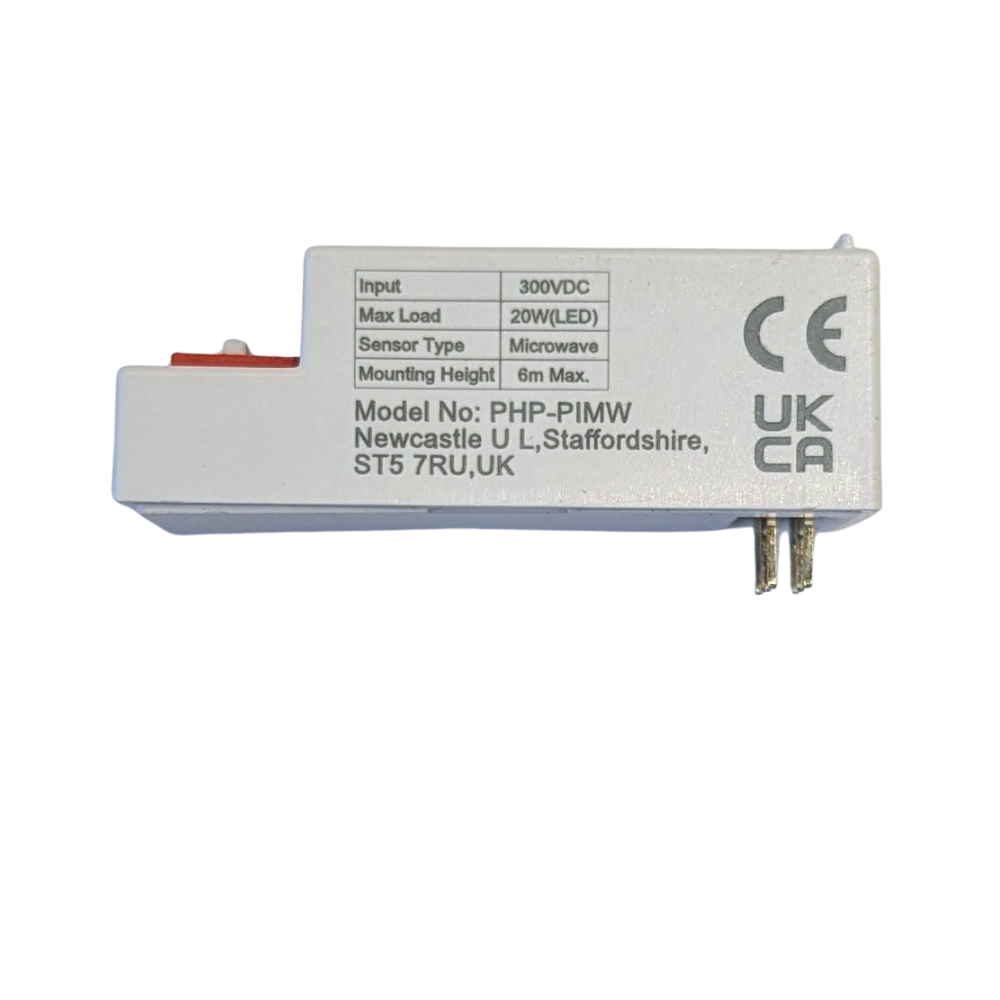

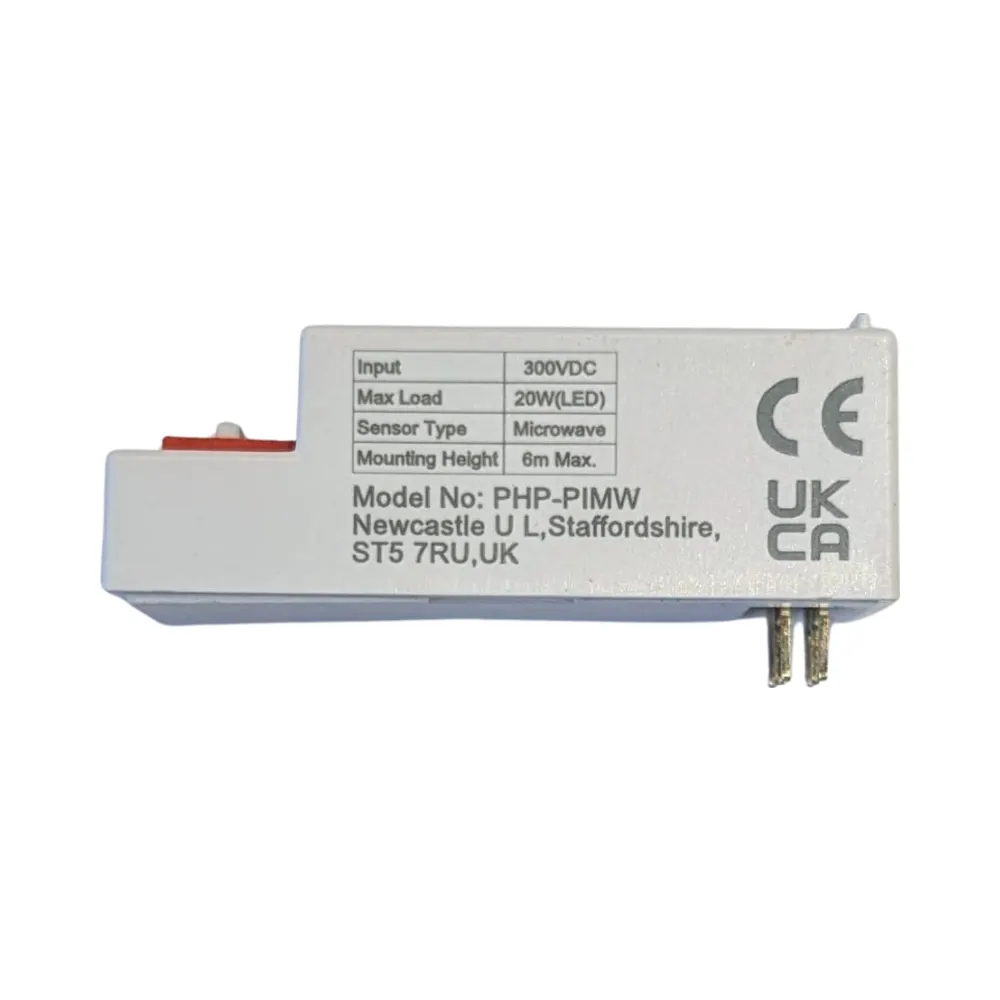

Technical Specifications
| Manufacturer | Diamond LED Lighting |
|---|---|
| Product Code | PHP-PIMW |
| Product Type | Microwave and Corridor Sensor Module |
| Product Range | Phoenix VII Pro |
| Compatible Bulkhead | PH7P-18T |
| Sensor Technology | Microwave Movement Detection |
| Control Modes | Microwave On/Off and Corridor Function |
| Detection Range | Adjustable |
| Hold Time | Adjustable |
| Daylight Threshold | Adjustable |
| Corridor Mode | Selectable by Integrated Switch |
| Connection | Plug-and-Play |
| LED Bulkhead Included | No – Sold Separately |
| Emergency Module Included | No – Sold Separately |
Frequently Asked Questions
What does the PHP-PIMW microwave corridor module do?
The PHP-PIMW adds automatic microwave movement detection and selectable corridor lighting functionality to the compatible Diamond LED PH7P-18T LED bulkhead.
Which bulkhead is compatible with the PHP-PIMW?
The module is specifically designed for the Diamond LED PH7P-18T Phoenix VII Pro Five Colour Tri-Power LED Bulkhead.
What is the difference between microwave mode and corridor mode?
Microwave mode provides movement-controlled lighting. Corridor mode allows a compatible fitting to use reduced-output lighting operation according to its configured settings.
Can I adjust the microwave detection range?
Yes. The PHP-PIMW provides adjustable detection range settings so the sensor can be configured for different installation conditions.
Can the lighting hold time be changed?
Yes. The module allows installers to adjust how long the light remains activated after movement is no longer detected.
Does this sensor include daylight detection?
Yes. The PHP-PIMW includes an adjustable daylight threshold that can be configured according to the ambient light conditions.
Does the PHP-PIMW include the LED bulkhead?
No. This listing is for the microwave corridor module only. The compatible PH7P-18T LED bulkhead must be purchased separately.
Does the microwave module provide emergency lighting?
No. The PHP-PIMW provides movement detection and corridor lighting control. Emergency operation requires the separately available Diamond LED PHP-PIEM 3-Hour Emergency Module.
Can the microwave and emergency modules be installed together?
Both products are accessories within the Phoenix VII Pro range. Consult Diamond LED’s installation instructions to confirm whether they can be used together in the intended configuration.
Can the PHP-PIMW be used with other LED bulkheads?
The PHP-PIMW is designed for compatible Diamond LED products, including the PH7P-18T. Compatibility with other models or manufacturers should not be assumed.
Complete Your Diamond LED Phoenix VII Pro Installation
Pair the PHP-PIMW with the Diamond LED PH7P-18T Phoenix VII Pro LED Bulkhead for automatic microwave detection and corridor lighting functionality.
For projects requiring three-hour emergency lighting, explore the separately available Diamond LED PHP-PIEM Emergency Module.
