Diamond LED | PH7P-18T | LED Bulkhead | Phoenix VII Pro Five Colour Tri Power | 2700K / 3000K / 4000K / 5000K / 6500K

SKU: PH7P-18T
44 In Stock
More available within:
Usually 1 - 3 Working Days
Read More

The Diamond LED PH7P-18T LED Bulkhead is a plug-and-play Phoenix VII Pro fitting with five selectable colour temperatures and 8W/14W/16W power settings, delivering up to 2000 lumens. Featuring IP65 protection, IK08 impact resistance and 120° light distribution, it supports separately available three-hour emergency and microwave corridor modules for customised lighting installations.

Quantity Discount (%) Price
1 - 2 — £17.49
3+ 10% £15.74
5+ 20% £13.99
£ 17 .49 EX VAT
£ 20 .99 IN VAT
OR

Diamond LED PH7P-18T LED Bulkhead – Phoenix VII Pro Five Colour Tri Power

Plug-and-Play IP65 LED Bulkhead with Optional Emergency and Microwave Modules

The Diamond LED PH7P-18T LED Bulkhead is a versatile Phoenix VII Pro lighting solution designed for domestic, commercial and communal installations. Featuring five selectable colour temperatures, three power settings and up to 2000 lumens of light output, this IP65-rated bulkhead combines flexible LED illumination with a practical plug-and-play design.

Install the PH7P-18T as a standard LED bulkhead or customise it using compatible plug-and-play accessories. The separately available three-hour emergency module and microwave corridor sensor module allow electricians to configure the fitting for different applications without purchasing a completely different bulkhead.

Important: This product is the PH7P-18T base LED bulkhead. Emergency lighting and microwave sensor functions are optional and require separately purchased compatible modules.

Key Features and Benefits

  • Plug-and-play modular system: Add compatible emergency and microwave sensor modules when required.
  • Five selectable colour temperatures: 2700K, 3000K, 4000K, 5000K and 6500K.
  • Three selectable wattages: 8W, 14W and 16W.
  • Up to 2000 lumens: Adjustable light output for different installation requirements.
  • IP65 protection: Dust-tight enclosure with protection against water jets.
  • IK08 impact resistance: Durable polycarbonate housing.
  • 120° beam angle: Wide light distribution for general-purpose illumination.
  • BESA box mounting: Suitable for compatible mounting arrangements.
  • Conduit entry: Supports practical surface wiring installations.
  • 50,000-hour rated lifetime: Designed for long-term lighting applications.
  • Non-dimmable: Light output is selected using the internal wattage settings.
  • Five-year manufacturer warranty: Subject to Diamond LED Lighting’s warranty conditions.

Three Selectable Wattages and Light Outputs

The Phoenix VII Pro allows installers to select the required power setting during installation, making it suitable for areas with different illumination requirements.

  • 8W: 1000 lumens.
  • 14W: 1650 lumens.
  • 16W: 2000 lumens.

This flexibility allows the same bulkhead model to be used across communal corridors, stairwells, entrances and other areas where different light levels may be required.

Five Selectable Colour Temperatures

Unlike conventional fixed-colour LED bulkheads, the Diamond LED PH7P-18T offers five colour temperature settings:

  • 2700K: Extra warm white for a softer lighting appearance.
  • 3000K: Warm white for welcoming entrances and communal areas.
  • 4000K: Neutral white for general commercial lighting.
  • 5000K: Cool white for practical circulation and utility areas.
  • 6500K: Daylight white for a brighter, cooler appearance.

Colour temperature and wattage selections should be made in accordance with the manufacturer’s installation instructions with the electrical supply safely isolated.

Build Your Own Phoenix VII Pro Plug-and-Play Bulkhead

The Phoenix VII Pro modular system provides flexibility when selecting lighting for different areas of a building. The base fitting can be used on its own or combined with compatible modules to add emergency and movement-sensing functionality.

Option 1 – Standard LED Bulkhead

Use the PH7P-18T as a standard LED bulkhead without additional modules. Select the required wattage and colour temperature to suit the installation.

Option 2 – Add Three-Hour Emergency Lighting

Upgrade the fitting using the separately available Diamond LED PHP-PIEM Three-Hour Emergency Module.

This compatible emergency module provides backup illumination during a failure of the normal mains supply when correctly installed and commissioned. Emergency installations must follow the manufacturer’s wiring and testing requirements.

Option 3 – Add Microwave Detection and Corridor Function

The separately available Diamond LED PHP-PIMW Microwave Corridor Module adds movement-controlled lighting and corridor-function operation.

Depending on its configuration, the module can provide automatic switching or reduced light output during periods without detected movement, making it useful for communal stairwells, corridors and shared access areas.

Check the module instructions for available detection sensitivity, time-delay and corridor-function settings.

Option 4 – Combine Emergency and Microwave Functions

For installations requiring both emergency lighting and movement detection, the PH7P-18T supports compatible emergency and microwave corridor modules in an approved configuration.

This provides a flexible solution for communal and commercial areas where occupancy-controlled normal lighting is required alongside emergency backup illumination.

Important – What Is Included?

This listing includes the Diamond LED PH7P-18T base LED bulkhead only.

The following accessories are optional and are not included with the standard fitting:

Customers wishing to create an emergency or sensor-operated bulkhead should order the appropriate compatible module separately. Always check the manufacturer’s instructions before combining accessories.

IP65 LED Bulkhead for Indoor and Outdoor Applications

The Phoenix VII Pro features a robust polycarbonate enclosure with IP65 ingress protection and IK08 impact resistance. Its wide 120° beam angle provides practical illumination for a variety of wall-mounted and ceiling-mounted lighting applications.

Typical applications include:

  • Communal stairwells and corridors
  • Apartment buildings and shared entrances
  • Commercial offices and circulation areas
  • Garages and utility rooms
  • Building entrances and suitable outdoor locations
  • Replacement of older 28W 2D bulkhead fittings
  • Emergency or microwave-controlled lighting when configured with compatible modules

Technical Specifications

Manufacturer Diamond LED Lighting
Product range Phoenix VII Pro
Product code PH7P-18T
Product type Plug-and-Play LED Bulkhead
Selectable wattage 8W / 14W / 16W
Light output 1000lm / 1650lm / 2000lm
Colour temperatures 2700K / 3000K / 4000K / 5000K / 6500K
Input voltage 220–240V AC
Beam angle 120°
IP rating IP65
Impact rating IK08
Housing material Polycarbonate
Dimmable No
Rated lifetime 50,000 hours
Dimensions Ø316 × 74mm
Mounting BESA box mounting and conduit entry
Emergency compatibility PHP-PIEM – Optional module
Microwave compatibility PHP-PIMW – Optional module
Warranty 5 years, subject to manufacturer terms

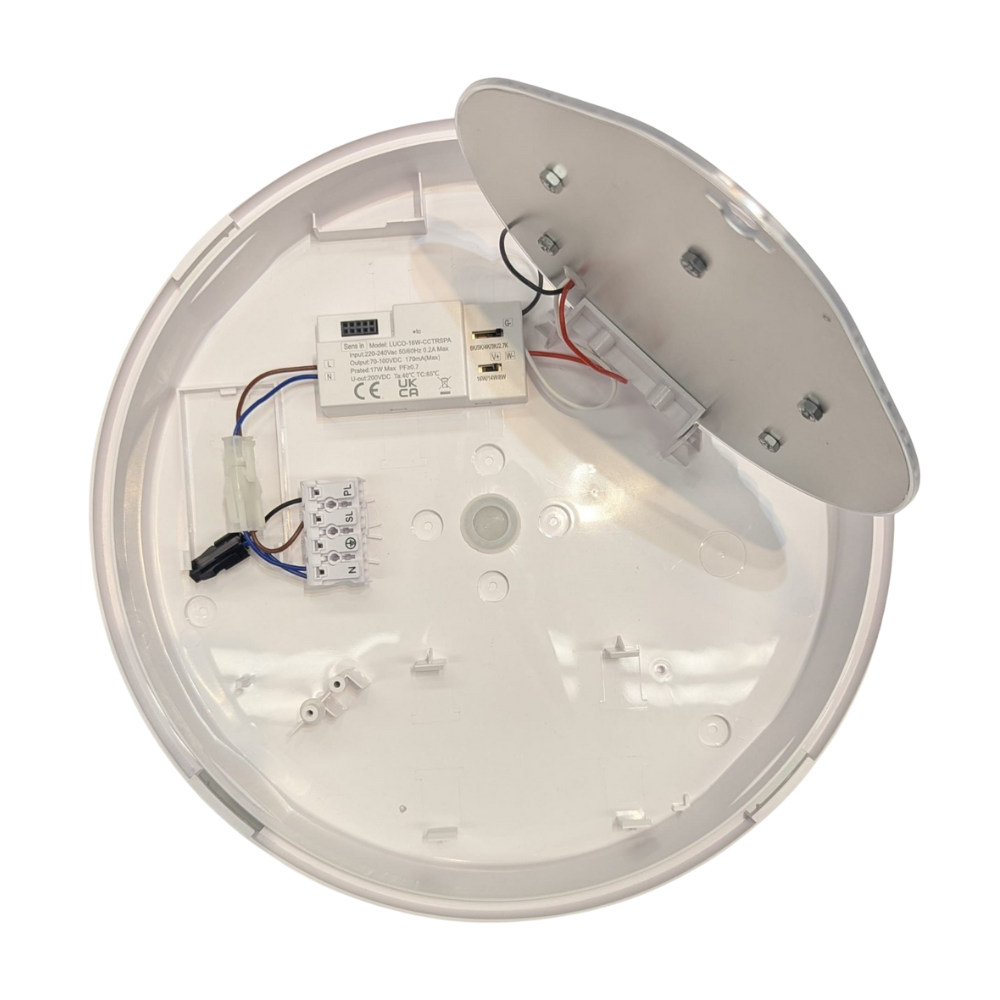

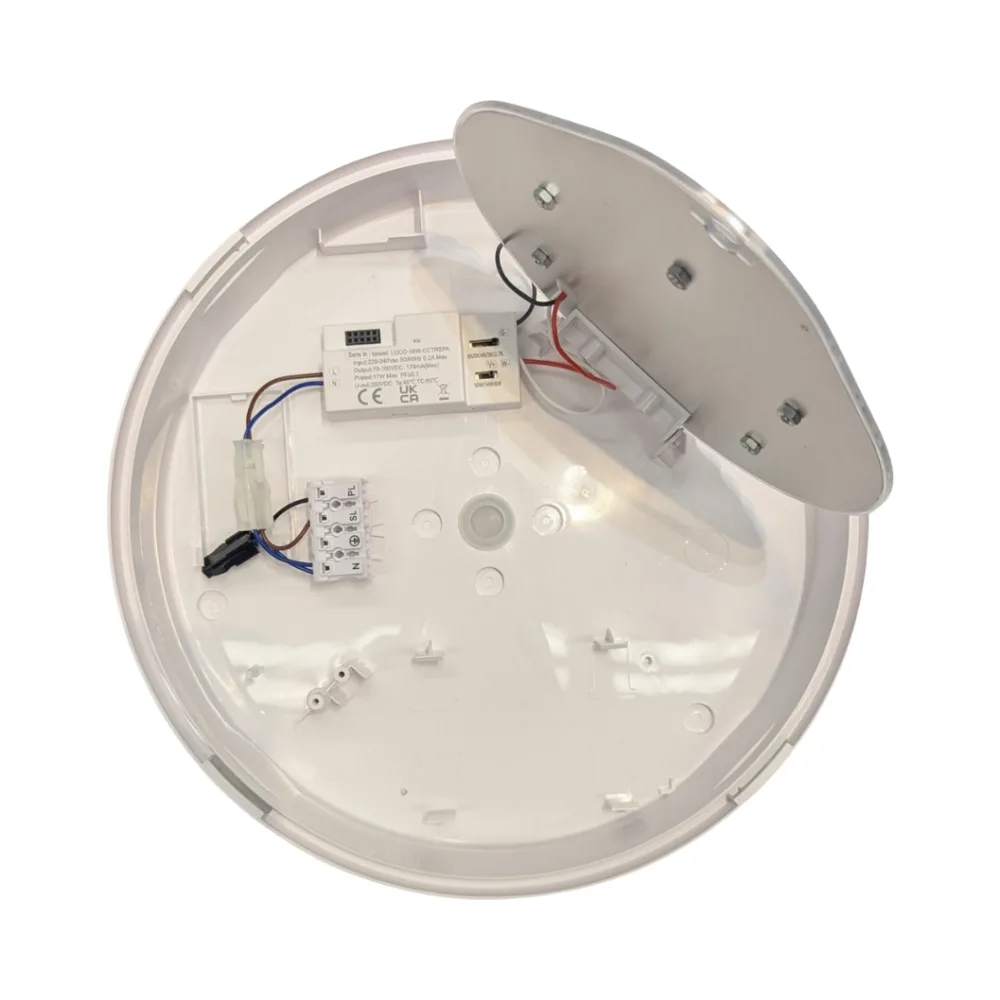

Installation and Modular Compatibility

The PH7P-18T is suitable for compatible BESA box mounting and conduit entry installations. The fitting should be installed by a qualified electrician in accordance with the current applicable wiring regulations and the correct Phoenix VII Pro installation instructions.

Before installation or adjustment, isolate the electrical supply. Ensure cable entries and mounting arrangements maintain the enclosure’s IP65 protection.

Optional emergency and microwave modules must be installed according to the manufacturer’s compatibility and wiring requirements. Do not use the installation instructions for the older PH7-18T Phoenix VII model, as its wattage and colour temperature settings differ from the PH7P-18T Phoenix VII Pro.

Frequently Asked Questions

Does the Diamond LED PH7P-18T include an emergency pack?

No. The standard PH7P-18T is supplied as a base LED bulkhead. The compatible PHP-PIEM three-hour emergency module must be purchased separately.

Can I add a microwave movement sensor?

Yes. The separately available PHP-PIMW module provides microwave movement detection and corridor-function control.

Can I combine emergency and microwave modules?

Yes, the Phoenix VII Pro system supports compatible emergency and microwave modules in an approved configuration. Follow the manufacturer’s instructions for installation and commissioning.

What wattage settings does the Phoenix VII Pro offer?

The PH7P-18T offers 8W, 14W and 16W selectable power settings, providing 1000, 1650 and 2000 lumens respectively.

How many colour temperatures are available?

Five settings are available: 2700K, 3000K, 4000K, 5000K and 6500K.

Is the Diamond LED PH7P-18T suitable for outdoor installation?

The fitting is IP65 rated and has IK08 impact resistance. Suitability depends on the installation location and compliance with the manufacturer’s mounting and sealing instructions.

Is the Phoenix VII Pro dimmable?

The base fitting is not designed for conventional external dimming. It has selectable wattage settings, while compatible corridor-function accessories provide additional controlled-lighting options.

Does the standard PH7P-18T include a photocell?

No. The standard base fitting does not include an integrated photocell. A separate photocell-controlled version, PH7P-18TPC, is listed within the Phoenix VII Pro range.

Can the PH7P-18T replace an older 28W 2D bulkhead?

Diamond LED identifies the Phoenix VII Pro as a suitable alternative for many traditional 28W 2D bulkhead applications. Check the required light output, physical dimensions and mounting arrangement before replacement.
