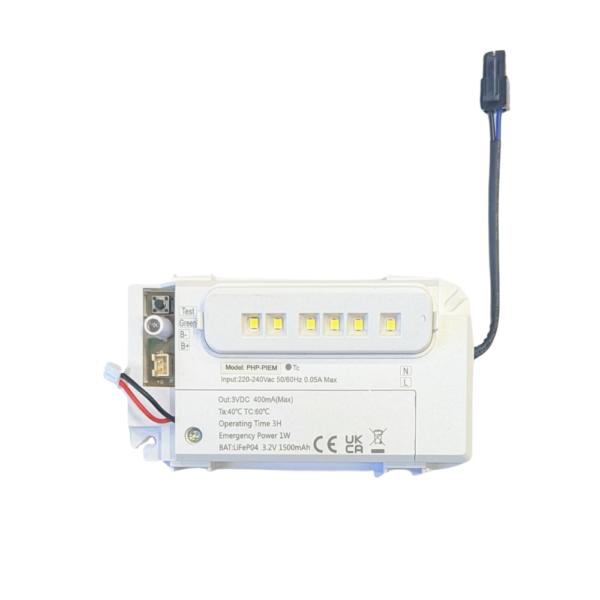

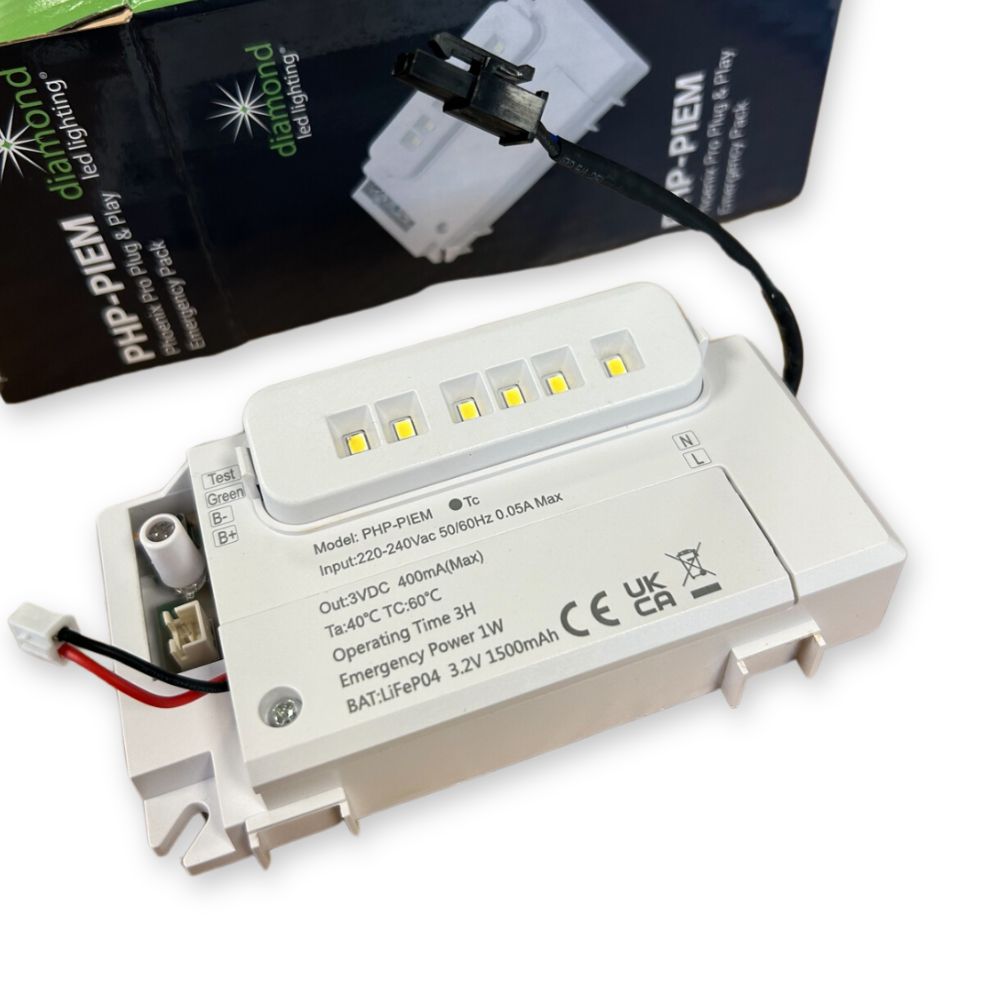

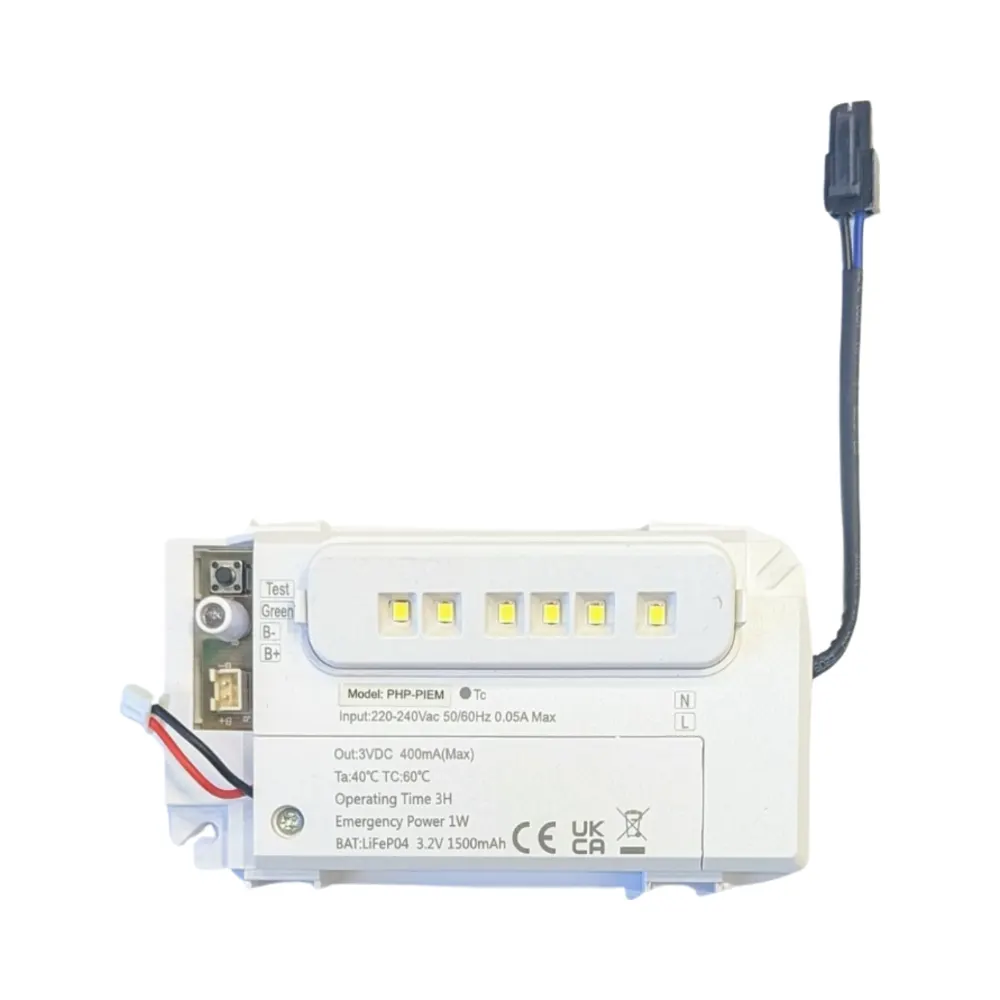

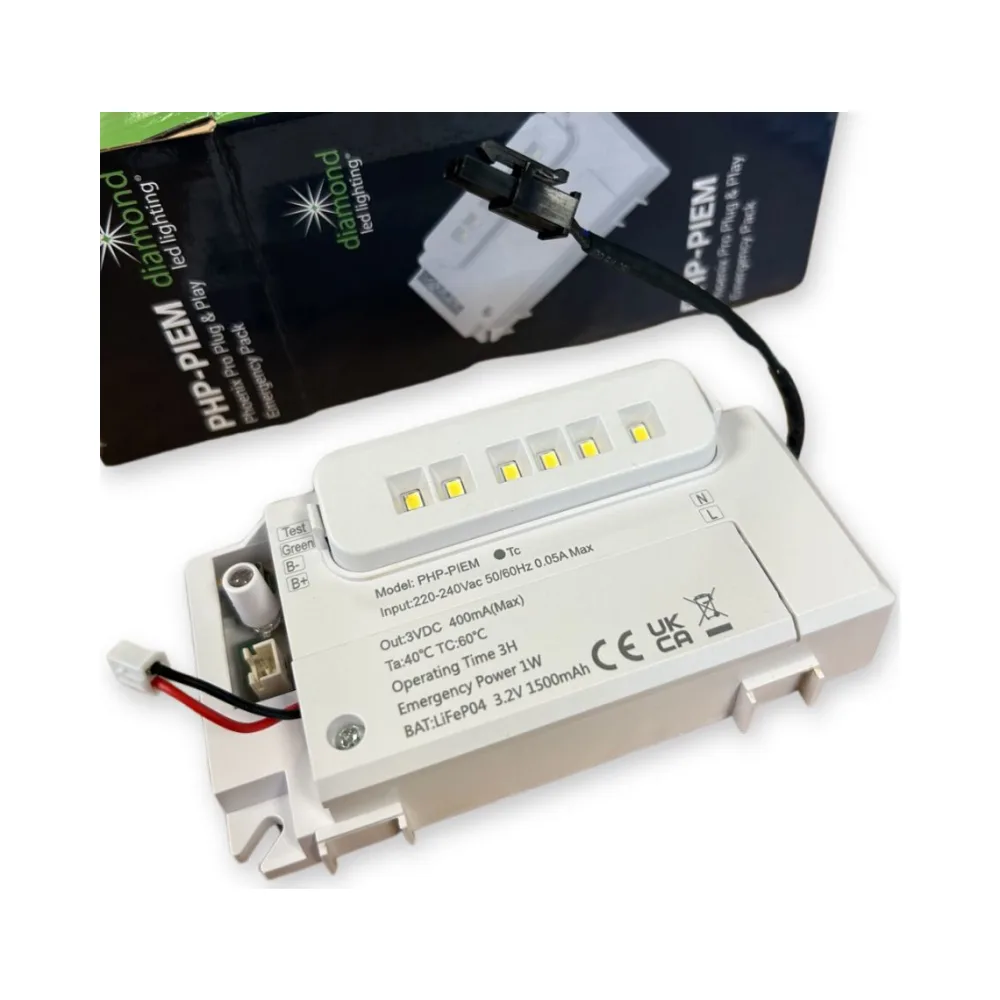

3h Emergency Module for PH7P-18T LED Bulkhead
The 3h Emergency Module for PH7P-18T LED Bulkhead is a plug-and-play emergency lighting accessory from Diamond LED, designed for the Phoenix VII Pro Five Colour Tri-Power range. Identified by product code PHP-PIEM, this module adds three hours of battery-backed illumination to the compatible PH7P-18T LED bulkhead during a mains power failure.
Its modular design allows installers to add emergency lighting functionality without replacing the entire luminaire. The emergency module is supplied separately from the bulkhead, making it a practical accessory for installations where emergency operation is required.
Key Features and Benefits
- 3-hour emergency operation: Provides battery-backed illumination during a mains supply failure.
- Plug-and-play design: Connects to the compatible Phoenix VII Pro LED bulkhead using the manufacturer’s modular connection system.
- Dedicated compatibility: Designed for the Diamond LED PH7P-18T Five Colour Tri-Power LED Bulkhead.
- Rechargeable battery: Stores energy to support emergency illumination when the normal electrical supply is interrupted.
- Modular lighting upgrade: Allows a compatible standard bulkhead to be configured for emergency operation.
- Convenient installation: Designed to simplify the addition of emergency functionality to supported luminaires.
- Separate accessory: The emergency module can be purchased alongside the compatible bulkhead.
How Does the PHP-PIEM Emergency Module Work?
The Diamond LED PHP-PIEM connects to the compatible Phoenix VII Pro LED bulkhead through its plug-and-play connection system.
During normal mains operation, the emergency module charges its rechargeable battery. When the normal electrical supply fails, stored battery power is used to provide emergency illumination through the connected luminaire for a rated period of three hours.
The actual suitability of the completed emergency lighting installation depends on the luminaire configuration, positioning and required emergency illumination levels.
Compatible Diamond LED Phoenix VII Pro Bulkhead
The PHP-PIEM emergency module is designed to work with the PH7P-18T Phoenix VII Pro Five Colour Tri-Power LED Bulkhead.
- Diamond LED PH7P-18T – Phoenix VII Pro Five Colour Tri-Power LED Bulkhead: The compatible LED fitting featuring selectable power and five colour temperature options. Add the PHP-PIEM module when three-hour emergency lighting functionality is required.
- Diamond LED PHP-PIMW – Microwave & Corridor Sensor Module: A separate accessory providing movement detection and corridor lighting control for compatible Phoenix VII Pro installations.
Important: The emergency module, LED bulkhead and microwave corridor sensor are separate products. Check the manufacturer’s installation instructions to confirm supported configurations before combining accessories.
Emergency Lighting for Commercial and Residential Buildings
When installed with the compatible PH7P-18T LED bulkhead as part of an appropriately designed emergency lighting system, the PHP-PIEM module can support applications in:
- Communal corridors and stairwells
- Apartment blocks and shared access areas
- Commercial offices and circulation spaces
- Building entrances and internal access routes
- Utility and ancillary areas requiring emergency illumination
- Other locations where three-hour emergency lighting is specified
The appropriate number, position and configuration of emergency luminaires must be determined by the emergency lighting design and applicable installation requirements.
Technical Specifications – 3h Emergency Module for PH7P-18T LED Bulkhead
| Manufacturer | Diamond LED Lighting |
|---|---|
| Product Code | PHP-PIEM |
| Product Type | Plug-and-Play Emergency Lighting Module |
| Product Range | Phoenix VII Pro |
| Emergency Duration | 3 Hours |
| Connection | Plug-and-Play |
| Battery | Rechargeable Emergency Battery |
| Compatible Bulkhead | Diamond LED PH7P-18T |
| Emergency Function | Battery-Backed Lighting During Mains Failure |
| Installation | Compatible Luminaire Accessory |
| Bulkhead Included | No – Sold Separately |
| Microwave Sensor Included | No – Sold Separately |
Frequently Asked Questions
What is the PHP-PIEM emergency module used for?
The PHP-PIEM is an emergency lighting accessory designed to provide three hours of battery-backed illumination when installed with the compatible Diamond LED PH7P-18T bulkhead.
Which LED bulkhead is compatible with this emergency module?
The module is designed for the Diamond LED PH7P-18T Phoenix VII Pro Five Colour Tri-Power LED Bulkhead.
Does the PHP-PIEM provide three hours of emergency lighting?
Yes. The module is designed to provide a rated three-hour emergency operating period when installed and charged according to the manufacturer’s instructions.
Does the emergency module include the LED bulkhead?
No. This listing is for the PHP-PIEM emergency module only. The compatible PH7P-18T LED bulkhead must be purchased separately.
Does this module include a microwave movement sensor?
No. Microwave movement detection and corridor control are provided by the separate Diamond LED PHP-PIMW Microwave & Corridor Sensor Module.
Can I install both emergency and microwave sensor modules?
The Phoenix VII Pro range offers separate emergency and microwave sensor accessories. Check Diamond LED’s installation instructions to confirm whether both modules are supported together in the required configuration.
Can the emergency module be fitted to any LED bulkhead?
No. The PHP-PIEM is designed for compatible Diamond LED fittings. Do not assume compatibility with other brands or bulkhead ranges.
Does the PHP-PIEM require a separate emergency light fitting?
No separate emergency-only luminaire is required when the module is correctly integrated into a compatible fitting, provided the complete installation meets the project’s emergency lighting requirements.
Complete Your Diamond LED Phoenix VII Pro Installation
Pair the PHP-PIEM emergency module with the Diamond LED PH7P-18T Phoenix VII Pro LED Bulkhead to add three-hour emergency illumination.
For automatic movement detection and corridor lighting functionality, explore the separately available Diamond LED PHP-PIMW Microwave & Corridor Sensor Module.
