Description

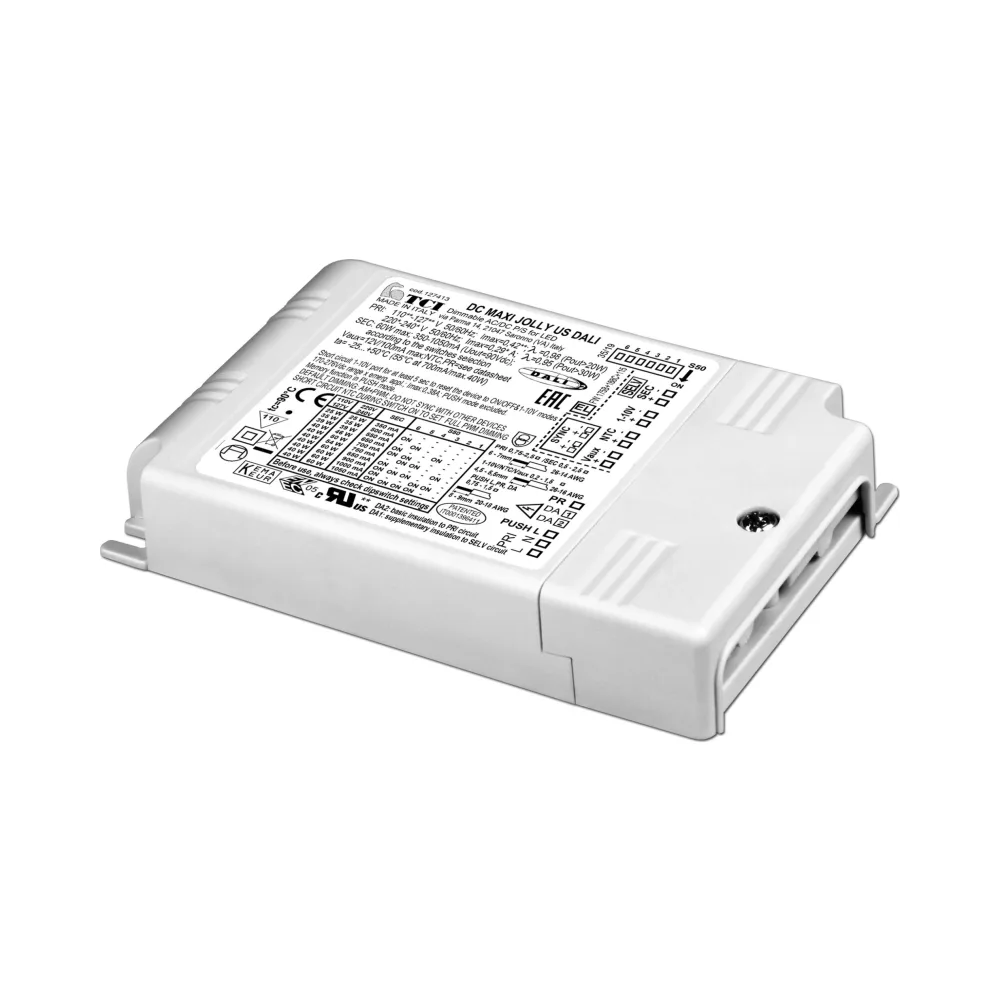

DIRECT REPLACEMENT – DC MAXI Jolly US DALI 1 & 2 / 1-10V 60W Dimmable LED Driver 151413
Direct current dimmable electronic drivers with DIP-SWITCH
Features
Multi-power driver supplied with dip-switch for the selection of the output current.
P20 independent driver, for indoor use
Class II protection against electric shock for direct or indirect contact
Driver for built-in use
It can be used for lighting equipment in protection class I and II
Active Power Factor Corrector.
Analogical input (NTC) for thermal sensor connection.
Auxiliary output 12 V max. 100 mA.
Current regulation ±5 % including temperature variations.
Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm – max. 8 mmI
Protections:
– against overheating and short circuits; – against mains voltage spikes;
– against overloads.
Thermal protection = C.5.a.
