Description

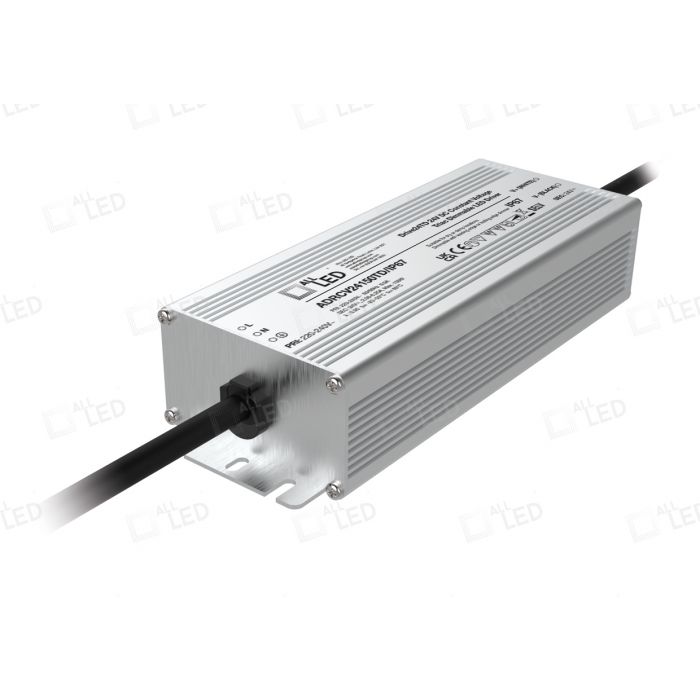

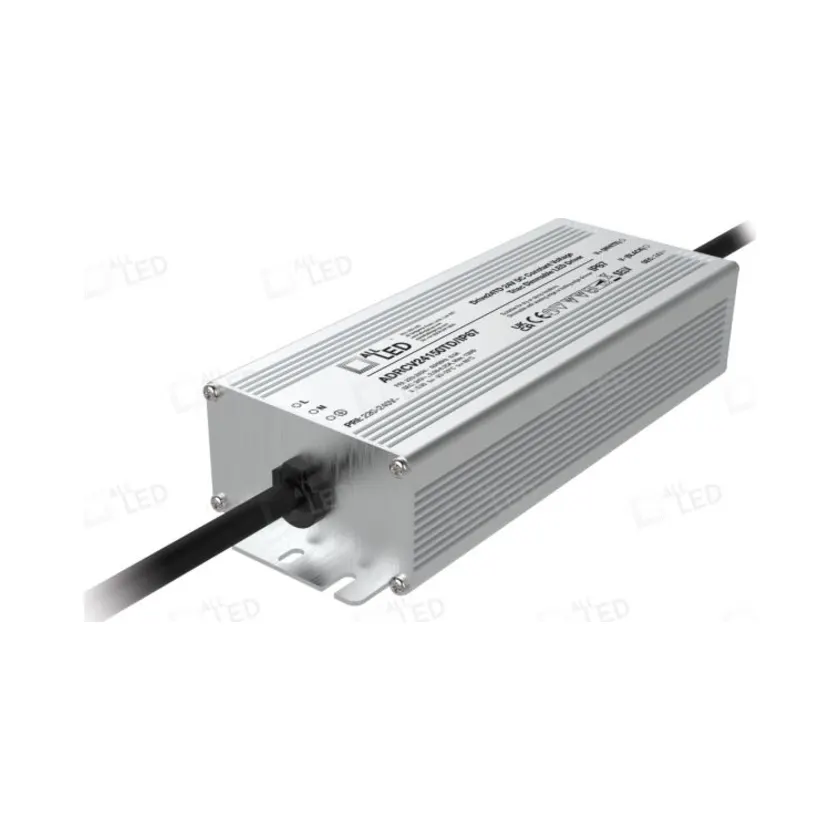

24V DC Constant Voltage Triac Dimmable LED Driver 150W IP67
ALL LED DRIVE24TD
The ALL LED DRIVE24TD is a powerful and highly adaptable 24V DC constant voltage LED driver, capable of supporting a wide range of 24V LED lighting systems. With a maximum output of 150W and advanced dimming compatibility, this driver seamlessly integrates with trailing and leading-edge dimmers, making it perfect for both residential and commercial applications.
Key Features and Benefits:
- Dimming Compatibility: Supports trailing and leading-edge dimming, enabling smooth and adaptable light control.
- Comprehensive Protection Features: Equipped with overload, no-load, short circuit, thermal, and overcurrent protections, ensuring safe and reliable operation.
- Robust Build: Constructed from durable extruded aluminum with an IP67 rating, providing excellent resistance against dust and water, suitable for indoor and outdoor installations.
- Efficient Performance: High power factor (>0.95) and 89% efficiency ensure energy-efficient operation.
- Extended Lifetime: Offers a lifetime of up to 50,000 hours, ensuring long-lasting performance and reducing replacement frequency.
- Ease of Installation: The loop-in loop-out design simplifies wiring, while large terminals provide secure and easy connections.
Specifications:
- Input Voltage: 220-240VAC
- Output Voltage: 24V DC
- Max Output Power: 7.5 – 150W
- Max Output Current: 6.25A
- Power Factor: >0.95
- Efficiency: 89%
- Ingress Protection: IP67 (suitable for outdoor use)
- Dimming Mode: Trailing & Leading Edge
- Body Material: Extruded Aluminum, Silver Finish
- Operating Temperature: -20°C ~ +50°C
- Lifetime: 50,000 hours
- Switching Cycles: 100,000
- Max Units Per Circuit Breaker: B10A: 3 / B16A: 4 / C10A: 6 / C16A: 9
- Inrush Current: 40A, Max. Duration 100μs
- Guarantee: 3 Years
Why Choose ALL LED DRIVE24TD? The DRIVE24TD driver is not only engineered for high performance but also prioritizes safety with its comprehensive protection features. With compatibility across various dimmers, it provides precise control over lighting intensity. The IP67 rating makes it ideal for challenging environments, whether in damp basements or exposed outdoor settings. Its robust design, reliability, and efficiency make it an outstanding choice for constant voltage LED applications.
