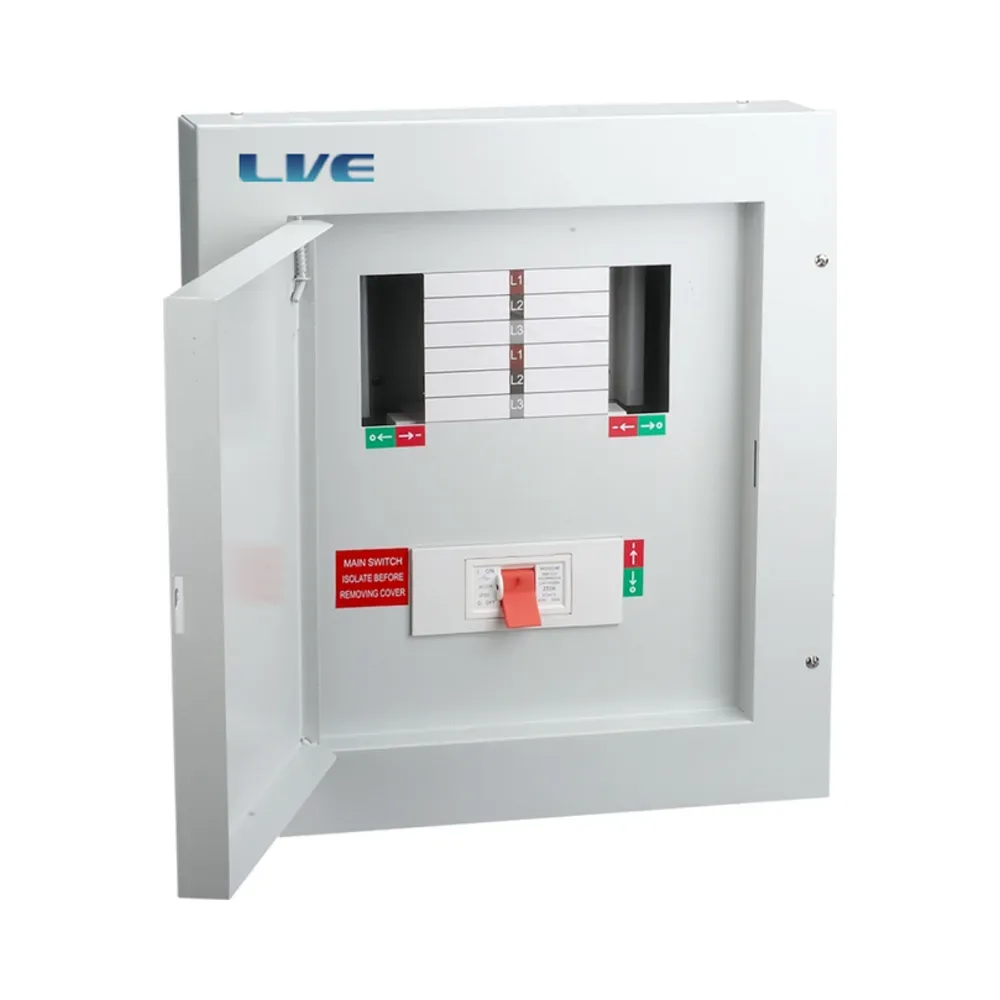

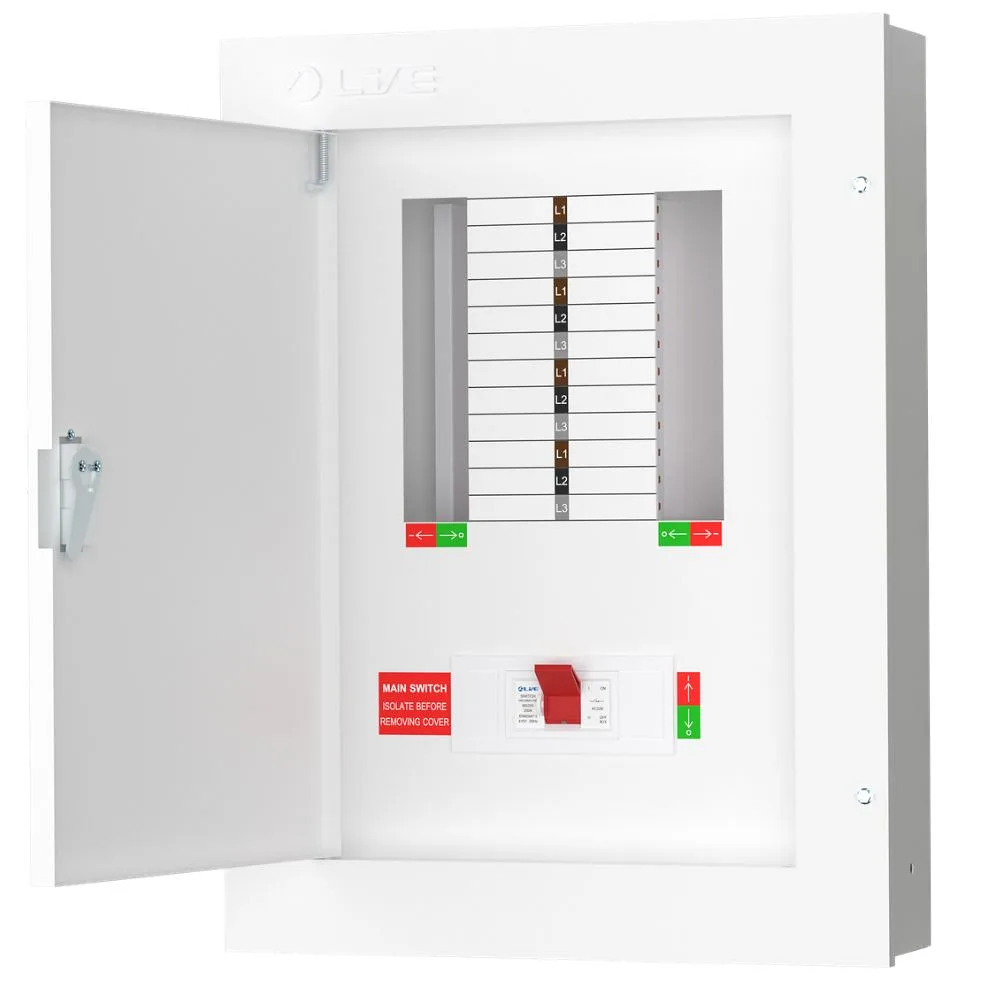

250A Live Electrical 8 Way TPN Distribution Board
The 250A Live Electrical 8 Way TPN Distribution Board is a high-capacity three-phase distribution board supplied with a 250A 3 pole main incomer switch. It provides 8 usable three-phase ways for compatible protective devices, making it suitable for larger commercial and industrial electrical installations.

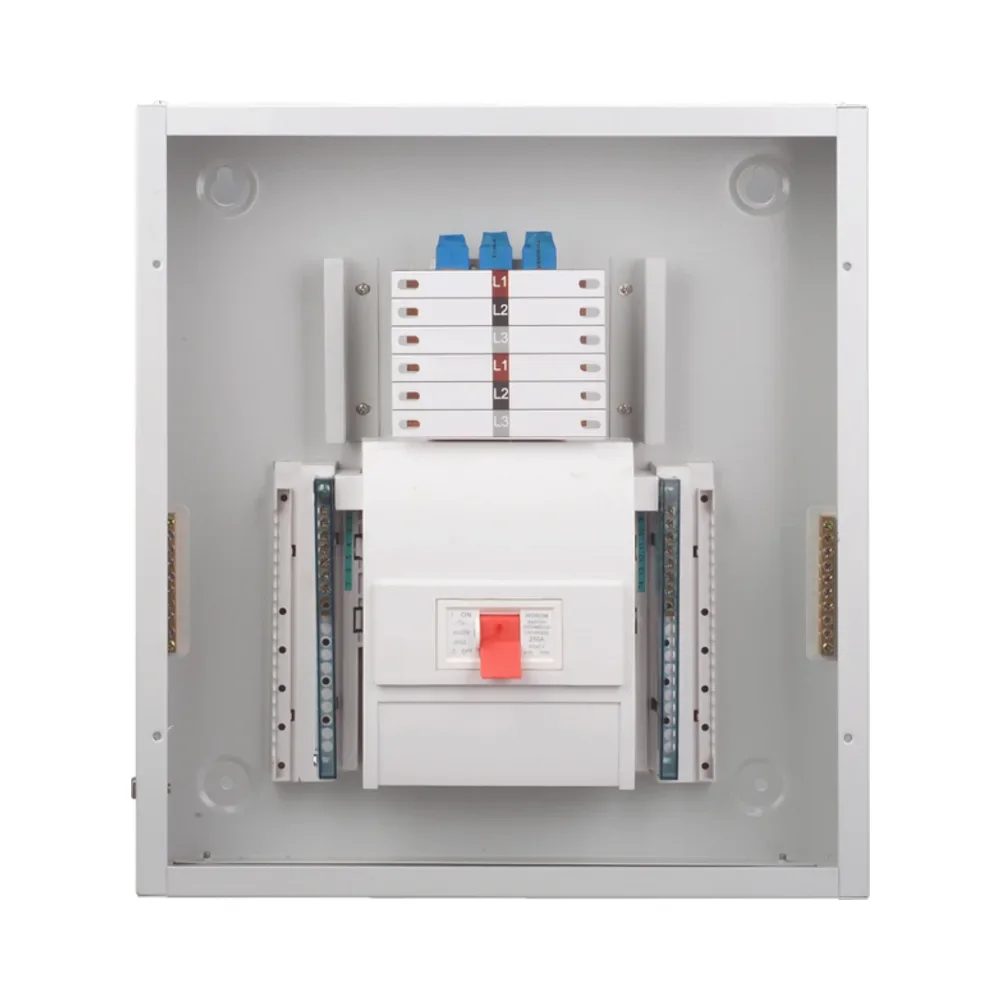

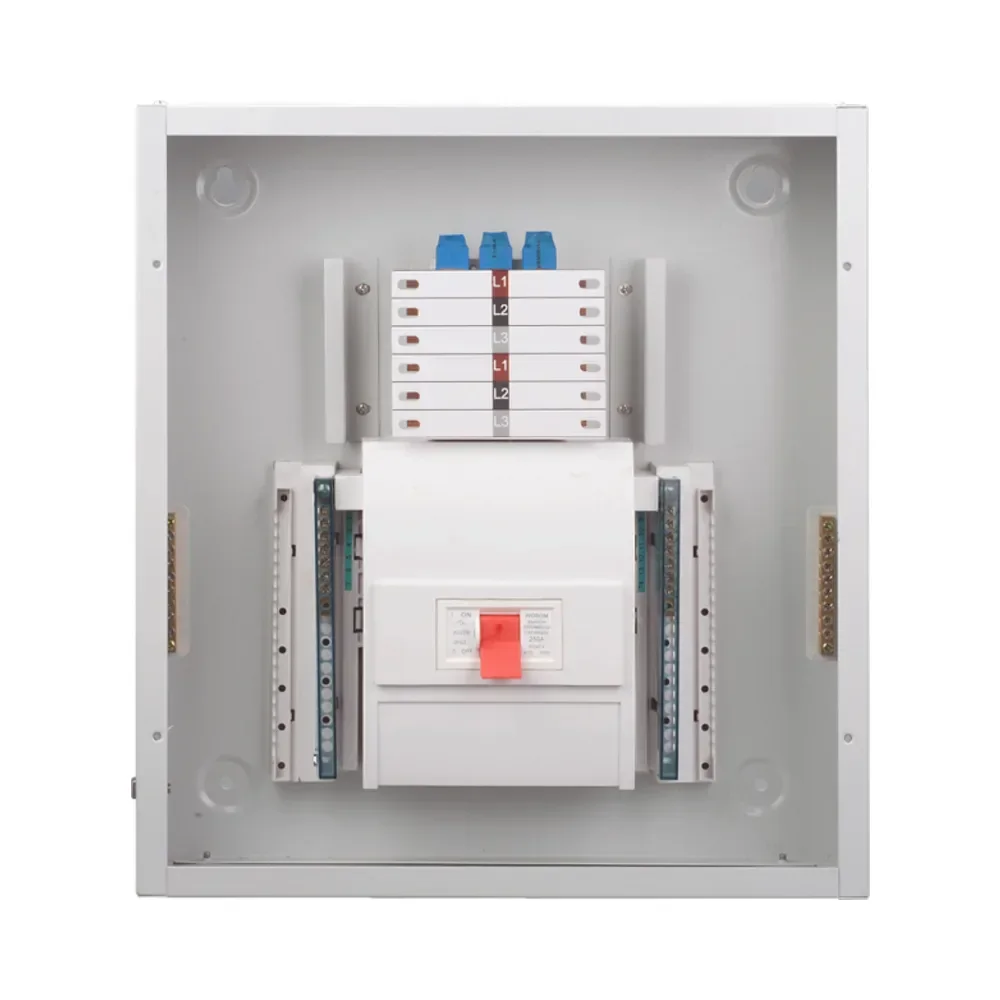

The Live Electrical TPN08-250 features a fully enclosed busbar system, removable gland plates and a double wiring terminal main incomer. Its robust metal enclosure provides generous wiring space and is designed for indoor installations requiring reliable three-phase power distribution.
Key Features – 250A Live Electrical 8 Way TPN Distribution Board
- 250A TP&N distribution board
- Supplied with a 250A 3 pole main incomer switch
- 8 usable three-phase outgoing ways
- Double wiring terminal main incomer
- Fully enclosed busbar system
- Removable gland plates for cable entry
- Suitable for compatible MCBs and RCBOs
- Designed for indoor electrical installations
- Suitable for commercial and industrial power distribution
- Distribution board manufactured to EN 61439-3
Technical Specifications – 250A Live Electrical 8 Way TPN Distribution Board
- Rated current: 250A
- Main incomer: 250A 3 pole main switch
- Number of ways: 8 three-phase ways
- Overall height: 614mm
- Internal height: 517mm
- Overall width: 456mm
- Internal width: 321mm
- Depth: 120mm
- Distribution board standard: EN 61439-3
- Main switch standard: EN 60947-3
Optional Surge Protection Enclosure
This distribution board is compatible with the Live Electrical Metal Enclosure with 4P 20-40kA SPD for 250A TPN Boards, allowing suitable surge protection equipment to be installed alongside the board.
Scroll to the bottom of the page to select the compatible protective devices and accessories required for your installation.
