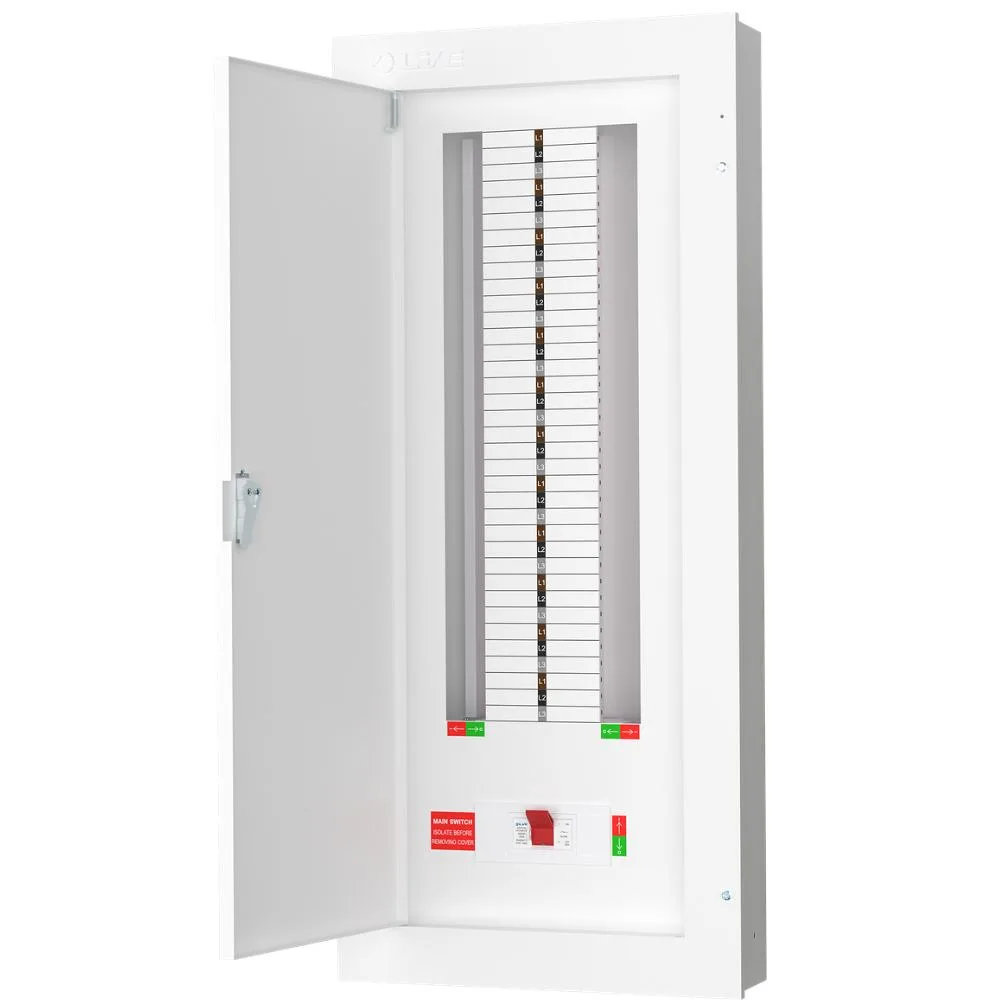

250A Live Electrical 24 Way TPN Distribution Board
The 250A Live Electrical 24 Way TPN Distribution Board is designed for extensive three-phase power distribution in larger commercial and industrial installations. Supplied with a 250A 3 pole main incomer switch, it provides 24 usable three-phase outgoing ways for compatible protective devices.
The Live Electrical TPN24-250 offers substantial circuit capacity within a robust metal enclosure. Its fully enclosed busbar system, removable gland plates and generous internal wiring space help support an organised and efficient installation.
Key Features – 250A Live Electrical 24 Way TPN Distribution Board
- 250A rated TP&N distribution board
- Supplied with a 250A 3 pole main incomer switch
- 24 usable three-phase outgoing ways
- Fully enclosed busbar system
- Double wiring terminal main incomer
- Removable gland plates for flexible cable entry
- Generous internal space for cable organisation
- Robust metal enclosure for indoor installations
- Suitable for substantial commercial and industrial systems
- Manufactured to EN 61439-3
Technical Specifications – Live Electrical TPN24-250
- Product code: TPN24-250
- Rated current: 250A
- Main incomer: 250A 3 pole main switch
- Usable three-phase ways: 24
- Overall height: 1046mm
- Internal height: 949mm
- Overall width: 456mm
- Internal width: 321mm
- Depth: 120mm
- Distribution board standard: EN 61439-3
- Main switch standard: EN 60947-3
Compatible Surge Protection Enclosure
The board can be used with the compatible Live Electrical Metal Enclosure with 4P 20-40kA SPD for 250A TPN Boards where additional surge protection is required.
Scroll to the bottom of the page to select compatible protective devices and accessories for your installation.
Browse our Live Electrical TPN distribution boards, explore Live Electrical consumer units or view the complete Live Electrical range.
