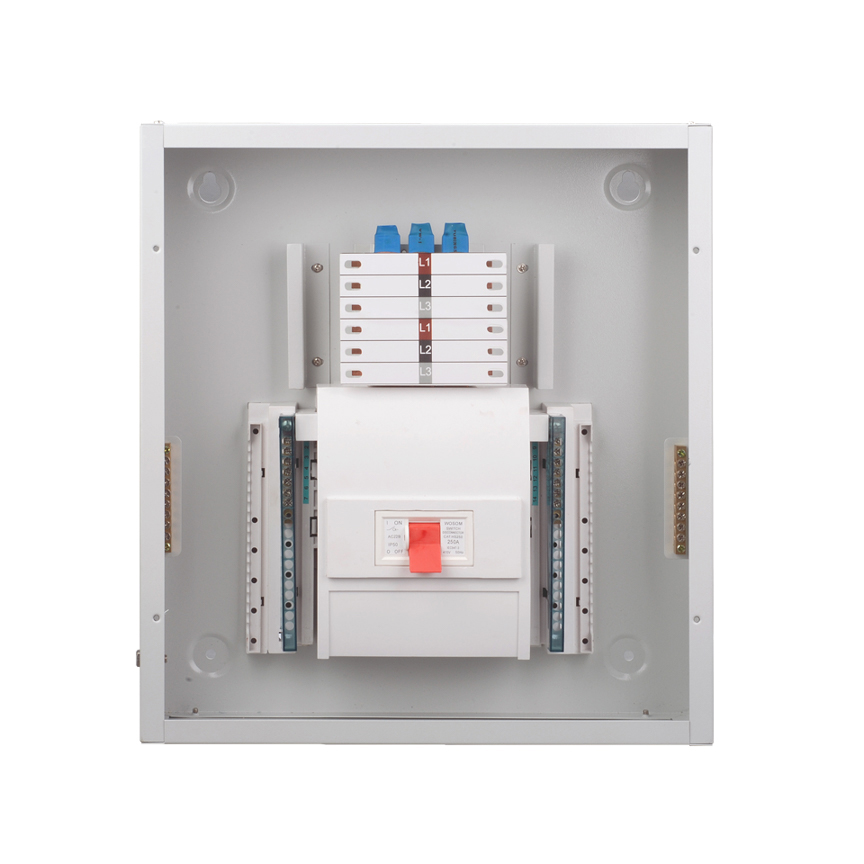

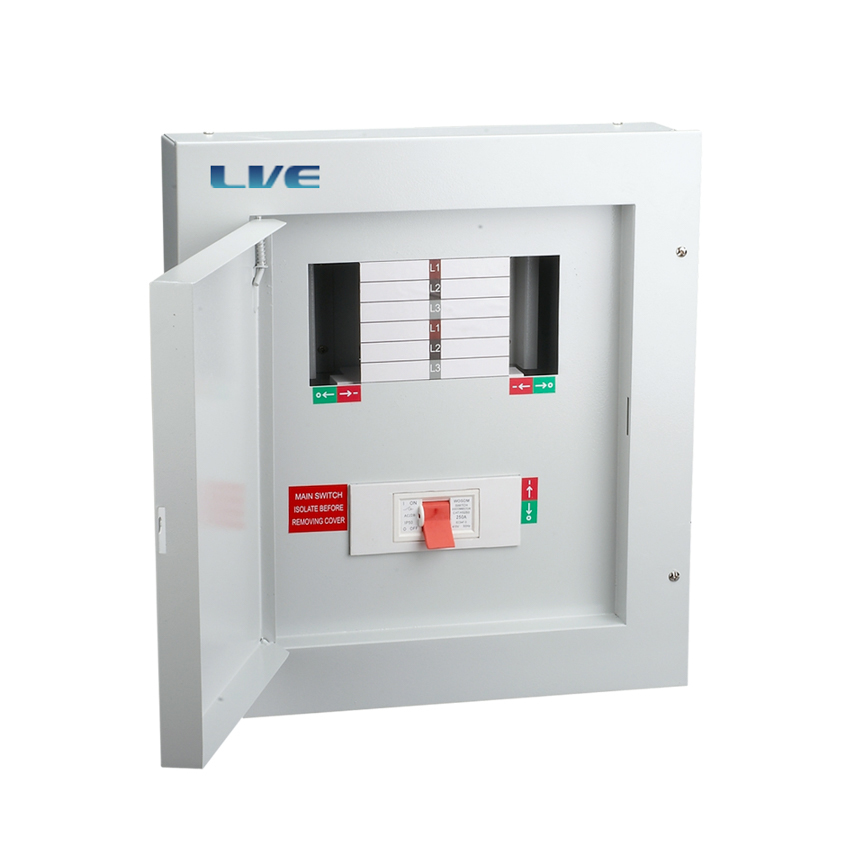

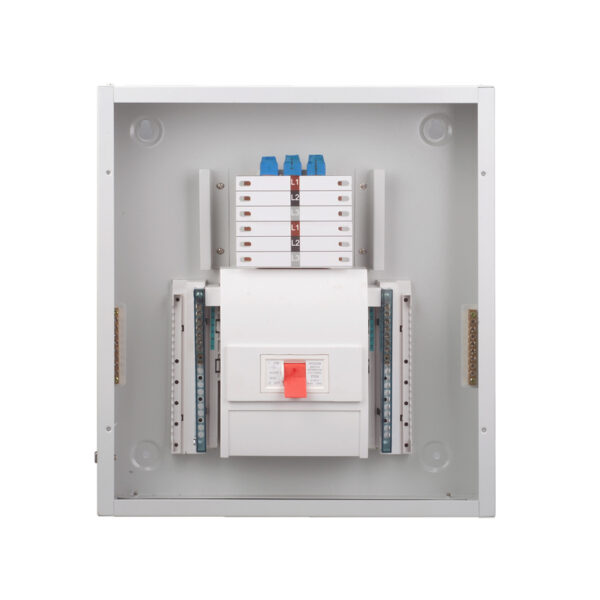

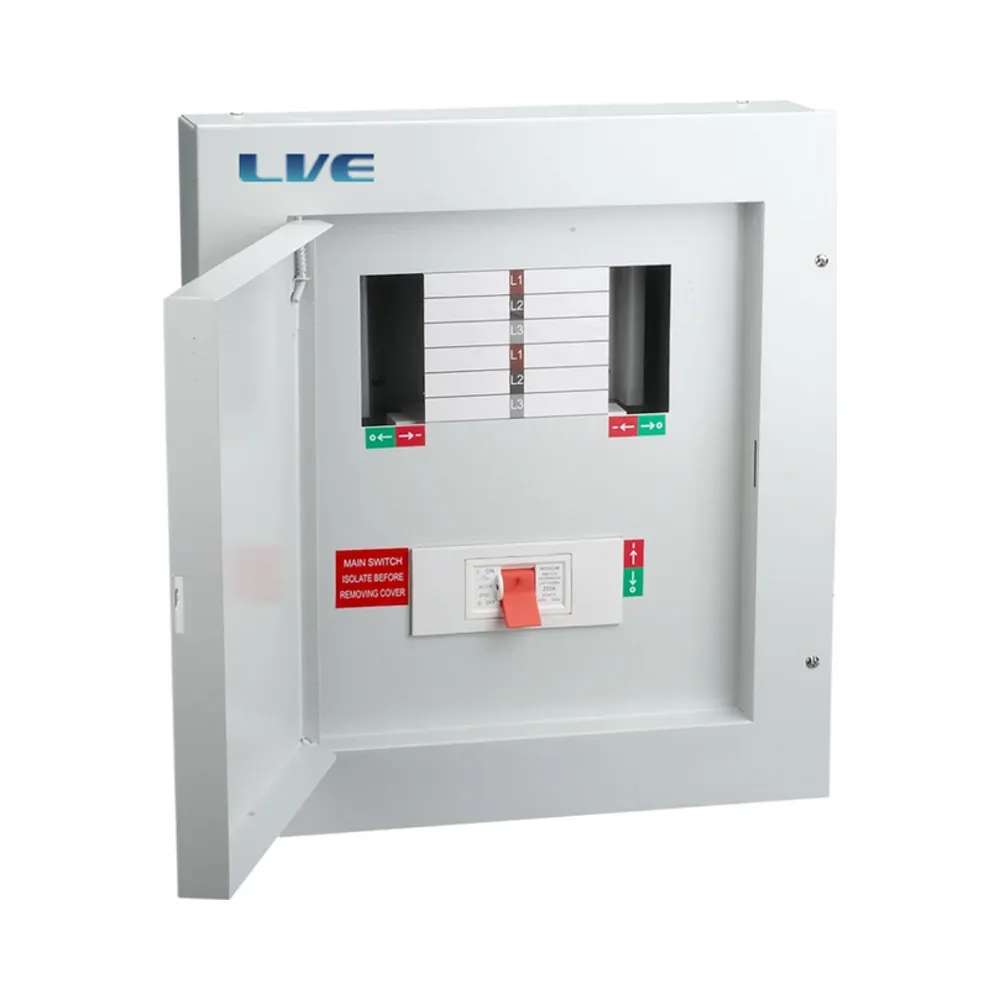

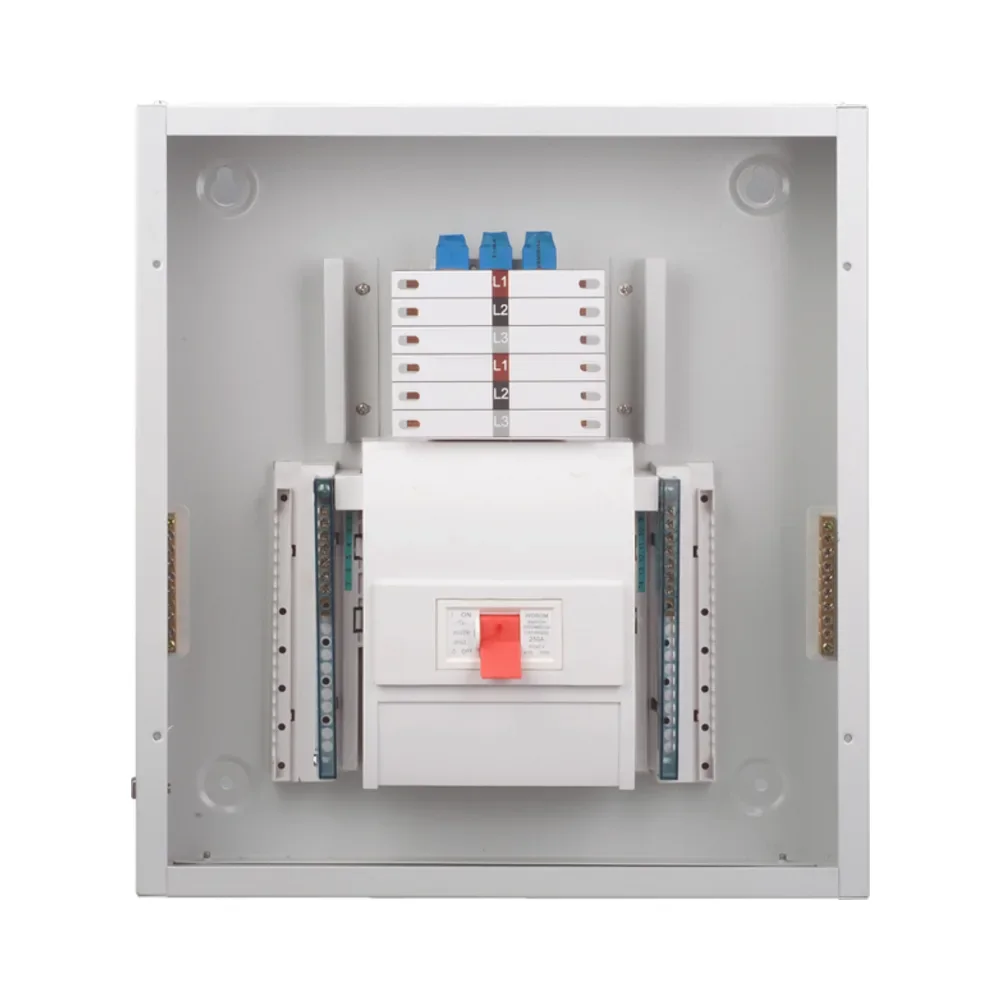

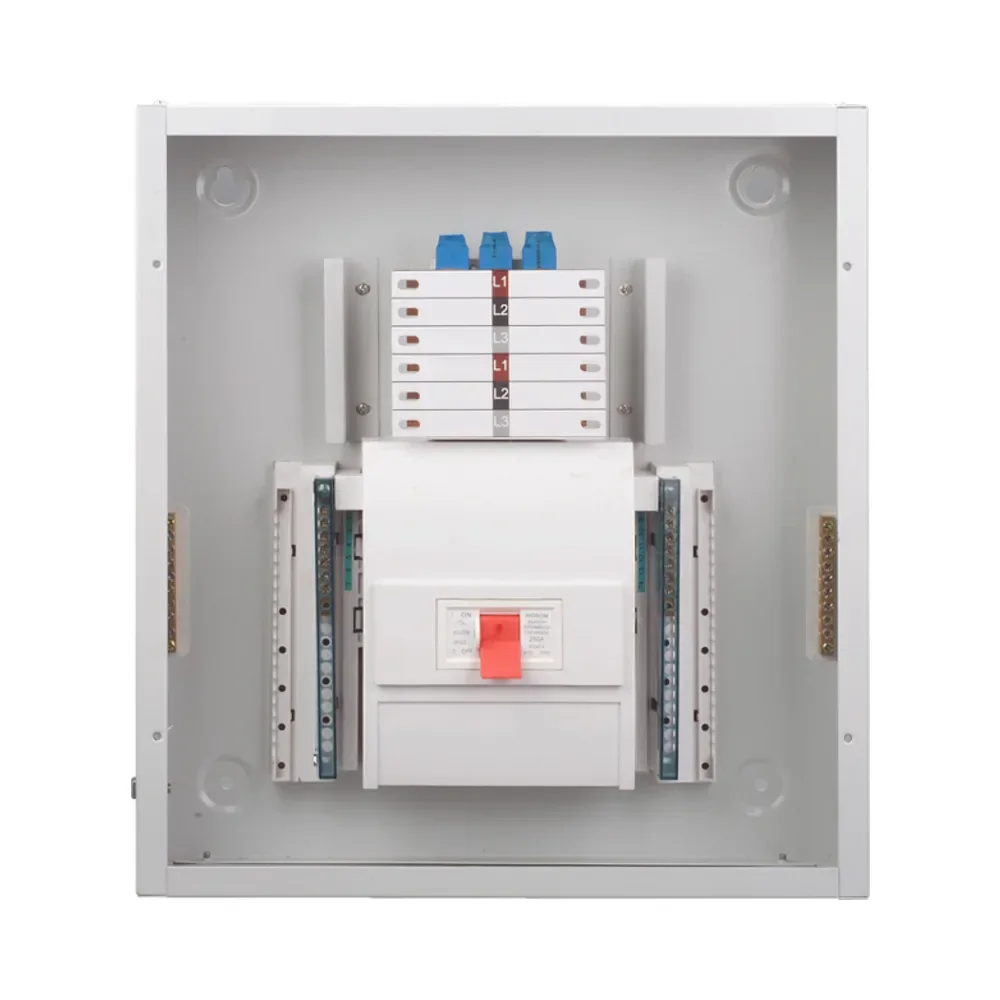

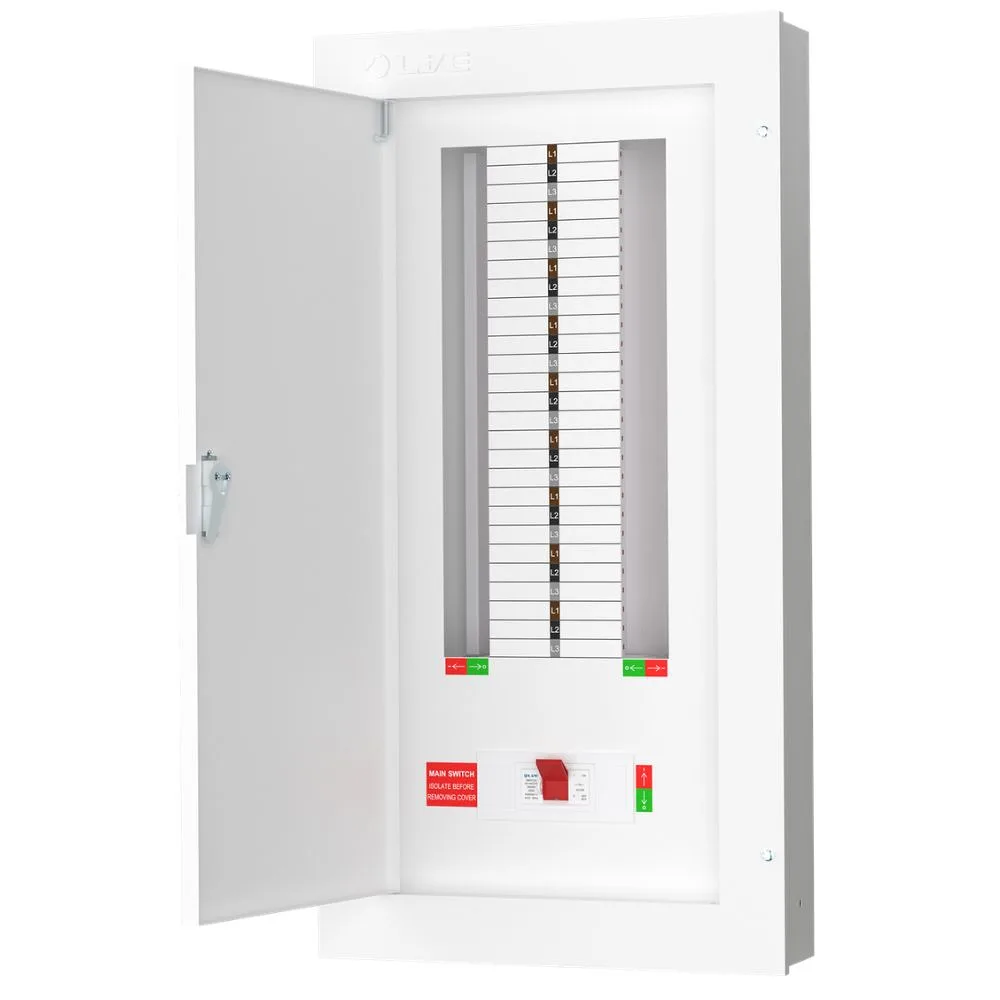

250A Live Electrical 18 Way TPN Distribution Board
The 250A Live Electrical 18 Way TPN Distribution Board provides high-capacity three-phase power distribution for substantial commercial and industrial installations. Supplied with a 250A 3 pole main incomer switch, it offers 18 usable three-phase outgoing ways for compatible protective devices.
The Live Electrical TPN18-250 combines extensive circuit capacity with a fully enclosed busbar system and a robust metal enclosure. Generous internal wiring space and removable gland plates help installers arrange incoming and outgoing cables efficiently.
Key Features – 250A Live Electrical 18 Way TPN Distribution Board
- 250A rated TP&N distribution board
- Includes a 250A 3 pole main incomer switch
- 18 usable three-phase outgoing ways
- Fully enclosed busbar system
- Double wiring terminal main incomer
- Removable gland plates for convenient cable entry
- Generous internal space for cable management
- Robust metal enclosure designed for indoor use
- Suitable for high-capacity commercial and industrial installations
- Manufactured to EN 61439-3
Live Electrical TPN18-250 Specifications
- Product code: TPN18-250
- Rated current: 250A
- Main incomer: 250A 3 pole main switch
- Usable three-phase ways: 18
- Overall height: 884mm
- Internal height: 787mm
- Overall width: 456mm
- Internal width: 321mm
- Depth: 120mm
- Distribution board standard: EN 61439-3
- Main switch standard: EN 60947-3
Optional SPD Enclosure
Additional surge protection can be installed alongside the board using the compatible Live Electrical Metal Enclosure with 4P 20-40kA SPD for 250A TPN Boards.
Scroll to the bottom of the page to select compatible protective devices and accessories for your installation.
Browse our Live Electrical TPN distribution boards, explore Live Electrical consumer units or view the complete Live Electrical range.
