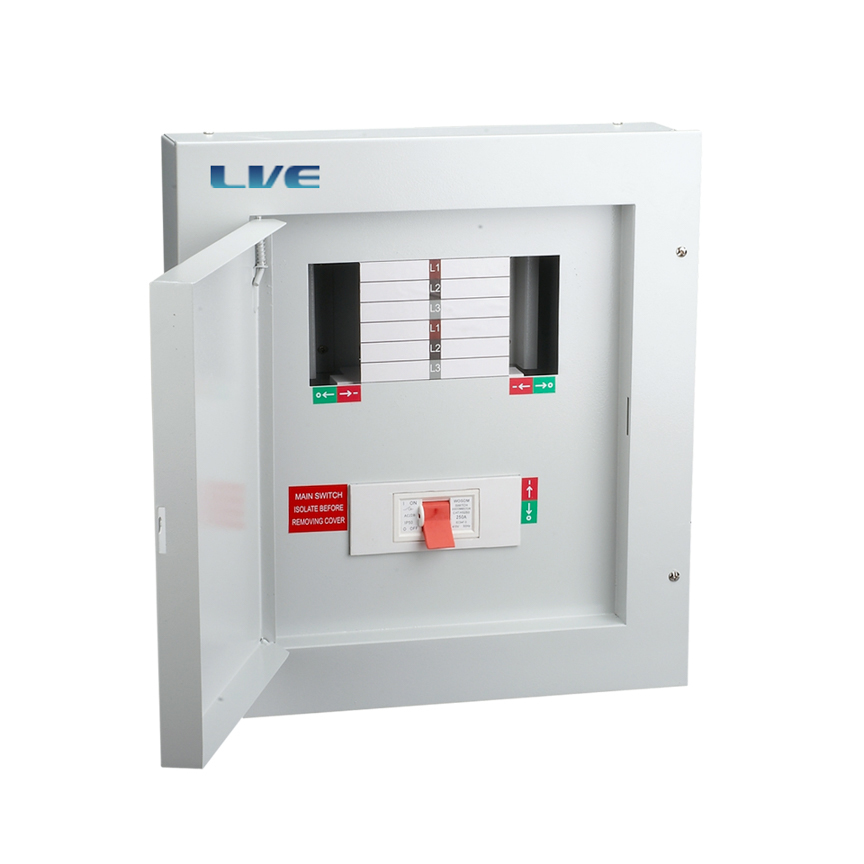

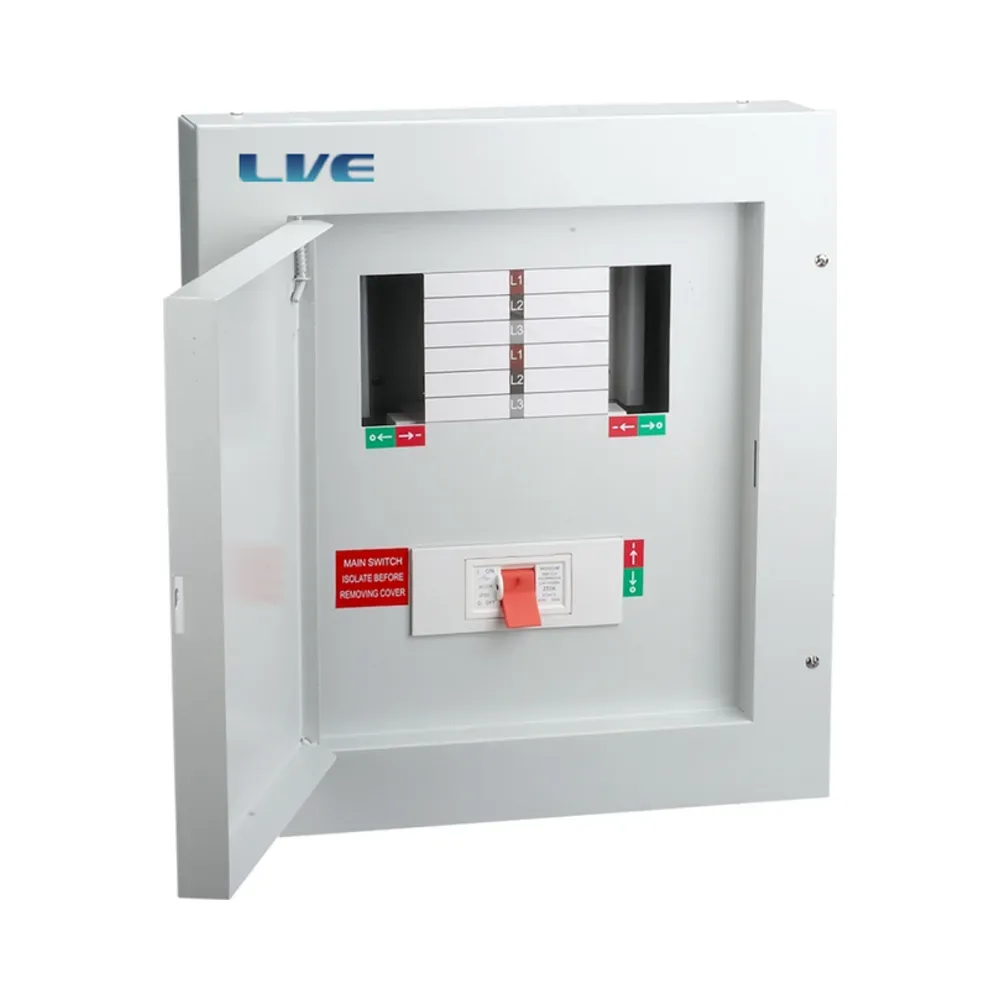

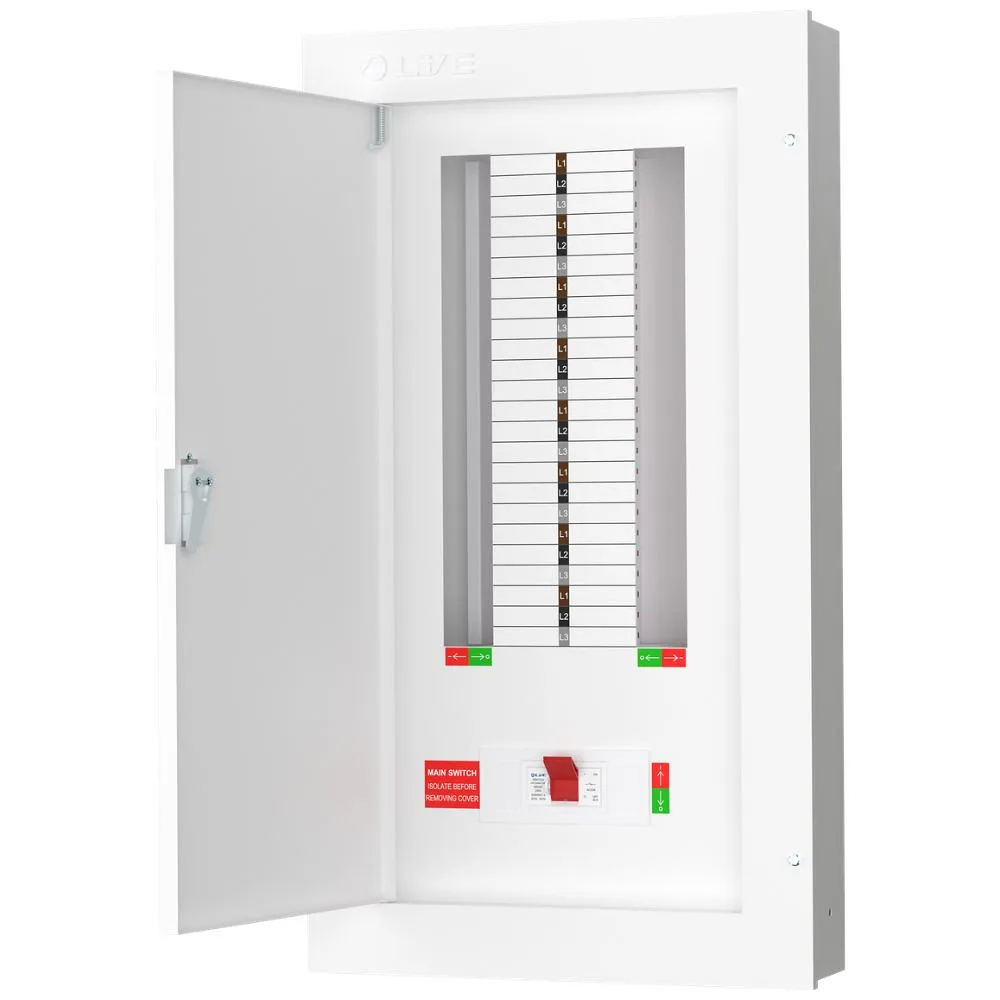

250A Live Electrical 16 Way TPN Distribution Board
The 250A Live Electrical 16 Way TPN Distribution Board is a high-capacity board designed for distributing three-phase electrical supplies across larger commercial and industrial installations. It is supplied with a 250A 3 pole main incomer switch and provides 16 usable three-phase outgoing ways.

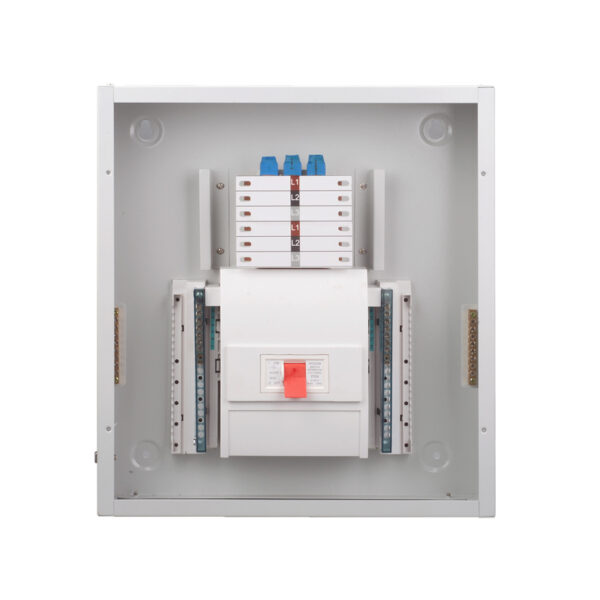

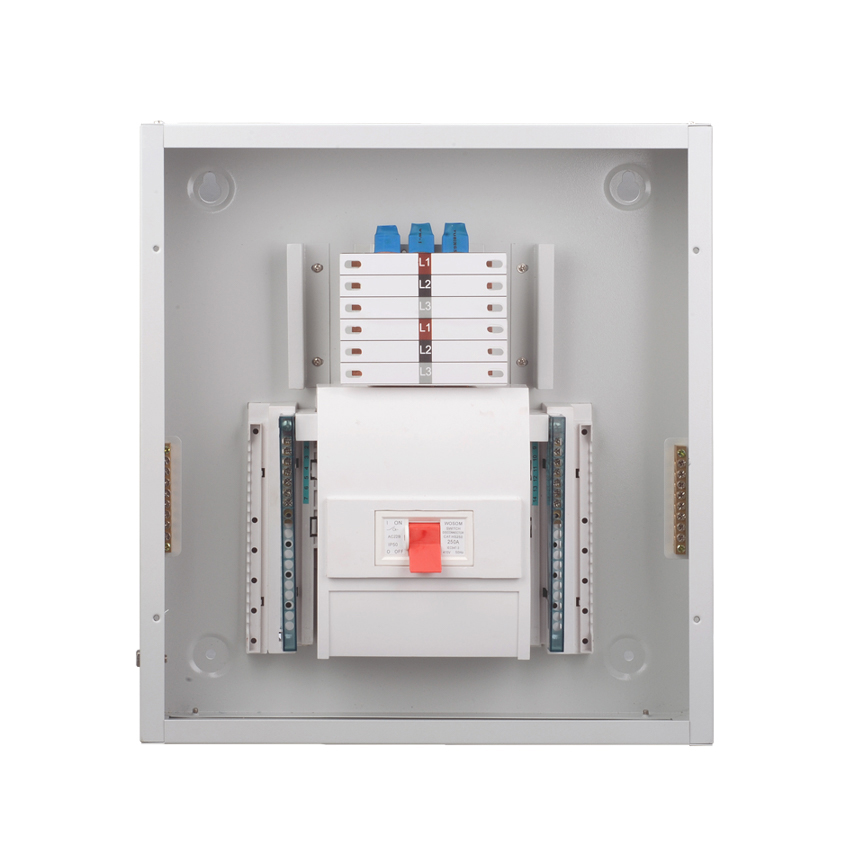

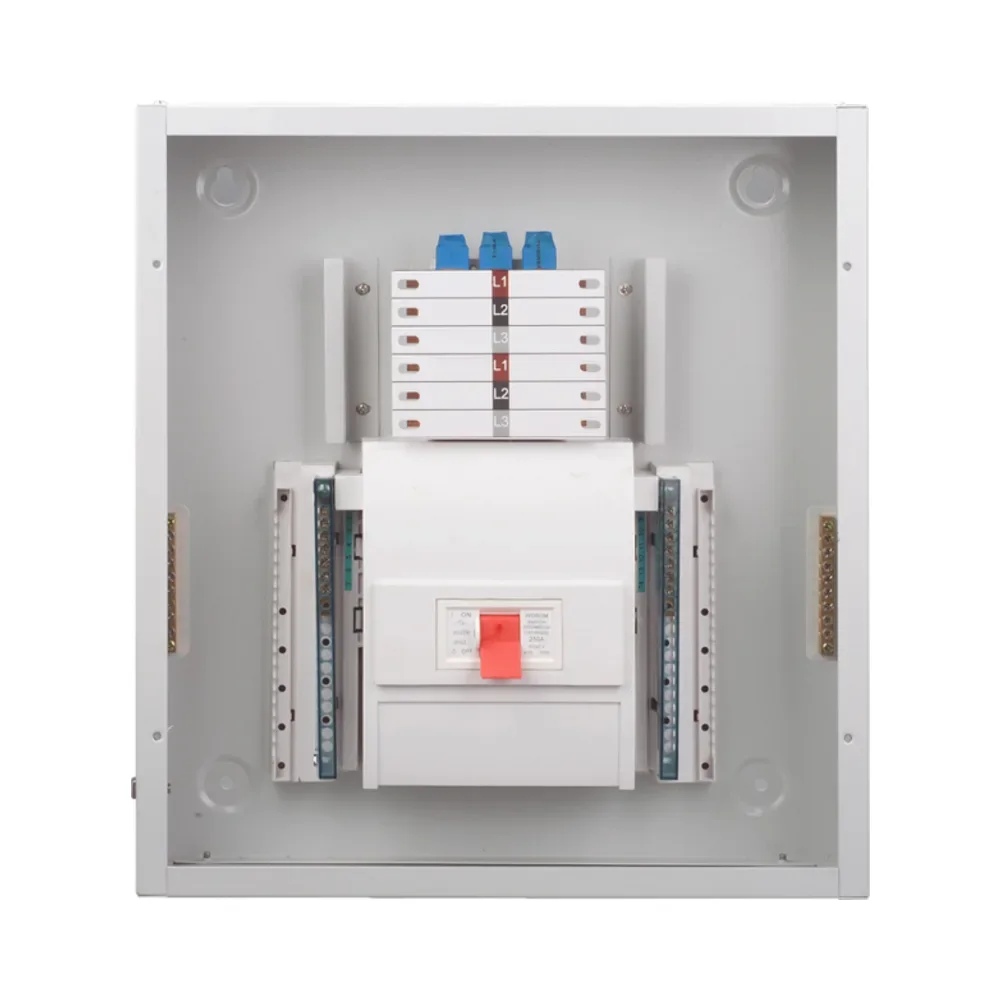

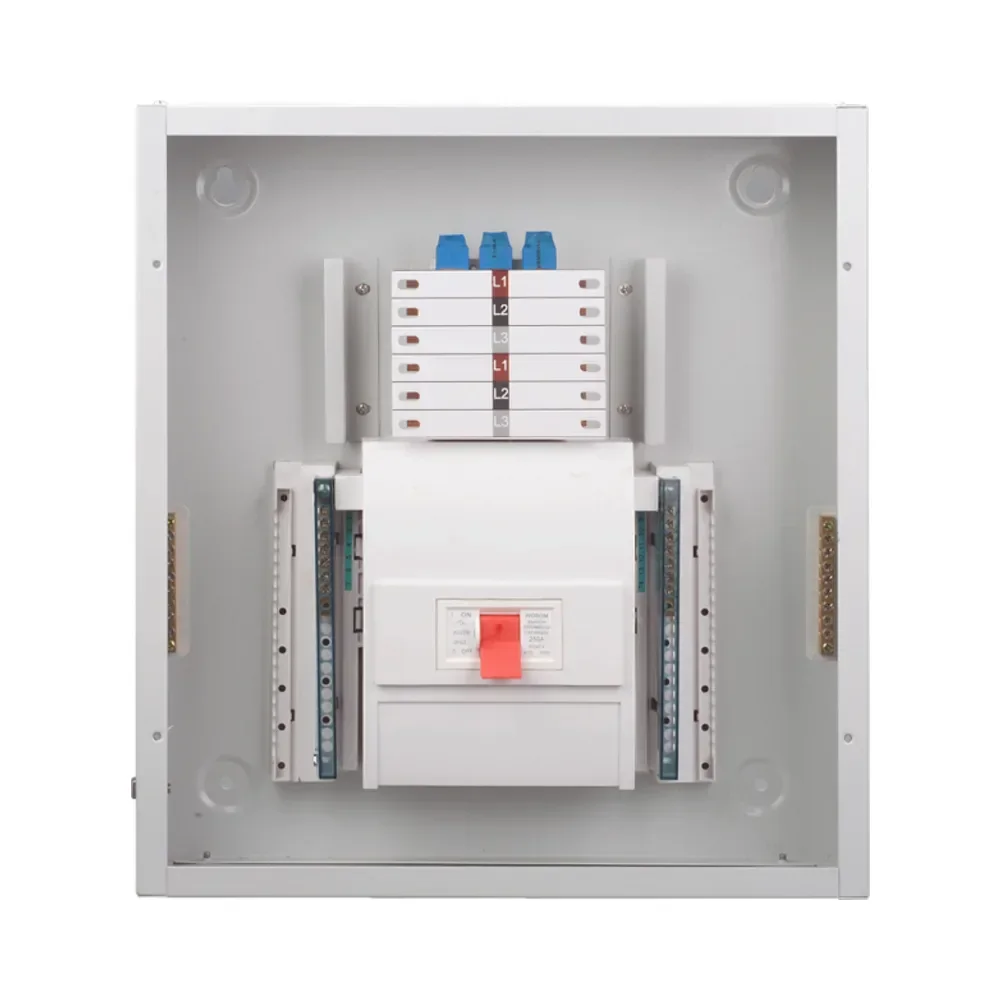

The Live Electrical TPN16-250 features a fully enclosed busbar system and a robust metal enclosure with generous internal space for arranging incoming and outgoing cables. Removable gland plates support convenient cable entry, while the substantial circuit capacity makes the board suitable for installations serving numerous three-phase loads.
Main Features – 250A Live Electrical 16 Way TPN Distribution Board
- 250A rated TP&N distribution board
- Supplied with a 250A 3 pole main incomer switch
- 16 usable three-phase outgoing ways
- Fully enclosed busbar system
- Double wiring terminal main incomer
- Removable gland plates for practical cable entry
- Generous internal space for cable organisation
- Durable metal enclosure for indoor use
- Suitable for larger commercial and industrial installations
- Manufactured to EN 61439-3
Technical Details – Live Electrical TPN16-250
- Product code: TPN16-250
- Rated current: 250A
- Main incomer: 250A 3 pole main switch
- Usable three-phase ways: 16
- Overall height: 830mm
- Internal height: 733mm
- Overall width: 456mm
- Internal width: 321mm
- Depth: 120mm
- Distribution board standard: EN 61439-3
- Main switch standard: EN 60947-3
Compatible Surge Protection Enclosure
Suitable surge protection can be installed alongside the board using the compatible Live Electrical Metal Enclosure with 4P 20-40kA SPD for 250A TPN Boards.
