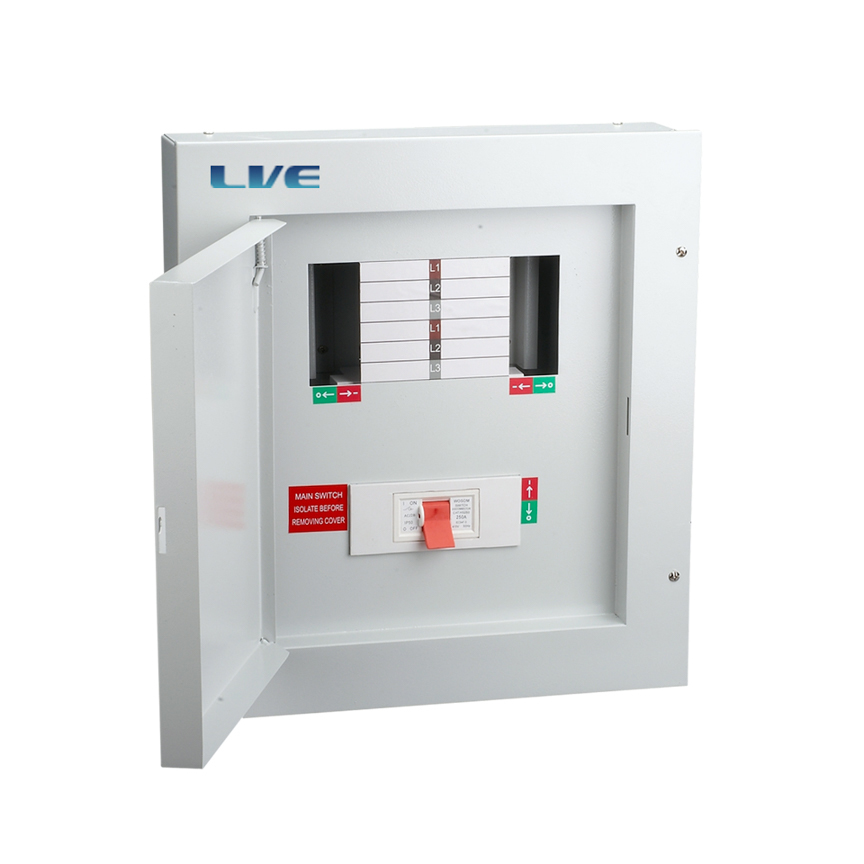

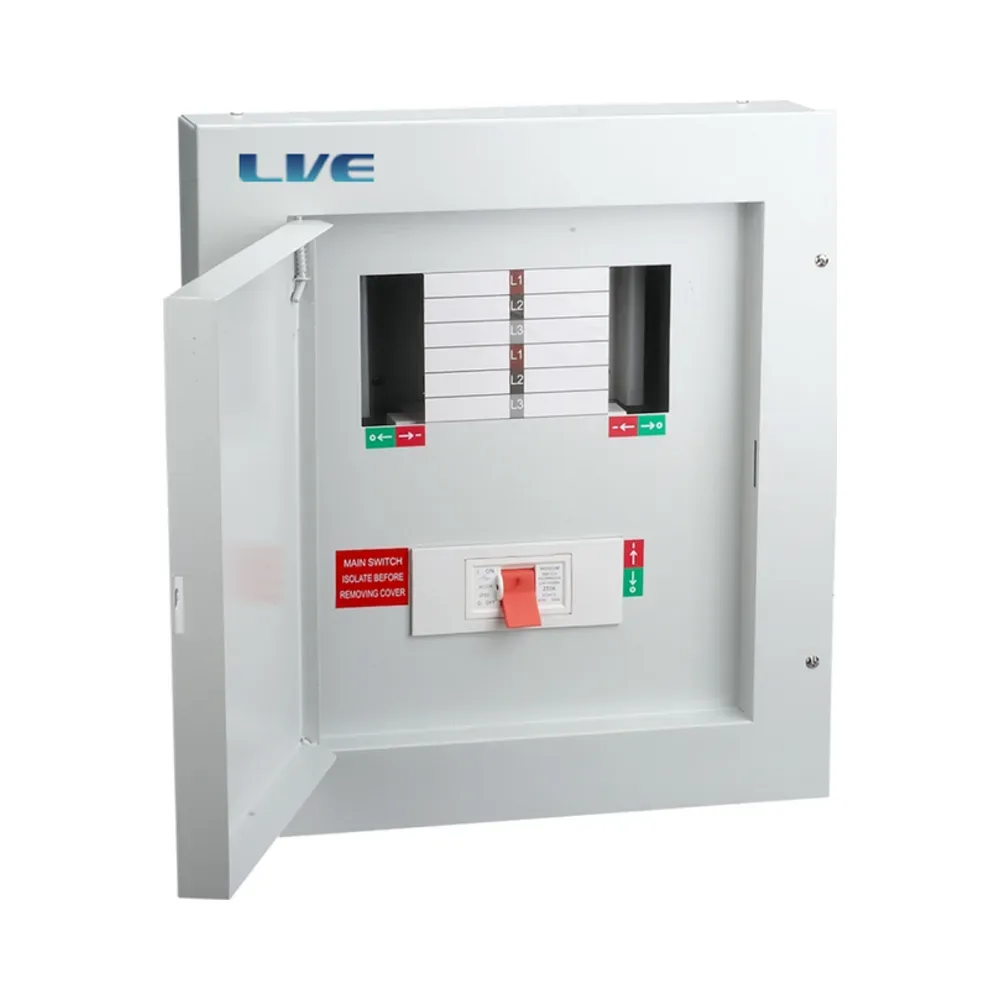

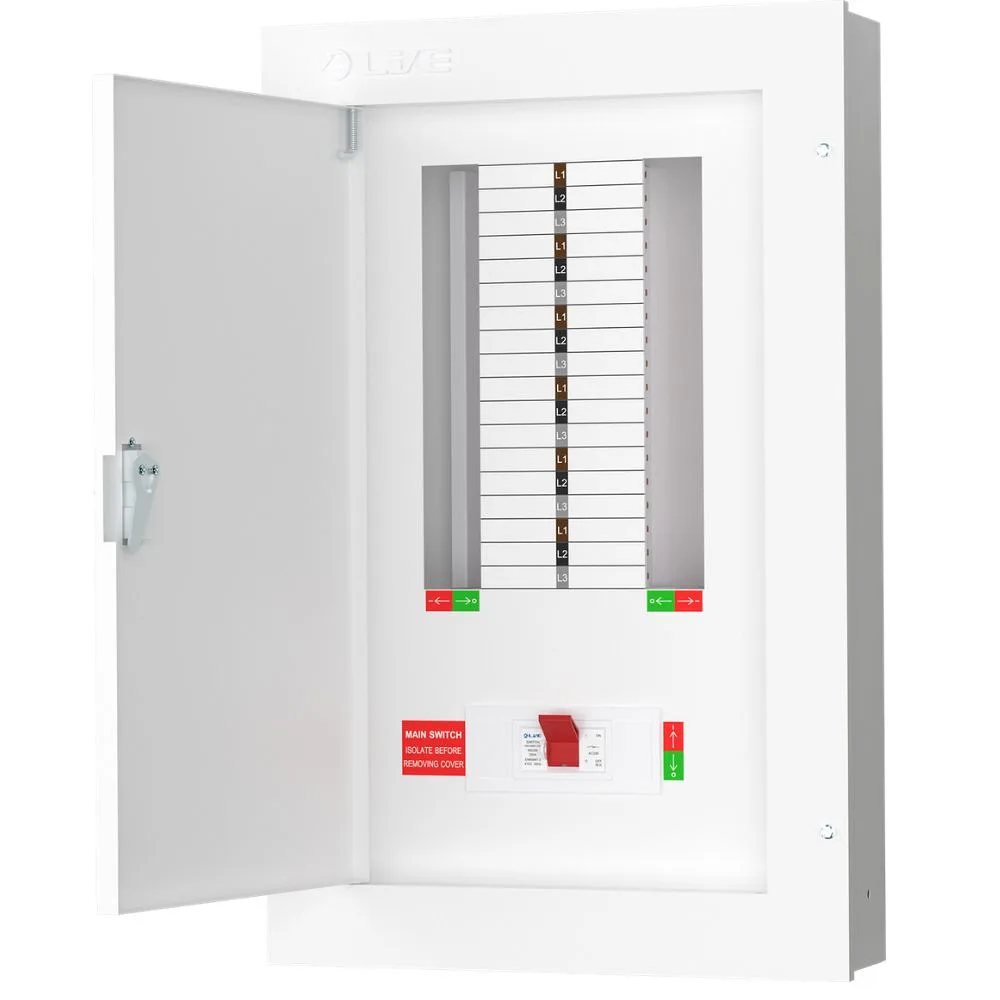

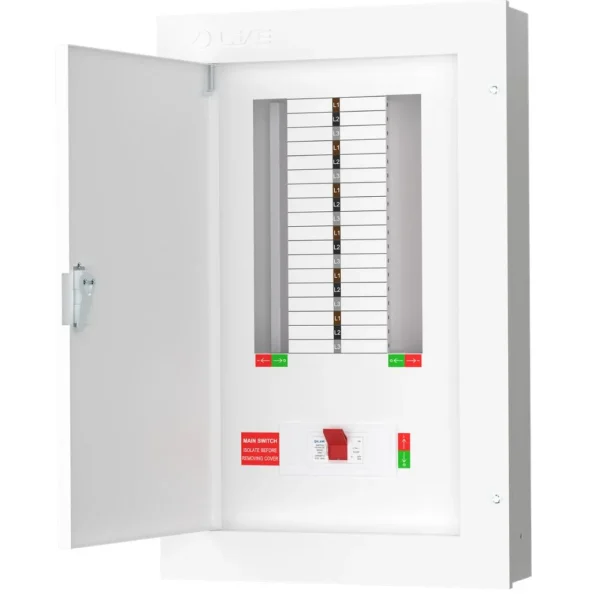

250A Live Electrical 12 Way TPN Distribution Board
The 250A Live Electrical 12 Way TPN Distribution Board is designed for high-capacity three-phase power distribution in commercial and industrial installations. Supplied with a 250A 3 pole main incomer switch, it provides 12 usable three-phase ways for compatible outgoing protective devices.

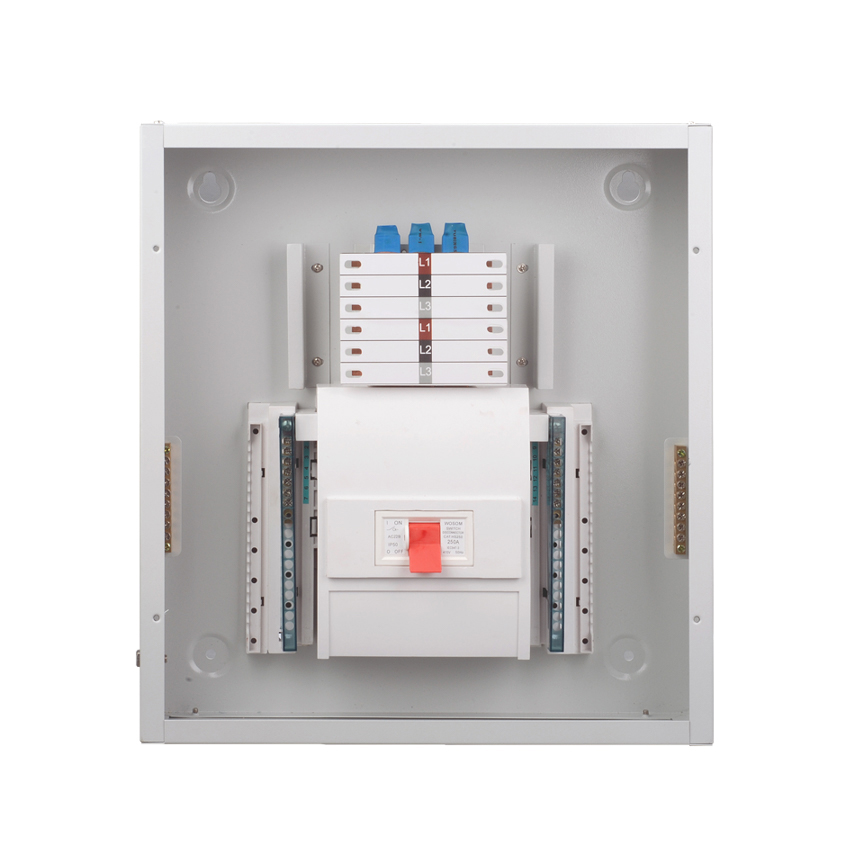

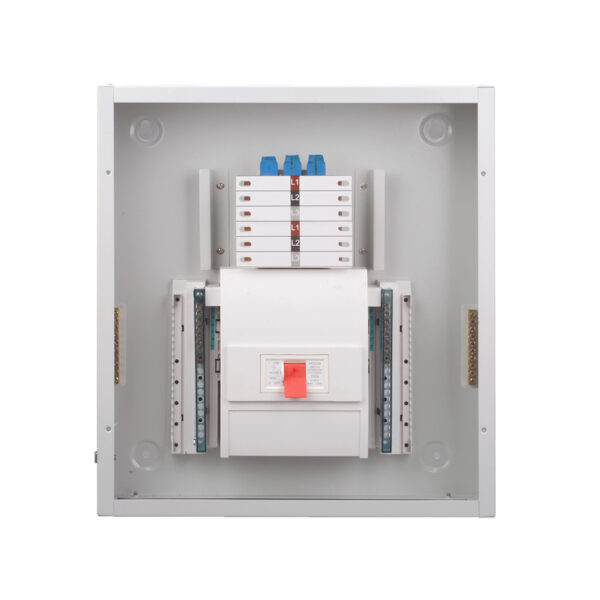

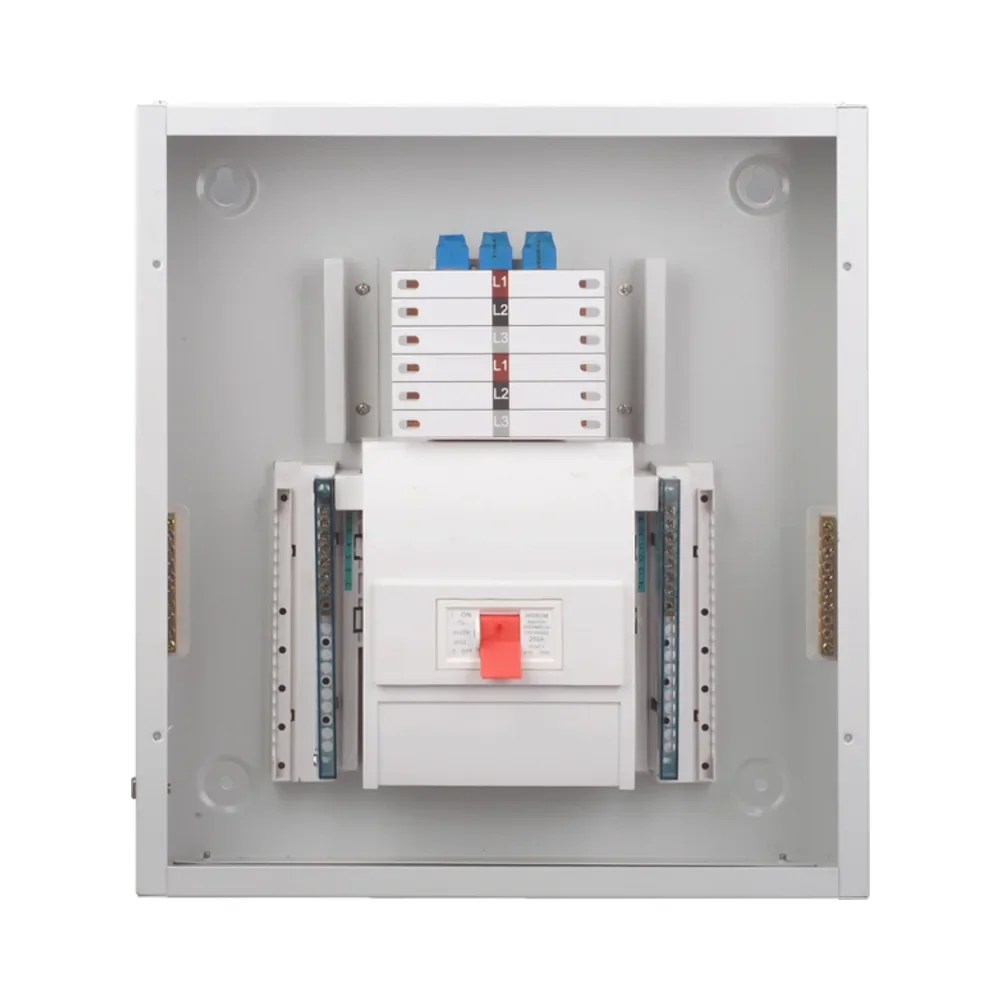

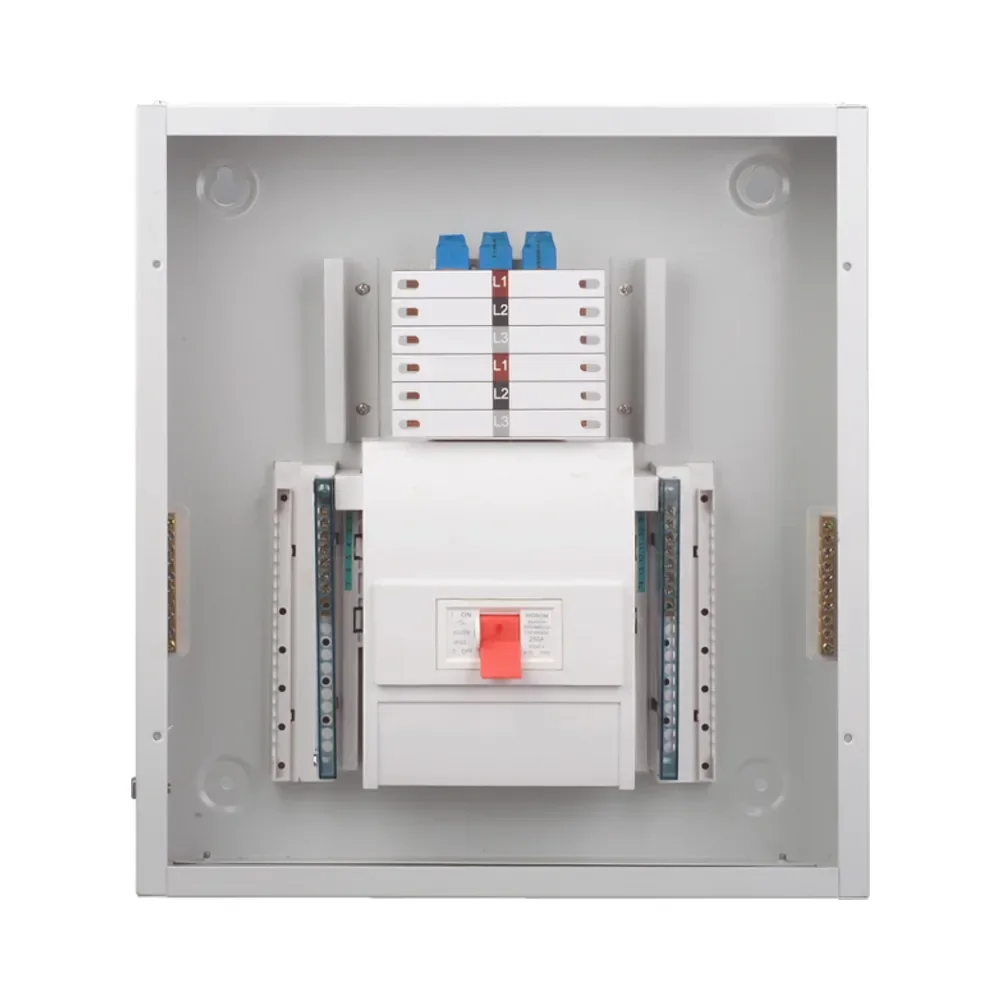

The Live Electrical TPN12-250 combines substantial circuit capacity with a fully enclosed busbar system, removable gland plates and generous internal wiring space. Its robust metal enclosure supports organised installation in applications requiring dependable distribution across multiple three-phase circuits.
Key Features – 250A Live Electrical 12 Way TPN Distribution Board
- 250A TP&N distribution board
- Includes a 250A 3 pole main incomer switch
- 12 usable three-phase outgoing ways
- Fully enclosed busbar system
- Double wiring terminal main incomer
- Removable gland plates for convenient cable entry
- Suitable for compatible three-phase protective devices
- Robust metal enclosure for indoor installation
- Designed for commercial and industrial power distribution
- Distribution board manufactured to EN 61439-3
Live Electrical TPN12-250 Technical Specifications
- Product code: TPN12-250
- Rated current: 250A
- Main incomer: 250A 3 pole main switch
- Usable three-phase ways: 12
- Overall height: 722mm
- Internal height: 625mm
- Overall width: 456mm
- Internal width: 321mm
- Depth: 120mm
- Distribution board standard: EN 61439-3
- Main switch standard: EN 60947-3
Optional Surge Protection Enclosure
This distribution board is compatible with the Live Electrical Metal Enclosure with 4P 20-40kA SPD for 250A TPN Boards, allowing suitable surge protection equipment to be installed alongside the board.
