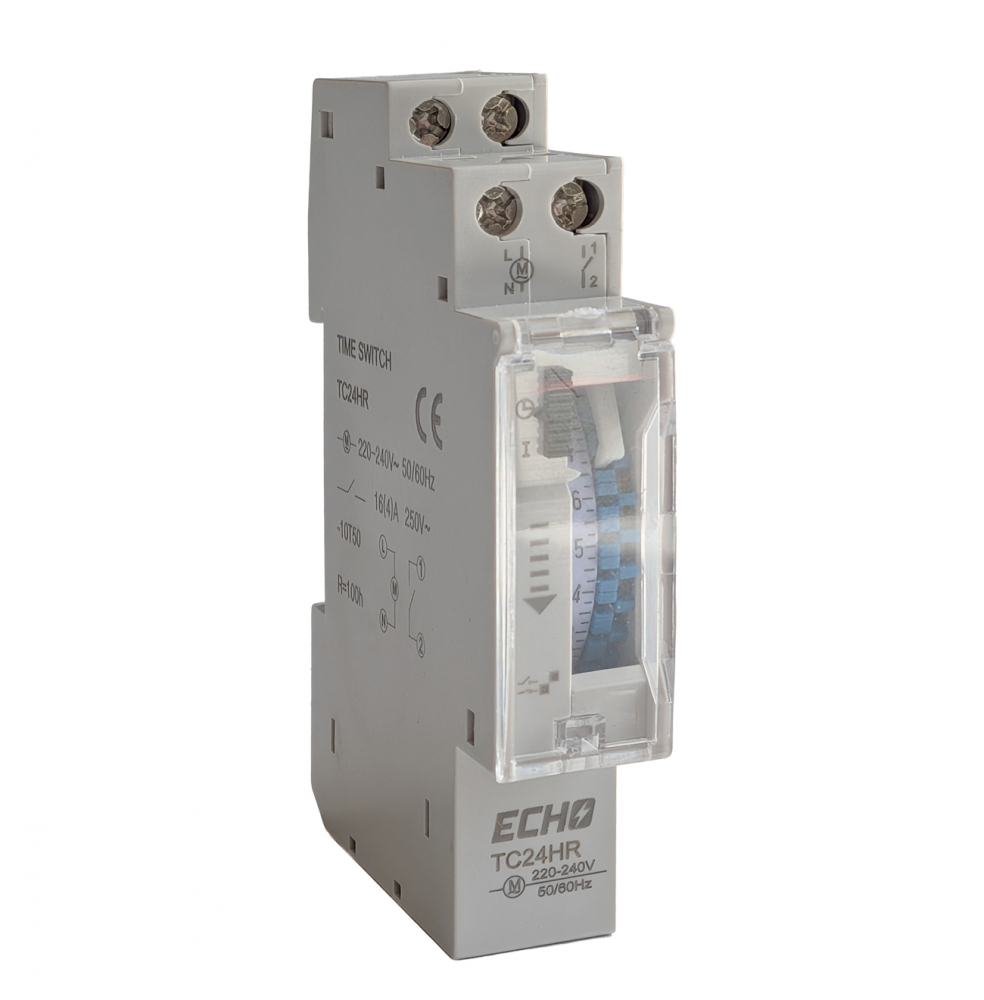

24 Hour DIN Rail Time Clock
The 24 Hour DIN Rail Time Clock from Deligo provides simple daily control of electrical installations using a 24-hour programme. The TC24HR uses a 96-pin daily dial with a minimum switching interval of 15 minutes.
Designed for switchboard installation, the timer occupies 1 DIN module and mounts on a standard 35mm DIN rail. A quartz movement provides accurate timekeeping, while the built-in power reserve maintains operation for up to 100 hours if the supply is interrupted.
Key Features
- Brand: Deligo
- Product code: TC24HR
- Product type: 24 hour time clock
- Daily 24-hour programme
- 96-pin dial
- Minimum setting interval: 15 minutes
- Supply: 220-240V AC ±10%, 45/60Hz
- Switching contact: 16(4)A at 250V AC
- Power reserve: 100 hours
- Quartz movement
- Manual ON / Automatic selector
- 1 DIN module
- IP20 protection
15 Minute Daily Programming
The 96-pin dial allows ON periods to be set in 15-minute increments across a 24-hour cycle. The front selector provides manual ON or automatic timed operation.
Technical Specifications
- Auxiliary power supply: 220-240V AC ±10%, 45/60Hz
- Switching contact: 16(4)A, 250V AC
- Burden: 0.5W
- Precision: ±3 seconds/day at 22°C
- Back-up time: 100 hours
- Dial: Daily, 96 pins
- Minimum setting interval: 15 minutes
- Working temperature: -10°C to +50°C
- Storage temperature: -25°C to +70°C
- Terminal capacity: 2 x 2.5mm²
- Protection degree: IP20
- Protection class: II under correct assembly conditions
- Standards: IEC 669-1 / EN 60730
Installation
The TC24HR should be installed by a qualified electrician in a suitable switchboard enclosure. Avoid positioning the timer close to strong inductive loads such as motors, transformers or contactors where electrical interference could affect operation.
