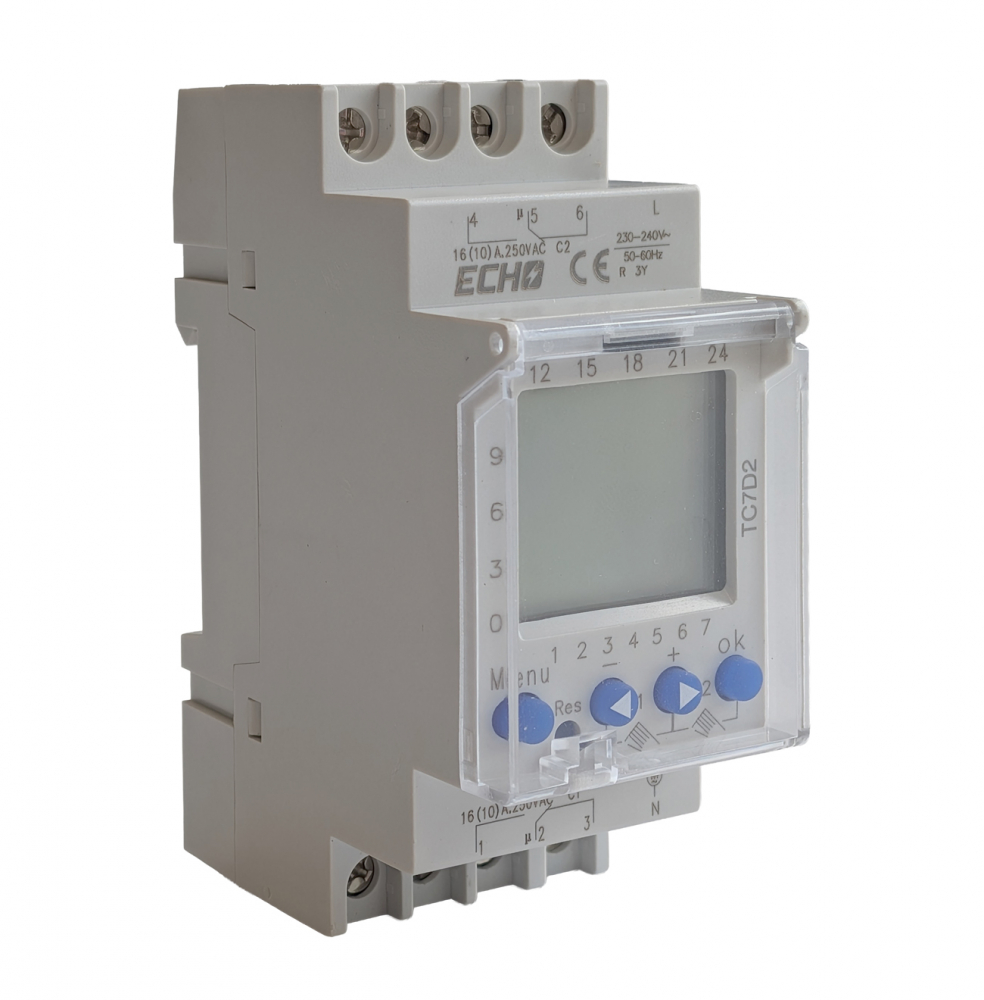

2 Channel 7 Day Time Clock
The 2 Channel 7 Day Time Clock from Deligo is a programmable digital timer designed for automated control of lighting, machinery, ventilation and other electrical systems.
The Deligo TC7D2 provides two independently controlled channels, flexible weekly programming and a clear LCD text display. It supports standard switching schedules as well as pulse, cycle, random and holiday programmes.
Key Features
- Brand: Deligo
- Product code: TC7D2
- Product type: 2 channel 7 day digital time clock
- Rated voltage: 230-240V AC
- Frequency: 50-60Hz
- 2 independently controlled channels
- Output: 2 x 16A (10A inductive) at 250V AC
- Shortest switching time: 1 minute
- LCD display with text line
- Power reserve: approximately 4 years
- Quartz timing base
- Pulse, cycle, random and holiday programmes
- 4-digit PIN code protection
- IP20 protection
Flexible Weekly Programming
The TC7D2 allows different switching times to be programmed across the week. Day groups can be created where the same schedule is required on several days, helping simplify programming.
Two Independent Channels

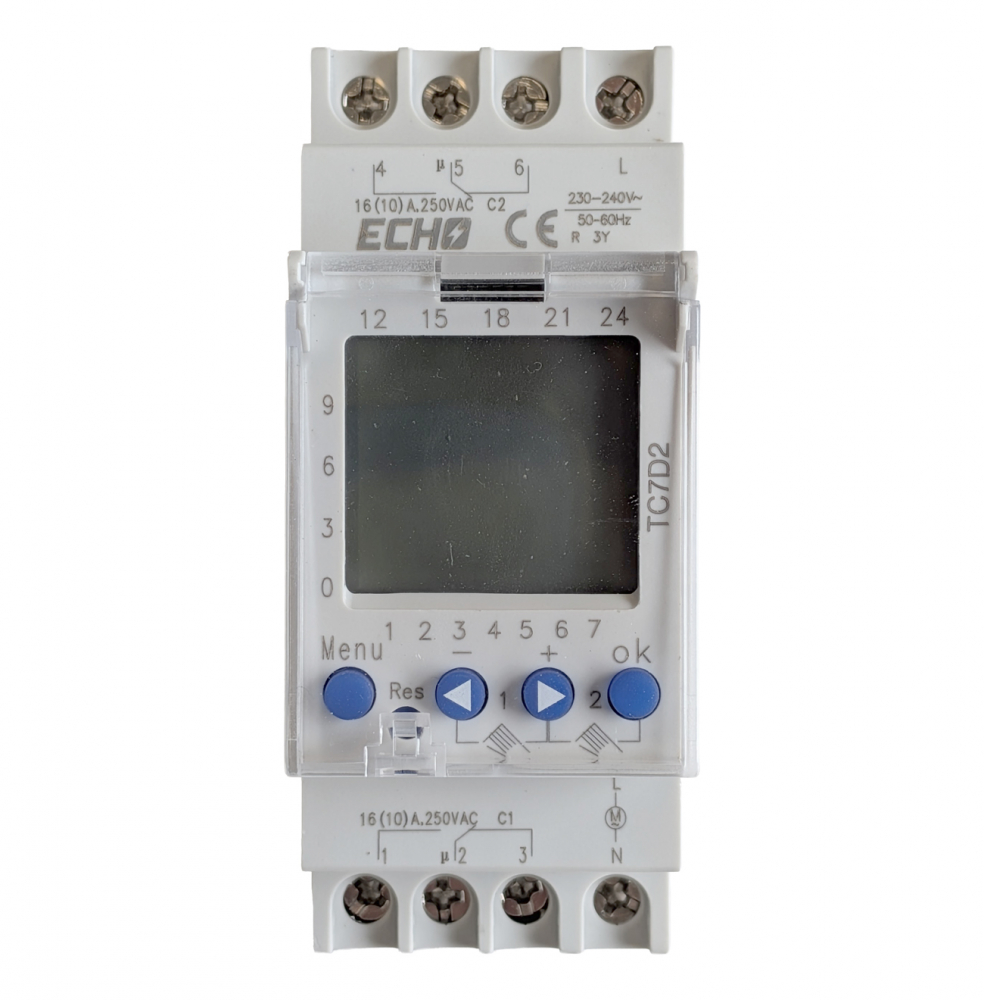

Two channels allow separate loads or circuits to be controlled from the same timer. Channel status is shown on the LCD display for easy checking of C1 and C2.
Technical Specifications
- Rated voltage: 230-240V AC
- Frequency: 50-60Hz
- Output: 2 x 16A at 250V AC, cosφ=1
- Inductive switching: 2 x 10A at 250V AC, cosφ=0.6
- Minimum load: 100mA at 24V AC/DC
- Shortest switching time: 1 minute
- Own consumption: Maximum 7.5VA
- Display: LCD with text line
- Power reserve: Approximately 4 years
- Operating controls: 4 touch keys and 1 reset key
- Incandescent lamp load: 2300W
- Halogen lamp load: 2300W
- Timing base: Quartz
- Working precision: ≤±1 second/day at 20°C
- Operating temperature: -10°C to +50°C
- Weight: Approximately 140g
- Protection degree: IP20
- Standard: IEC/EN 60730-2-7
Pulse, Cycle, Random and Holiday Functions
Pulse programmes can be set from 1 to 59 seconds. Cycle mode provides recurring ON and pause periods, while random mode varies switching within programmed periods. Holiday mode prevents the connected load from switching during a defined date range.
Battery Backup and Security
An internal lithium battery provides approximately 4 years of power reserve. A 4-digit PIN code can also be used to prevent unauthorised changes.
Installation
Installation and electrical connection must be carried out by a suitably qualified electrician in accordance with applicable regulations and safety requirements.
