Welcome to the 6mm Armoured Cables Guide from Electrical4Less, the UK’s trusted electrical trade counter and online wholesaler.
This guide explains everything you need to know about 6mm armoured cables — their construction, standards, installation uses, and the difference between PVC and LSZH types.
For quick access to our current range, visit our 6mm Armoured Cable collection.
⚙️ Why 6mm Armoured Cables Are So Popular
Electricians across the UK rely on 6mm armoured cables for single-phase circuits, garages, outbuildings, and outdoor installations.
This cable size offers the perfect balance between current capacity, flexibility, and strength — ideal for both domestic and industrial projects.
In this 6mm Armoured Cables Guide, we’ll cover:
- Construction and technical details
- The difference between PVC and LSZH SWA cables
- Typical applications and installation methods
- Recommended accessories
- Delivery times and ordering information
Construction and Technical Details – 6mm Armoured Cables Guide

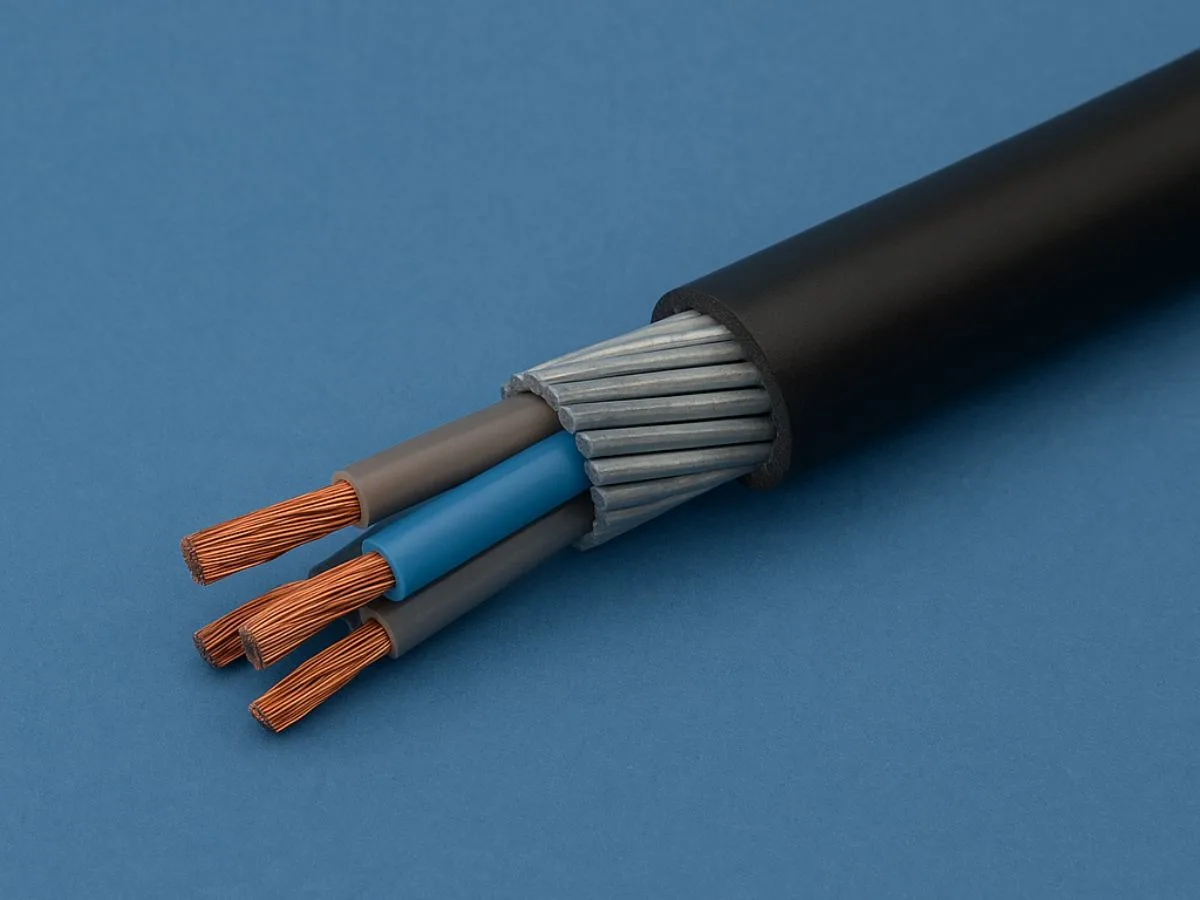

Each 6mm SWA armoured cable is manufactured for safe power distribution and long service life:
- Conductor: Plain annealed copper, Class 2 stranded (BS EN 60228)
- Insulation: Cross-linked polyethylene (XLPE Type GP8)
- Armour: Galvanised steel wire armour (SWA)
- Sheath Options: PVC (BS 5467) or LSZH (Low Smoke Zero Halogen, BS 6724)
These cables can be installed clipped direct, laid on tray, buried underground, or embedded in concrete.
For full technical data, see the Doncaster Cables H6943XL6.0 LSNH specification confirming an operating range from −15 °C to +90 °C and a bending radius of 8 × diameter.
PVC vs LSZH Armoured Cables
| Feature | PVC SWA Cable | LSZH SWA Cable |
|---|---|---|
| Standard | BS 5467 | BS 6724 |
| Outer Sheath | PVC Type 9 | LSZH Type LTS1 |
| Fire Behaviour | Emits smoke & acid gas | Low smoke, minimal acid gas |
| Best For | Outdoor, buried installations | Indoor, public, or enclosed areas |
PVC is ideal for outdoor and underground work, while LSZH is chosen where smoke and toxic gas reduction is important.
⚡ Common Applications – 6mm Armoured Cables Guide
- Single-phase mains distribution
- Garage, workshop, or shed feeds
- Outdoor lighting and garden power
- Industrial and commercial wiring
- Direct burial or ducted underground runs
Accessories and Fixings
For professional results, use the right accessories with your 6mm armoured cables:
- Armoured Cable Glands – BW glands (indoor) and CW glands (outdoor/waterproof).
- SWA Cable Clips – heavy-duty clips for secure fixing on walls or joists.
- Cable Fixings for SWA Cables – cleats, saddles, and trays for neat installations.
View all accessories in our Armoured Cables category.
Fast UK Delivery
At Electrical4Less, we know time matters.
All 6mm armoured cable orders placed before 3 PM (Mon–Fri) are dispatched the same day (in stock items)
Orders after that time leave the next working day.
If a product isn’t in stock at our Fulham trade counter, it’s shipped direct from Doncaster Cables, usually arriving within 1–2 working days, depending on location and order time.
Explore Our 6mm Armoured Cable Range
- 3 Core 6mm Armoured Cable – 100 m Drum
- 3 Core 6mm Armoured Cable – Cut Per Metre
- All 6mm Armoured Cables
Every cable is BASEC-approved and made by trusted UK brands.
Frequently Asked Questions (FAQ)
Visit Us in Fulham
Electrical4Less – Fulham Electrical Trade Counter
9 Seagrave Road, Fulham, London SW6 1RP
Open Mon–Fri 8 AM – 5 PM
Call us or order online for click-and-collect or fast UK delivery.
Conclusion – 6mm Armoured Cables Guide
This 6mm Armoured Cables Guide gives UK electricians a complete overview of one of the most widely used cable sizes for single-phase power installations.
Whether you choose PVC for outdoor runs or LSZH for low-smoke areas, all cables from Electrical4Less meet British Standards and are backed by same-day dispatch and fast delivery.
Visit our 6mm Armoured Cable hub to view the full range.
