Description

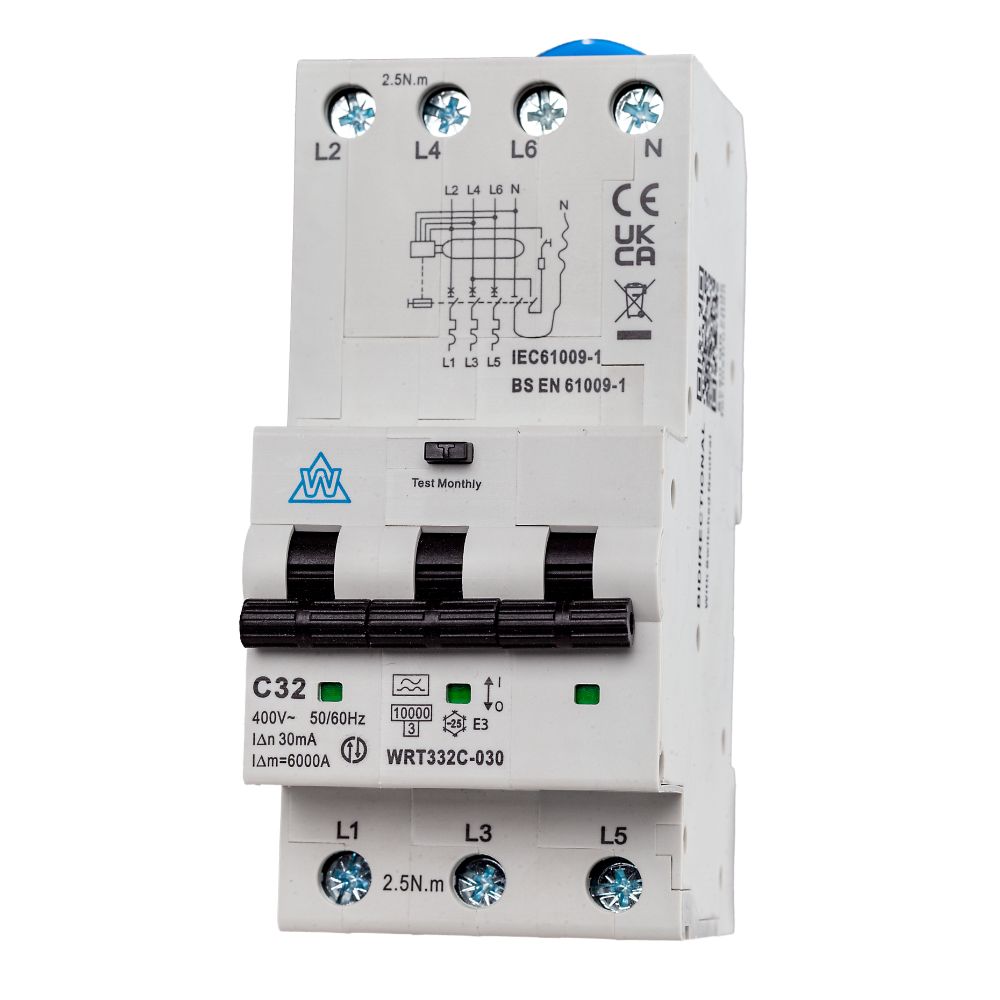

Whitecliffe WRT332C-030 32A C Curve 3 Pole A-Type RCBO
Bi-Directional 3 Pole – 3 Phase RCBO
The WCED Whitecliffe WRT332C-030 3 Pole Bi-Directional RCBO is a high-performance 32A C curve A-Type device designed for modern three-phase electrical systems. It combines MCB overcurrent protection with residual current protection, safeguarding against overloads, short circuits, and earth leakage faults.
With bi-directional operation, this RCBO is ideal for installations with reverse or variable power flow, including renewable energy systems and EV charging infrastructure. It detects AC and pulsating DC residual currents, making it suitable for advanced electrical loads such as HVAC systems, machinery, and commercial distribution boards.
Key Features
- 3 Pole Bi-Directional RCBO: Suitable for reverse and variable power flow applications
- 32A C Curve: Ideal for circuits with moderate inrush currents
- A-Type Protection: Detects AC and pulsating DC residual currents
- Switched Neutral: Full disconnection of L1, L2, L3 and neutral
- 3 Module Design: Compact footprint for efficient installations
- Advanced Detection: Reliable performance with modern electrical loads
Applications
- Three-phase photovoltaic (PV) systems
- EV charging installations
- Industrial variable speed drives
- Commercial distribution boards
- HVAC and machinery circuits
Technical Specifications
- SKU: WRT332C-030
- Rated Current: 32A
- Tripping Curve: C Curve
- Poles: 3 Pole + Switched Neutral
- 10kA Fault Current
- Type: A-Type RCBO
- Operation: Bi-Directional
- Module Width: 3 Module
- Dimensions (W x H x D): 53.4 x 116 x 76 mm
The switched neutral ensures full isolation of all live conductors, improving safety during maintenance and testing. Clear IN, OUT and LOAD markings support correct installation.
The WCED Whitecliffe WRT332C-030 3 Pole Bi-Directional RCBO is a reliable and future-ready solution for electricians working with complex three-phase systems.
