Wiska ESVG 32 VentGLAND Polyamide Pressure Compensation Cable Gland – Grey

SKU: 10100801

Delivery usually within 3-4 working days*

Check stock
Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.
Category: Supplier:

Description

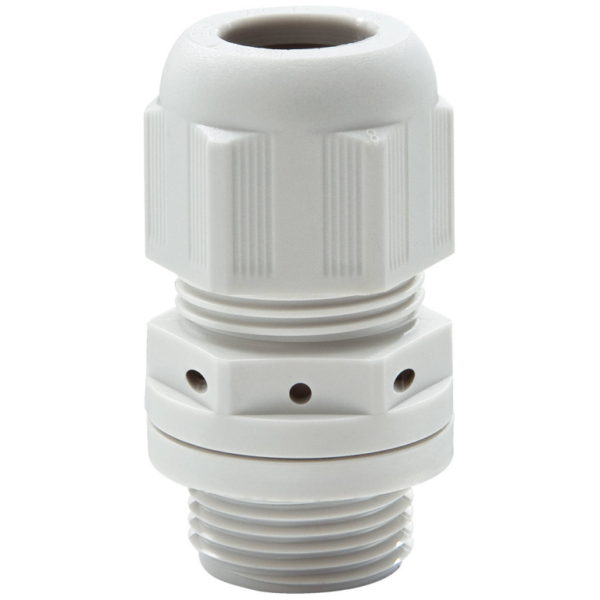

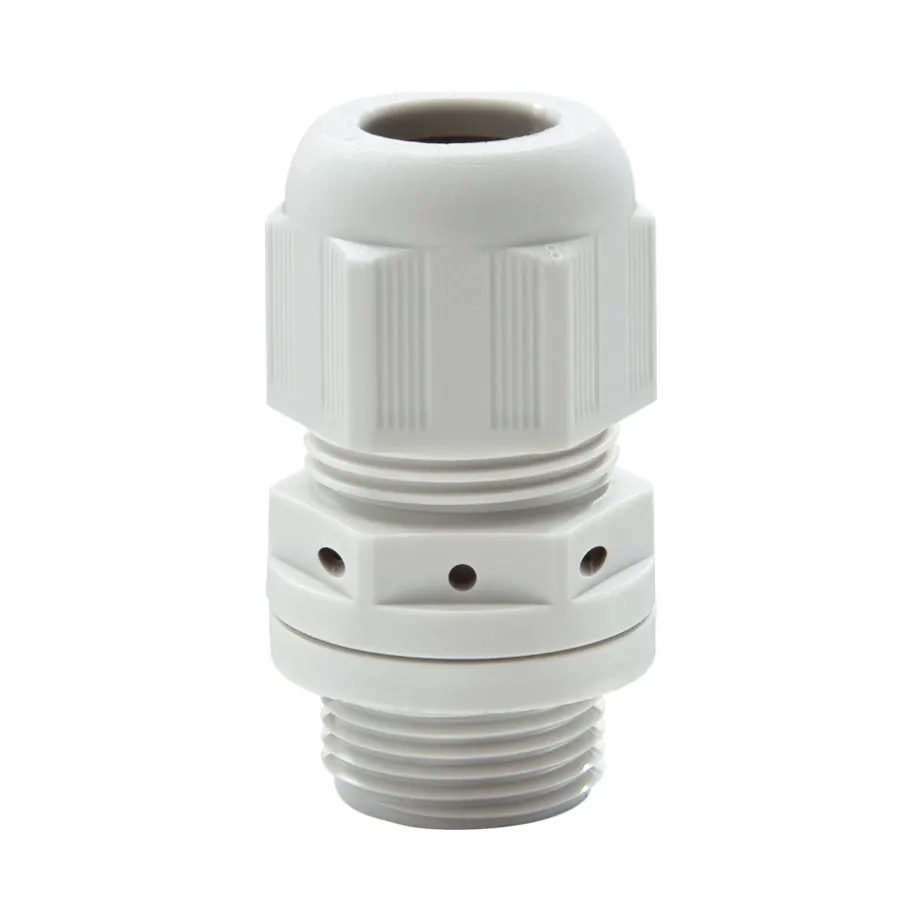

Wiska ESVG 32 VentGLAND Polyamide Pressure Compensation Cable Gland – Grey

Being a pioneer in the development of breathable cable glands, WISKA today is an expert for breathable components avoiding condensation.

With the launch of the VentGLAND® in 2007, the world’s first cable gland with pressure equalisation, WISKA set new benchmarks. VentGLAND® cable glands are nowadays being used around the world, especially in sectors that are moisture and temperature sensitive such as shipping, and the lighting and solar industries.

The VentGLAND® combines pressure equalisation and cable gland in a single unit and features high air flow rates as well as high water protection capacity.

The breathable VentGLAND® cable glands are a part of the tried and tested modular SPRINT system. The VentGLAND® can easily be used to replace standard cable glands due to its identical clamping ranges and compatibility with all cap nuts and ranges of multiple and special sealing inserts. The product portfolio is rounded off with VentGLAND® cable glands with EMC-inserts for protection against electromagnetic interference.

  • Effective pressure equalisation
  • Protection against condensation
  • Protection against contaminants
  • High operational safety
  • Increased profitability
  • Ideal for roughest conditions
Material cable gland Polyamide
Material membrane ePTFE
Material sealing gasket EPDM
Airflow at 70mbar 115 LH
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Protection class IP68 / IP69

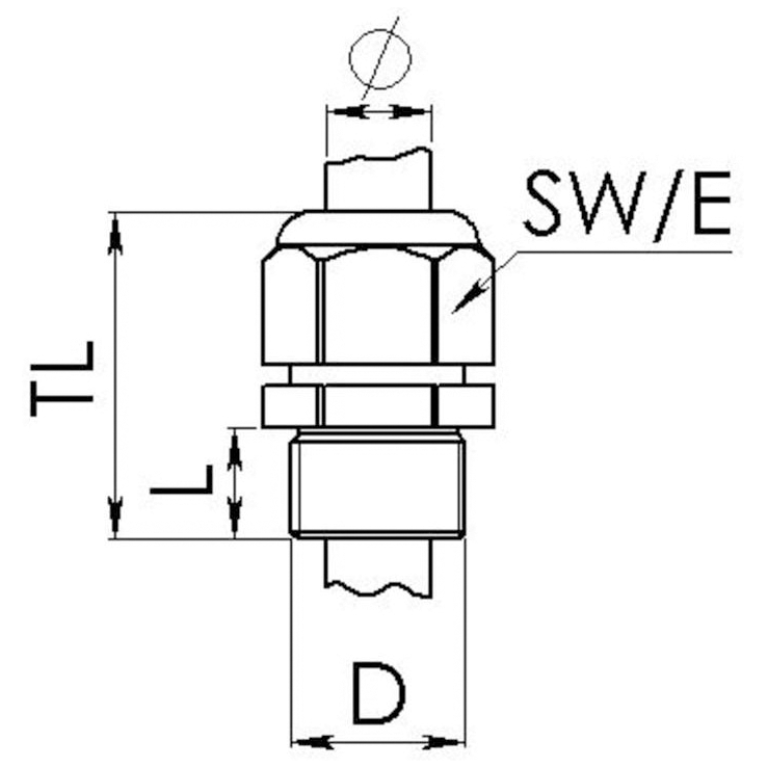

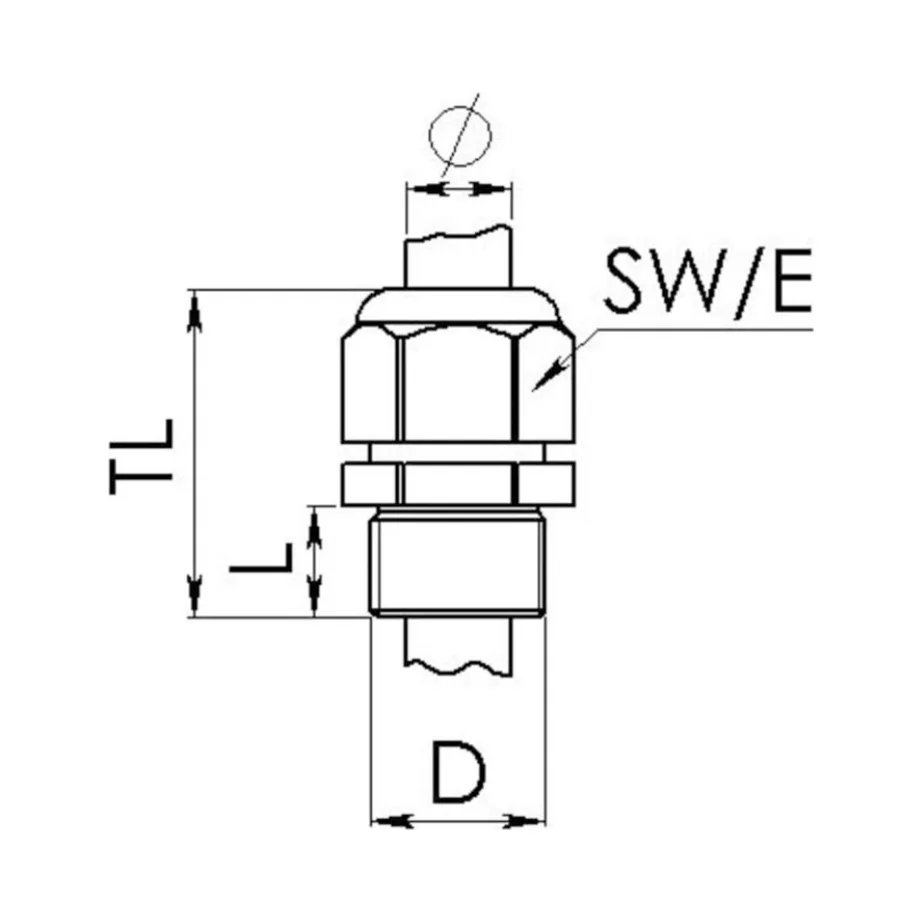

Thread type M
Ø Connection thread D 32
Lead 1.5
Length screw-in thread L 12 mm
Ø cable diameter min 13 mm
Ø cable diameter max 32 mm
Key width SW 36 mm
Collar diameter (E) 40 mm
Install. torques fitting 4 N/m
Install. torques cap nut 4 N/m
Total length TL 49 mm – 58 mm
Equipment Incl. connection thread gasket
Product Color RAL 7035

Additional information

Bad attribute Product

Gland

Bad attribute Type

threaded

Pack Quantity

1

Ingress Protection

IP68

Gland Material

Polyamide

Gland Colour

Grey

Gland Size

M32 mm

Length

49 | 58 mm

Standards

ROHS
