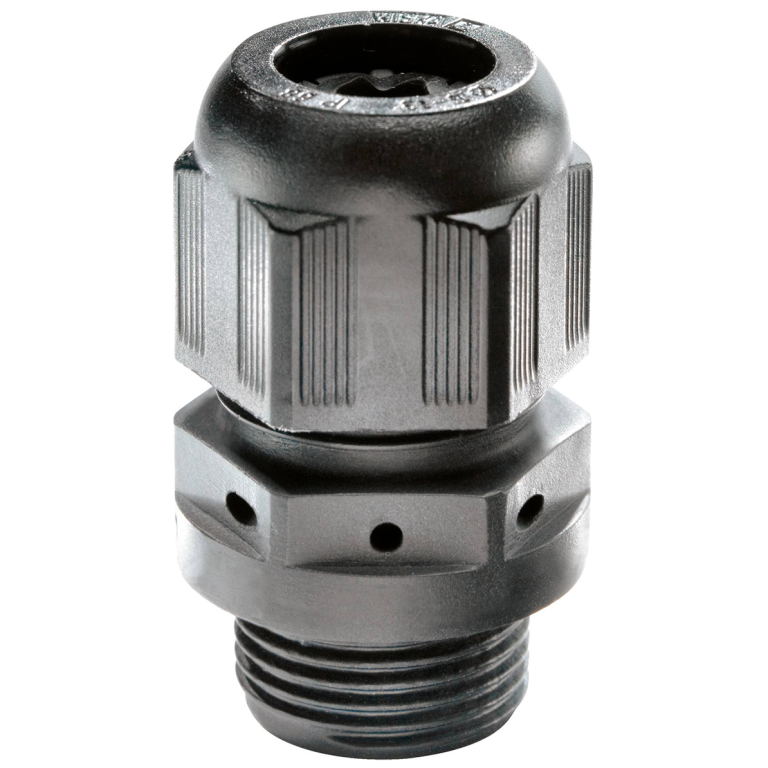

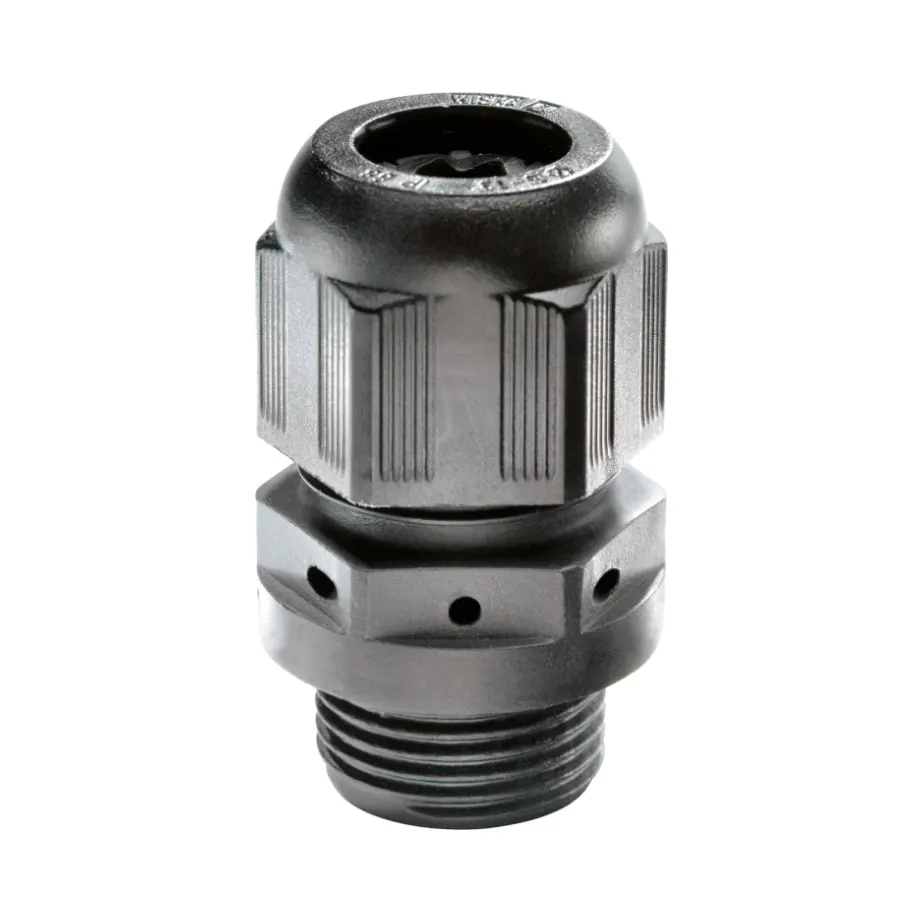

Wiska ESVG 16 VentGLAND Polyamide Pressure Compensation Cable Gland – Black

SKU: 10104413

Delivery usually within 3-4 working days*

Check stock
Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.
Category: Supplier:


Wiska ESVG 16 VentGLAND Polyamide Pressure Compensation Cable Gland – Black

Being a pioneer in the development of breathable cable glands, WISKA today is an expert for breathable components avoiding condensation.

With the launch of the VentGLAND® in 2007, the world’s first cable gland with pressure equalisation, WISKA set new benchmarks. VentGLAND® cable glands are nowadays being used around the world, especially in sectors that are moisture and temperature sensitive such as shipping, and the lighting and solar industries.

The VentGLAND® combines pressure equalisation and cable gland in a single unit and features high air flow rates as well as high water protection capacity.

The breathable VentGLAND® cable glands are a part of the tried and tested modular SPRINT system. The VentGLAND® can easily be used to replace standard cable glands due to its identical clamping ranges and compatibility with all cap nuts and ranges of multiple and special sealing inserts. The product portfolio is rounded off with VentGLAND® cable glands with EMC-inserts for protection against electromagnetic interference.

  • Effective pressure equalisation
  • Protection against condensation
  • Protection against contaminants
  • High operational safety
  • Increased profitability
  • Ideal for roughest conditions
Material cable gland Polyamide
Material membrane ePTFE
Material sealing gasket EPDM
Airflow at 70mbar 52 LH
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Protection class IP68 / IP69

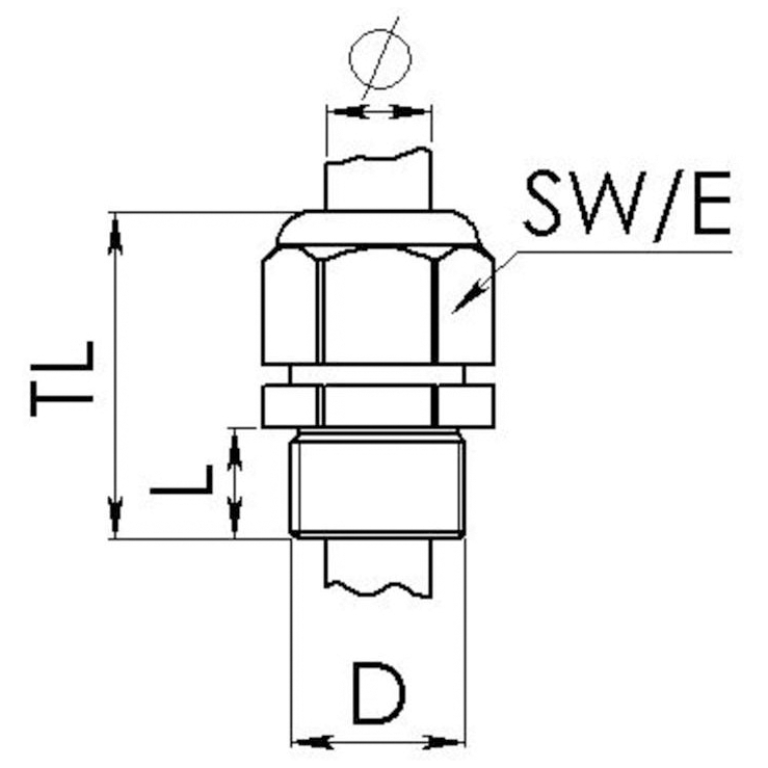

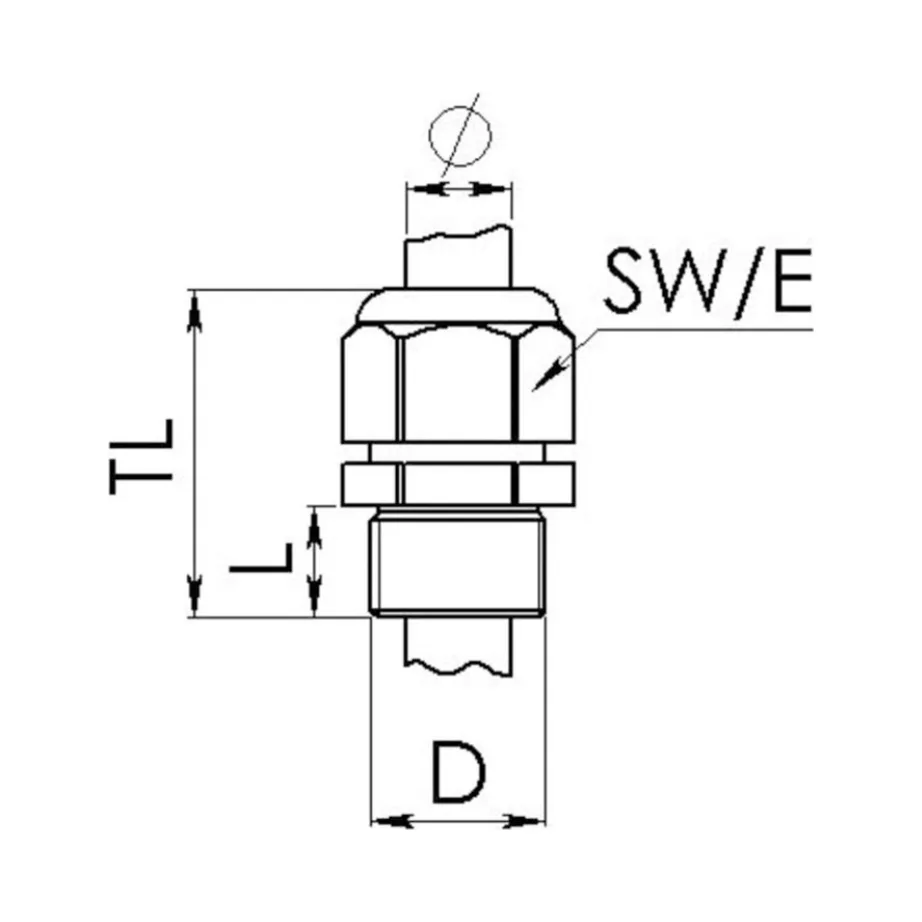

Thread type M
Ø Connection thread D 16
Lead 1.5
Length screw-in thread L 9 mm
Ø cable diameter min 4.5 mm
Ø cable diameter max 10 mm
Key width SW 20 mm
Collar diameter (E) 22 mm
Install. torques fitting 2 N/m
Install. torques cap nut 1.5 N/m
Total length TL 37 mm – 43 mm
Equipment Incl. connection thread gasket
Product Color RAL 9005

Additional information

Bad attribute Product


Bad attribute Type


Pack Quantity


Ingress Protection


Gland Material


Gland Colour


Gland Size

M16 mm


37 | 42 mm
