Description

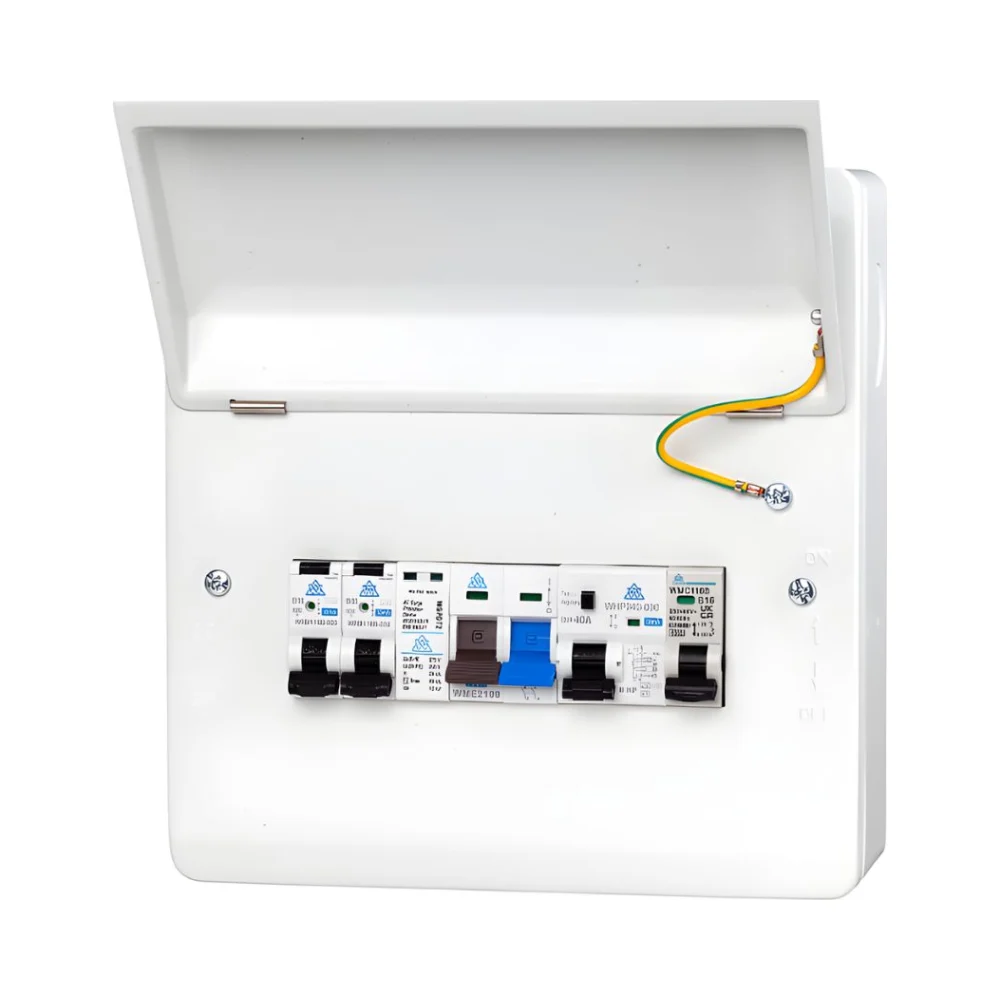

Heat Pump Consumer Unit
WCED WME08/HPRC40C
The WCED WME08/HPRC40C Heat Pump Consumer Unit is a dedicated circuit protection solution designed for modern inverter-driven heat pump installations. Supplied in a robust metal 8-module enclosure, this unit provides comprehensive protection in a single, installer-ready assembly suitable for residential and light commercial renewable energy systems.
The consumer unit is factory configured with Type 2 surge protection (SPD), a 40A Type B HP RCD, a 40A Type C MCB, and 2 × 16A RCBOs, delivering protection against overcurrent, residual current, smooth DC fault currents, and transient overvoltage events. The inclusion of a Type B HP RCD ensures reliable operation with high-frequency and DC residual currents commonly generated by inverter-driven heat pumps.
Manufacturer Statement – WCED
According to WCED Whitecliffe, the Type B HP RCD fitted within this WCED WME08/HPRC40C Heat Pump Consumer Unit meets the requirements specified by Vaillant for use on applicable heat pump installations. This supports compliant installation where Vaillant guidance calls for this level of residual current protection.
Installers should always refer to the specific heat pump manufacturer’s installation instructions to confirm protection requirements for each model.
Key Features – WCED WME08/HPRC40C Heat Pump Consumer Unit
- Dedicated heat pump consumer unit
- 40A Type B HP RCD for smooth DC and high-frequency fault protection
- 40A Type C MCB
- 2 × 16A RCBOs for individual circuit protection
- Integrated Type 2 surge protection (SPD)
- Metal 8-module enclosure for durability and compliance
- Suitable for inverter-driven heat pump systems
Technical Data – WCED WME08/HPRC40C Heat Pump Consumer Unit
- Part Code: WME08/HPRC40C
- Enclosure: Metal, 8 module
- Protection Configuration:
- 40A Type B HP RCD
- 40A Type C MCB
- 2 × 16A RCBOs
- Type 2 SPD
- Dimensions: 232 × 240 × 112 mm
- Application: Heat pump and renewable energy circuits
Custom Build Options
Custom build variants are available.
If an alternative configuration is required, contact us and we will liaise directly with WCED’s Technical Department to specify a consumer unit tailored to your installation requirements.
