Garage Metal SPD Consumer Unit with 2 RCBOs – WCED 3 Way 6A & 16A Bi-Directional Kit
WCED WME06/SP/G/616

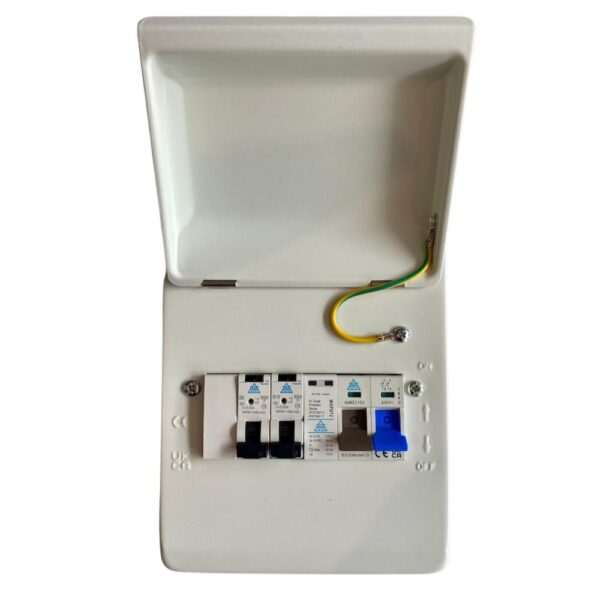

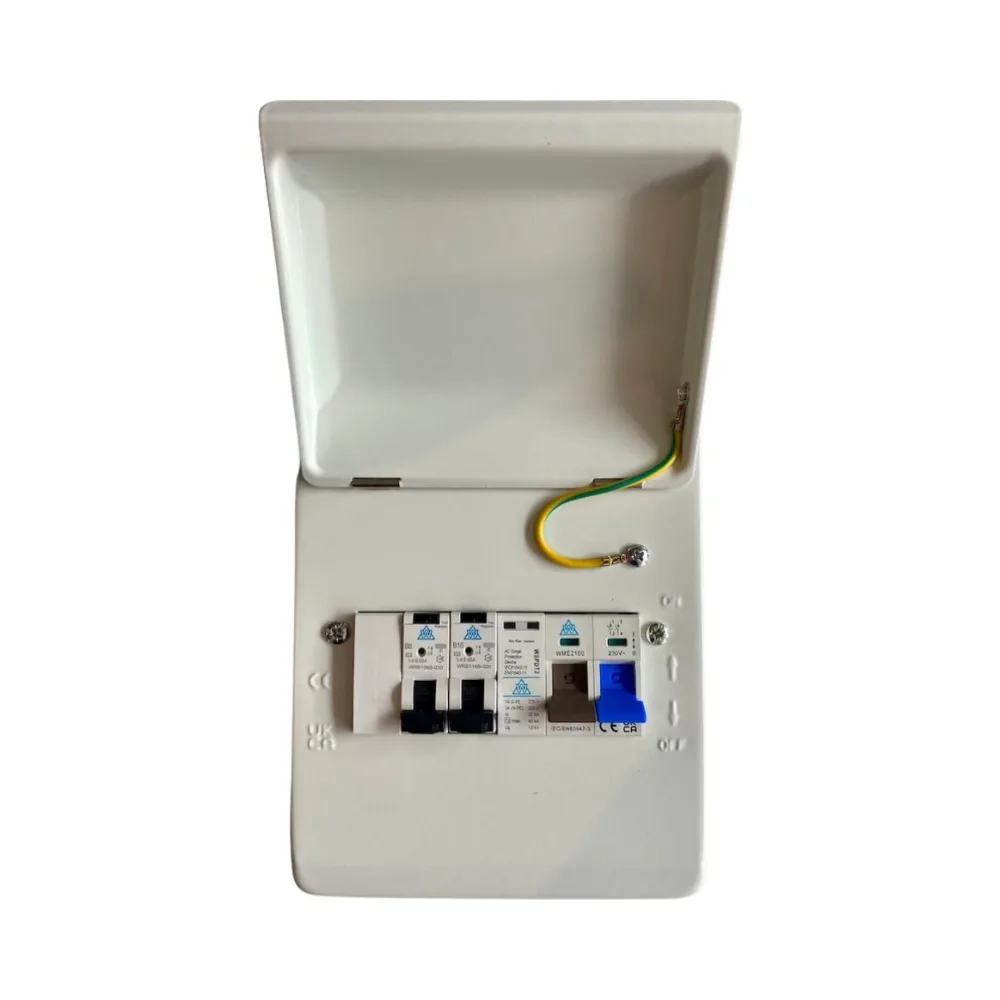

The Garage Metal SPD Consumer Unit with 2 RCBOs is a compact WCED consumer unit supplied with integrated surge protection, a 100A main switch and two Type A Curve B bi-directional RCBOs rated at 6A and 16A. It is designed for garages, outbuildings and smaller installations requiring separate protected circuits.
The WCED WME06/SP/G/616 provides 3 usable ways within a 6-module metal enclosure. Multiple cable entry options are provided, including circular knockouts at the top and bottom, 40mm entries at the sides and rear, plus larger rear cable slots. A meter tails cable gland is also included.
Included RCBO Configuration
- 1 × B6A Type A Bi-Directional RCBO
- 1 × B16A Type A Bi-Directional RCBO
Please note: This Garage Metal SPD Consumer Unit with 2 RCBOs is supplied with the fixed RCBO configuration shown above.
What’s Included

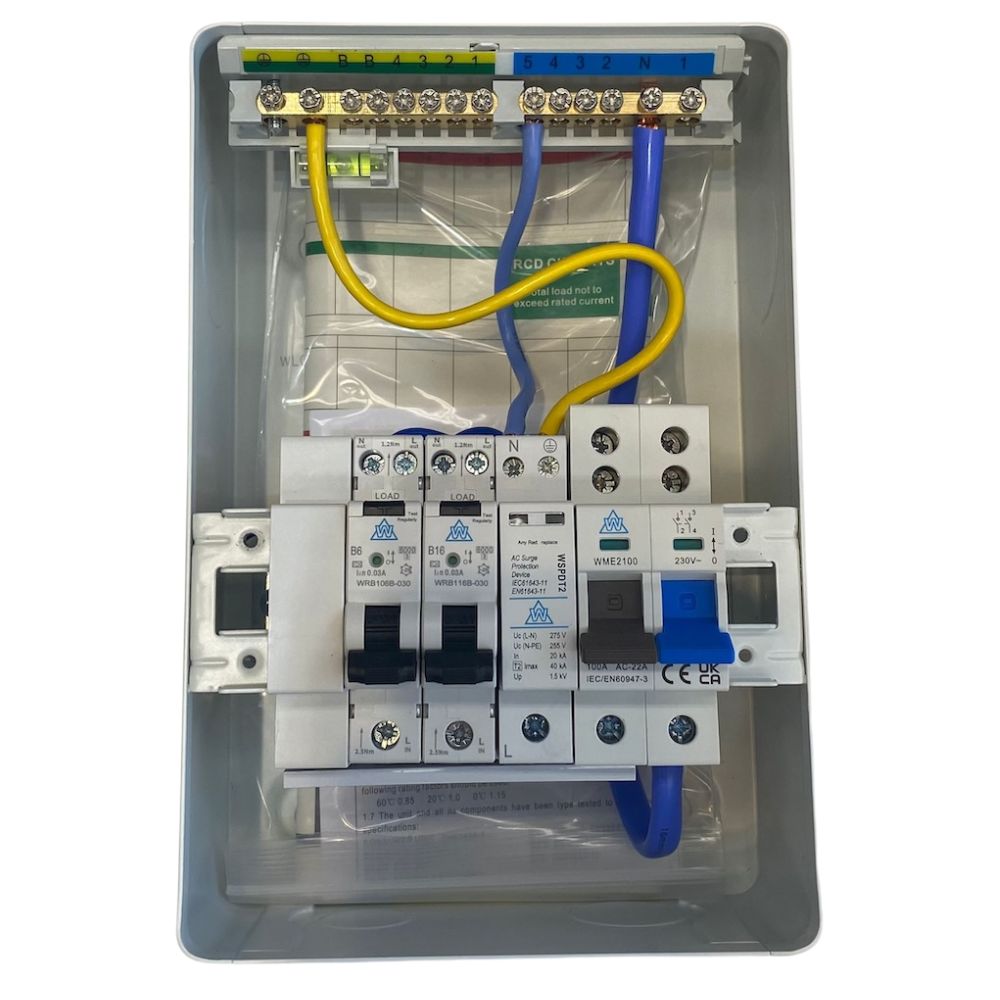

- WCED WME06/SP/G/616 Metal Consumer Unit
6-module enclosure with 3 usable ways. - 100A Main Switch
Provides incoming isolation for the consumer unit. - 2 × Type A Curve B Bi-Directional RCBOs
Supplied as 1 × 6A and 1 × 16A. - Integrated Surge Protection
Helps protect connected circuits and equipment against transient overvoltages. - Meter Tails Cable Gland Included
Supplied with a meter tails cable gland for neat and secure incoming cable entry.
Key Features
- 3 usable ways within a compact 6-module enclosure
- Fixed RCBO configuration: 1×6A and 1×16A
- Type A Curve B bi-directional RCBOs
- 100A main switch
- Integrated surge protection
- Durable metal enclosure
- Multiple circular cable entry knockouts on top and bottom
- 40mm cable entries on the sides and rear
- Larger rear cable entry slots
- Meter tails cable gland included
Technical Specifications
- Model: WME06/SP/G/616
- Brand: WCED
- Total modules: 6
- Usable ways: 3
- Main switch: 100A
- RCBO quantity: 2
- RCBO ratings: 6A and 16A
- RCBO type: Type A, Curve B, bi-directional
- Surge protection: Integrated SPD
- Meter tails cable gland: Included
- Dimensions: 130mm (W) × 240mm (H) × 112mm (D)
Ideal Applications
- Garages
- Outbuildings
- Workshops
- Extensions and smaller installations
- Installations requiring separate lighting and lower-current power circuits
Why Choose This Garage Metal SPD Consumer Unit with 2 RCBOs?
The Garage Metal SPD Consumer Unit with 2 RCBOs combines a compact WCED metal enclosure, integrated surge protection and two Type A Curve B bi-directional RCBOs in one practical package. The included 6A and 16A RCBOs provide a convenient fixed configuration for smaller installations.
