WCED WRB140C-030 WCED Type A High Immunity Curve C 40A 30mA RCBO 1
WCED WRB140C-030 WCED Type A High Immunity Curve C 40A 30mA RCBO 2
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

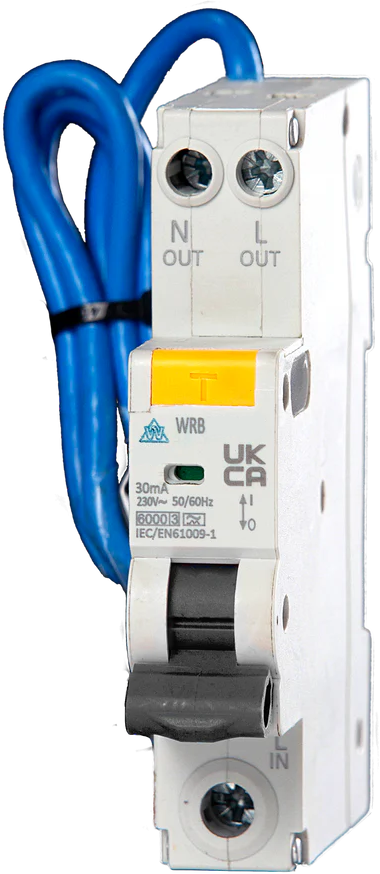

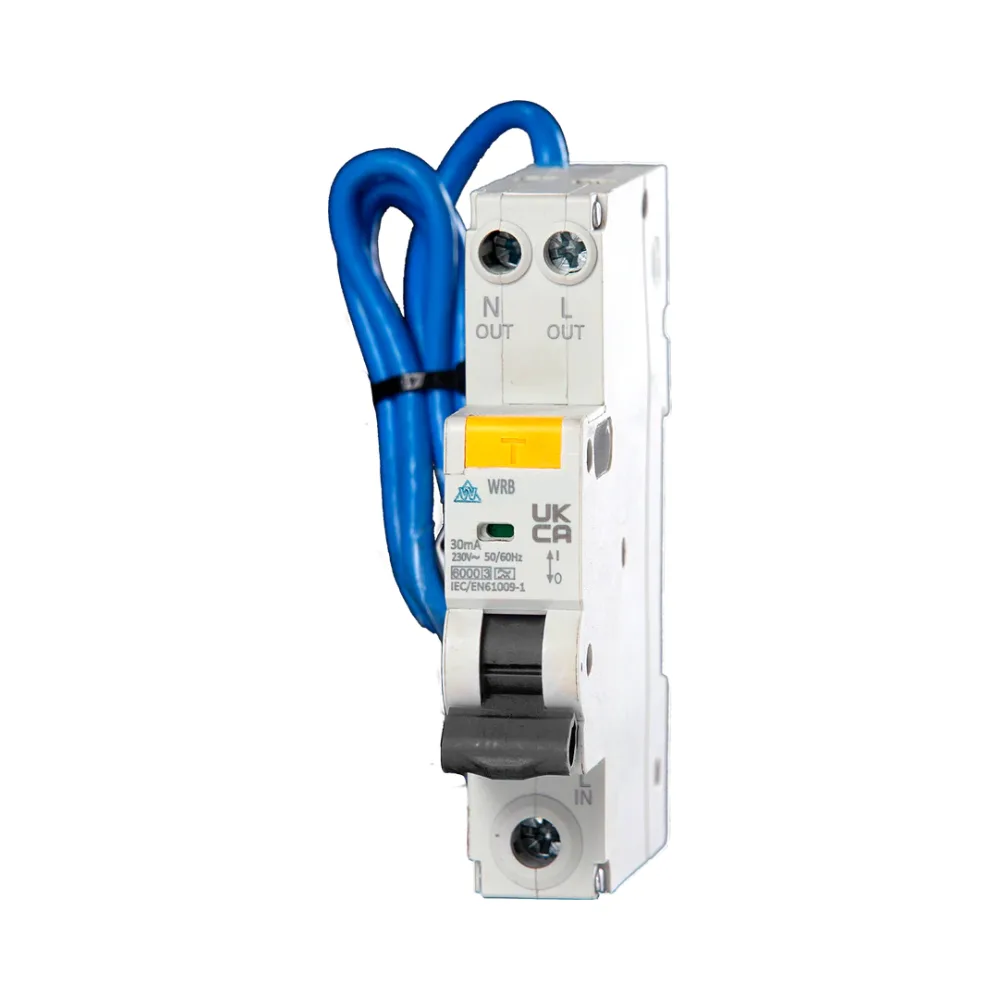

WCED Type A High Immunity Curve C 40A 30mA RCBO

SKU: WRB140C-030
18 In stock
More available within 1-3 working days*
Confirm Availability

Detects & respond as for type AC, PLUS pulsating DC components

Switched Live and Neutral

Live and neutral conductors do not have to be disconnected for insulation resistance testing

Compact Size

Ensure the safety of your circuits with the WCED Type A High Immunity Curve C 40A 30mA RCBO. Purchase today for reliable, comprehensive protection that meets the highest standards.

£9.99 + VAT

(incl. VAT £11.99)


5-£9.49£0.50£9.99
10-£8.99£1.00£9.99
Add to quote

— OR —

Go to the related products
Categories: , , Tag: WCED Brand:

Recommended for You

25mm² Flexible Meter Tails Pack - 1m

25mm² Flexible Meter Tails Pack - 1m

SKU: E4L25TP1
£13.29
25mm² Flexible Meter Tails Pack – 2m

25mm² Flexible Meter Tails Pack – 2m

SKU: E4L25TP2
£22.29
25mm² Flexible Meter Tails Pack - 3m

25mm² Flexible Meter Tails Pack - 3m

SKU: E4L25TP3
£29.95
Big Wipes 2420 - Textured, Scrub & Clean Wipes

Big Wipes 2420 8020 - Heavy-Duty Textured, Scrub & Clean Wipes

SKU: 2420 8020
£9.69
TRACER ALNP2 Long Nib Marker

TRACER ALNP2 Long Nib Marker (Twin Pack)

SKU: ALNP2
£8.33
FuseBox G32T Fusebox G32T 32mm Tail Gland 1

Fusebox G32T 32mm Tail Gland

SKU: G32T
£2.99
FuseBox AREG FuseBox AREG Rear Entry Push-In Cable Gland

FuseBox AREG Rear Entry Push-In Cable Gland

SKU: AREG
£2.95
Live Electrical LCBD 100A Double Pole Connector Block 1

100A Double Pole Connector Block

SKU: LCBD
£6.99
Olympic Fixings 083-198-005 Olympic Fixings Steel Mudguard Washers Hanging Pack - M6 18 mm Diameter - 10 Pcs

Olympic Fixings M6 18mm Steel Washers - Pack of 10

SKU: 083-198-005
£1.95
Fischer 555006 Fischer DuoPower Universal Plug 555006 - 6x30mm - Pack of 100 1

Fischer DuoPower Universal Plug 535453- 6x30mm - Pack of 100

SKU: 535453
£2.72
Fischer 670398 Fischer PowerFast Chipboard Screws - 5x40mm PZ Drive

Fischer PowerFast Chipboard Screws - 5x40mm PZ Drive, Countersunk Head, Zinc Plated - Pack of 200

SKU: 670398
£4.77
Olympic Fixings 080-170-015 Olympic Fixings 140x3.6mm Black Cable Ties - Pack of 100

Olympic Fixings 140x3.6mm Black Cable Ties - Pack of 100

SKU: 080-170-015
£0.95
Orbix OBX-COMBI-TUB1 Orbix OBX-COMBI-TUB1 with Red Wall Plugs and Screws

Orbix OBX-COMBI-TUB1 with Red Wall Plugs and Screws

SKU: OBX-COMBI-TUB1
£8.23
Hager KF81A Connection Terminal 1P Prong 1x25mm² - Pack of 1

Hager KF81A Connection Terminal 1P Prong 1x25mm² - Pack of 1

SKU: KF81A
£6.45
Hager KF81A Connection Terminal 1P Prong 1x25mm² - Pack of 1

Hager KF82A Connection Terminal 1P Prong 2 Cable 16mm² - Pack of 1

SKU: KF82A
£9.56

Description

WCED Type A High Immunity Curve C 40A 30mA RCBO

Advanced Protection for Domestic and Commercial Applications

The WCED Type A High Immunity Curve C 40A 30mA RCBO from the WRB Range offers comprehensive protection by combining residual current and overcurrent protection in a single device. Ideal for both domestic and commercial applications, this RCBO ensures that your electrical circuits are safeguarded against faults, while maintaining service to healthy circuits.

Key Features:

  • Type A RCD Protection: Detects and responds to both AC and pulsating DC components, offering superior protection compared to standard RCBOs.
  • Switched Live and Neutral: The RCBO isolates faulty circuits by disconnecting both live and neutral conductors, ensuring complete safety during faults.
  • Comprehensive Circuit Protection: Guarantees that only the faulty circuit is switched off, avoiding unnecessary disruptions and enhancing safety.
  • Standard Compliance: Meets IEC61009-1 and EN61009-1 standards, ensuring reliable performance and compliance with international safety regulations.
  • Thermo-Magnetic Release Characteristic: Features a C curve, providing precise protection for circuits with moderate inrush currents.

Electrical Specifications:

  • Rated Current (In): 40A, suitable for protecting medium to high
  • Type: Electronic, offering advanced and reliable protection.
  • Rated Voltage (Ue): 230V, compatible with standard residential and commercial electrical systems.
  • Rated Sensitivity (I∆n): 30mA, providing effective earth fault protection.
  • Rated Breaking Capacity: 6kA, ensuring safe interruption of high fault currents.
  • Rated Residual Making and Breaking Capacity (I∆m): 3000A, ensuring reliability during fault conditions.
  • Impulse Withstand Voltage (Uimp): 4000V, protecting against transient overvoltages.
  • Break Time under I∆n: ≤0.1 seconds, offering rapid response to faults.
  • Dielectric Test Voltage: 2kV, confirming insulation strength and durability.

Mechanical Features:

  • Electrical Life: 2,000 operations, ensuring long-term reliability.
  • Mechanical Life: 10,000 operations, designed for durability and repeated use.
  • Contact Position Indicator: Yes, provides clear visibility of the switch status.
  • Protection Degree: IP20, offering protection against solid objects larger than 12.5mm.
  • Ambient Temperature Range: -5°C to +40°C, suitable for various environmental conditions.
  • Storage Temperature Range: -25°C to +70°C, ensuring safe storage in diverse conditions.
  • Mounting: Fits on a standard DIN rail EN 60715 (35mm) for easy installation.
  • Connection Type: Supports cable, U-type busbar, and pin-type busbar connections for flexible installation.

Benefits:

  • Enhanced Safety: Fully isolates faulty circuits by switching off both live and neutral conductors, reducing the risk of electric shock.
  • Time and Cost Efficiency: No need to disconnect live and neutral conductors for insulation resistance testing, saving time and money.
  • Reliable Performance: With a high breaking capacity and robust construction, this RCBO ensures long-lasting protection for your electrical systems.

Why Choose WCED Type A High Immunity Curve C 40A 30mA RCBO?

The WCED Type A RCBO provides unmatched protection and reliability for both residential and commercial applications. Its ability to detect and respond to both AC and pulsating DC currents, along with its switched live and neutral feature, makes it a top choice for ensuring the safety of your electrical installations.

Additional information

Curve

C
RCBO / RCD Type

Type A
RCD Trip Current Rating (mA)

30mA
Fault Current

6kA
Product

RCBO
Features

Compact Size
No of Poles

1P + Switched Neutral
Current Rating (A)

40
