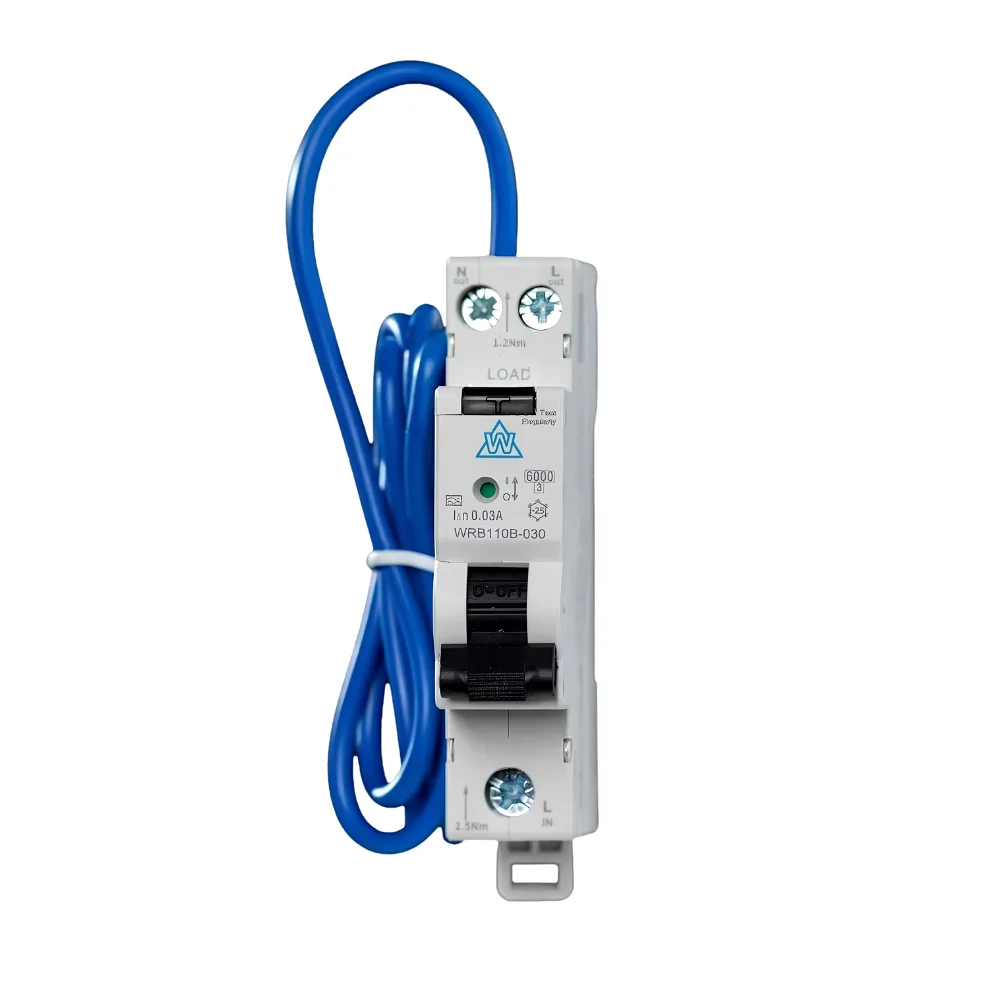

WCED WRB132C-030 Bi-Directional RCBO
The WCED WRB132C-030 Bi-Directional RCBO is a 32A C Curve protective device from the Whitecliffe Electrical WRB1 range. Combining overload, short-circuit and Type A residual current protection, this single-module RCBO provides 30mA earth leakage sensitivity and a 6kA breaking capacity for correctly designed domestic and commercial circuits.
With bi-directional capability and a switched neutral, the WRB132C-030 offers a practical option for modern electrical distribution, including suitable solar PV and electric vehicle charging installations.
Key Features – WCED WRB132C-030 Bi-Directional RCBO
- 32A rated current with C Curve tripping characteristic
- Type A high-immunity residual current detection
- 30mA residual operating sensitivity
- 6kA rated short-circuit breaking capacity
- Bi-directional design for suitable PV and EV applications
- 1P+N configuration with switched live and neutral
- Single-module housing, approximately 18mm wide
- Electronic residual current detection with thermal-magnetic overcurrent protection
- Bi-connect terminals for compatible cable and busbar arrangements
- 35mm DIN rail mounting
- Compliance with IEC 61009-1 and EN 61009-1
32A C Curve Protection for Modern Installations
Rated at 32A, this WCED RCBO is designed to protect circuits where a C Curve tripping characteristic is appropriate. C Curve devices are commonly considered for circuits with moderate starting currents, such as certain equipment and machinery installations, subject to fault-loop impedance and disconnection requirements.
The combination of overcurrent and residual current protection within one device allows individual circuits to be protected independently, helping reduce unnecessary interruption to other circuits when a fault occurs.
Bi-Directional RCBO for Solar PV and EV Circuits
The WCED WRB132C-030 Bi-Directional RCBO belongs to the WRB1 range, which the manufacturer identifies as designed for bi-directional use in PV and EV systems.
Its design enables use in appropriately specified circuits where the direction of power flow may vary. This can be relevant to solar photovoltaic generation and certain EV charging arrangements, provided the connected equipment and installation requirements are compatible.
Installation must follow the manufacturer’s connection instructions and terminal markings. The product datasheet specifies a bottom connection arrangement.
Type A High-Immunity Residual Current Protection
The WRB132C-030 provides Type A residual current protection, detecting sinusoidal AC and pulsating DC residual fault currents. This offers broader residual current detection than Type AC devices and supports its use with a range of modern electrical equipment.
Its 30mA sensitivity provides additional protection against electric shock when correctly installed. The high-immunity classification forms part of the manufacturer’s WRB1 product specification.
Switched Live and Neutral for Easier Circuit Isolation
The 1P+N design incorporates switched live and neutral conductors, allowing both conductors of the protected circuit to be disconnected when the device operates.
This arrangement supports circuit isolation and can help simplify certain inspection and insulation resistance testing procedures, reducing unnecessary disconnection work where the test method permits.

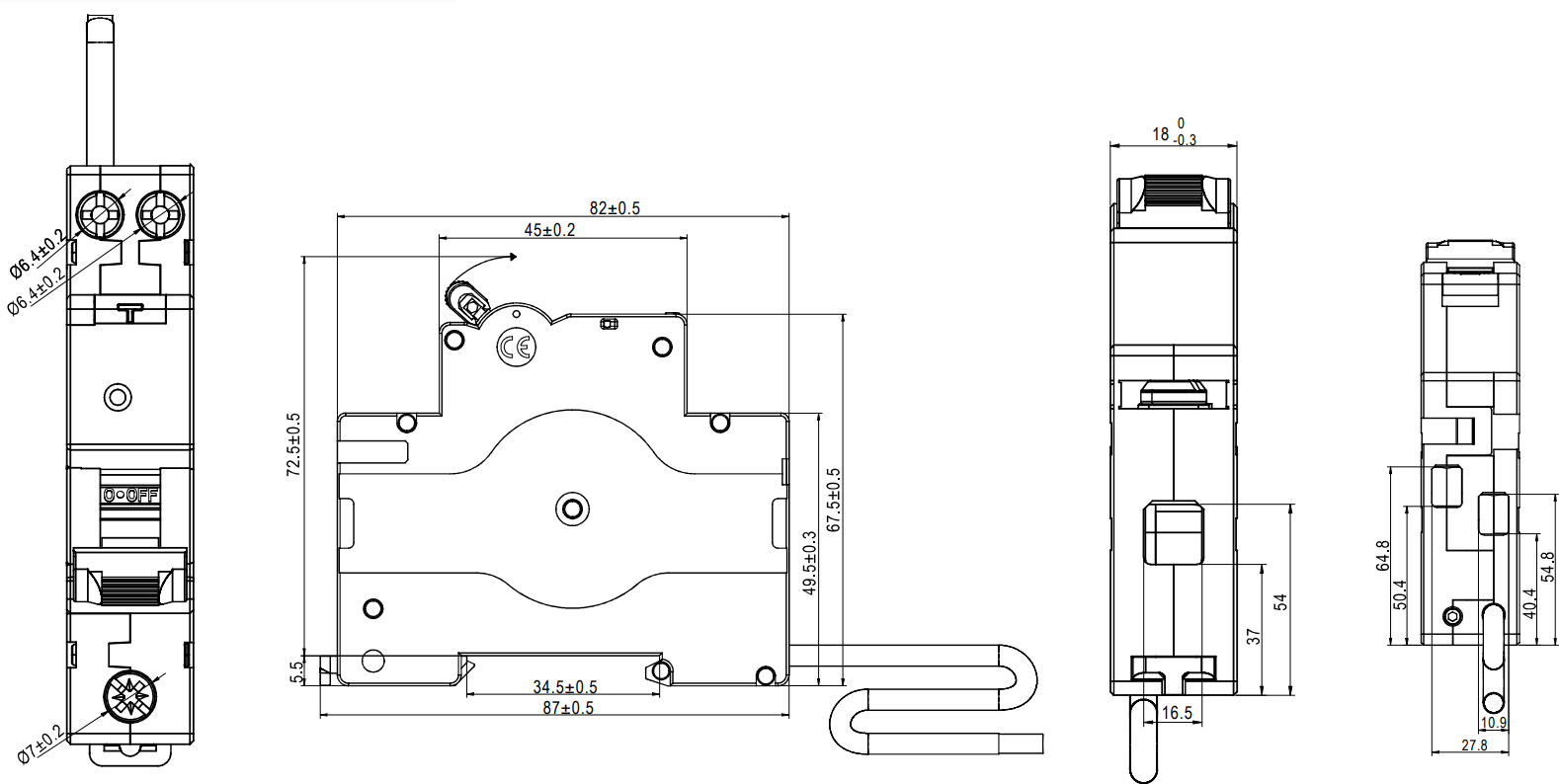

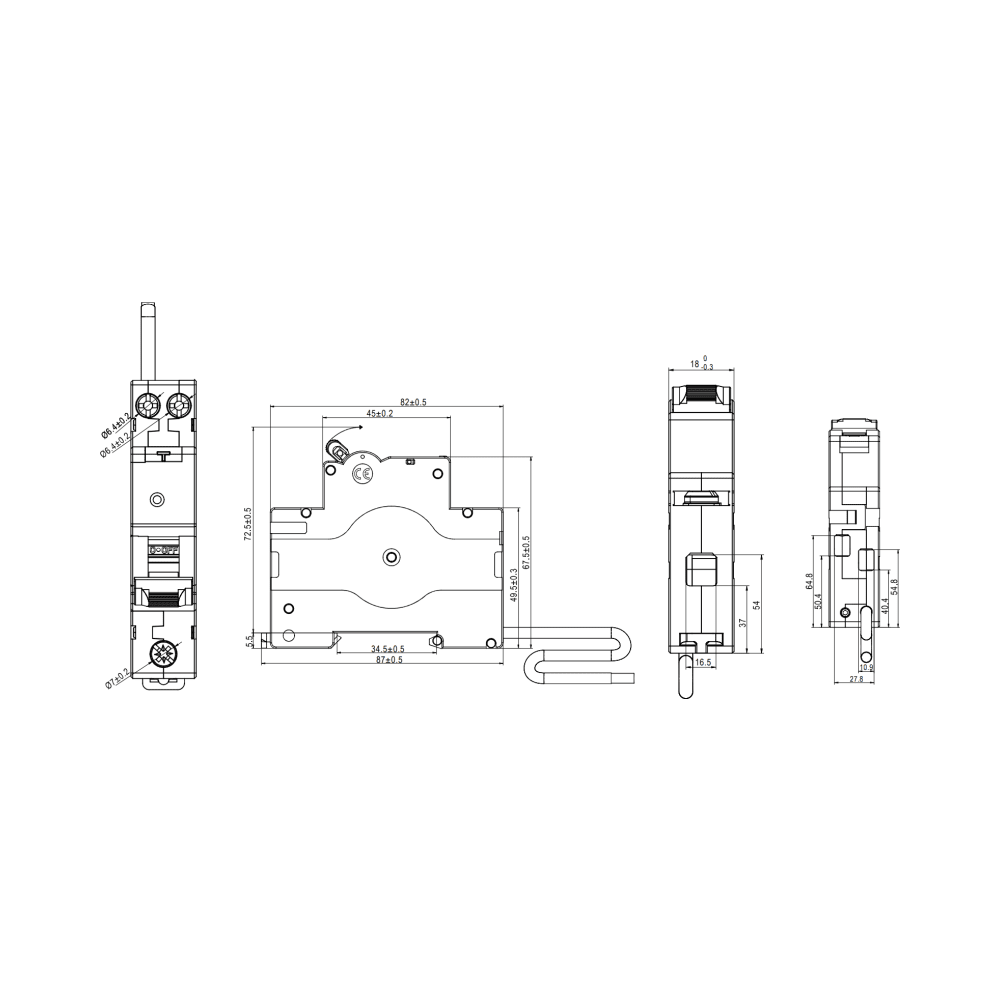

Single-Module Design and Bi-Connect Terminals
The compact RCBO occupies approximately 18mm of DIN rail space, allowing efficient installation in compatible consumer units and distribution boards.
Its bi-connect terminal system supports suitable cable, pin-type and fork/U-type busbar connections. The manufacturer specifies a 2.5Nm tightening torque and installation on a standard 35mm DIN rail.
Technical Specifications – WCED WRB132C-030 Bi-Directional RCBO
- Brand: WCED Whitecliffe Electrical
- Manufacturer Part Number: WRB132C-030
- Product Range: WRB1
- Product Type: Electronic Bi-Directional RCBO
- Rated Current: 32A
- Tripping Characteristic: C Curve
- Residual Current Type: Type A High Immunity
- Rated Residual Operating Current: 30mA
- Rated Breaking Capacity: 6kA
- Poles: 1P+N (Switched Live and Neutral)
- Rated Operational Voltage: 230V AC
- Rated Frequency: 50/60Hz
- Rated Insulation Voltage: 500V
- Rated Residual Making and Breaking Capacity: 3000A
- Rated Impulse Withstand Voltage: 4kV
- Residual Current Break Time at IΔn: ≤0.1 seconds
- Dielectric Test Voltage: 2kV for 1 minute
- Electrical Endurance: 2,000 operations
- Mechanical Endurance: 10,000 operations
- Contact Position Indicator: Yes
- Degree of Protection: IP20
- Operating Temperature Range: -5°C to +40°C
- Storage Temperature Range: -25°C to +70°C
- Reference Temperature: 30°C
- Top Cable Terminal Capacity: 10mm²
- Bottom Cable Terminal Capacity: 16mm²
- Busbar Terminal Capacity: 10mm²
- Terminal Tightening Torque: 2.5Nm
- Mounting: DIN Rail EN 60715 (35mm)
- Manufacturer-Specified Connection: From Bottom
- Applicable Standards: IEC 61009-1 / EN 61009-1
