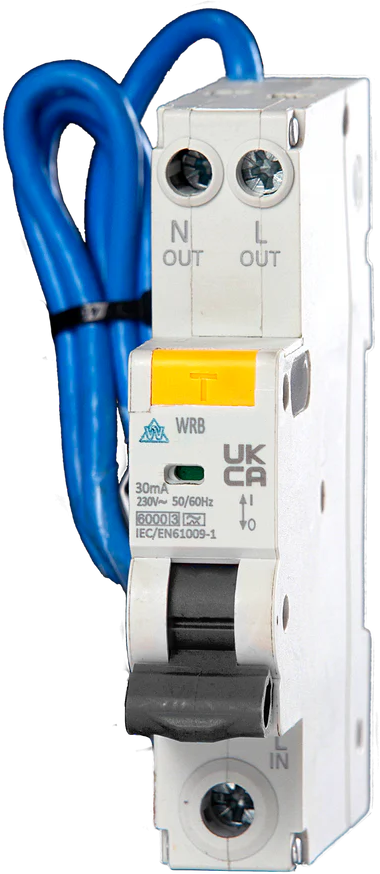

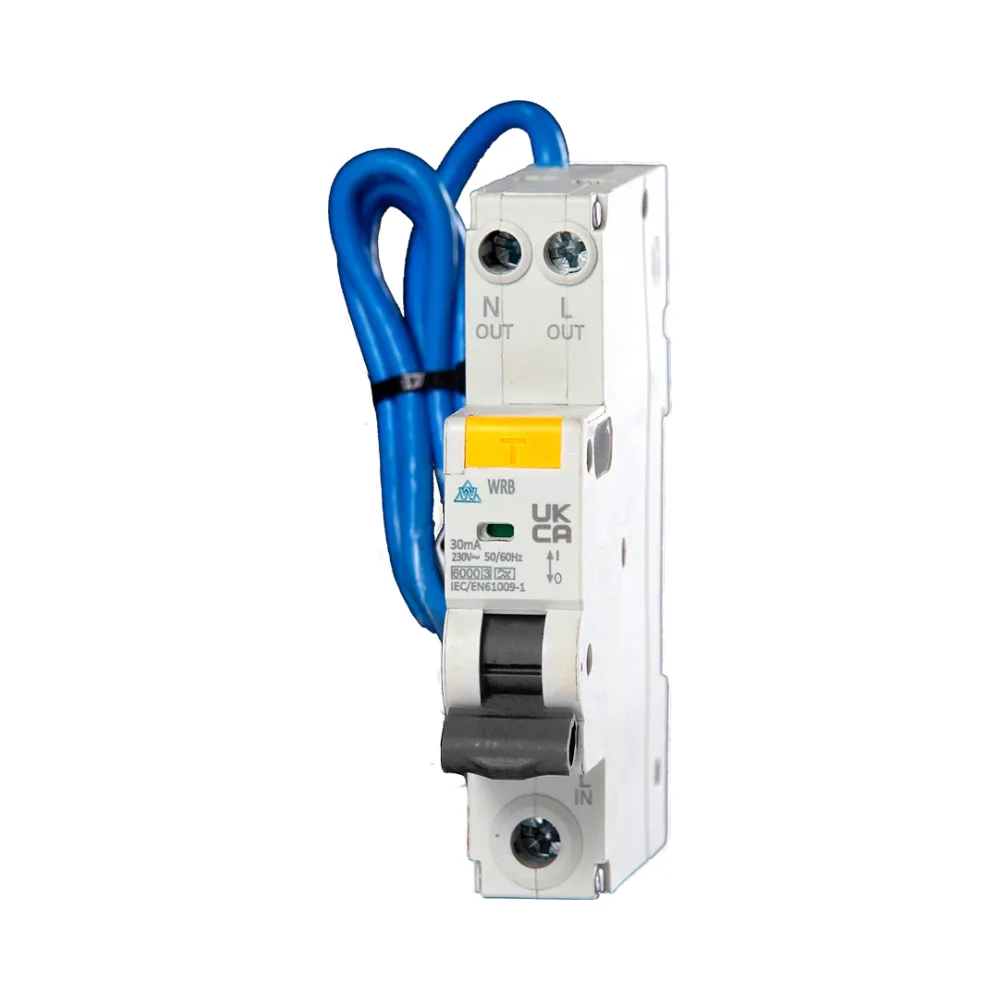

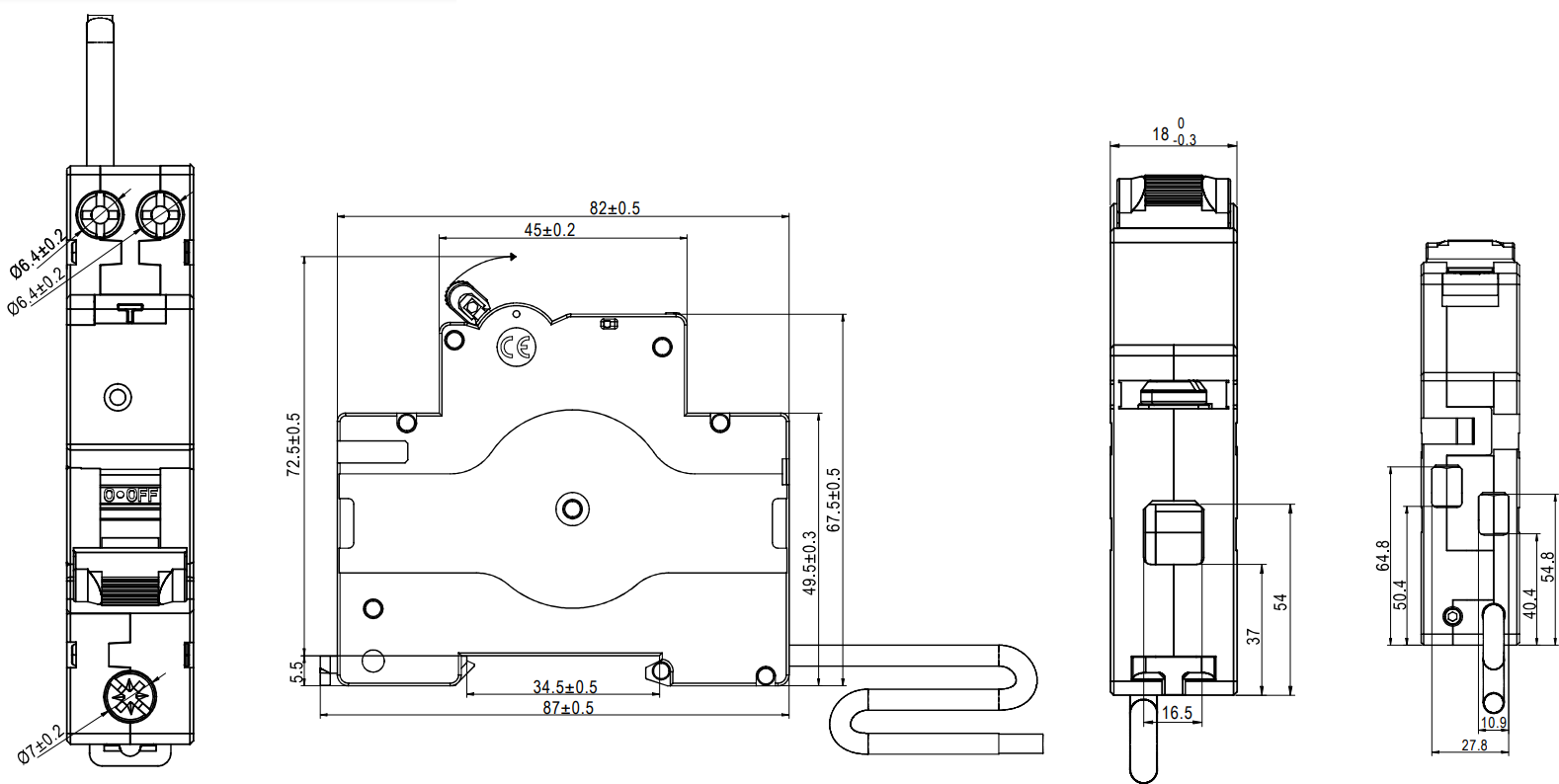

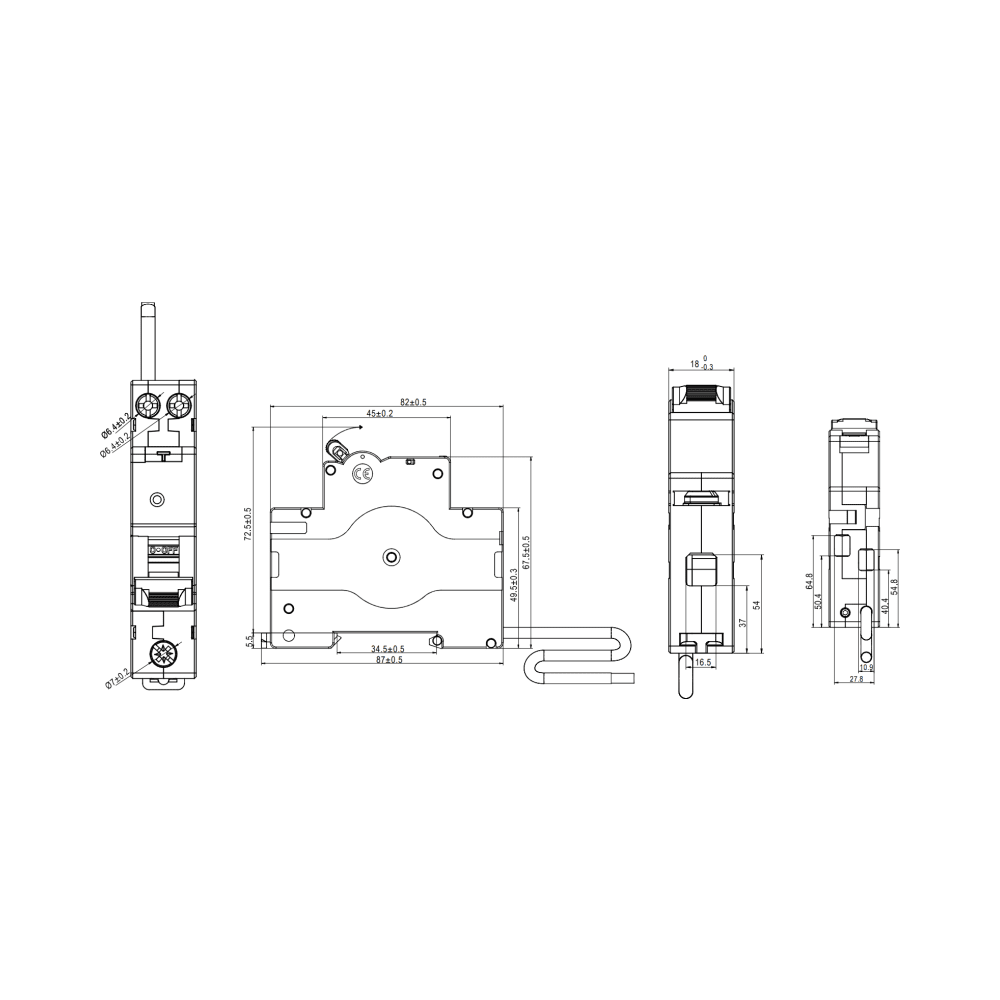

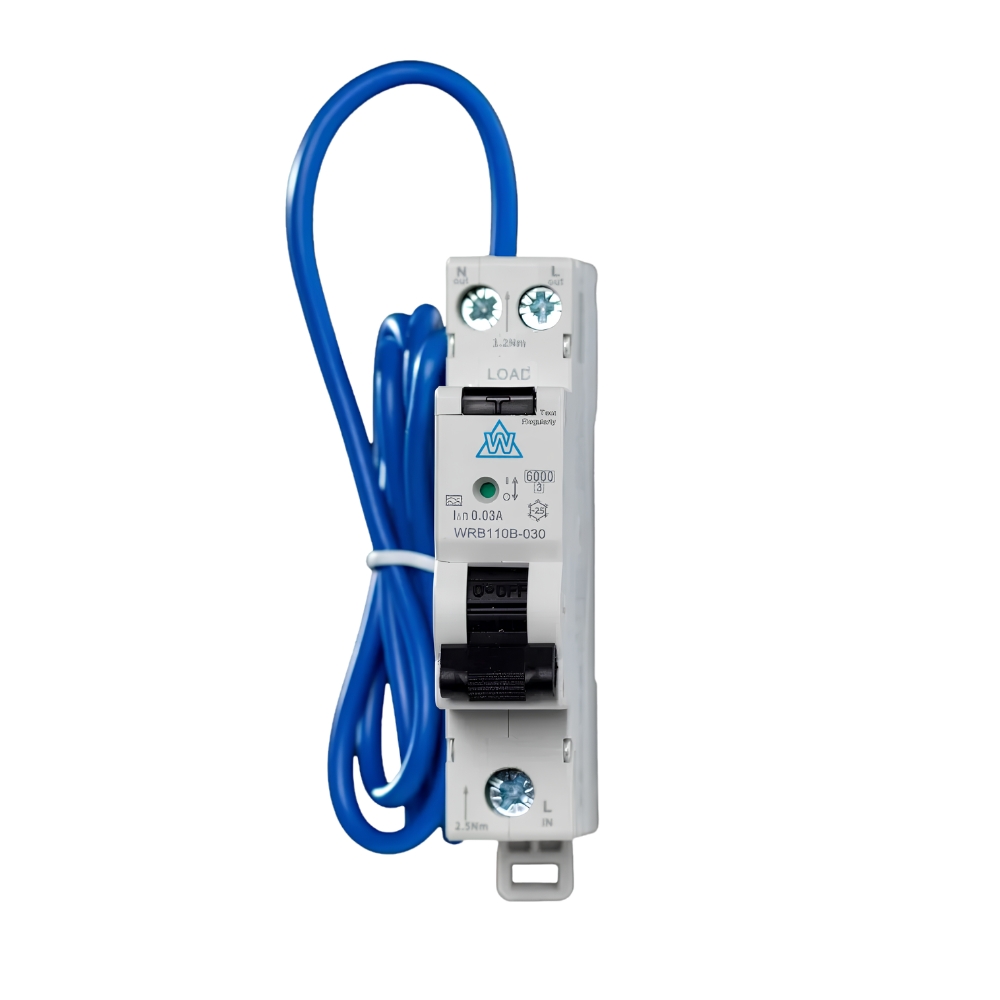

WCED Type A High Immunity Curve C 20A 30mA RCBO
Comprehensive Circuit Protection for Your Electrical Systems
The WCED Type A High Immunity Curve C 20A 30mA RCBO from the WRB Range offers advanced protection by combining residual current and overcurrent protection in a single, compact device. This RCBO is designed to detect and respond to both AC and pulsating DC components, making it ideal for both domestic and commercial applications. It ensures that only faulty circuits are isolated, maintaining the integrity of your entire electrical system.
Key Features:
- Type A RCD Protection: Provides enhanced safety by detecting both AC and pulsating DC currents, ensuring comprehensive protection.
- Switched Live and Neutral: Fully isolates faulty circuits by disconnecting both live and neutral conductors, minimizing the risk of electric shock.
- Circuit Integrity: Ensures that only the faulty circuit is switched off, keeping healthy circuits in service and avoiding unnecessary disruption.
- Standard Compliance: Built to meet IEC61009-1 and EN61009-1 standards, guaranteeing reliable performance and adherence to safety regulations.
- Thermo-Magnetic Release Characteristic: Features a C curve, ideal for protecting circuits with moderate inrush currents.
Electrical Specifications:
- Rated Current (In): 20A, suitable for protecting medium-load circuits.
- Type: Electronic, offering reliable and precise protection.
- Rated Voltage (Ue): 230V, compatible with standard residential and commercial electrical systems.
- Rated Sensitivity (I∆n): 30mA, ensuring effective earth fault protection.
- Rated Breaking Capacity: 6kA, capable of safely interrupting high fault currents.
- Rated Residual Making and Breaking Capacity (I∆m): 3000A, ensuring reliability during fault conditions.
- Impulse Withstand Voltage (Uimp): 4000V, protecting against transient overvoltages.
- Break Time under I∆n: ≤0.1 seconds, providing a rapid response to faults.
- Dielectric Test Voltage: 2kV, confirming insulation strength and durability.
Mechanical Features:
- Electrical Life: 2,000 operations, ensuring long-term reliability.
- Mechanical Life: 10,000 operations, built for repeated use and longevity.
- Contact Position Indicator: Clearly displays the switch status, enhancing safety and ease of use.
- Protection Degree: IP20, providing protection against solid objects larger than 12.5mm.
- Ambient Temperature Range: -5°C to +40°C, suitable for various environmental conditions.
- Storage Temperature Range: -25°C to +70°C, ensuring safe storage.
- Mounting: Designed for easy installation on a standard DIN rail EN 60715 (35mm).
- Connection Type: Supports cable, U-type busbar, and pin-type busbar connections for flexible installation.
Benefits:
- Enhanced Safety: Ensures complete isolation of faulty circuits by switching off both live and neutral conductors, reducing the risk of electric shock.
- Efficiency: Saves time and money by eliminating the need to disconnect live and neutral conductors for insulation resistance testing.
- Durability and Reliability: Built with high-quality components to ensure long-term performance and reliable protection.
Why Choose WCED Type A High Immunity Curve C 20A 30mA RCBO?
The WCED Type A RCBO is an essential component for ensuring the safety and reliability of your electrical systems. Its advanced detection capabilities, combined with its switched live and neutral feature, provide unmatched protection for both residential and commercial installations.
