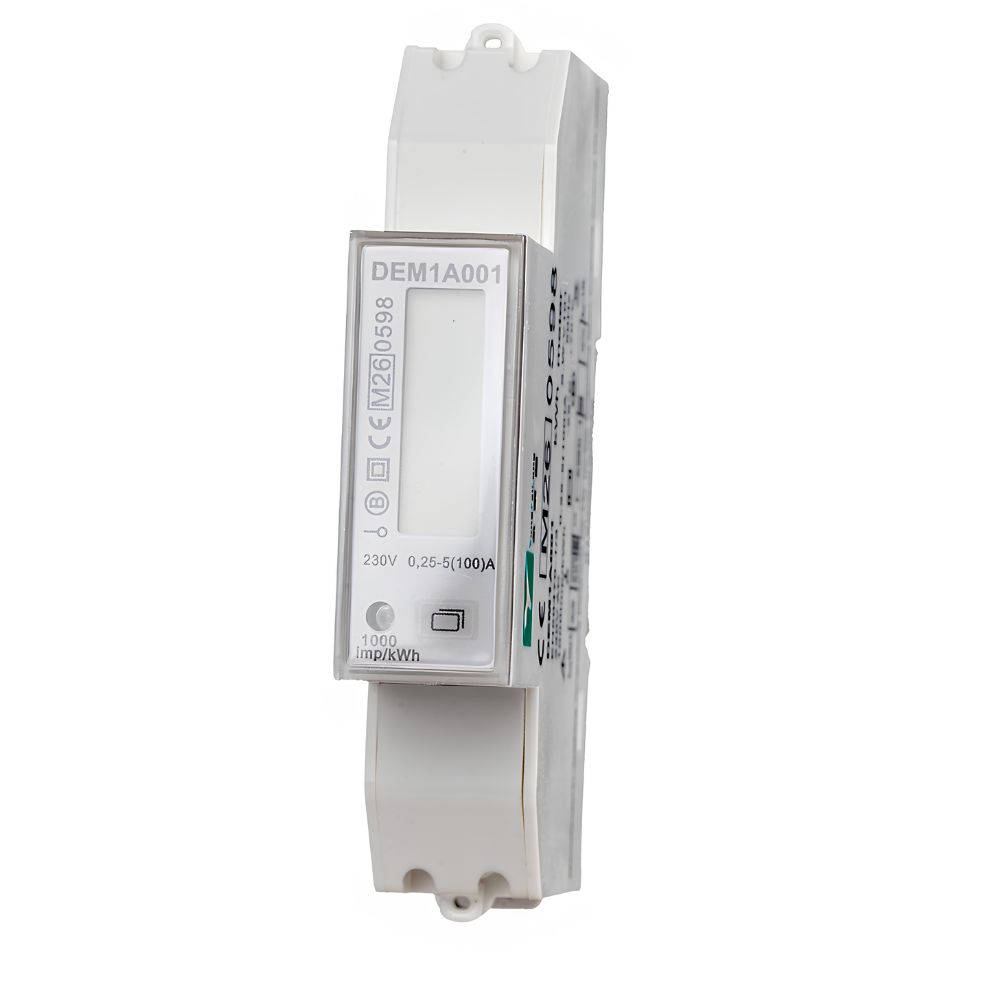

WCED DEM1A001 Bi-Directional Solar Meter for PV & Battery Storage Systems
The WCED DEM1A001 Bi-Directional Solar Meter is a compact 100A single phase energy meter designed for photovoltaic installations, hybrid battery storage systems and renewable energy applications. This WCED DEM1A001 Bi-Directional Solar Meter accurately measures both imported and exported energy, making it ideal for modern solar systems where energy flows in both directions.
Featuring MID B+D certification, the meter provides accurate monitoring of active and reactive energy consumption. The compact 18mm DIN rail mounted format allows quick installation inside consumer units and distribution boards while maintaining a professional finish.
Key Features – WCED DEM1A001 Bi-Directional Solar Meter
- 100A single phase bi-directional meter
- MID B+D certified
- Measures imported and exported energy
- Suitable for solar PV and battery storage systems
- SO pulse output with variable constant
- Measures active and reactive energy accurately
- Compact 18mm DIN rail design
- LCD 5+2 digit display
- IP51 indoor protection rating
- DIN rail mounted installation
Technical Specifications – WCED DEM1A001 Bi-Directional Solar Meter
- Brand: WCED
- Part Code: DEM1A001
- Meter Type: Single Phase Bi-Directional Meter
- Rated Current: Up to 100A
- Rated Voltage: 230V
- Frequency: 50Hz / 60Hz
- Accuracy Class: Class B
- Impulse Constant: 1000 imp/kWh
- Display: LCD 5+2 digit display
- Protection Rating: IP51 indoor
- Mounting: DIN Rail EN 60715 (35mm)
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +70°C
- Standards: EN50470-1/3
- Dimensions: 90 x 18 x 72mm approx.
Applications
The WCED DEM1A001 Bi-Directional Solar Meter is ideal for solar PV systems, hybrid battery storage installations and renewable energy applications requiring accurate import and export energy measurement. It is also suitable for replacing existing meters when retrofitting DC battery storage systems.
Why Choose WCED?
WCED renewable energy products are designed for modern electrical installations where reliable and accurate energy monitoring is essential. The DEM1A001 combines compact DIN rail mounting, MID-certified accuracy and bi-directional monitoring in a professional single module solution.
