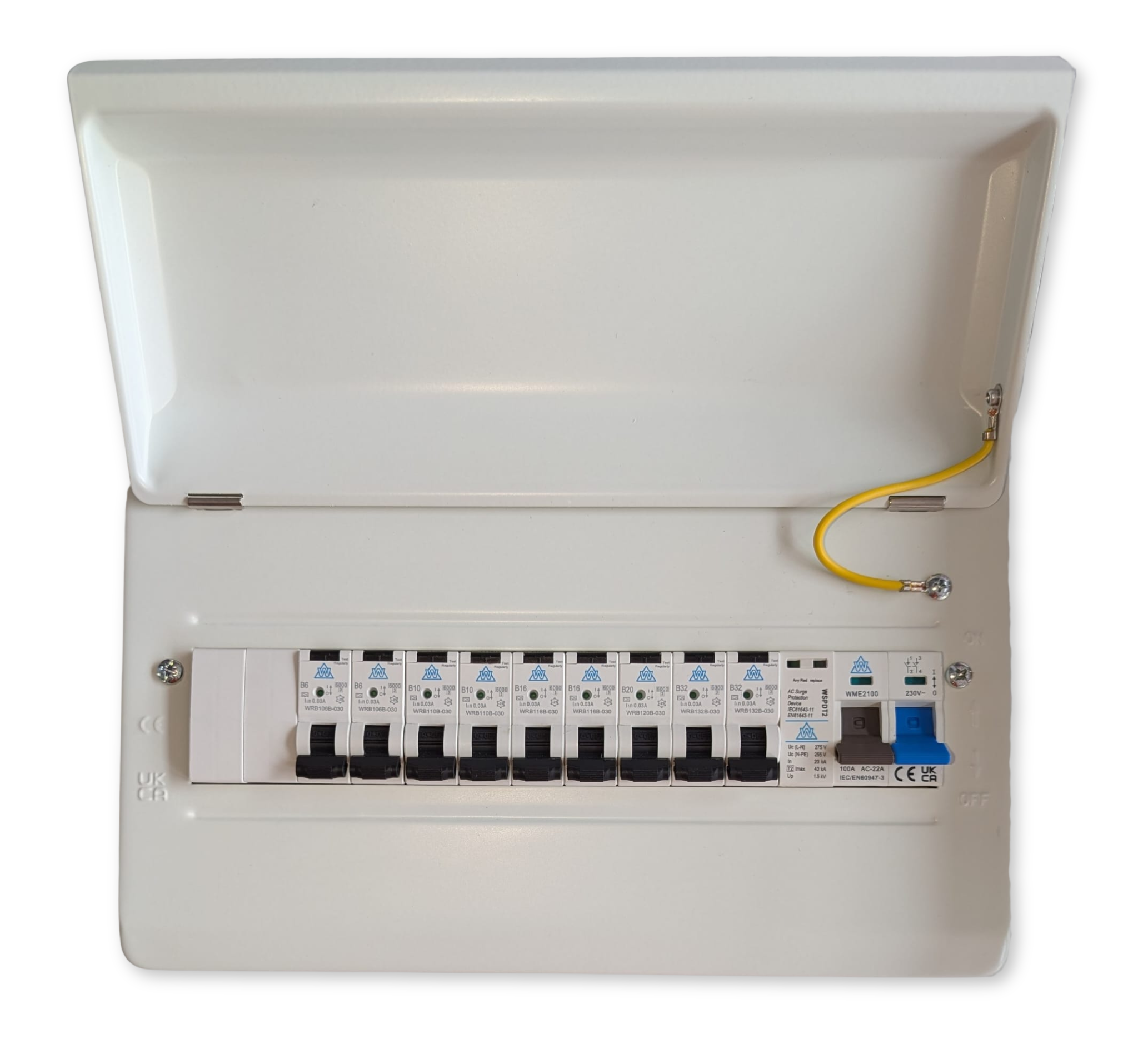

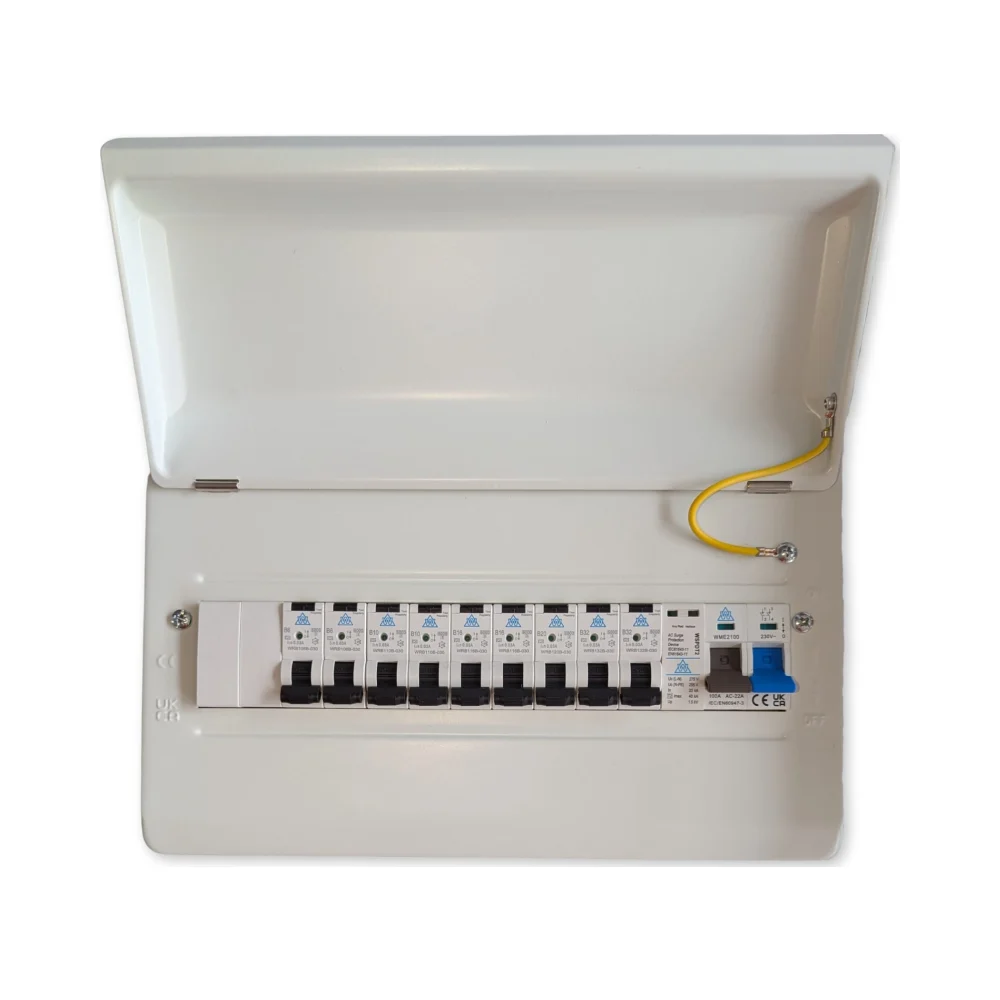

WCED Consumer Unit Kit with SPD and 9 RCBOs
WCED Whitecliffe WME14/SP/9RCBO
The WCED Consumer Unit Kit with SPD and 9 RCBOs is designed for medium to larger domestic and light commercial installations. Supplied with a 100A twin screw main switch, Type 2 surge protection, 9 WCED 6kA Type A Curve B bi-directional RCBOs and a meter tails cable gland, it provides reliable individual circuit protection in a robust metal enclosure.
The enclosure provides 11 usable ways, with 9 RCBOs supplied as standard and 2 blank ways retained for future expansion. Unless you request a different combination of available Curve B amperage ratings, the default RCBO configuration shown below will be dispatched.
Important – RCBO Selection and Default Configuration
This kit is supplied with 9 WCED 6kA Type A Curve B bi-directional RCBOs in our standard configuration unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or contact us immediately after placing your order.
If no alternative RCBO requirements are received, the default configuration shown below will be dispatched.
Default RCBO Configuration
- 2 × B6A Type A Bi-Directional RCBOs
- 2 × B16A Type A Bi-Directional RCBOs
- 2 × B20A Type A Bi-Directional RCBOs
- 3 × B32A Type A Bi-Directional RCBOs
This populated consumer unit kit is supplied with WCED 6kA Type A Curve B bi-directional RCBOs. Alternative available Curve B amperage ratings can be requested when ordering.
View the full WCED RCBO range for consumer units.
Included in the Kit
- WCED WME14/SP Metal Consumer Unit
14 module enclosure providing 11 usable ways. - 9 × WCED 6kA Type A Curve B Bi-Directional RCBOs
Supplied in the standard configuration unless alternative available Curve B ratings are requested. - 100A Twin Screw Double Pole Main Switch
- Type 2 SPD
Single-module surge protective device without the requirement for a separate MCB. - 2 × Blanking Plates
Provides spare capacity for future circuit additions. - Meter Tails Cable Gland Included
Supplied with a meter tails cable gland for neat and secure incoming cable entry.
Product Overview
The WCED WME14/SP/9RCBO combines an 11 way metal consumer unit with individual RCBO protection for 9 outgoing circuits. The 100A twin screw double pole main switch provides incoming isolation, while the Type 2 SPD adds surge protection for the installation.
The included WCED RCBOs are Type A, Curve B and bi-directional, providing individual residual current and overcurrent protection. Two unused ways remain available for future circuit additions.
Key Features
- 11 usable ways
- 9 WCED 6kA Type A Curve B bi-directional RCBOs included
- Default RCBO mix: 2×6A, 2×16A, 2×20A and 3×32A
- Alternative available Curve B ratings can be requested when ordering
- 100A twin screw double pole main switch
- Type 2 SPD included
- 2 blank ways for future expansion
- Meter tails cable gland included
- Robust metal enclosure
- Multiple cable entry knockouts
- Installer-friendly layout
Technical Specifications – WCED Consumer Unit Kit with SPD and 9 RCBOs
- Model: WME14/SP/9RCBO
- Modules: 14
- Usable ways: 11
- RCBO quantity: 9
- RCBO type: Type A, Curve B, bi-directional
- RCBO breaking capacity: 6kA
- Main switch: 100A Twin Screw Double Pole
- Surge protection: Type 2 SPD
- Blank ways: 2
- Dimensions: 304mm (W) × 240mm (H) × 112mm (D)
- Cable entries: 25mm and 32mm top and bottom, 40mm sides and rear, plus larger rear slots
- Meter tails cable gland: Included
- Enclosure: Metal
Ideal Applications
- Domestic rewires and consumer unit upgrades
- Medium and larger residential installations
- Light commercial installations
- Properties requiring multiple individually protected circuits
- Installations requiring spare capacity for future expansion
