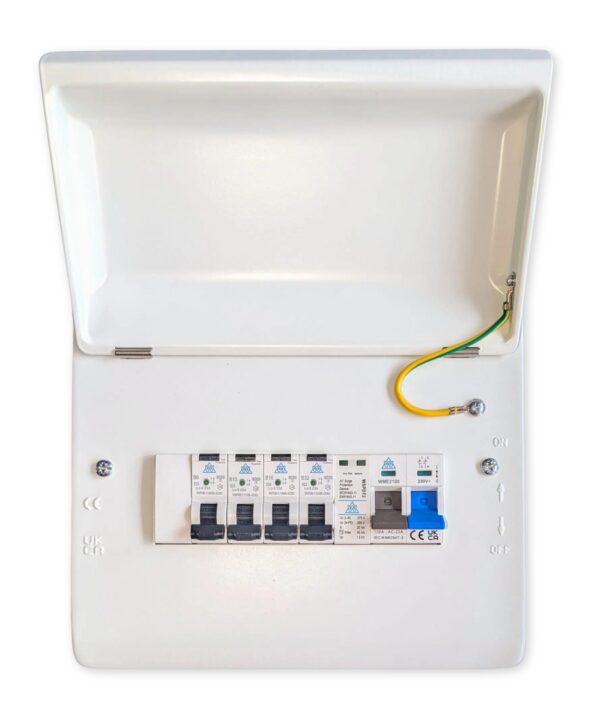

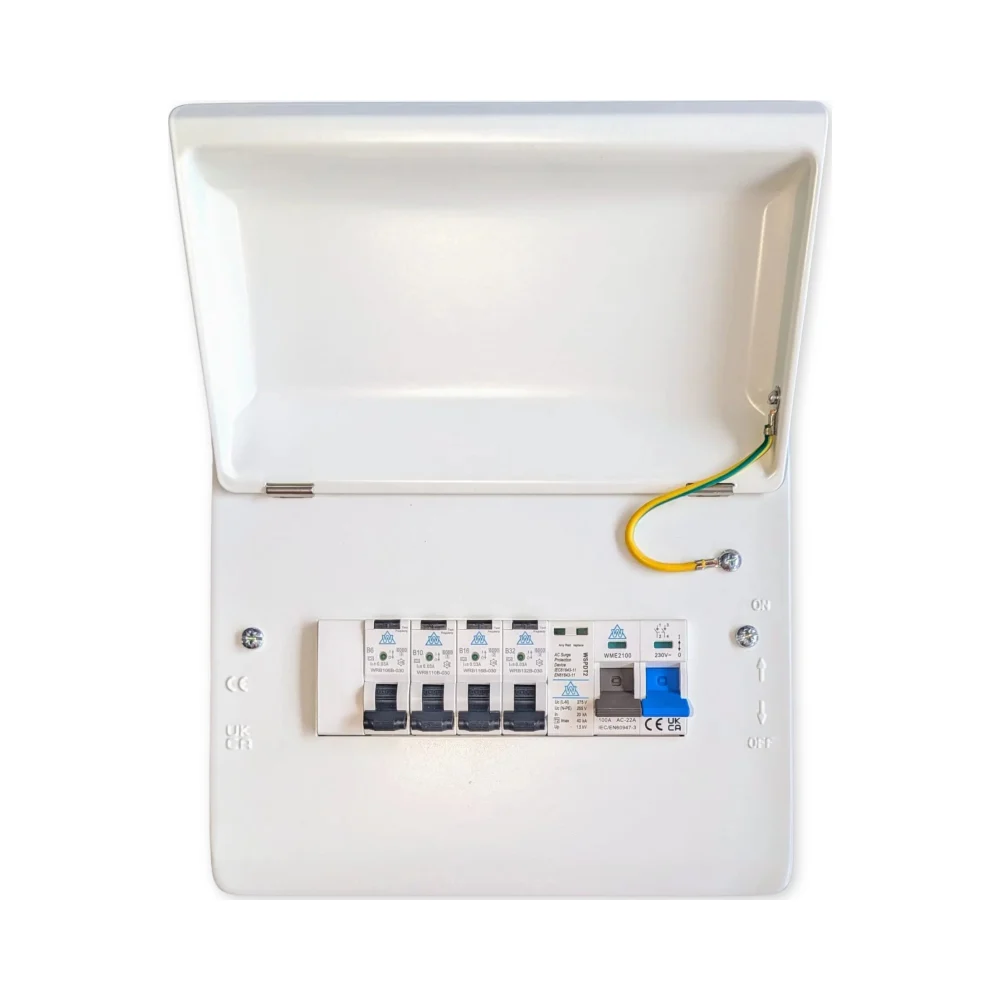

WCED Consumer Unit Kit with SPD and 4 RCBOs
WCED Whitecliffe WME8/SP/4RCBO
The WCED Consumer Unit Kit with SPD and 4 RCBOs is a compact populated consumer unit for domestic and light commercial installations. Supplied with a 100A twin screw main switch, Type 2 surge protection, 4 WCED 6kA Type A Curve B bi-directional RCBOs and a meter tails cable gland, it provides individual circuit protection in a durable metal enclosure.
The enclosure provides 5 usable ways, with 4 RCBOs supplied as standard and 1 blank way retained for future expansion. Unless you request a different combination of available Curve B amperage ratings, the default RCBO configuration shown below will be dispatched.
Important – RCBO Selection and Default Configuration
This kit is supplied with 4 WCED 6kA Type A Curve B bi-directional RCBOs in our standard configuration unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or contact us immediately after placing your order.
If no alternative RCBO requirements are received, the default configuration shown below will be dispatched.
Default RCBO Configuration
- 1 × B6A Type A Bi-Directional RCBO
- 1 × B16A Type A Bi-Directional RCBO
- 1 × B20A Type A Bi-Directional RCBO
- 1 × B32A Type A Bi-Directional RCBO
This populated consumer unit kit is supplied with WCED 6kA Type A Curve B bi-directional RCBOs. Alternative available Curve B amperage ratings can be requested when ordering.
View the full WCED RCBO range for consumer units.
Included in the Kit
- WCED WME8/SP Metal Consumer Unit
8 module enclosure providing 5 usable ways. - 4 × WCED 6kA Type A Curve B Bi-Directional RCBOs
Supplied in the standard configuration unless alternative available Curve B ratings are requested. - 100A Twin Screw Double Pole Main Switch
- Type 2 SPD
Single-module surge protective device without the requirement for a separate MCB. - 1 × Blanking Plate
Provides spare capacity for future circuit expansion. - Meter Tails Cable Gland Included
Supplied with a meter tails cable gland for neat and secure incoming cable entry.
Product Overview
The WCED WME8/SP/4RCBO combines a compact metal consumer unit with individual RCBO protection for 4 outgoing circuits. The 100A twin screw double pole main switch provides incoming isolation, while the Type 2 SPD adds surge protection for the installation.
The included WCED RCBOs are Type A, Curve B and bi-directional, providing individual residual current and overcurrent protection. One unused way remains available for future circuit additions.
Key Features
- 5 usable ways
- 4 WCED 6kA Type A Curve B bi-directional RCBOs included
- Default RCBO mix: 1×6A, 1×16A, 1×20A and 1×32A
- Alternative available Curve B ratings can be requested when ordering
- 100A twin screw double pole main switch
- Type 2 SPD included
- 1 blank way for future expansion
- Meter tails cable gland included
- Robust metal enclosure
- Multiple cable entry knockouts
- Compact design for smaller installations
Technical Specifications – WCED Consumer Unit Kit with SPD and 4 RCBOs
- Model: WME8/SP/4RCBO
- Modules: 8
- Usable ways: 5
- RCBO quantity: 4
- RCBO type: Type A, Curve B, bi-directional
- RCBO breaking capacity: 6kA
- Main switch: 100A Twin Screw Double Pole
- Surge protection: Type 2 SPD
- Blank ways: 1
- Dimensions: 160mm (W) × 240mm (H) × 112mm (D)
- Cable entries: 25mm and 32mm top and bottom, 40mm sides and rear, plus larger rear slots
- Meter tails cable gland: Included
- Enclosure: Metal
Ideal Applications
- Small domestic installations
- Consumer unit replacements
- Extensions and outbuildings
- Light commercial installations
- Installations requiring individually protected circuits
