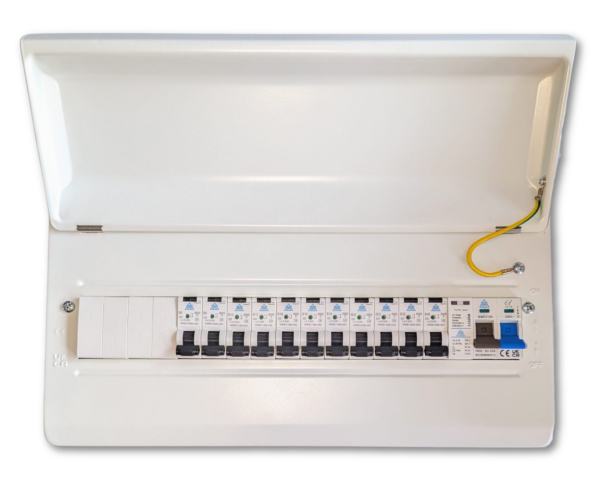

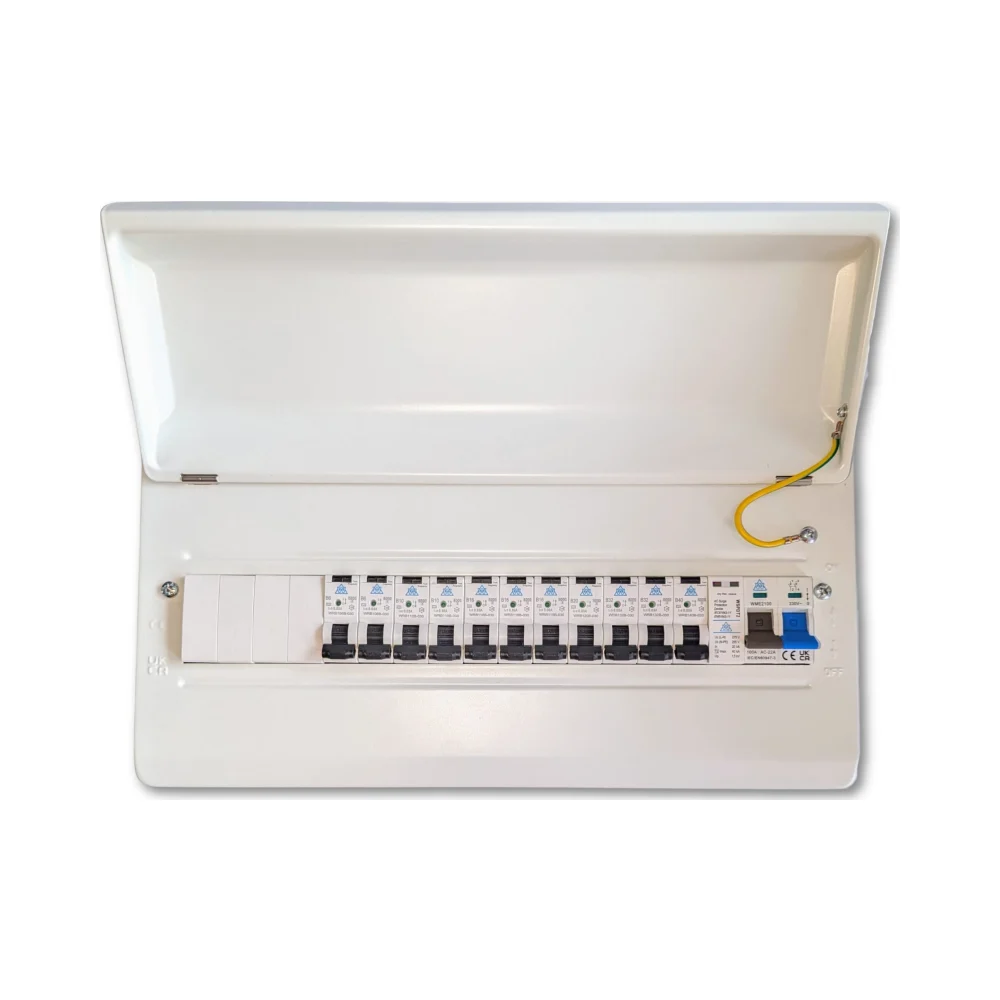

WCED Consumer Unit Kit with SPD and 11 RCBOs
WCED Whitecliffe WME18/SP/11RCBO
The WCED Consumer Unit Kit with SPD and 11 RCBOs is designed for larger domestic and light commercial installations requiring multiple individually protected circuits. Supplied with a 100A twin screw main switch, Type 2 surge protection, 11 WCED 6kA Type A Curve B bi-directional RCBOs and a meter tails cable gland, it provides a practical all-in-one consumer unit solution.
The enclosure provides 15 usable ways, with 11 RCBOs supplied as standard and 4 blank ways remaining for future expansion. Unless you request a different combination of available Curve B amperage ratings, the standard RCBO configuration shown below will be dispatched.
Important – RCBO Selection and Default Configuration
This kit is supplied with 11 WCED 6kA Type A Curve B bi-directional RCBOs in our standard configuration unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or contact us immediately after placing your order.
If no alternative RCBO requirements are received, the default configuration shown below will be dispatched.
Default RCBO Configuration
- 3 × B6A Type A Bi-Directional RCBOs
- 2 × B16A Type A Bi-Directional RCBOs
- 2 × B20A Type A Bi-Directional RCBOs
- 4 × B32A Type A Bi-Directional RCBOs
This populated consumer unit kit is supplied with WCED 6kA Type A Curve B bi-directional RCBOs. Alternative available Curve B amperage ratings can be requested when ordering.
View the full WCED RCBO range for consumer units.
Included in the Kit
- WCED WME18/SP Metal Consumer Unit
18 module enclosure providing 15 usable ways. - 11 × WCED 6kA Type A Curve B Bi-Directional RCBOs
Supplied in the standard configuration unless alternative available Curve B ratings are requested. - 100A Twin Screw Double Pole Main Switch
- Type 2 SPD
Single-module surge protective device without the requirement for a separate MCB. - 4 × Blanking Plates
Provides spare capacity for future circuit additions. - Meter Tails Cable Gland Included
Supplied with a meter tails cable gland for neat and secure incoming cable entry.
Product Overview
The WCED WME18/SP/11RCBO combines a spacious metal enclosure with individual RCBO protection for 11 outgoing circuits. Its 15 usable ways provide additional capacity for future expansion, while the 100A twin screw main switch provides incoming isolation and the Type 2 SPD adds surge protection for the installation.
The included WCED RCBOs are Type A, Curve B and bi-directional, making the kit suitable for modern installations where individual residual current and overcurrent protection is required.
Key Features
- 15 usable ways
- 11 WCED 6kA Type A Curve B bi-directional RCBOs included
- Default RCBO mix: 3×6A, 2×16A, 2×20A and 4×32A
- Alternative available Curve B ratings can be requested when ordering
- 100A twin screw double pole main switch
- Type 2 SPD included
- 4 blank ways for future expansion
- Meter tails cable gland included
- Robust metal enclosure
- Multiple cable entry knockouts
- Compact, installer-friendly design
Technical Specifications – WCED Consumer Unit Kit with SPD and 11 RCBOs
- Model: WME18/SP/11RCBO
- Modules: 18
- Usable ways: 15
- RCBO quantity: 11
- RCBO type: Type A, Curve B, bi-directional
- RCBO breaking capacity: 6kA
- Main switch: 100A Twin Screw Double Pole
- Surge protection: Type 2 SPD
- Blank ways: 4
- Dimensions: 376mm (W) × 240mm (H) × 112mm (D)
- Cable entries: 25mm and 32mm top and bottom, 40mm sides and rear, plus larger rear slots
- Meter tails cable gland: Included
- Enclosure: Metal
Ideal Applications
- Larger domestic installations
- Consumer unit replacements and upgrades
- Property rewires
- Light commercial installations
- Installations requiring multiple individually protected circuits
