Compact 9 Way SPD Consumer Unit for 18th Edition Installations

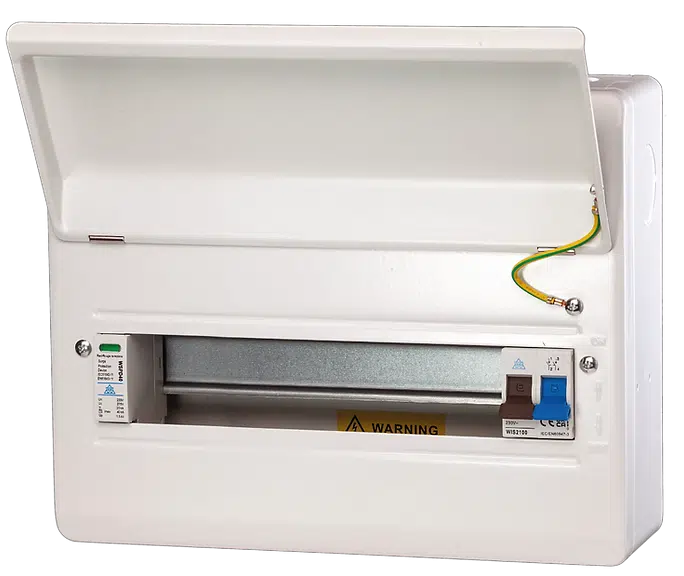

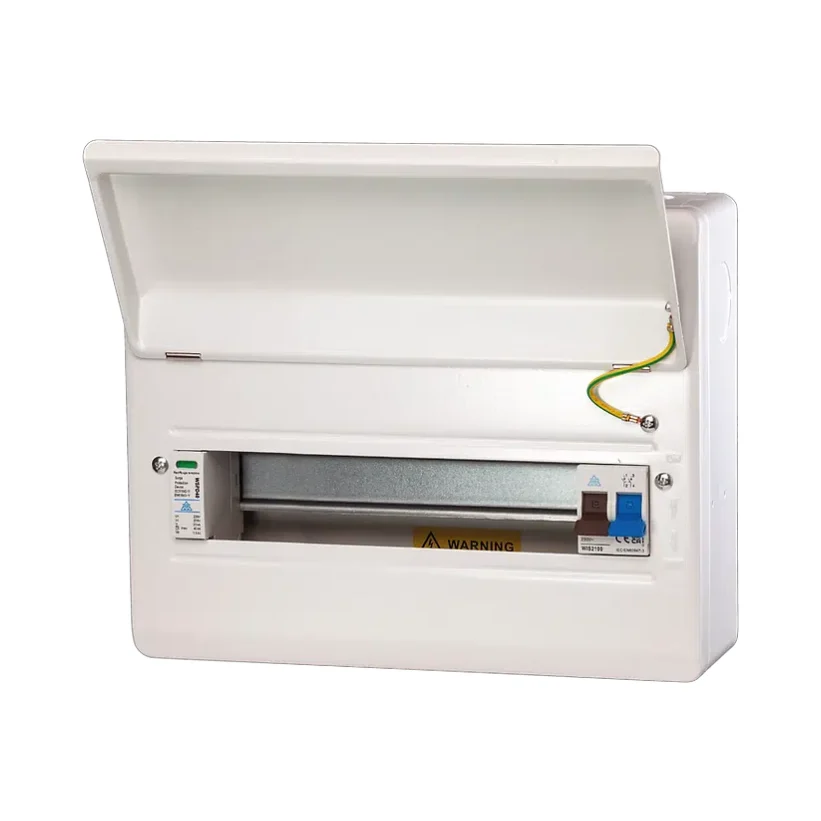

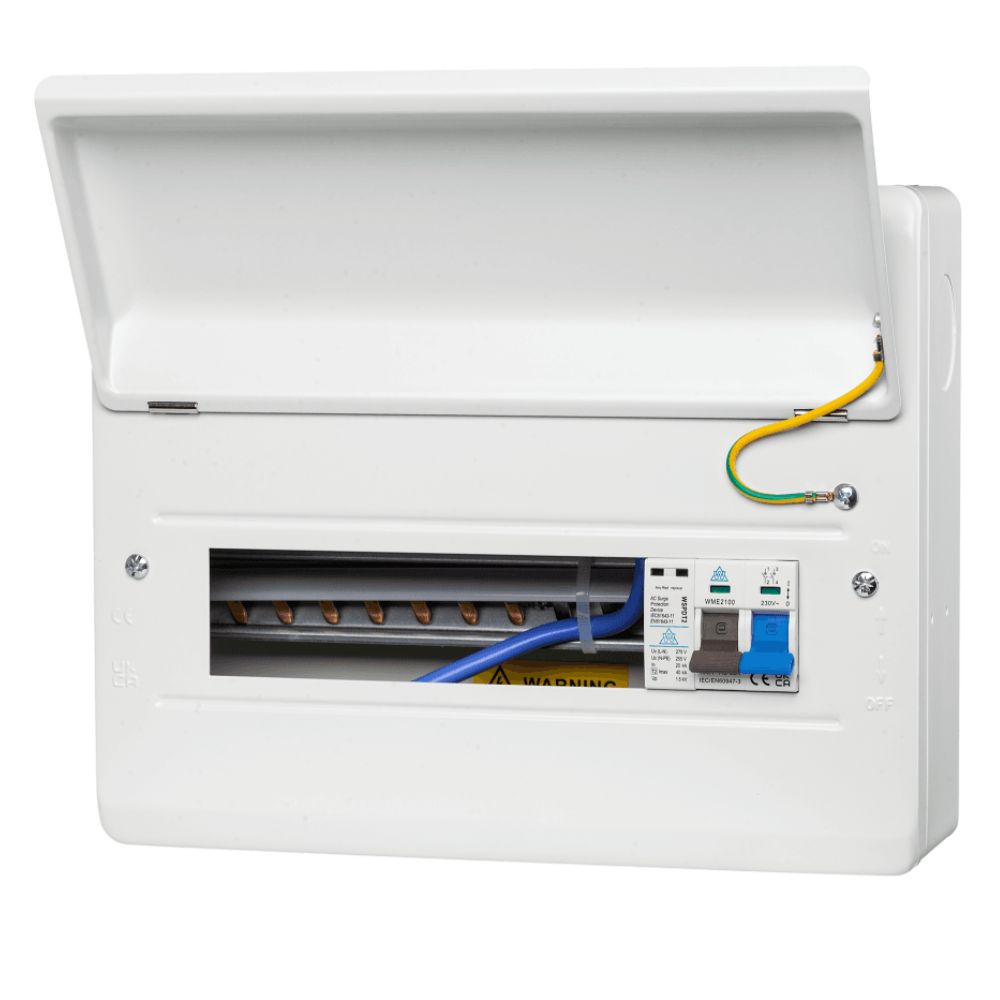

WCED 9 Way SPD Metal Consumer Unit
Upgrade your electrical installation with the WCED 9 Way SPD Consumer Unit. Designed for modern 18th Edition installations, this unit combines reliable electrical distribution with integrated surge protection for domestic and light commercial applications.
The durable metal enclosure features multiple circular cable entry knock-outs across the top, bottom, sides and rear, helping simplify installation and cable routing. Larger rear cable slots provide additional flexibility for internal wiring layouts and easier cable access.
This 12 module consumer unit with 9 usable ways is supplied with a 100A main switch and integrated Type 2 SPD, helping protect electrical systems against transient overvoltage and power surges. Compact dimensions of 305mm x 240mm x 112mm allow neat installation in smaller spaces while maintaining dependable protection and performance.
Key Features – WCED 9 Way SPD Metal Consumer Unit
- Durable metal consumer unit for 18th Edition installations
- Integrated Type 2 surge protection device
- 12 module enclosure with 9 usable ways
- Factory-fitted 100A main switch
- Multiple circular cable entry knock-outs
- 25mm and 32mm knock-outs on top and bottom
- 40mm knock-outs on sides and rear
- Larger rear cable slots for improved wiring access
- Compact design suitable for domestic and small commercial installations
Technical Overview – WCED 9 Way SPD Metal Consumer Unit
- Product code: WME12/SP
- Product type: SPD consumer unit
- Ways: 9 usable ways
- Modules: 12 module enclosure
- Main switch rating: 100A
- Integrated SPD: Type 2
- Top and bottom knock-outs: 25mm and 32mm
- Side and rear knock-outs: 40mm
- Dimensions: 305mm (W) x 240mm (H) x 112mm (D)
- Application: Domestic and light commercial electrical distribution
Why Choose This Product?
Choose the WCED WME12/SP when you need a compact SPD consumer unit with integrated Type 2 surge protection, flexible cable entry options and dependable 18th Edition compliant electrical distribution.
