Description

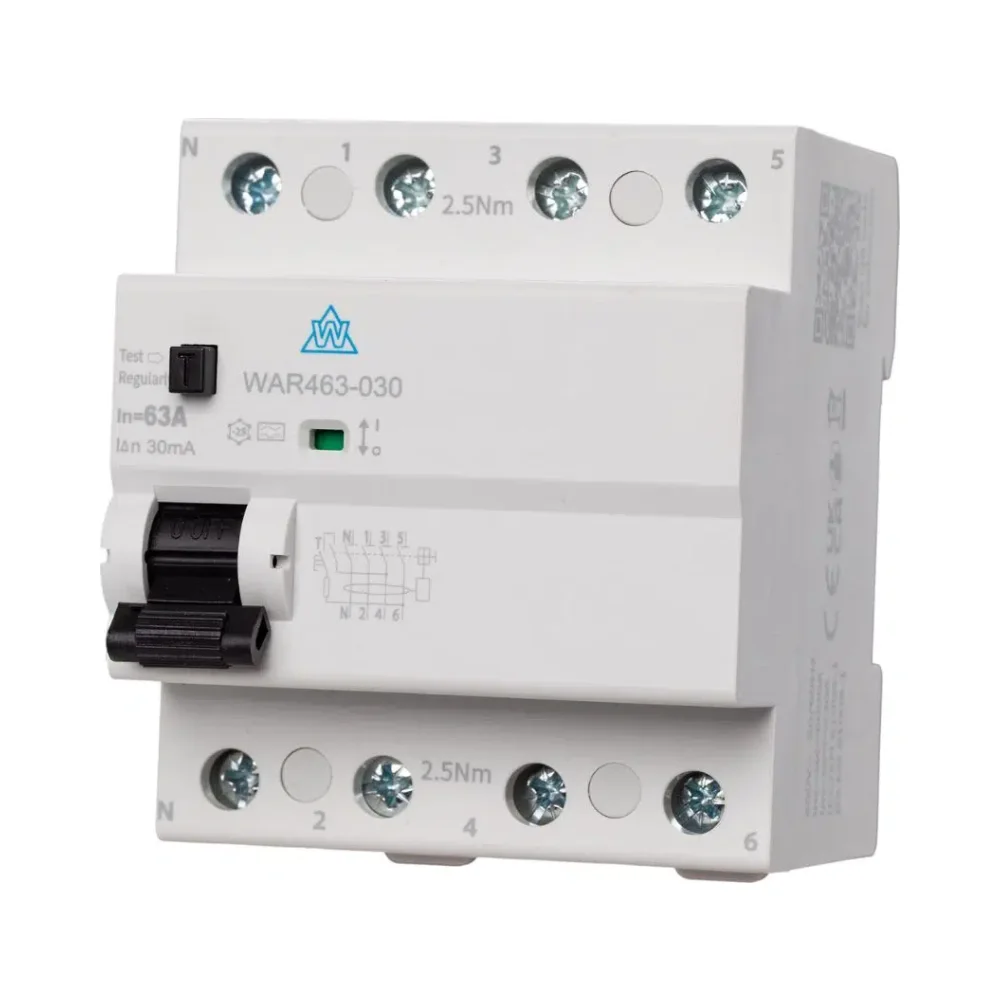

WCED 4 Pole 63A 30mA Type A RCD
High Immunity Type A Residual Current Device
The WCED Whitecliffe WAR463-030 is a high-performance Type A RCD designed to provide dependable residual current protection for commercial, industrial and three-phase electrical installations. Engineered to detect sinusoidal AC leakage currents and pulsating DC residual currents, this device helps protect users and property against electric shock and fire hazards.
Featuring 4 Pole 63A 30mA protection, the WAR463-030 is suitable for distribution boards and switchgear requiring reliable Type A protection. The Bi-Directional design makes this device suitable for modern energy systems where current flow direction may vary, including renewable and inverter-driven installations.
The high immunity electro-magnetic mechanism helps reduce nuisance tripping, making the WCED Bi-Directional 4 Pole 63A 30mA Type A RCD suitable for installations containing electronic equipment, Solar PV systems and EV charging applications. With a 6kA breaking capacity, IP20 protection and robust endurance ratings, this RCD delivers dependable long-term performance.
Key Features – WCED 4 Pole 63A 30mA Type A RCD
- Bi-Directional operation
- 63A rated current
- 30mA residual current sensitivity
- 4 Pole Type A RCD
- High immunity electro-magnetic mechanism
- Detects AC and pulsating DC residual currents
- Suitable for commercial and industrial installations
- 6kA breaking capacity
- IP20 protection rating
- Electrical endurance: 2000 cycles
- Mechanical endurance: 2000 cycles
- DIN rail mounted design
Technical Specifications – WCED 4 Pole 63A 30mA Type A RCD
- Brand: WCED Whitecliffe
- SKU: WAR463-030
- Device Type: Bi-Directional Type A RCD
- Poles: 4 Pole
- Rated Current: 63A
- Residual Current Rating: 30mA
- Voltage Rating: 400V
- Frequency: 50/60Hz
- Breaking Capacity: 6kA
- Protection Degree: IP20
- Electrical Life: 2000 cycles
- Mechanical Life: 2000 cycles
- Approx. Dimensions: 71.5 × 82 × 70mm
- Mounting: DIN rail EN 60715 (35mm)
- Operating Temperature: -5°C to +40°C
- Storage Temperature: -25°C to +70°C
- Standards: IEC61008-1 / BS EN61008-1
Why Choose WCED Whitecliffe?
WCED Whitecliffe protection devices are designed for reliable performance in modern electrical installations, providing dependable residual current protection for commercial, industrial and renewable energy applications. Electrical4Less supplies genuine WCED products with competitive pricing and fast UK delivery.
